Scan code: LN117378 Manufacturer code: MCF-MF700-KGNN-S00

CoolerMaster MasterFrame 700 Open-Air Case with Test Bench Mode

CoolerMaster MasterFrame 700 Open-Air Chassis/Test Bench, USB 3.2 Gen2, SSI-EEB/SSI-CEB/EE-ATX/E-ATX/ATX/mATX/mITX

Thumbnail 1 : CoolerMaster MasterFrame 700 Open-Air Case with Test Bench Mode Thumbnail 2 : CoolerMaster MasterFrame 700 Open-Air Case with Test Bench Mode Thumbnail 3 : CoolerMaster MasterFrame 700 Open-Air Case with Test Bench Mode Thumbnail 4 : CoolerMaster MasterFrame 700 Open-Air Case with Test Bench Mode
Scan code: LN117378 Manufacturer code: MCF-MF700-KGNN-S00
Order now and get it tomorrow, Wed 24th Jul
Get it Tomorrow, 24 JulIn stock
From £14.14 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £14.14
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £155.99
Total inc. interest: £169.57
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

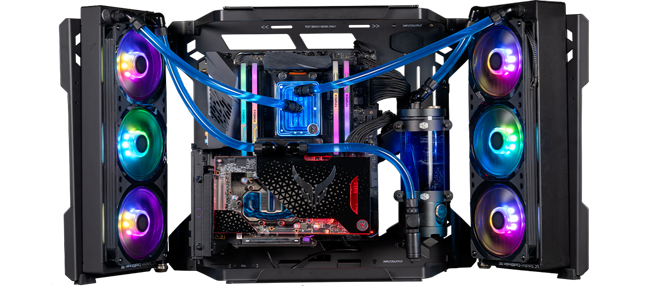

MasterFrame 700 Open-Air Chassis with Test Bench Design

CoolerMaster MasterFrame 700 Open-Air Chassis

In a Class by ItselfThe MasterFrame 700 is a highly customisable open-air frame that can convert between a showcase PC chassis or a highly flexible test bench. MasterFrame 700 features a 3-part design consisting of two side wings and a fully featured motherboard tray. Four specially-designed friction hinges hold the side wings to the motherboard tray, allowing both full range of motion during assembly and stability when built, perfect for custom water-cooling loops.

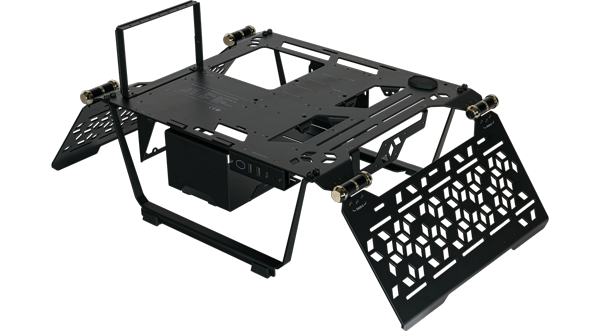

Transform into a Premium Test Bench

test bench mode

easy installation with foldable wing designThanks to its modular design, MasterFrame 700 can lay down horizontally and transform into an ultra-featured premium Test Bench. Cooling and power components are installed out of the way of the motherboard area for interference-free installation of components. The side wings can fold down towards the CPU socket and GPU areas to allow to localize the airflow to the components, especially useful when overclocking. The wings also serve as spots to hold triple-fan radiators and other accessories, and thanks to their full range of mobility, swapping components while keeping the cooling solution in place is now easier than ever.

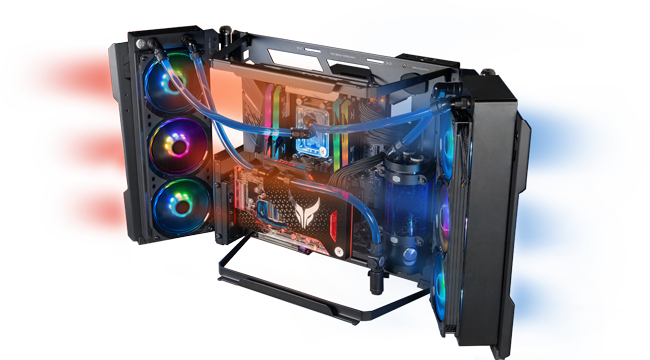

Open-Air Design for Extreme Airflow


impressive cooling performanceThe open-air nature of the design provides unrestricted access to fresh air to all components in the system. The optional fan mounts allow to further guide the airflow path to a specific intake/exhaust direction, thus preventing performance-robbing heat recirculation.

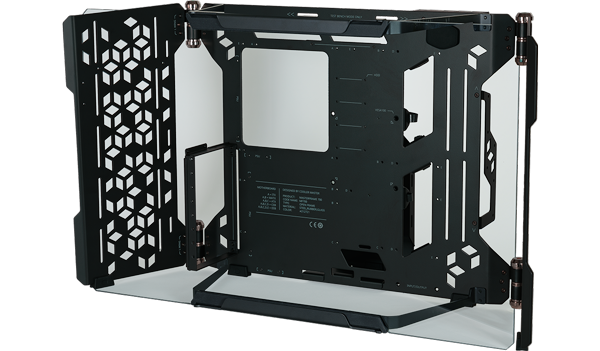

Unmatched Hardware Support

hardware support

new heights of compatibilityFor its size, MasterFrame 700 sports an unmatched level of hardware compatibility. It is designed to fit any component available, even oversized ones. Users can mount up to SSI-EEB motherboards, multiple power supplies and multiple radiators at the same time and still have room for triple slots GPUs and storage.

Take Cooling to New Heights


4mm SteelHollow pattern perforated steel.


I/O PanelFeaturing 2x USB 3.2 Type-A and 1x USB 3.2 Type-C ports.


Multiple SetupsSwitch between multiple setups.

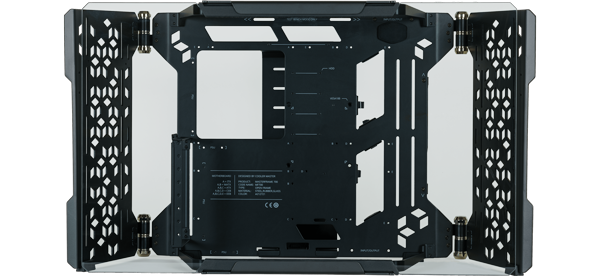

Get a Stunning View of Your System

tempered glass

panoramic tempered glassThe oversized panoramic tempered glass offers a greater viewing angle on the components of the system and, together with hardware-centric design of MasterFrame 700, it is the perfect way to showcase high-end components and custom cooling solutions. The MasterFrame 700 stands vertically to best display the components behind its panoramic tempered glass screen. The chassis offers an unmatched level of hardware compatibility, allowing for easy-fitting of oversized components.

Build a Completely Unique System

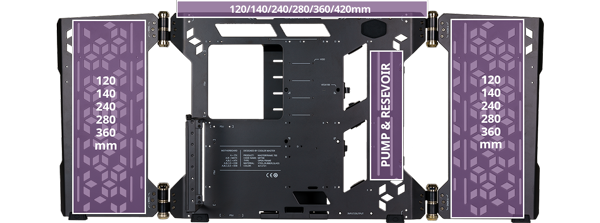

Extreme Water-CoolingWith MasterFrame 700 users are able to install up to 2x 280/360mm radiators in "Open-Air" mode (on the two side wings) and a third 360/420mm radiator, while in "Test-Bench" mode, in the proximity of the CPU socket. The support for pumps and reservoirs on the right side of the motherboard tray allows to natively mount most of the solutions on the market, maintaining a high level of freedom with regard to the placement.

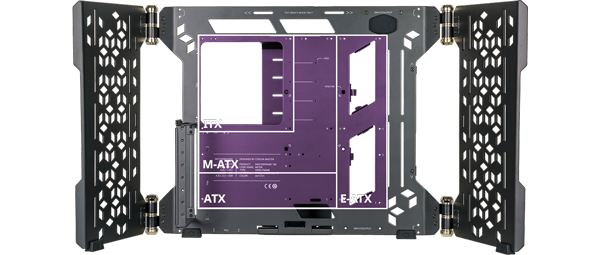

mount any motherboardCooler Master's goal is to provide a limitless experience in hardware support. MasterFrame 700 allows you to mount any motherboard in the consumer market, even going so far as to support 14x14" SSI-EEB motherboards. If SSI-EEB motherboards are installed the support for the pump and radiator is covered, but when using any other motherboard format the support remains present and accessible. Double support for ATX power supplies is available on the back, for systems that need double power supply and to cover every need during extreme overclocking sessions.

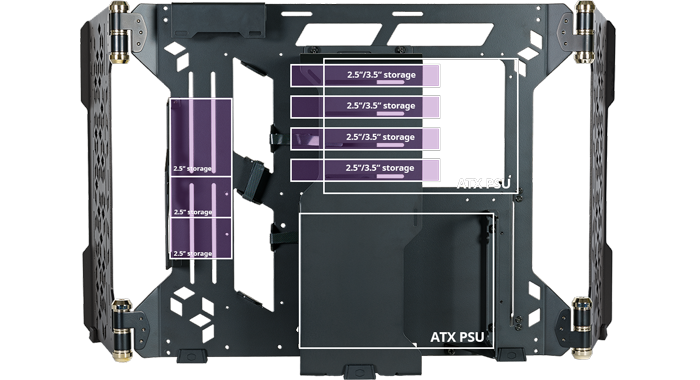

A fully tool less systemMasterFrame 700 introduces an innovative, fully tool less system that allows you to mount up to 4x 3.5" drives and up to 7x 2.5" drives. It is also possible to mount up to 2x 280/360mm radiators in "Open-Air" mode on the two side wings and a third radiator up to 360/420mm in "Test-Bench" mode. The support for pumps and reservoirs allows to natively mount most of the solutions on the market, maintaining a high level of freedom with regard to the placement.

Showcase Your Custom Loops and High-end Components

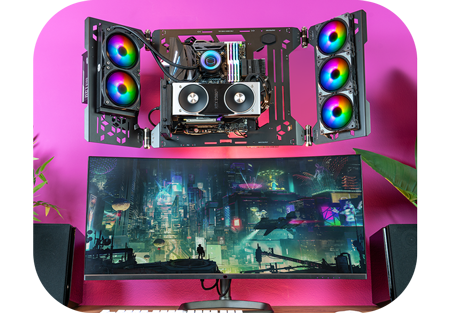

vesa mount

Vesa Mount CompatibleThe MasterFrame 700 features 100mm x 100mm VESA mount compatibility, allowing it to be wall-mounted. Perfect to showcase custom loops and high-end components. It is highly recommended to only wall mount full systems below 14Kg in total and check VESA weight standards.

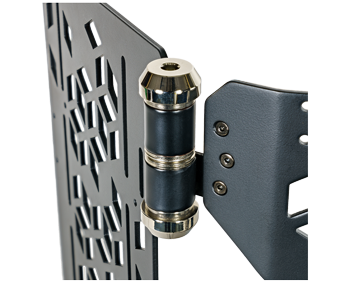

Premium Variable Friction Hinges


flexible repositioningHeavy duty hinges hold the side wings to the mid-frame and allow for smooth repositioning at any angle depending on the user’s needs. Allen keys are included to adjust the tension of the hinges to make it easier to move or allow the side wings to hold heavier parts. This level of flexibility is a key factor for users creating extremely unique water-cooling loops and setups.

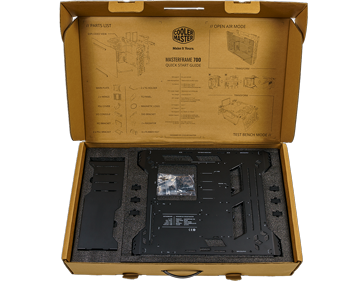

Designed for Customization


3-parts frameThe MasterFrame 700 is designed with customization in mind. The 3-parts frame can be easily disassembled easily for painting, wrapping and other modifications.

Cooler Master MasterFrame 700 – Build. Unparalleled.

video image
Core Chassis Specifications
Case Edition MasterFrame 700
Case Form Factor
Motherboard Form Factor
  • ATX
  • E-ATX
  • Enhanced E-ATX
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 7 x 2.5" Internal
  • 4 x 2.5"/ 3.5" Internal
Standard Expansion Slots 8
Vertical Expansion Slots
Fans & Filters
Fan Bays 6 x 120mm / 4x 140mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 120/140/200/240/280/360mm
Max CPU Cooler Height 158 mm
Max GPU Card Length 450 mm
Cable Routing Space 100 mm
Side Panels
Window/s Yes
Window Configuration 1 x Front
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 210 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials Steel
Dimensions 306 x 410 x 702 (WxHxD mm)
Package Type
Please Note
Additional Information
Scan Code LN117378
Model Number MCF-MF700-KGNN-S00
GTIN 4719512115152

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
