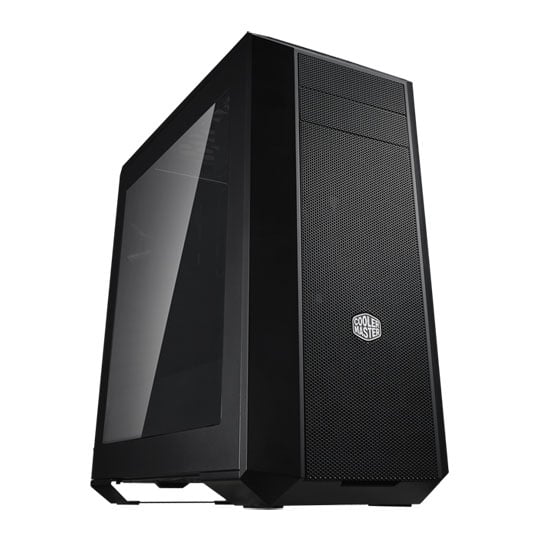

Cooler Master MasterCase Pro 5 Chassis - Dark Metallic Grey

Cooler Master MasterCase Pro 5 FreeForm Modular Case with Side Window, 7x Expansion Slots, USB 3.0, 3x 140mm Fans Inc

Cooler Master
Scan code: LN65978 Manufacturer code: MCY-005P-KWN00 Request call
£128.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £11.50 By DPD On 9th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The World's First Mid-Sized Modular Tower with Exterior Expandability. The MasterCase 5 allows you to have absolute control over how your case looks and functions, and that means giving you the option to adjust the exterior structure and aesthetic via a range of replacement panels and doors. Each choice changes the look and feel of the case, but also the flexibility of the interior layout. Leveraging our unique clip-and-click panel design, FreeForm lets users vertically adjust or entirely remove drive cages, allowing for multiple system configurations. Features • FreeForm Modular System gives unparalleled flexibility to upgrade case via the addition of top panels or an expanded door, adjusting aesthetics and opening options to alter and augment interior configurations in the process.
• FreeForm enables you to vertically adjust or entirely remove drive cages via an intuitive clip-and-click panel, opening unparalleled flexibility to integrate replacement accessories like fans, water cooling reservoirs or even extra-long graphics cards.
• FreeForm gives you the option to install three front-mounted 140mm fans and a 280mm radiator for unmatchable ventilation due to a unique facility to horizontally shift the bottom-mounted HDD drives.
• FreeForm allows up to six 140mm fans through the case, as well as a top 240mm radiator when expanded via addition of top panels.
• Built for performance - Supports up to three dual-slot extra-long graphics cards, including 13.5-inch cards.
• Slip-and-clip SSD pockets - 2 easy to install 2.5- inch brackets with 4 mounting positions, two hidden behind the motherboard and two on top of the partition.
• Dual chamber design - Splits the case via a partition panel that isolates the PSU, and keeps drive cages separate for clean, customizable cable management.
• The World's First Mid-Sized Modular Tower with Exterior Expandability. The MasterCase 5 allows you to have absolute control over how your case looks and functions, and that means giving you the option to adjust the exterior structure and aesthetic via a range of replacement panels and doors. Each choice changes the look and feel of the case, but also the flexibility of the interior layout. Leveraging our unique clip-and-click panel design, FreeForm lets users vertically adjust or entirely remove drive cages, allowing for multiple system configurations.
Specifications
Specifications
Case Edition MasterCase Pro 5
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • Micro ATX
  • Mini ITX
Material SECC
Front/ Side/ Top Panel
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 5 x 3.5" Internal
  • 2 x 5.25" Internal
Expansion Slots 7
Fan Bays
  • 2 x 120/140 mm
  • 1 x 120mm
  • 4 x 140mm
Fans Included 3 x 140mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 190 mm
Max VGA Card Length 412 mm
Colour Dark Grey
Dimensions 235 x 512 x 548 (WxHxD mm)
Weight 10.7 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Rated 5 out of 5 by 1 reviewer.
Rated 5 out of 5 by top case this case is exactly what i wanted it to be. fits all my bits, looks good (imo) and will take watercooling when i get round to it 17 February 2016
  • 2016-05-20 T12:53:05.018-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_65978, prod, sort_default
1-1 of 1
Questions & Answers
(3 Questions : 2 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

Is the side window on this case tinted or clear?

I was wondering if the side window on this case is tinted or just a clear window? The pictures make it a little hard to tell because of the angle and the inside of the case being black.
Age: 18 to 24
Gender: Male
5 months, 3 weeks ago
Customer avatar
by
Edinburgh, UK
Read all my Q&A

Please wait while more information about FatherPootis is loaded.
Additional information about FatherPootis could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hello,

This is a clear window.

Thanks,
5 months, 3 weeks ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Has staff answer
Has expert answer

1 answer

Does this case support a 280mm top mounted radiator?

I am interested in installing an a liquid cooler for my cpu, likely a H110(...) or a NZXT X61 Kraken and would preferably be mounting the radiator on the top and was wondering if this case supports this?
Age: 18 to 24
Gender: Male
6 months ago
Customer avatar
by
Edinburgh, UK
Read all my Q&A

Please wait while more information about FatherPootis is loaded.
Additional information about FatherPootis could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hello,

Yes this would fit a 280mm Radiator.

Thanks,
6 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
ie: 140 mm fan in top of case
5 months ago
Customer avatar
by
Hunwick, County Durham, UK
Read all my Q&A

Please wait while more information about colinsmith52 is loaded.
Additional information about colinsmith52 could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
