Scan code: LN107783 Manufacturer code: MCB-D500D-WGNN-S01

Cooler Master MasterBox TD500 Mid Tower Windowed PC Case

Cooler Master MasterBox TD500 Mesh, White, Mid Tower /w Tempered Glass Window, 120mm Fans, USB 3.2, mITX/mATX/ATX/E-ATX

Thumbnail 1 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case Thumbnail 2 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case Thumbnail 3 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case Thumbnail 4 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case
Scan code: LN107783 Manufacturer code: MCB-D500D-WGNN-S01
£79.99Item due today
Due today
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

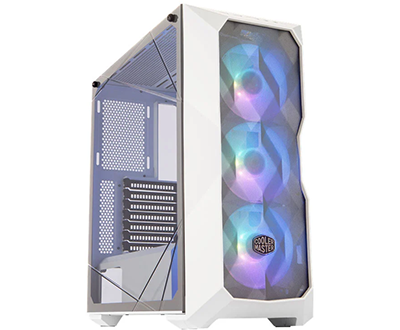

MasterBox TD500 White Mid Tower PC Case from Cooler Master

masterbox td500 white

Clarity, Cut, & ARGB The E-ATX MasterBox TD500 Mesh White takes airflow performance and turns it into an art form. Powered by three pre-installed ARGB fans, airflow is fed through a geometric, three-dimensional mesh front panel into a system viewed from a crystal-clear tempered glass side panel. The Crystalline Tempered Glass side panel is precision engineered for both its toughness and its aesthetics through CNC machining. Polygonal Mesh takes its form from Cooler Master’s Fine Mesh technology, simultaneously providing high airflow, dust filtration, and a strengthened structure. With advanced technology set firmly into fine art, the MasterBox TD500 Mesh White carves its own path to the bleeding edge.

Enjoy Innovative Case Design

polygonal design

POLYGONAL MESHCrafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration.

View all of your High-End Components

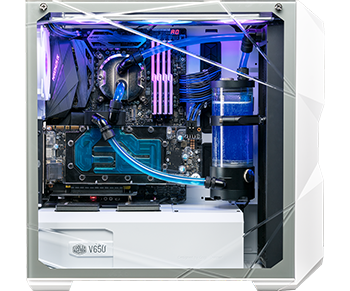

glass side panel

CRYSTALLINE TEMPERED GLASSA crystalline design spans the edges of the tempered glass side panel, precision-engineered for strength as well as aesthetics, elevating how builds and system lighting interact with the design. Show off your high-end components that any PC enthusiast will envy.

Illuminate your Rig with Stunning Colour

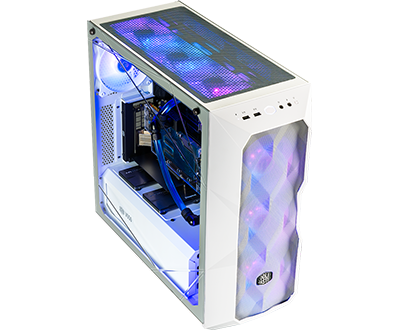

rgb lighting

TRIPLE ARGB FANSThree addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system. Utilise support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards.

Versatile Cooling Options

fans and radiators

EXTENSIVE FAN AND RADIATOR SUPPORTFor enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool. Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

Flexible Space for your Dream Components

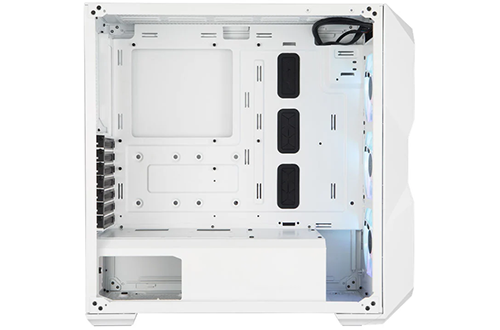

components clearance

ROOM FOR UPGRADESSupport for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.

Control your Lighting with Ease

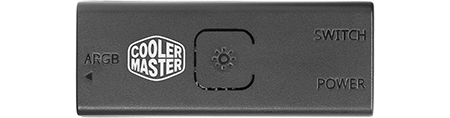

argb controller

ARGB CONTROLLER​ ​The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.​

The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.​

It's' also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.

Specifications
Core Chassis Specifications
Case Edition TD500
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (Upto 12" x 10.7")
  • MicroATX
  • Mini-ITX
  • SSI CEB
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x ARGB Control Button
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 2 x USB 3.2 Gen1 Type-A
Drive Bays
  • 4 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120mm / 4x 140mm
Fans Included 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/240/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 410 mm
Cable Routing Space 19 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Front Panel Addressable RGB LED Lighting
LED Lighting Colour RGB (16.7 Million Colours)
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic
Dimensions 217 x 469 x 493 (WxHxD mm)
Weight 6.95 kg (Approx)
Please Note
Additional Information
Scan Code LN107783
Model Number MCB-D500D-WGNN-S01
GTIN 4719512095546
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Telephone:
0871 472 4747
Cooler Master MasterBox TD500 Mesh, White, Mid Tower /w Tempered Glass Window, 120mm Fans, USB 3.2, mITX/mATX/ATX/E-ATX is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Super Case Stylish and plenty of room for everything, one of the best cases I have purchased.
Date published: 2020-07-20
Rated 5 out of 5 by from Cool-Looking case Got this case as my first custom build, what can I say apart from it looks super cool! easy access pannels and plently of room for my GTX 2070 super GPU. The 3 fans at the front push plenty of positive airflow into the case allowing my componants to stay cool. You do have to get an exhaust fan for the rear. Which I got the Corsair LL120 LL RGB. Be mindful if you wish to add more Corsair RGB fans, get the Corsair control hub + lead to fit into the JCORSAIR1 connection on your specific motherboard (mines the MSI B450 Gaming Pro Carbon AC). Highly reccomended case _+ service from SCAN is 5* and speedy delivery! THANKS
Date published: 2020-07-17
