Scan code: LN107782 Manufacturer code: MCB-D500D-KGNN-S01

Cooler Master MasterBox TD500 Mid Tower Windowed PC Case

Cooler Master MasterBox TD500 Mesh, Black, Mid Tower /w Tempered Glass Window, 120mm Fans, USB 3.2, mITX/mATX/ATX/E-ATX

Thumbnail 1 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case Thumbnail 2 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case Thumbnail 3 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case Thumbnail 4 : Cooler Master MasterBox TD500 Mid Tower Windowed PC Case
Scan code: LN107782 Manufacturer code: MCB-D500D-KGNN-S01
£79.99Item due on 30 September 2020
Due 30th Sep
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

MasterBox TD500 Black Mid Tower PC Case from Cooler Master

masterbox td500 black

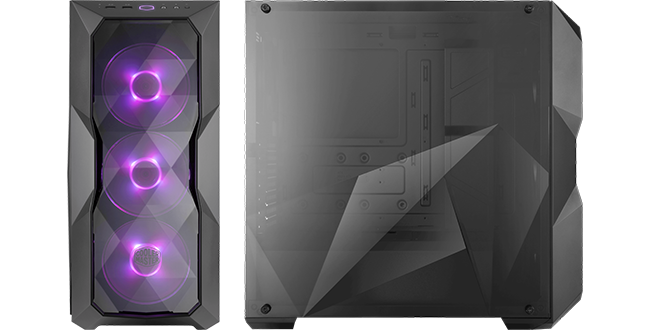

Clarity, Cut, & ARGB Design of the E-ATX MasterBox TD500 Mesh adds a new dimension to PC lighting through contour and form, providing custom-built systems a presentation beyond flat, two-dimensional panels. The Crystalline Tempered Glass side panel features a design that interacts with component lighting, precision engineered for both its toughness and its aesthetics through CNC machining. Polygonal Mesh takes its form from Cooler Master’s Fine Mesh technology—simultaneously providing high airflow, dust filtration, and a strengthened structure. Lighting from the three included ARGB fans respond to the contour of the mesh depending on the viewing angle. Advanced technology is set firmly into fine art as the MasterBox TD500 Mesh carves its own path to the bleeding edge.

Enjoy Innovative Case Design

diamond cut design

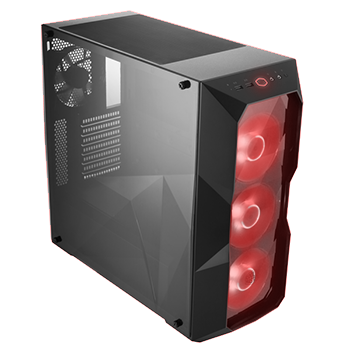

AESTHETIC DIAMOND CUT DESIGNThe diamond cut pattern extending from the front panel to the side panel shows a unique lighting effect for your system build that any PC enthusiast will envy.

View all of your High-End Components

glass side panel

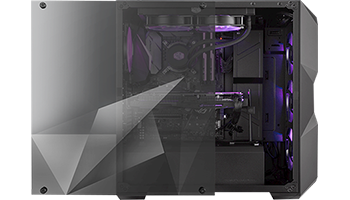

EDGE TO EDGE TRANSPARENT SIDE PANELShow off your build through the uniquely shaped edge to edge transparent side panel and enjoy the special lighting effects from different viewing angles.

Super Easy Cable Management for Clean Builds

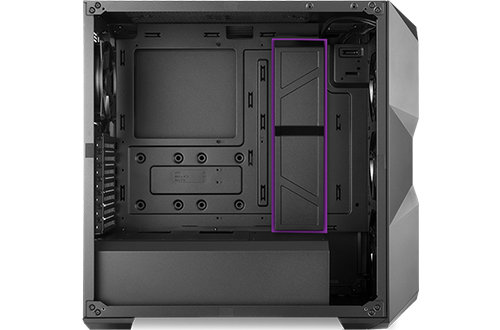

COVERS FOR CLEAN BUILDSAn additional cable covers take cable management to the next level. Assemble clean builds like a pro.

with cover

without cover

Versatile Cooling Options

fans and radiators

EXTENSIVE FAN AND RADIATOR SUPPORTEnjoy superior cooling performance that doesn't compromise on performance with extensive space for fans and radiators.
Top: Two 120mm or two 140mm fans and a 120/240mm radiator.

Flexible Space for your Dream Components

components clearance

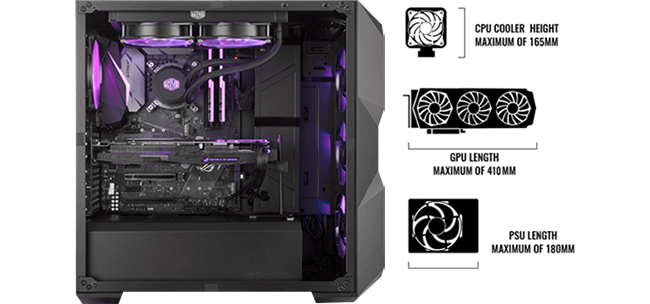

MAIN COMPONENTS CLEARANCEThe MasterBox TD500 supports CPU-Coolers up to a height of 165mm, graphics cards up to a length of 410mm, and power supplies up to a length of 180mm.

Expand your Building Possibilities

motherboard space

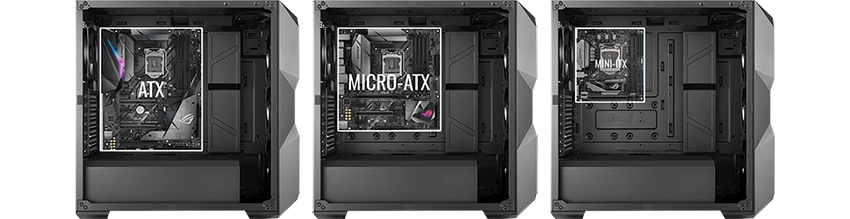

SPACIOUS INTERIOR FOR ANY MOTHERBOARDThe spacious interior fits all standard motherboards for your system needs. Let your configuration stand out with an all-black background and shine above the rest.

Specifications
Core Chassis Specifications
Case Edition TD500
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (Upto 12" x 10.7")
  • MicroATX
  • Mini-ITX
  • SSI CEB
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x ARGB Control Button
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 2 x USB 3.2 Gen1 Type-A
Drive Bays
  • 4 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120mm / 4x 140mm
Fans Included 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/240/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 410 mm
Cable Routing Space 19 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Front Panel Addressable RGB LED Lighting
LED Lighting Colour RGB (16.7 Million Colours)
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic
Dimensions 217 x 469 x 493 (WxHxD mm)
Weight 6.95 kg (Approx)
