New
Scan code: LN92766 Manufacturer code: MCB-B530P-KHNN-S01

CoolerMaster MasterBox MB530P RGB Glass Midi PC Gaming Case

Cooler Master MasterBox MB530P, Addressable RGB Mid Tower PC Case, Tempered Glass Windows, ATX~mITX, 3x 120mm ARGB Fans

Thumbnail 1 : CoolerMaster MasterBox MB530P RGB Glass Midi PC Gaming Case Thumbnail 2 : CoolerMaster MasterBox MB530P RGB Glass Midi PC Gaming Case Thumbnail 3 : CoolerMaster MasterBox MB530P RGB Glass Midi PC Gaming Case Thumbnail 4 : CoolerMaster MasterBox MB530P RGB Glass Midi PC Gaming Case
Scan code: LN92766 Manufacturer code: MCB-B530P-KHNN-S01
£109.99Item due on 31 October 2018
Pre order
From £9.88 / month (APR 14.9%)
Monthly Payment: £19.09
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £114.51
Monthly Payment: £9.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £118.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

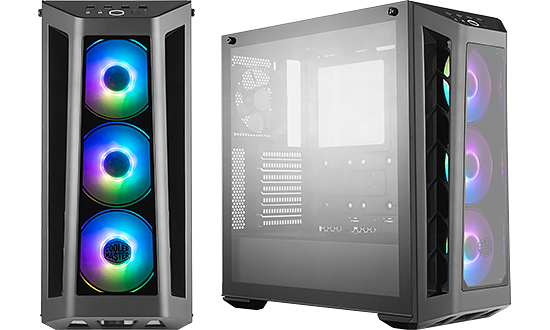

Product Overview The MasterBox MB530P utilizes the aggressive intakes seen on the MB510L, MB511, and MB520, but employs glass on both of the side panels and the front panel. The application of glass was put in place to support the display of addressable RGB fans included with the chassis.

Three ARGB fans, an ARGB control button, and a system that is compatible with other popular ARGB components mean each component will be presented through the front and side panels with clarity.

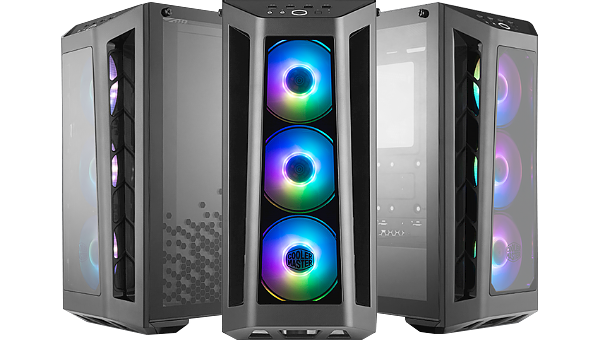

The choice in what to display and how clean it looks depends a lot on the covers available. For that, the PSU cover, cable covers, and clean routing space act as a system to manage which components should be displayed and which should stay hidden. There is also a honeycomb pattern on the side panel behind the motherboard; this textured pattern hides the PSU with an aesthetic accent. Features 3 Tempered Glass Panels
The front and side panel offer a clear view of the front fans and system configuration, while the panel behind the motherboard is patterned tempered glass to hide the open side of the PSU.

Addressable RGB Fans
Three pre-installed 120mm addressable RGB fans behind the front panel compliments components for a comprehensive lighting system

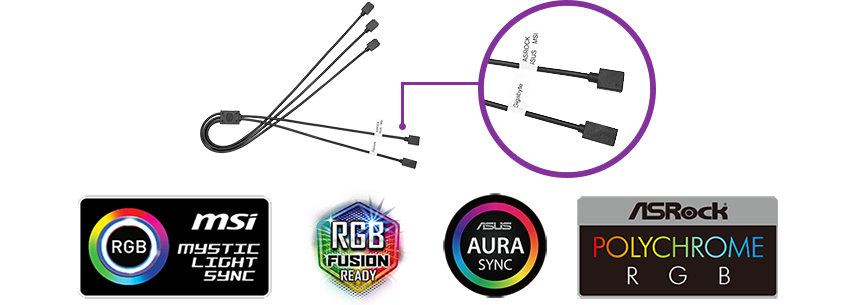

ARGB Lighting Control
Sync the lighting on the power button and fans by connecting the ARGB cable from the I/O panel to the included 2 to 3 ARGB splitter. Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards for a comprehensive lighting system.

ARGB Controller Included
Cycle through lighting colour and mode with the ARGB controller integrated in the I/O panel if your MB does not support lighting control.

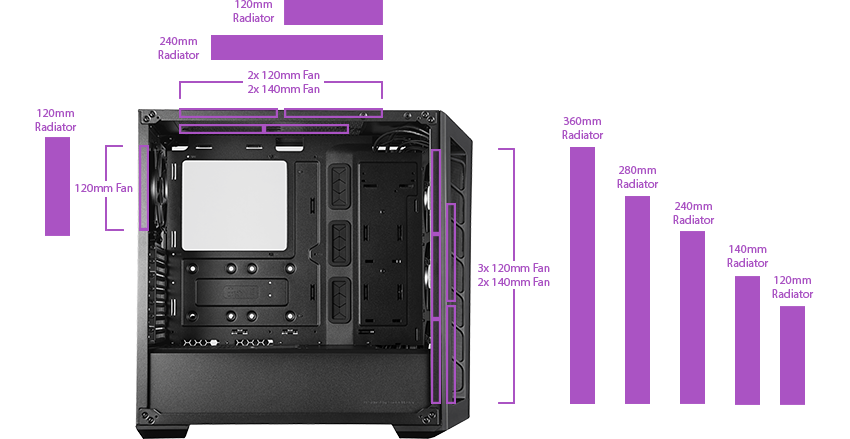

Support for a Total of 6 Fans & Water Cooling
Six 120mm fans and front, top and rear water cooling support ensure that you don't have to compromise on performance

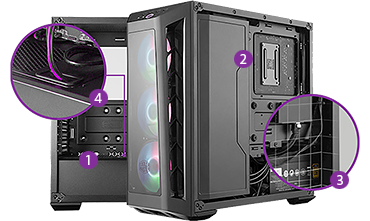

Cable Cover & Routing Space
A PSU shroud, cable cover, and 18~25mm width of space behind the motherboard provides options to keep systems clean; GFX cables can also be routed directly through the PSU shroud rubber grommet.

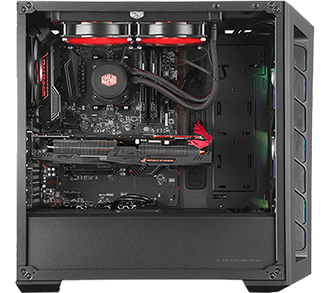

Graphics Card Support up to 410mm
Ample graphics card clearance provides a high potential for upgradeability.

Aggressive Intakes
Large intakes on each side of the front panel feed air to cool the interior.
Specifications
Core Chassis Specifications
Case Edition MasterBox MB530P
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x ARGB Control Button
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power Button with LED
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5" Internal
  • 2 x 3.5" External
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 5 x 120mm / 4x 140mm
Fans Included
  • 1 x 120mm
  • 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 410 mm
Max GPU Card Width
Cable Routing Space 18~25mm Behind Motherboard Tray
Side Panels
Window/s Yes
Window Configuration
  • 1 x Alternate Side
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control
  • Compatible with ASRock PolyChromeSync
  • Compatible with ASUS AURA Sync
  • Compatible with Gigabyte RGB Fusion
  • Compatible with MSI Mystic Light Sync
  • Control via Compatible Motherboard RGB Header
  • Control via Inc. Controller/Hub (Buttons/Switches)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic / Tempered Glass
Dimensions 229 x 469 x 489 (WxHxD mm)
Weight 8.55 kg (Approx)
