Cooler Master MasterBox MB520 ARGB Windowed Midi PC Gaming Case

Cooler Master MasterBox MB520 ARGB, Black, Mid Tower Chassis, Tempered Glass, 3x 120mm ARGB Fan, E-ATX/ATX/mATX/mITX

Thumbnail 1 : Cooler Master MasterBox MB520 ARGB Windowed Midi PC Gaming Case Thumbnail 2 : Cooler Master MasterBox MB520 ARGB Windowed Midi PC Gaming Case Thumbnail 3 : Cooler Master MasterBox MB520 ARGB Windowed Midi PC Gaming Case Thumbnail 4 : Cooler Master MasterBox MB520 ARGB Windowed Midi PC Gaming Case
Scan code: LN106669 Manufacturer code: MCB-B520-KGNN-RGA
£69.98
Order now and receive it by Monday, 5th October
Delivery Options
  • By DPD On 5th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

MasterBox MB250 ARGB Mid-Tower PC Case from Cooler Master

MasterBox MB250 ARGB

A NEW LEVEL OF COLOUR CUSTOMIZATION The MasterBox MB250 is an impressive mid-tower PC case with ARGB functionality that allows you to enhance your PC with ambient lighting. The DarkMirror front panel enriches the contrast from hardware lighting and creates a picturesque display of your internal components. To keep everything cool, mesh ventilation can be found on the entire length of the front panels sides, ensuring that the three included ARGB fans are fed with enough air to effectively cool your system. The MasterBoc MB250 supports up to seven fans along with front and rear liquid cooling solutions for demanding builds. Paired with a tempered glass side panel and top ventilation, your build can look and play exactly as you dreamed it would.

A Sleek View for Stunning Colour

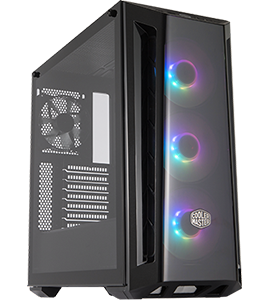

front panel

DARKMIRROR FRONT PANELThe DarkMirror front panel allows the ARGB lighting to shine through the tinted panel for a sharper contrast and finer viewing of the ARGB fans.

Stay Cool for High Performance

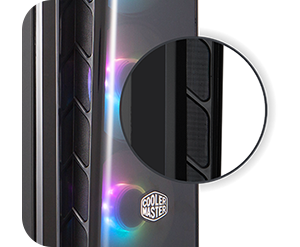

mesh intakes

BUILT-IN MESH INTAKESThe large mesh intakes on each side of the front panel provide excellent airflow to your system so it can stay cool even through the most demanding gaming marathons.

Take Pride in your Building Skills

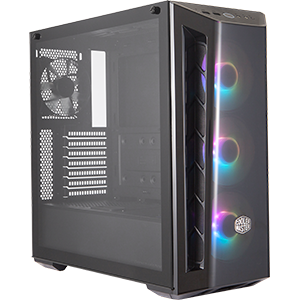

tempered glass

TEMPERED GLASS SIDE PANELGaming hardware, cooling components and the incredible aesthetics of your build can be viewed through the edge-to-edge tempered glass side panel.

Versatile Cooling Options

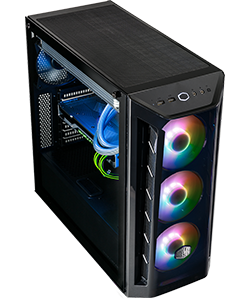

fan support

EXTENSIVE FAN SUPPORTThe MasterBox MB520 provides support for up to seven 120mm fans and dual 360mm radiators on the top and front panel to ensure even the most demanding systems stay cool under heavy workloads.

Light up your Favourite Components

argb lighting

ARGB LIGHTING SYSTEM COMPATIBLE WITH LEADING BRANDSThe three pre-installed ARGB fans can be managed by your motherboard's RGB software or with the included controller that's connected with the included splitter. Create a comprehensive and synchronized ARGB lighting system with complete ease.

Control Lighting with Ease

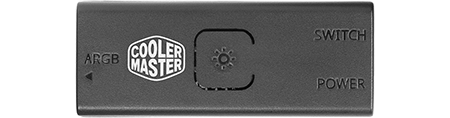

controller

INCLUDED ARGB CONTROLLERThe included ARGB controller is a mini-sized device that lets you address your RGB fans and LED strips even without an ARGB capable motherboard. The controller offers fourteen lighting presets so you can customize your lighting to suit any environment, or completely switch off the lighting by holding down the button. It's also possible to attach any external 2pin button so you can switch presets without having to open your system. The reset button can be optionally connected to the controller and used as an external ARGB preset switch button.

Specifications
Core Chassis Specifications
Case Edition MasterBox MB520 ARGB
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (Upto 12" x 10.7")
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x ARGB Control Button
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.2 Gen1 Type-A
Drive Bays
  • 4 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 6 x 120mm / 4x 140mm
Fans Included
  • 1 x 120mm
  • 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/240/280/360mm
Top Radiator Compatibility 1 x 120/240/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 180 mm
Cable Routing Space 19-27 mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Plastic (Front) + Tempered Glass (Main Side)
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB (16.7 Million Colours)
LED Lighting Support & Control Control via Inc. Controller/Hub (Buttons/Switches)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic / Tempered Glass
Dimensions 217 x 469 x 496 (WxHxD mm)
Weight 6.9 kg (Approx)
Please Note
Additional Information
Scan Code LN106669
Model Number MCB-B520-KGNN-RGA
GTIN 4719512095171
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Telephone:
0871 472 4747
Cooler Master MasterBox MB520 ARGB, Black, Mid Tower Chassis, Tempered Glass, 3x 120mm ARGB Fan, E-ATX/ATX/mATX/mITX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Decent case for the price I've been using an NZXT Manta before this one. This might influence my opinion about this case. I only replaced the Manta because my Asus ROG Strix 2080 Super could not fit in it. 1.5mm more was needed, hence the new housing. So, I ordered this CM Masterbox MB520 case. I bought this one because I liked the looks of it, It had good reviews, promised a good airflow & cooling options. And for the same price I got 3 extra 120mm (ARGB) fans and one regular (unlike its sibling, the Masterbox MB 511). Which soon became my only real concern with this case. Since I do not care for the RGB part (which looks good tough), It has no value for me but it might be for you. But then again, luckily the RGBs can be switched off with the bundled controller which is a nice touch. And the controller also has very good sync support for a range different brands (Asus Aura and likes). So, as I said the fans turned out to be quite noisy and they are not PWM controlled, since they are only 3-pinned fans (CoolerMaster DF 12025). I'm using them with DC control on minimal RPM where they are fine but anything higher is more than noticeable. Again, for me. I will need replace them because of this. Otherwise the build quality is good and sturdy, the smoked front plastic cover and the side glass looks great. You get two USB 3.0, audio in and out, power and reset button on the front-top side. Illuminated power button and HDD led, both white! It is quite airy inside, plenty of room for lengthy video cards and tall CPU coolers. You also get plenty of cable holes and cut-outs all around. Has support for two water cooler radiators, one on the front (360mm or 280mm), one on top (280mm or smaller). Have removable dust filters bottom, front and top. Can house two 3.5" HDDs AND three 2.5" HDDs. The 3.5" frame is sitting under the PSU shroud and is removable by undoing 4 screws. Which you might need to do to install your larger PSU like me (Corsair 750RM). It boasts a very good airflow, it is semi open front and and fully open on the topside. My three observations are: It could use a bit more space on the backside, behind the motherboard. There's only just enough room for cable management. A case with this many fans included/supported, should come with a fan hub which this isn't (about £3 on eBay if you need one like me). The dust filters should be made from a finer mesh, only the front ones filtering dust to an acceptable standard in my opinion. In conclusion it is a great case for the asking price. Since then, I amended the above listed issues and using it with satisfaction. Without the RGB illumination it looks pretty sleek and discreet. However, if you like it the colourful way I would straight-up recommend it to you. Thank you for reading this lengthy review.
