Digitally Controlled BBD Delay

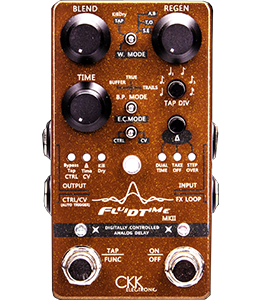

CKK Electronics - 'Fluid Time MKII'

ckk fluidtime mkii

a barrage of creative possibilities within!The CKK Electronics ‘Fluid Time MK II’ is a digitally controlled BBD delay which perfectly preserves the traditional features found on the Bucket Brigade Device (BBD). With a warm and rich tone and full of analog characteristics, you get the unique delay structure from the 5pcs reissues 3208 BBD chips and a delay time of up to 700ms, giving you more creative potential.

The signal path of the Fluid Time MK II is made up of a completely analog circuit to guarantee the best tonal quality. Featuring a super buffer circuit, it can be used to buffer the original signal. When performing or rehearsing, the signal remains very pure so you won’t lose and of the top end sustain.

The control elements of the Fluid Time MK II include digital signal controllers, giving it even more usability. Just like the digital delay you get Tap Tempo and Tap Division functions, when using Tap Tempo, you get a LO-FI BBD delay signal of up to 2 seconds and the Tap Division function allows you to divide the delay time to other beats.

In addition to its normal mode, you get Dual Time mode, where you can set up 2 freely selectable delay times, Take Off mode, gives you increased feedback and Step Over mode gives you a more exotic and otherworldly tones. All these options give you a huge array of tones for experimentation, you have to hear it to believe it!

Amazing Features • Perfectly reproduces the classic 80's analog delay tone
• 3 bypass modes - True bypass, buffer bypass & trails bypass
• 3 working modes - Dual time, step over, take off modes
• Warm and clear tone sure to inspire your crativity
• Equipped 5pcs reissued MN3208 BBD chips

Mind-Blowing Host of Features!

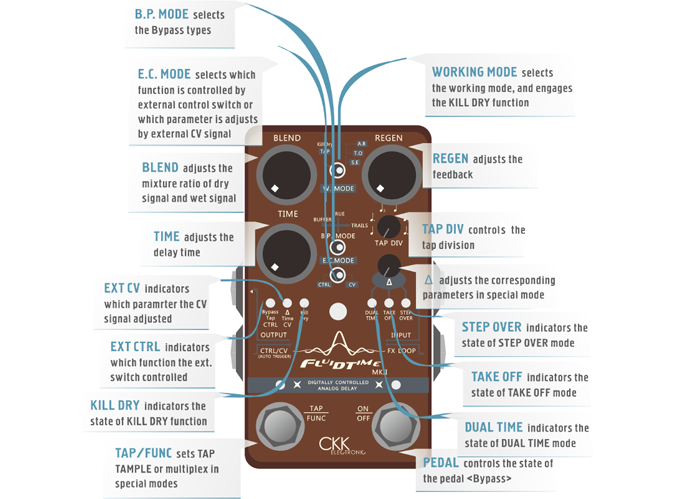

a closer lookThe CKK Electronic Fluid Time MKII uses 5 MN3208 BBD chips, with delay times up to 700ms, for unleashing a barrage of creative possibilities. Take an in-depth look below at the extensive controls onboard the Fluid Time MKII which unleash the bountiful creativity within this fantastic delay!

ckk fluidtime mkii

The Tech Spec

Features Specification
Input Impedance 2.2MΩ
Output Impedance 1KΩ
Current Draw 110 mA
Controls Knobs - Blend, Regen, Treble, Time, Tap Div
Switch - W.mode select switch, B.P.mode select switch, E.C.mode select swicth, Tap/Func switch, Pedal switch
Indicators State, Tap temple, Ext ctrl, Ext cv, Kill dry, Dual time, Step over, Take off
Connectors Input jack, Output jack, Ext Ctrl/CV jack, FX send/Return jack, DC adaptor
Power Supply DC9V Adaptor only, no battery
Dimensions Width: 66.5mm
Depth: 121.5mm
Height: 56.5mm
Weight 400g
Specifications
Voltage 9 Volts
Current 110 mA
Battery Compartment No
Output Channels Mono
Dimensions 66.5 x 56.5 x 121.5 mm (W x H x L)
Passive Pedal No
Impedance
