Scan code: LN83786 Manufacturer code: RM42300H-1FB

Chenbro 4U RM42300 Rackmount Server Case

Chenbro, 4U, Rackmount, RM42300 server case, 3x 5.25, 1x 3.5

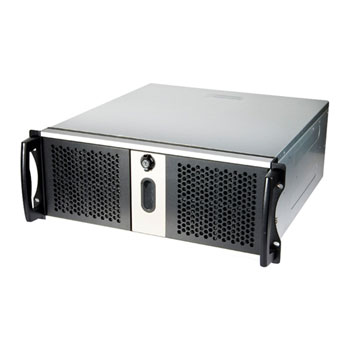

Chenbro 4U RM42300 Rackmount Server Case : image 1

Scan code: LN83786 Manufacturer code: RM42300H-1FB

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£142.49Item currently awaiting an ETA

Pre Order

Pre order

spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

Delivery Options

By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £9.58

Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview RM42300 (Supplied with RH Side 3 X 5.25" AND 1X 3.5" Drive Cage, LH Side Cover with 120mm Fan Behind) - Single Front Door

Supports M/B size up to 12"x 10.5"
Available for Rackmount or Stand-Alone installation
Dedicated 80mm fan for HDD cooling
Truly isolation anti-vibration design on internal HDD and drive cages
Card retainer to hold low profile and full height add-on cards
Optional front 120mm fan module with filter for add-on card cooling
Optional second 3x5.25" device cage to maximize configuration flexibility
Single door configuration
Supports PS/2 single or mini-redundant PSU
Features Form Factor 4U
M/B Form Factor ATX (12” x 9.6”)
Dimensions (Dx Wx H) 445 x 430 x 176 (mm), 17.5” x 16.9” x 6.9”
Drive Bays External 3.5":1
External 5.25":1
Internal 3.5":3
PSU Form Factor PS/2 Single or Mini-redundant
Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity
Front Buttons Power On/Off, System Reset, 2 x USB 2.0
System Security Intrusion Switch, Key lock on front door
Cooling Fans Front: 1 x 120mm (T=25mm), PWM , Rear: 2x80mm (Option)
Expansion Slots 7 or 15 x Full Height
HDD Backplane N/A
Metal Thickness 1.2mm
Net Weight 9.5kg
Gross Weight 12.3kg
Front Bezel Option
Cubic Feet 3.44
Container Loading (Single Packing) 20’: 280, 40’: 582, 40’H: 664
