Chauvet Shocker Panel 480
Chauvet DJ - Shocker Panel 480, Single Zone Blinder, 3-Pin XLR Connection
Professional Single Zone Blinder
Chauvet DJ - Shocker Panel 480
single-zone blinderAdd Chauvet DJ's Shocker Panel 480 to your live shows, and shock celebrations to dynamic life with Shocker Panel 480, a punchy, single-zone blinder with cool white SMD LEDs. As a blinder or strobe, eye-catching effects can be triggered easily with the built-in display, DMX, or with the optional IRC6 remote.
Shocker Panel 480 is ready for the road too with its rugged housing that makes it ideal for mobile applications and powerCON®-compatible power input/output connections for secure power linking.
4xDMX Channels
0 - 28 HzStrobe Rate
3-pin XLRDMX Connectors
at a glance

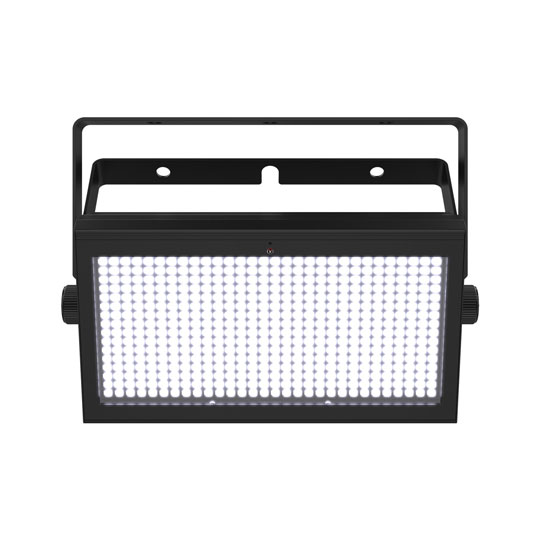

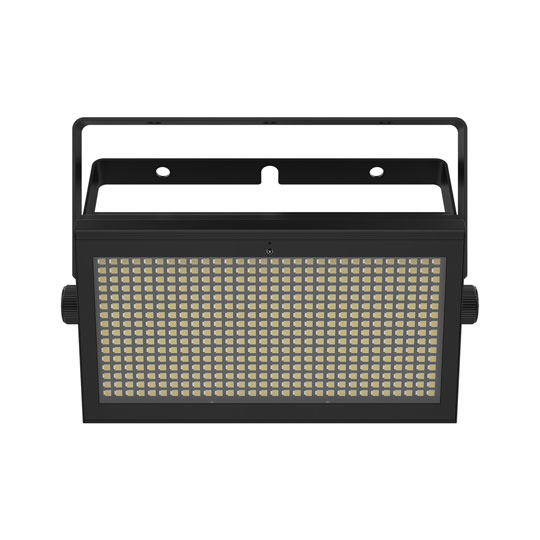

• Punchy, single-zone blinder with cool white SMD LEDs
• Rugged housing makes it ideal for mobile applications
• Trigger eye-catching strobe effects via the built-in display, DMX, or with the optional IRC6 remote

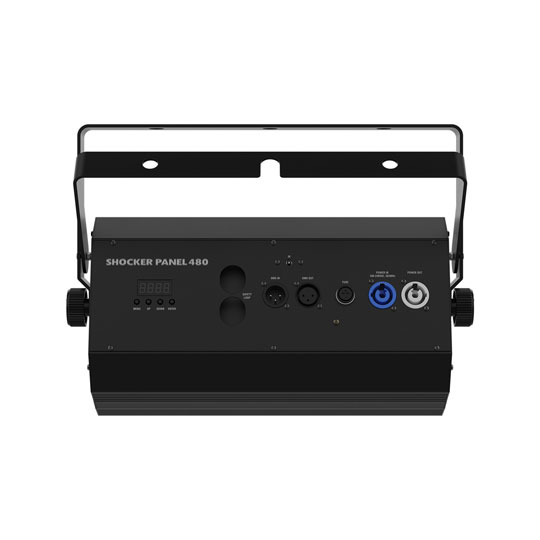

• powerCON®-compatible power input/output connections for power linking
• Save time running cables and extension cords by power linking multiple units
• Easily transports in the optional CHS-25 VIP gear bag
The Tech Spec
| Features | Specification | DMX Channels | 4 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Light Source | 480 SMD LEDs (cool white) 0.7 W (236 mA), 50,000 hours life expectancy |
| Strobe Rate | 0 to 28 Hz |
| Beam Angle | 111° |
| Field Angle | 155° |
| Illuminance | 1,348 lux @ 2 m |
| Lumens | 14,974 |
| Power Linking | 5 units @ 120 V; 9 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Weight | 9.4 lb (4.3 kg) |
| Size | 13.1 x 4.5 x 6.7 in (332 x 115 x 170 mm) |
