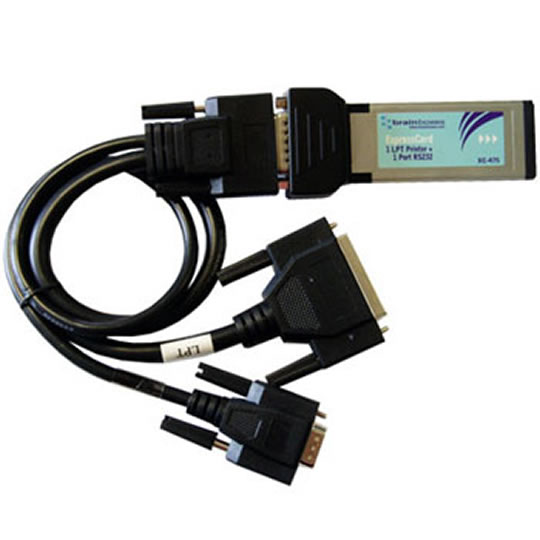

Brainboxes XC-475 1 Port RS232 and 1 Printer Port LPT PCIe ExpressCard

Brainboxes XC-475 1 Port RS232 and 1 Printer Port LPT PCIe ExpressCard Serial Adapter absolute compatibility, guarante

Brainboxes
Scan code: LN41120 Manufacturer code: XC-475 Request call
End Of Life
Mid Range
Product Overview XC-475 1 Port RS232 and 1 Printer Port LPT PCIe ExpressCard providing one RS232 serial port and one Printer port; where absolute compatibility with classic desktop serial COM ports and parallel LPT printer ports is a necessity. Guaranteed low latency, memory mapped, no compromise high performance interface. Up to 921,600 data transfer rates and the 256 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008 and Windows 7. Features Port:
Ports: 2.
Protocol: RS232 + LPT Printer.
Connector: Connector DB9 Connector (9 Pin Male) & DB25 Connector (25 Pin Male).
Operating Distance: EIA - RS232 Standard.
Cable: 1xDB9 & 1xDB25.

General
Power Consumption: 380mA @ 3.3V.
Product Weight: 0.044 kg.
Product Dimensions: 110(l) x 46(w) x 20(h) mm.

Interface: ExpressCard PCIe Implementation. Unlike the VX range which uses USB technology over expresscard, this uses PCI Express technology over expresscard.
