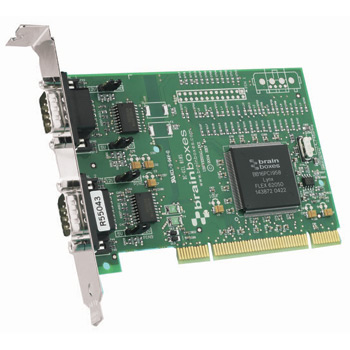

Brainboxes UP-869 Universal PCI 2 x RS232 Powered Serial Card (POS 0.5A)

Brainboxes
Scan code: LN28367 Manufacturer code: UP-869 Request call
£104.48Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview uPCI card is a powered 2 port card, ideal for connecting and powering peripherals such as bar code readers, printers, card readers, display units and cash drawers. Both UP-880 and UP-869 are selectable power options. Ground or 12V can be selected on pin 1 of each port and also 12V or 5V can be selected on pin 9 of
each port. uPCI is fully compatible with both 3.3Volt and 5Volt PCI slots; protecting your investment into the future. Features 2 Port Powered RS232
Pin 1: GND or 12V selectable
Pin 9: 5V or 12V selectable
uPCI
128 Byte FIFO with user definable trigger level
Up to 115,200 baud
Standard Profile Card
Drivers for all popular operating systems
Sample programs, Test and Terminal software- all with source code
Specifications
Specifications
Interface PCI (32 bit)
Connectivity 2 x RS232
