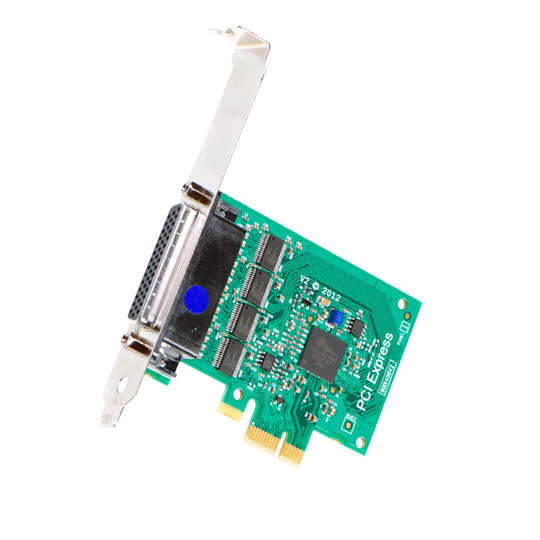

Brainboxes IX-400 Intashield PCIe 4 x RS232 Serial Card

Brainboxes IX-400 Intashield PCIe 4 x RS232 Serial Card

Scan code: LN44281 Manufacturer code: IX-400 Request call
£57.49Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview This card provides 4 industry standard 9 pin RS232 serial COM ports in a single PCI Express slot.

As PCI Express is fully Plug and Play compatible your BIOS and operating system will automatically configure the card ensuring conflict free installation. Features • 4x9 pin, D type RS232 Serial Ports on adaptor cable 44 Way D Female to 4x9 Way D Male
• PCI Express Bus - will fit into any PCIe slot i.e. x1, x4, x8 & x16 lane
• Fully Plug & Play - simple installation and test software provided

• UART: 16550
• Speed: 115,200 maximum baud rate
• Data Bits: 5, 6, 7 or 8
• Stop Bits: 1, 1.5 or 2
• Parity: odd, even, none, mark or space
• FIFO Size: 16 byte
• Quad Cable included
• IX-400 Standard height - Bracket Height = 120mm
Interface PCIe (x1)
Connectivity 4 x RS232

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
System Buses & Bandwidth
System Buses & Bandwidth
Date Issued: 21st Oct 2008

In computing terms, system buses are used to connect various components to the motherboard’s core logic and, often, to each other. Modern PCs run with a multitude of high-speed buses ranging from the interconnects between, say, the chipset and the CPU, graphics card, memory, and peripherals.

Read More

Date Issued: 2nd Jul 2008

Serial ATA, or SATA, is a relatively new storage technology that is now being adopted in computers. It is the successor to Parallel ATA. SATA allows for faster transfers between the hard disk and the system, uses thinner cables and is easier to physically install

Read More

Updating Drivers
Updating Drivers
Date Issued: 25th Jun 2008

Updating drivers can sometimes be a bit of a gamble. Will the drivers come with an installer? Will you need to uninstall the old drivers first? Many drivers these days do come with an installer, which simplifies the process dramatically.

Read More

Brainboxes IX-400 Intashield PCIe 4 x RS232 Serial Card is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Solid no-nonsense serial ports I use this 4-port device on a Win7/64bit desktop for testing and configuring dataloggers in a workshop/R&D environment and it's exactly what I needed. I was previously trying to use multiple USB-RS232 converters and occasionally having trouble with COM number auto-assignment and dropouts. No problems with this card. The Brainbox driver's control panel allows you to easily select which COM numbers to allocate to each port, and they just stay allocated. Conveniently, mine are COM1/2/3/4. My only gripe is that the supplied breakout cable is not long enough for me. It's 1 metre which probably suits many users, but I need extension cables to reach equipment spread around a workbench.
