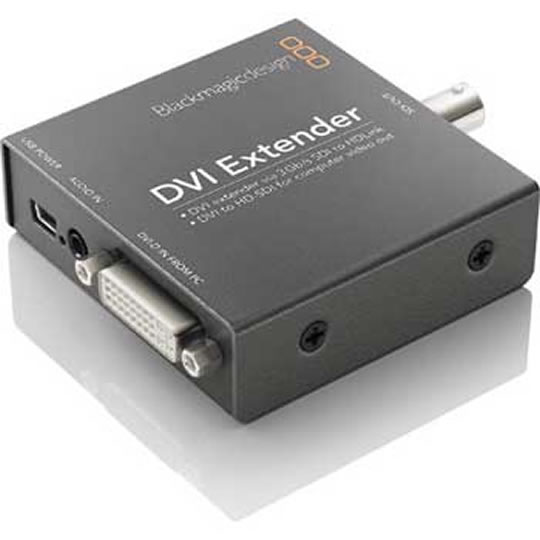

Blackmagic DVI Extender

Blackmagic DVI Extender - Extend Your Computer Monitor Via Simple SDI Cables

Blackmagic Design
Scan code: LN28656 Manufacturer code: BMD-HDLEXT-DVI Request call
£330.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £8.25 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Now you can route your computer monitor via your SDI router! DVI Extender lets you can extend the DVI-D connection to your computer monitor via simple SDI cables! Now it's much easer to connect your computer displays anywhere in your facility, or even to more than one monitor when using any 3 Gb/s SDI router. DVI Extender also works as a regular DVI to SD/HD-SDI video converter, that’s perfect for broadcast graphics! Features • Connections include: 1 x DVI-D input, 1 x 3.5mm audio jack input for computer audio, 1 x USB input for power, updates, configuration and 1 x 3 Gb/s SDI output

• Uses display settings to set to either, Extender mode or Video mode

• When set to Video mode based resolutions DVI Extender will output conventional SDI video to match the selected video standard. Select 720 x 486 for 525i/59.94 (NTSC), 720 x 576 for 625i/50 (PAL), 1280 x 720 for 720HD and 1920 x 1080 for 1080HD video formats

• Requires HDLink Pro or HDLink Optical Fiber when used in Extender mode at computer display resolutions up to 1920 x 1200

• 3.5mm audio jack input connects to your computer’s analogue audio output for 2 channel embedded audio on the SDI video output

• New video formats can be added via USB

• Includes DVI Extender, USB cable, DVI cable and 3.5mm audio cable

• Choose between 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200 and 1920 x 1200. Requires HDLink Pro or HDLink Optical Fiber when used as a DVI Extender

• Choose between 720 x 486, 720 x 576, 1280 x 720 and 1920 x 1080. When selected to Video Mode DVI Extender outputs regular SDI video
