Blackmagic Design URSA Mini Pro

Blackmagic Design URSA Mini Pro - Professional Digital Film Camera, Super 35mm 4.6K Sensor, 15 Stops Of Dynamic Range

Blackmagic Design
Scan code: LN79456 Manufacturer code: BMD-CINEURSAMUPRO46K Request call
£5,190.00Item overdue since 20 October 2017
Pre order
Pay on Scan Finance with a 10% deposit from just £129.62 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

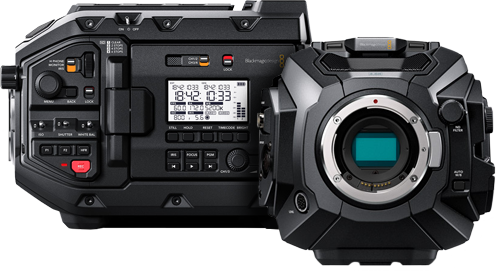

Ultra HD URSA Mini Pro - Professional Broadcast Camera

URSA Mini Pro
Professional Digital Film Camera From Blackmagic

Introducing the Blackmagic URSA Mini Pro, this camera is basically ‘three cameras in one’ as it combines a high end digital film quality with the ergonomics and features broadcasters require. It’s ideal for any kind of work from high end feature films, television shows and commercials, to independent films, broadcast news, and even studio and live production. The URSA Pro can record beyond standard Ultra HD using its 4.6K sensor plus has 15 stop dynamic range. This camera also features built in ND filters, a status display, interchangeable lens mounts also allow you to connect a wide range of EF, PL or B4 lenses. With the ability to shoot in up to 60fps the URSA Pro allows you to film ultra smooth footage. The light and comfortable design lets you use it all day.

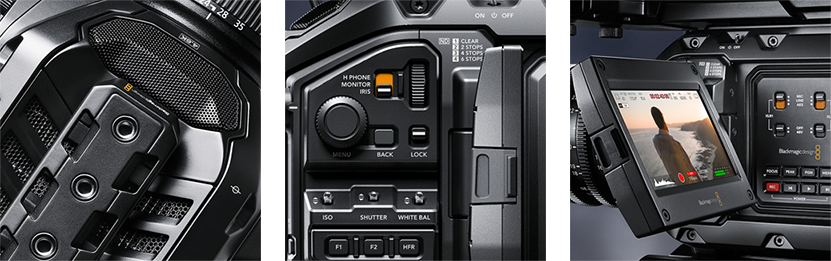

Revolutionary URSA Design

Blackmagic Design
Super Tough, Lightweight and Portable Design

URSA Mini Pro is designed to include everything you need in a handheld camera so you can take it anywhere! Unlike cheap plastic cameras, the evenly weighted camera body is made out of a super tough magnesium alloy. It’s a true professional camera with full redundancy on every control, even the power switch! Plus, the tactile controls allow full setting changes without having to take the camera off your shoulder! There’s an external high visibility LCD status display so you can see critical shooting information, and a 4” foldout touch screen for reviewing shots so you don’t have to carry an extra on-set monitor. You get professional connections such as 12G-SDI, XLR audio, a built in high quality microphone and more. The optional electronic viewfinder and shoulder mount kit lets you go from tripod to handheld shooting in seconds, or you can turn URSA Mini Pro into the ultimate live production camera by adding an URSA Studio Viewfinder.

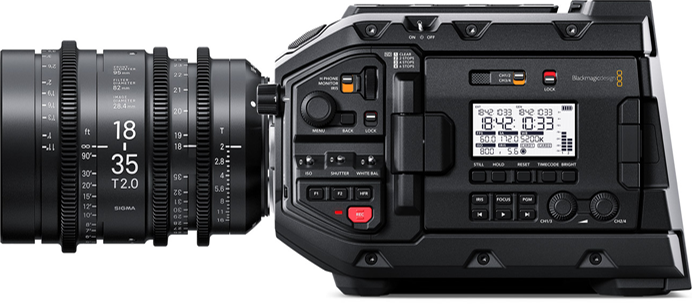

Powerful Tactile Controls

Easy to Use Controls
Easy Change Settings on the URSA PRO

Like the world’s best broadcast cameras, URSA Mini Pro features powerful tactile control buttons, switches, knobs and dials, giving you direct access to the most important camera settings. The controls are laid out in a logical order that makes them easy to remember, so you’ll be able to adjust settings, use ND filters, change frame rate and even snap a still photo without having to look at the buttons or take the camera off of your shoulder. The external controls are so fast to use, you don’t even have to stop shooting! That’s what makes URSA Mini Pro both a powerful broadcast and studio camera, as well as a digital film camera.

Interchangeable Lens Mounts

Interchangeable Lens Mounts
Compatible with EF, PL and B4 Lenses

Different projects require different lenses, which is why URSA Mini Pro features a new interchangeable lens mount! Imagine shooting regular work using a photography lens but then being able to change to a PL mount cinema lens if you get a high end film job. URSA Mini Pro makes that easy because you can quickly switch between EF, PL and B4 lenses, making it compatible with the widest possible range of professional lenses. That means you can work with high quality EF photographic lenses, large PL cinema lenses, and even B4 broadcast lenses, all with the same camera. URSA Mini Pro comes with an EF mount and you can purchase optional PL and B4 lens mounts separately. With URSA Mini Pro, you get a single camera that works with virtually all professional lenses so you can choose precisely the lens you need.

Built in ND Filters

ND Filters
High Quality Neutral Density Filters

URSA Mini Pro features high quality neutral density (ND) filters that let you quickly reduce the amount of light entering the camera. The 2, 4 and 6 stop filters have been specifically designed to match the colorimetry and color science of URSA Mini Pro, providing you with additional latitude, even under harsh lighting conditions. This lets you use different combinations of aperture and shutter angle to achieve shallower depth of field, or specific levels of motion blur, in a wider range of situations. The IR filters have been designed to filter both optical wave lengths and IR wave lengths evenly to eliminate IR contamination of the images that most ND filters can suffer from. The ND filters are true optical filters with a precision mechanism that quickly moves them into place when the ND filter dial is turned. The filter settings can even be displayed as either an ND number, stop reduction or fraction on the LCD.

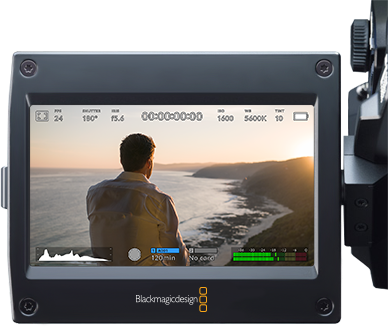

4 Inch Fold Out Screen

4inch Touch Screen
Touch Screen for Monitoring and Camera Control

The built in 4"e; fold out touchscreen on the URSA Mini Pro is super bright, high resolution color displays with a wide viewing angle that makes it perfect for monitoring and reviewing shots on set. The screen can also show you a “heads up display” overlay with critical information such as format, frame rate, timecode, ISO and more. You even get a histogram, card recording status indicators and audio levels. The fold out touchscreen lets you use the incredible new URSA Mini operating software so you get super fast access to every camera function, ATEM broadcast switcher integration features for live broadcast, digital slate for metadata management and more.

Cinematic 4.6K Sensor

Cinematic 4.6K Sensor
Incredible Film Images with 15 Stops of Dynamic Range

When it comes to image quality, URSA Mini Pro operates at a higher resolution and dynamic range that goes well beyond traditional motion picture film. You get a 4.6K image sensor that captures up to 4608 x 2592 pixels, which is bigger than full DCI 4K. The sensor features a massive 15 stops of dynamic range, making it perfect for high dynamic range (HDR) projects. The built in active refrigeration ensures maximum dynamic range and low noise so you get incredibly clean pictures with amazing detail in both the dark shadows and bright highlight areas.

Advanced Colorimetry

Advanced Colour
Super Wide Colour Gamut and Precision Colour Science

URSA Mini Pro features an incredibly wide color gamut that captures more of the visible color spectrum than Rec. 2020, which is vastly larger than the P3 digital cinema color space. Third generation Blackmagic Design color science is used to process the raw sensor data, enabling amazingly rich skin tones, natural color response and enormous amounts of dynamic range. Whether you’re shooting a Hollywood blockbuster, an indie film, high end commercial, or a broadcast television show, URSA Mini Pro’s combination of resolution, dynamic range and color gamut delivers amazingly rich and lifelike images.

High Frame Rate Recording

High Frame Rate - 60 FPS
Capture the Action with Smooth Motion

URSA Mini Pro can shoot at high frame rates and then play it back at the edit frame rate so you get smooth slow motion video that’s crystal clear. You can set the camera’s default shooting frame rate and also specify an “off speed” frame rate. Switching between them is simply done with the touch of a button on the outside of the camera, making it incredibly fast to switch between standard and high frame rate shooting. URSA Mini Pro can capture full resolution 4.6K recordings at up to 60 frames per second.

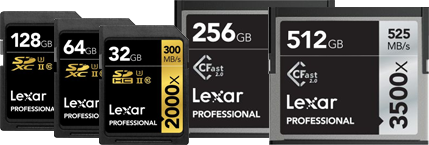

Non-Stop Recording

High Frame Rate - 60 FPS
Use Both C-Fast and SD Card Storage

URSA Mini Pro features both dual C-Fast 2.0 recorders and dual UHS-II SD card recorders so you can choose the media that works best for you. C-Fast cards are ideal for full resolution RAW recording, while SD and UHS-II cards are inexpensive and commonly available, making them perfect for recording ProRes Ultra HD files or RAW HD files. Simply choose the media type, insert the cards and start shooting. With dual slots for each media type, you never have to stop recording because when the first card is full, it automatically continues onto the next card, you can even swap the full card for an empty one, all without having to stop recording. URSA Mini Pro can record lossless 12-bit CinemaDNG RAW files for the highest possible quality, or 10-bit ProRes files for easy post production with minimum storage requirements.

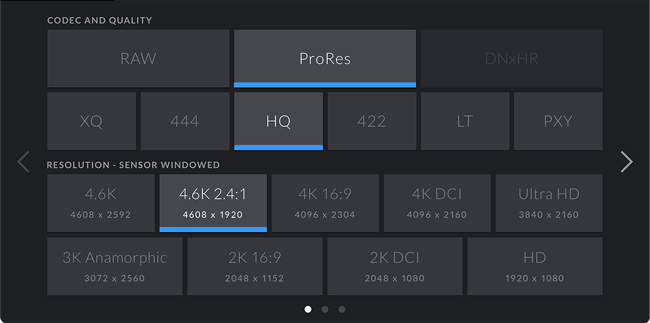

URSA Mini Pro Software Interface

New Interface
Incredibly Fast Software with Easy User Interface

The user interface on the URSA Mini Pro revolutionizes the way you work. The advanced camera operating software lets you use simple tap and swipe gestures to control all features, setup, the digital slate and more. You get powerful and super fast software with a unique heads up display that puts commonly used functions at your fingertips. Simply touch an on screen icon to make changes for things such as audio levels, white balance, shutter angle and more. You’ll instantly see sliders and controls for making adjustments without ever having to navigate through any menus! The new digital "e;slate"e; makes entering metadata faster than ever before with a built in dictionary, predictive entry and on screen keyboard. Using a professional digital film camera has never been faster. Try the tabs in the image for more

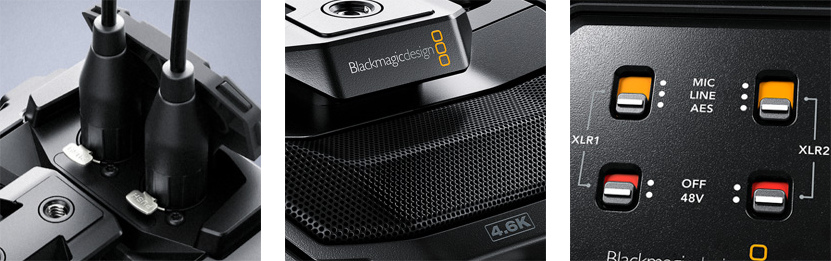

Professional Audio Quality

Professional Audio
Built in Production Quality Audio

URSA Mini Pro has a high quality microphone and professional audio recorder built right in so you don’t have to carry around extra sound equipment. Use the built in stereo microphone to record natural location sound or connect professional microphones using the two XLR wide dynamic range mic inputs. The XLR connections have 48V of switchable phantom power so you can plug in everything from shot gun to wireless clip on mics for capturing every detail of the performance. You can quickly adjust levels using the external knobs and monitor audio using the onscreen audio meters.

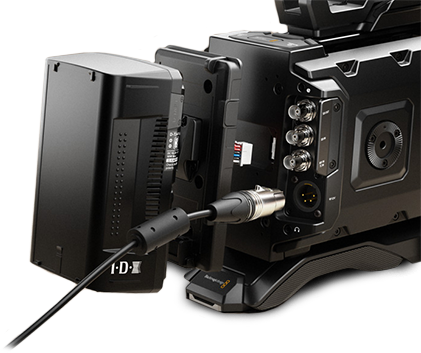

Flexible Batteris and Power

Batteries and Power
Compatable with Industry Standard Power Sources

URSA Mini Pro includes a 4-pin XLR industry standard power connector that works with 12V to 30V external power supplies. That means it’s easy to use the camera with all of your existing power supplies and batteries. All URSA cameras use the same battery power connector and mounting points on the rear of the camera so you can use a wide range of battery plates from manufacturers such as IDX, Frezzi, Anton Bauer and more. You can also add the optional Blackmagic URSA VLock Battery Plate for using popular V-Mount batteries.

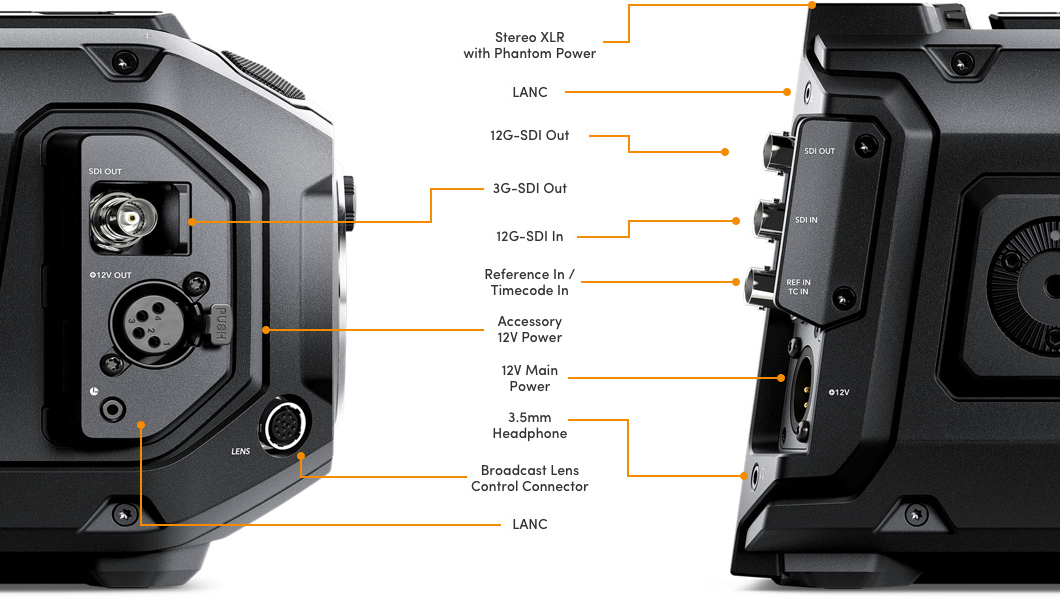

URSA Mini Pro Connections

Conections
Specifications
Mega Pixel
Resolution (Still Image) 4608x2592
Resolution (Video) 4608x2592
Live Video Frame Rate 60 fps
Zoom
LCD Display No
Sensor Type Super35
Dynamic Range 15 Stops
Connectivity
  • 12G-SDI 10-bit 4:2:2 In
  • 12G-SDI 10-bit 4:2:2 Out
  • 2.5mm LANC Input
  • 3.5mm Stereo Headphone Jack
  • XLR Analog Mic/Line Switchable (Phantom Power)
Onboard Memory
Storage Type
  • CFast
  • SDXC UHS I-II
Image Formats Supported
Video Formats Supported
  • Apple ProRes 422 HQ
  • Apple ProRes 444
  • Apple ProRes 444 XQ
  • CDA
  • CinemaDNG RAW 3:1
  • CinemaDNG RAW 4:1
Shooting Modes
Weight
Dimensions
Colour
5.1 Sound No
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
RTB Period:
28 months
