Scan code: LN109387 Manufacturer code: BMD-BDLKULSDMBREC3G

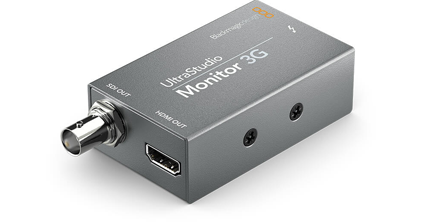

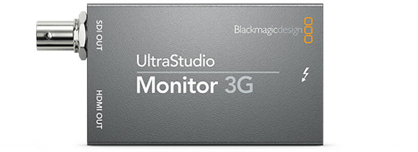

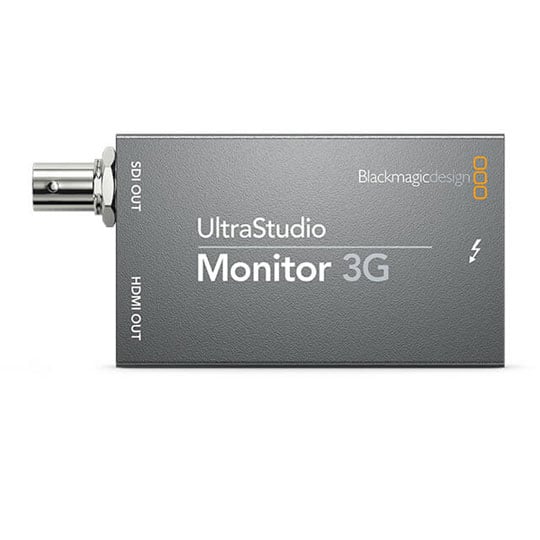

Blackmagic Design Ultrastudio Monitor 3G

Blackmagic Design 'Ultrastudio Monitor 3G' Compact 3G-SDI and HDMI Monitor

Thumbnail 1 : Blackmagic Design Ultrastudio Monitor 3G Thumbnail 2 : Blackmagic Design Ultrastudio Monitor 3G Thumbnail 3 : Blackmagic Design Ultrastudio Monitor 3G
Scan code: LN109387 Manufacturer code: BMD-BDLKULSDMBREC3G
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Get it Tomorrow, 20 AugIn stock
From £11.09 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £11.09
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £126.49
Total inc. interest: £133.08
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Compact 3G-SDI and HDMI Monitor
Blackmagic Design
'UltraStudio Monitor 3G'

Blackmagic Design 'UltraStudio Monitor 3G'

PROFESSIONAL PLAYBACK FOR THUNDERBOLT 3 COMPUTERS With Blackmagic Design’s ‘Ultra Studio Monitor 3G’, it’s now possible to connect Thunderbolt 3-ready systems to any form of video equipment for building high-performance edit workstations, archiving from old broadcast decks, outputting broadcast graphics and also live streaming. It’s simple, just connect the Thunderbolt 3 port to enjoy a wide range of video and audio connections which operate in all SD and HD formats, up to 60 fps.

Connections include SDI, HDMI with broadcast quality 10-bit YUV and 12-bit RGB in Apple ‘ProRes’ and uncompressed file formats. ‘UltraStudio’ was designed to work seamlessly alongside popular video software on Mac, Windows and Linux such as ‘Da Vinci Resolve’, ‘Avid Media Composer’, ‘Adobe Premiere Pro’, ‘Final Cut Pro’ and so many more.

Amazing Features • Ultra-Portable Playback Device
• Outputs Footage from Computer to Monitor
• Thunderbolt, SDI, HDMI / Embedded Audio
• Supports Resolutions up to 1080i60

Professional Playback for any Workflow

4K Recording

broadcast/digital cinema quality No matter if you find yourself working on-set or in post-production, ‘Ultra Studio’ delivers broadcast and digital cinema quality capture and playback which can be used for any workflow. ‘UltraStudio’ is ideal for everything from editing, colour and visual effects, to live capture and on-set monitoring during production.

It’s even possible to use ‘UltraStudio’ to feed SDI fill and key from RGB graphics directly from your system to a live production switcher for superb live broadcast graphics keying.

THE POWER OF THUNDERBOLT 3™ Built up on revolutionary Thunderbolt 3 technology, ‘UltraStudio’ utilises a super-fast single cable connection to any computer which has the bandwidth to handle the highest res video-formats easily. Thunderbolt delivers low-latency and highly-precise time synchronisation for the greatest quality capture and playback.

The Tech Spec

Features Specification
Connections SDI Video Output 1 x 10-bit SD/HD switchable. HDMI Video Output 1 x HDMI type A connector. SDI Audio Output 8 Channels embedded in SD and HD. HDMI Audio Output 8 Channels embedded in SD and HD. Computer Interface Thunderbolt™
Codecs Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver, Mac OS X and Windows Drivers. Internal Software Upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Software Applications DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Audodesk Smoke, Photoshop CC
Video Standards SD Format Support 625/25 PAL, 525/29.97 NTSC. HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60. SDI Compliance SMPTE 259M and 292M. Audio Sampling Television rate of 48kHz and 24 bit. Video Sampling 4:2:2 Colour Precision 10-bit Colour Space REC 601, REC 709 HDMI Resolution Pixel for pixel HD resolution input to connected device. HDMI Colour Precision 10 bit Multiple Rate Support SDI and HDMI are switchable between standard definition and high definition.
Processing Colourspace Conversion Hardware based real time. HD Down Conversion Software based down conversion during video playback. Real Time Effects Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Physical Installation Requires computer with a Thunderbolt™ port. Please check the Support pages to see the full system requirements.
Operating Systems Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. Windows 8.1 or Windows 10
Power Requirements Powered by Thunderbolt cable
Physical Specifications Width 92 mm Height 45 mm Depth 25 mm Weight 153 g
Environmental Specifications Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's Included UltraStudio Mini Monitor Software CD
Warranty 12 Month Limited Warranty
Internal Connectors
External Connectors 1 x Thunderbolt 3 port (Type-C)
Power Connector
Additional Information
Scan Code LN109387
GTIN 9338716006889

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
