(Open Box) Blackmagic Design - 'Ultrastudio Mini Monitor' Compact SDI and HDMI Monitor

(Open Box) Blackmagic Design - 'Ultrastudio Mini Monitor' Portable SDI and HDMI Monitor, Thunderbolt Connectivit

Thumbnail 1 : (Open Box) Blackmagic Design - 'Ultrastudio Mini Monitor' Compact SDI and HDMI Monitor Thumbnail 2 : (Open Box) Blackmagic Design - 'Ultrastudio Mini Monitor' Compact SDI and HDMI Monitor Thumbnail 3 : (Open Box) Blackmagic Design - 'Ultrastudio Mini Monitor' Compact SDI and HDMI Monitor Thumbnail 4 : (Open Box) Blackmagic Design - 'Ultrastudio Mini Monitor' Compact SDI and HDMI Monitor
Scan code: LN110269 Manufacturer code: OB-BDLKULSDZMINMON
£120.00Item currently awaiting an ETA
Pre order
From £10.78 / month (APR 14.9%)
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £120.00
Total inc. interest: £129.29
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

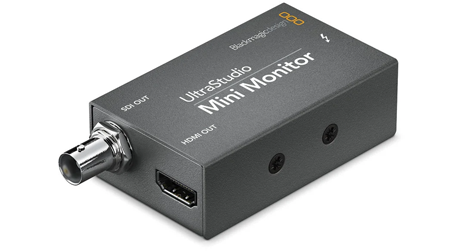

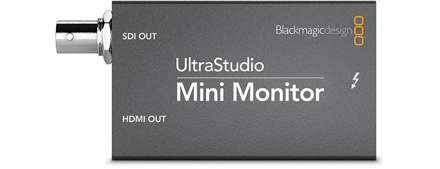

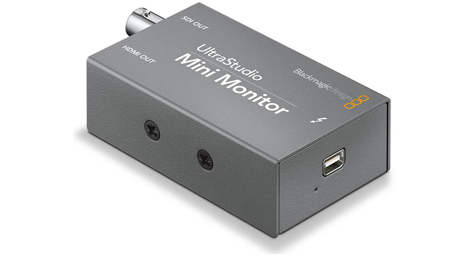

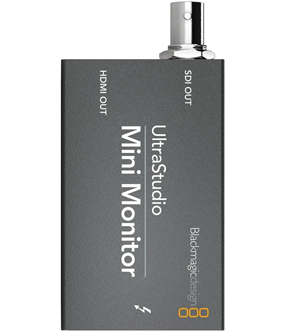

(Open Box) Blackmagic Design - 'Ultrastudio Mini Monitor'
Compact SDI and HDMI Monitor

blackmagic design ultrastudio mini monitor

Perfect Modern WorkflowWhen you need low cost monitoring for editing, then UltraStudio Mini Monitor is perfect. Plug in the Thunderbolt and monitor out of the SDI and HDMI outputs. Perfect for using low cost HDMI TV's and projectors for monitoring.

The UltraStudio Mini's are the solution you need when doing SD and HD work that demand quality. If you're editing with Avid Media Composer, Final Cut Pro or Premiere Pro then you get high quality and an extremely portable design, perfect for editing on location.

UltraStudio takes care of moving your media in and out of your computer so it's perfect for modern file based workflows. UltraStudio is powered via the Thunderbolt connection so it powers from your laptop battery.

Amazing Features • SDI & HDMI Monitor
• Thunderbolt Connection
• Portable Solution

High Quality Portable Design

blackmagic design ultrastudio mini monitor

The World's Highest QualityThe UltraStudio Mini Recorder and Monitor include only a single HDMI and SDI connection each so they are the tiniest way to capture and playback video available.

You can perfectly capture and playback your work now and well into the future. Simply choose between UltraStudio Mini Recorder or UltraStudio Mini Monitor depending on your needs.

Connect all your I/O devices with SD/HD-SDI, HDMI with 8 channels of embedded audio. SDI and HDMI are fully digital connections and are amazing quality. HDMI is fantastic for low cost HD monitoring as it's on all good modern TVs and video projectors.

The Power of Thunderbolt

blackmagic design ultrastudio mini monitor

Incredibly Fast ConnectivityBuilt on revolutionary Thunderbolt technology, UltraStudio has a blazingly fast 10 Gb/s connection that’s up to 20 times faster than USB 2.0. That’s enough bandwidth to handle the highest resolution video formats easily!

Thunderbolt ensures low latency and highly accurate time synchronization, making the UltraStudio ideal for demanding HD work. Thunderbolt also has the power budget to allow UltraStudio to operate from the Thunderbolt connections, so it can operate from your laptop battery, perfect for on location or remote areas.

UltraStudio makes it easy to work with all the video formats you need, conveniently on your desktop or notebook computer.

Unmatched Quality

blackmagic design ultrastudio mini monitor

No Loss of QualityNow you can handle any job your client presents to you, from TV to feature films. UltraStudio operates with both compressed and uncompressed video, so it can handle anything and you're not locked into a single codec quality.

When working with uncompressed video, all captured images are a perfect pixel-for-pixel clone of the source, without any generational loss or damaging compression, so you have the confidence you’re working at the absolute highest quality possible!

Get the sharpest green screens, cleanest compositions, superior colour correction and more. With mature drivers, award winning Media Express software, attractive design, and the highest quality video.

The Tech Spec

Features Specification
SDI Video Output 1 x 10-bit SD/HD switchable
HDMI Video Output 1 x HDMI type A connector
SDI Audio Output 8 Channels embedded in SD and HD
HDMI Audio Output 8 Channels embedded in SD and HD
Computer Interface Thunderbolt
SD Format Support 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC
HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
SDI Compliance SMPTE 259M and 292M
SDI Metadata Support VITC read for 3:2 pulldown removal. VANC capture using up to 3 lines of video in file. HD RP188. Closed captioning
Audio Sampling Television rate of 48kHz and 24 bit
Video Sampling 4:2:2
Colour Precision 10-bit
Colour Space REC 601, REC 709
HDMI Configuration HDMI automatically configures to connected display
HDMI Resolution Pixel for pixel HD resolution input to connected device
HDMI Colour Precision 10-bit
Multiple Rate Support SDI and HDMI are switchable between standard definition and high definition
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. (Always confirm copyright ownership before capture or distribution of content).
Colourspace Conversion Hardware based real time
HD Down Conversion Software based down conversion during video playback
Real Time Effects Apple Final Cut Pro internal effects. Adobe Premiere Pro Mercury Playback Engine effects. Avid Media Composer 6 internal effects
Software Included Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic drive
Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software
Physical Installation Requires computer with a Thunderbolt port. Please check the Support pages to see the full system requirements
Operating System Compatibility Mac OS X 10.7 Lion or later or Mac OS X 10.8 Mountain Lion or later
Specifications
Interface
Internal Connectors
External Connectors 1 x Thunderbolt 3 port (Type-C)
Power Connector
Additional Information
Scan Code LN110269
Model Number OB-BDLKULSDZMINMON
GTIN 9338716001839
