Blackmagic Design Hyperdeck Studio Mini

Blackmagic Design Hyperdeck Studio Mini - Portable Broadcast Quality Deck That Records ProRes Onto Commonly Available SD

Blackmagic Design
Scan code: LN78857 Manufacturer code: BMD-HYPERD/STM Request call
£750.49
In stock
Pay on Scan Finance with a 10% deposit from just £18.74 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD On 31st May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

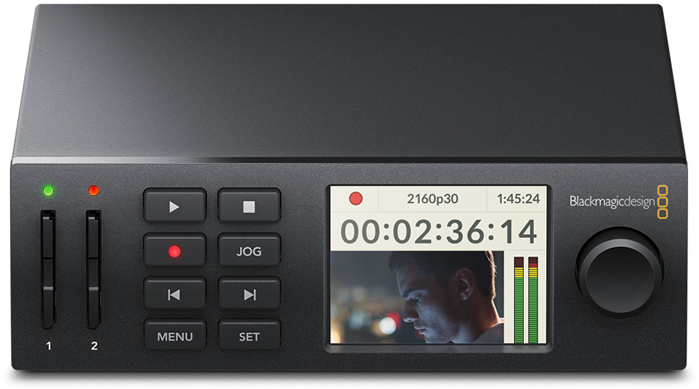

Professional Mini Studio with Ultra HD Broadcast from BlackMagic

Black Magic Product
Worlds Smallest broadcasting deck with professional recording/playback

Even at the tiny size of the HyperDeck Studio Mini, you get a professional deck that records and plays back broadcast quality 10-bit video as ProRes files on commonly available SD and UHS-II cards. It’s packed with features like 6G-SDI for working with all formats up to 2160p30, HDMI 2.0 for monitoring, dual SD card slots for non-stop recording and a reference output with built in sync generator that lets you daisy chain and synchronize multiple decks together!HyperDeck Studio Mini includes industry standard RS-422 deck control, a built in power supply and ethernet with PoE+ for custom control solutions and uploading media via FTP! The HyperDeck Studio Mini has truely been compact with an array of advanced audio technologies.

LCD Screen Control

Black Magic Product
Front Panel - Easy to use, no training required!

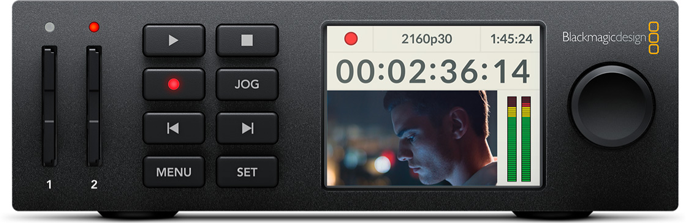

HyperDeck Studio Mini features traditional deck style transport controls, including a jog button and shuttle wheel. The integrated high resolution LCD shows timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback. It also displays information about each card’s recording status, along with video format, frame rate information and audio levels, all on the same display! The combination of familiar VTR style controls and the built in LCD screen makes it fast and easy to use!

Versatile Connections

Black Magic Product
Back Panel - 6G-SDI for SD, HD and Ultra HD

HyperDeck Studio Mini features multi rate 6G-SDI connections so you can connect it to virtually any camera, monitor or SDI router and work with all SD, HD and Ultra HD formats up to 2160p30. You get an SDI input, reference input and two SDI outputs that can be used as dual link or fill and key outputs. The high quality HDMI connection lets you play back to big screen televisions, digital projectors and more! In addition, there’s an RS-422 deck control connection, ethernet for uploading files to it via FTP and a built in 110-240V AC power supply. There’s even an SDK and easy to use ethernet protocol documented in the instruction manual that lets you integrate HyperDeck Studio Mini into your custom systems and software!

Top-End Quality

Black Magic Product
Broadcast quality recording and playback you can take anywhere!

HyperDeck Studio Mini is perfect for use as a master program recorder during live multi camera production, or as an ISO recorder from your cameras so you can edit the final program later. HyperDeck Studio Mini is also a powerful clip player for playback directly to air, or even as a client preview deck in a conference room with a large HDMI television. Because you can lock and sync the playback of multiple units together, it’s ideal for high resolution digital signs that use multiple screens. The separate fill and key SDI outputs let you use it to play animated broadcast graphics with an alpha channel for keying over live video with a live production switcher, all in real time!

Dual SD Card Slots

Black Magic Product
Two SD card recorders for non-stop recording!

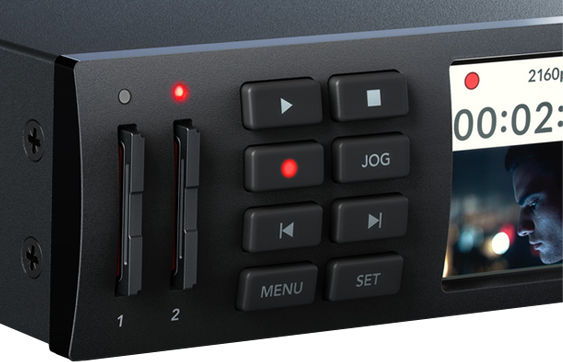

HyperDeck Studio Mini features dual SD card recorders so you can record an entire event without ever having to stop the deck! When one card is full it automatically continues recording on to the next. The cards are also hot swappable, so you can remove a full card and replace it with an empty one while it’s recording in the other slot. Each recorder has a dedicated LED indicator that provides instant feedback on the status of the SD card. The light pulses red while recording, green while playing back, and flashes slowly when the media card is getting full! If one of the slots becomes worn from heavy use, the cards can be purchased as a spare part and simply swapped out by maintenance staff so you can keep it running for years to come!

Multi-Sync Technology

Black Magic Product
Lock and sync multiple decks together!

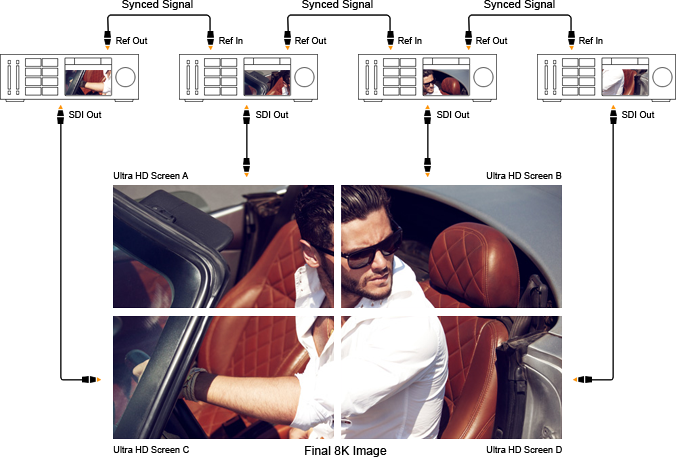

The reference video input and output on HyperDeck Studio Mini lets you receive or output sync using standard BNC connections. In addition, HyperDeck Studio Mini can also generate it’s own sync on the reference output, locked to the video playback, so you can daisy chain multiple units, lock them together and perfectly synchronize all decks for playback together. This makes them ideal for use as playback units for large high resolution, multi screen digital signs in which each HyperDeck is playing a tile of the overall sign display. For example, you could build an 8K digital sign by simply using 4 HyperDeck Studio Mini’s and 4 Ultra HD screens!

Professional Video Content

Black Magic Product
Record and play industry standard ProRes files!

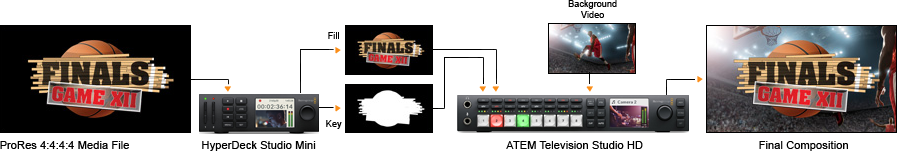

HyperDeck Studio Mini records video as standard ProRes files, which is one of the most widely accepted professional video file formats in the world! You get broadcast quality 10-bit YUV or 10-bit RGB recording in all formats up to 2160p30, all recorded onto ExFAT or HFS+ formatted media cards. Plus, the ProRes files are compatible with software such as DaVinci Resolve, Final Cut Pro X and more, so this means you can simply insert the card into your computer and start editing, all without having to convert the files! HyperDeck Studio Mini works with a variety of ProRes formats, including high end ProRes 4:4:4:4 in HD which supports both image and alpha channels. That means you can you output animated graphics with transparency via the fill and key SDI connections, making HyperDeck Studio Mini perfect for playing broadcast graphics out to a live production switcher for keying over live video!

Ethernet Protocol

Black Magic Product
Upload media to your deck via FTP!

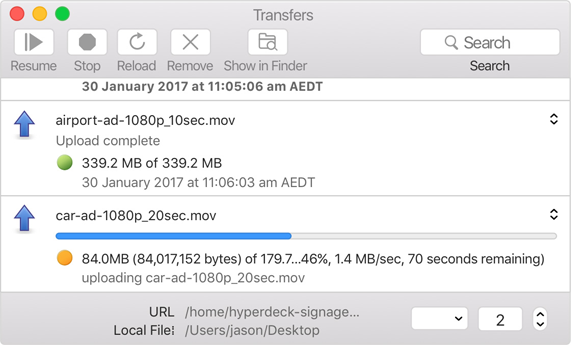

HyperDeck Studio Mini features a built in ethernet connection that allows you to upload files to the deck via FTP. That means you can update content on remote units such as those used for driving digital signage, client preview decks and more. It also supports power over ethernet (PoE) so it can be powered from your network router! You can even use the HyperDeck ethernet control protocol to create your own custom solutions or download third party apps for Windows and Mac that provide remote management, advanced playlist functionality and more! The ethernet protocol is text based and documented in the manual, so its easy to get started!

Hyperdeck Studio Mini Additional Features

Black Magic Product

Portable Elegant Design HyperDeck Studio Mini features dual SD card recorders, professional connections, ethernet, built in power and much more, all miniaturized into an elegant 5.5 inch wide compact and modular design. If you're not using it in a rack, HyperDeck Studio Mini’s elegant design also looks great when used on the desktop. It’s the world’s most versatile professional deck!

Black Magic Product

Pro Software Compatible HyperDeck Studio Mini records files that are compatible with virtually all post production software. If you are working with popular editing software such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro or Avid Media Composer, you can start editing and color correcting without having to transcode or convert the files. Even motion graphics and visual effects artists using software like Fusion and After Effects can easily work with the files!

Black Magic Product

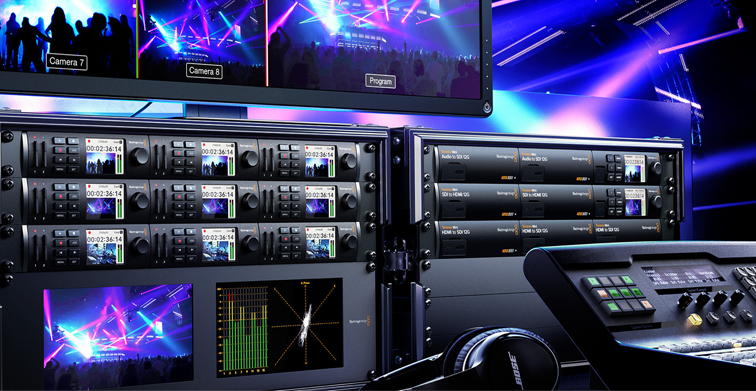

Customizable Design The compact design of HyperDeck Studio Mini is based on the Teranex Mini form factor. This modular design means that you can combine it with other products to create a completely customized deck based on your workflow. HyperDeck Studio Mini can be combined with other products such as ATEM Television Studio HD, Teranex Mini converters, Blackmagic MultiView 4 or Blackmagic Web Presenter.

Black Magic Product

Digital Signage HyperDeck Studio Mini is ideal for playing content on massive high resolution digital signs, even those that are made up of multiple screens! The built in reference connections and sync generator let you connect and lock multiple HyperDeck Studio Mini’s together so you can keep them playing in perfect synchronization! Plus, because the media files are stored locally on the SD card inside the HyperDeck, you never have to worry about losing video playback if the internet connection goes down!

Black Magic Product

Conference Rooms The HDMI output makes HyperDeck Studio Mini perfect for video playback in conference rooms and client review theaters because you can easily connect it to large screen televisions and projectors. You get broadcast quality playback from tiny SD cards and could even update the content via FTP for remote review and approval sessions with a client! The elegant design looks great on a desktop or conference room table and it even includes a set of non-skid rubber feet to keep it firmly in place when you’re using the front panel controls!

Black Magic Product

Built-In Power Supply The miniaturized design of HyperDeck Studio Mini includes a built in power supply so you don’t have to carry around an external power brick! Simply plug it into an AC mains outlet and start recording and playing back video. The power supply is an auto switching international power supply that works with 110-240V AC, so you can use it anywhere in the world! One of the most exciting features is that HyperDeck Studio Mini can also be powered via the ethernet connection from any PoE+ compatible router, so you can still use HyperDeck Studio Mini even if you don’t plug in the AC power cable!

Specifications
Capacity
Edition
Colour
Form Factor
Bus Powered No
Rotation Speed
Cache
Access Time
HDD Connectivity
External Connectivity
Card Reader No
Dimensions (mm)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
HOLDAN LIMITED
Telephone:
0845 130 4445
