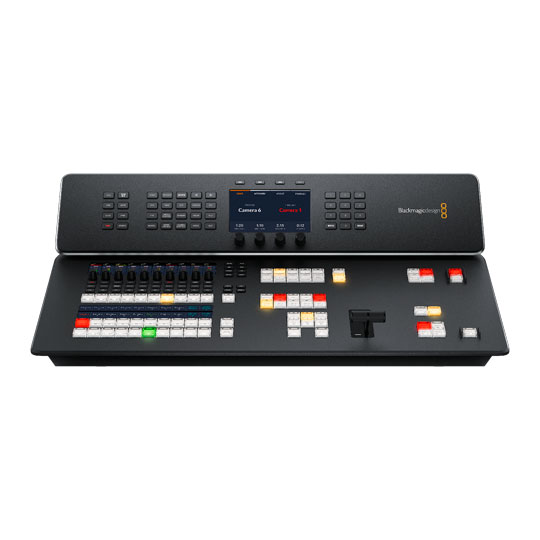

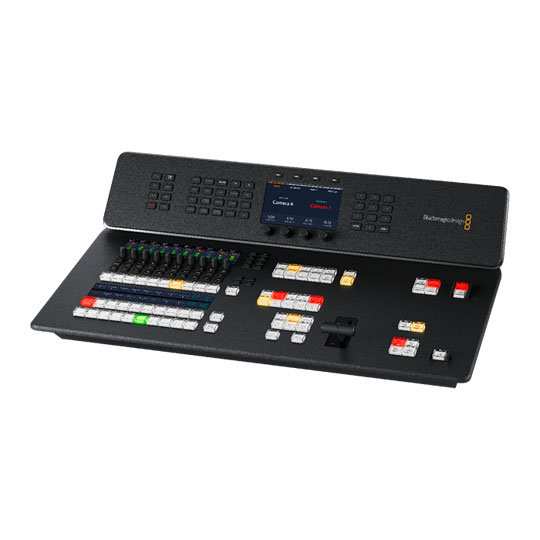

BlackMagic Design ATEM Television Studio HD8 ISO

BlackMagic Design ATEM Television Studio HD8 ISO, 8 x SDI, Professional Video FX, 4 ATEM Advanced Chroma Keyers

Thumbnail 1 : BlackMagic Design ATEM Television Studio HD8 ISO Thumbnail 2 : BlackMagic Design ATEM Television Studio HD8 ISO Thumbnail 3 : BlackMagic Design ATEM Television Studio HD8 ISO
Scan code: LN134463 Manufacturer code: SWATEMTVSTC/HD08ISO
Order now and get it tomorrow, Tue 23rd Jul
£3,492.49
Get it Tomorrow, 23 JulIn stock
From £98.48 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £316.41
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,492.49
Total inc. interest: £3,796.91
Monthly Payment: £170.54
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,492.49
Total inc. interest: £4,092.71
Monthly Payment: £122.30
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,492.49
Total inc. interest: £4,402.67
Monthly Payment: £98.48
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,492.49
Total inc. interest: £4,726.54
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £92.81 / month (APR 19.9%)
Delivery Options
  • By DPD On 23rd Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Blackmagic - 'ATEM Television Studio HD8 ISO'

Blackmagic ATEM Television Studio HD8 ISO

The World's Most Portable All‑In‑One Television StudioThe new ATEM Television Studio HD is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable, meaning it can be used even in small venues without equipment racks or even in broadcast vans. This powerful switcher features 8 standards converted SDI inputs, 2 aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and a tone of transitions. It also includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, Multiview and optional internal cloud storage.

The ISO model has the ability to record all 8 inputs for editing.

Includes Production, Post Production And Distribution

atem television studio hd in use at a concert

Live ProductionYou get an incredibly powerful 8 input switcher with both program and two aux outputs so you have everything you need for mobile production. That means you can connect up to 8 cameras. Plus, you get professional camera control, talkback and audio mixing all designed into a familiar broadcast panel.

atem television studio hd in use for post production

Post ProductionThe ISO model records all inputs into separate files so you can edit using any NLE that supports multi-cam. That's possible because all files have perfect timecode sync. Plus, with built in network storage, you can edit while recording. Multiple users can even share media and collaborate.

someone watching the live stream of the concert from the atem television studio hd

DistributionWith a built-in hardware streaming engine, you can live stream your event to a global audience. Recording to H.264 files with AAC audio means you get the correct format to upload to YouTube. Plus, you share live broadcasts with your audience by using the aux outputs and large screens and projectors.

Powerful Broadcast Features

atem television studio hd in use for a hockey match live production

Works Like A True Broadcast Live Production SwitcherWhile ATEM Television Studio HD is a compact design, it still includes very powerful broadcast features. If you're interested in a career in the television industry, then it's perfect for training as it has the same features as switchers in high end broadcast studios. You get an advanced broadcast grade switcher, with built in ATEM Advanced Chroma Keyers, Fairlight audio mixer, DVE, still store for graphics and much more. Most of the features can be operated from the front panel, or you can use the free ATEM Software Control on Mac or Windows to access even more features. With a little fun experimentation, it’s possible for anyone to create high end broadcast quality live television.

There's Never Been A Switcher That’s Easier To Use

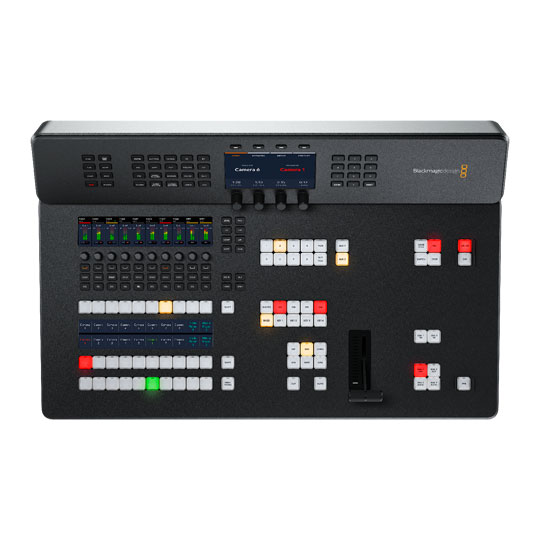

top down view of the atem television studio hd controls

Easy To Use And Fast To LearnThere's never been a switcher that’s easier to use, as you simply press any of the program row buttons on the front panel to cut between video sources. Or you can pre-select a source on the preview row and then choose between cut or effect transitions by selecting the cut or auto buttons. You can select from exciting transitions such as dissolve, or more dramatic effects such as dip to colour, DVE squeeze and DVE push. You can even add a DVE for picture in picture effects with customized graphics. There are also media players which let you store graphics with alpha channels for titles and graphics that you can load as live video inputs. Then you can live stream the results.

Bring Multi Camera Live Production To Any Location

atem television studio hd being used inside of a broadcast van

Compact Broadcast VansWith the all in one design, you can build a new generation of ultra-compact broadcast vans. You don't need racks of equipment, so you can eliminate clutter for a much nicer work environment. For stability, you can even mount the switcher inset into the desk.

atem television studio hd in use at a jazz club

Music Venues And ClubsSome of the most exciting venues, such as downstairs music venues or comedy clubs, are too small for racks of video equipment. However, ATEM Television Studio can be carried into any venue. It’s also easy to pack up, even if the venue is still crowded.

atem television studio hd in use for online education

Online EducationATEM Television Studio is perfect for creating education content. As the ISO model records the video inputs, you can finesse edits, replace shots and even add colour correction. Plus, you can even connect to Zoom to incorporate live chat with students.

atem television studio hd in use for a basketball game

Live SportsATEM Television Studio is perfect for live sports because it has a simple design that's easy for community volunteers to use. It can be installed into sports clubs or taken on the road with the team. With up to 8 cameras, you'll catch all the exciting angles.

Self-Contained Broadcast Quality Switcher

switcher and control panelThe ATEM Television Studio HD combines a switcher and control panel into the same unit, so it’s extremely portable. You get everything you need. The front panel includes buttons for selecting sources, triggering transitions and setting up video effects. Plus, the buttons are the same high-end type used on expensive broadcast switchers. You also get a built in T-bar for manual transition control! The front panel even has an innovative audio mixer control area with live metering on a dedicated LCD. There are also buttons for recording and streaming control, plus live aux switching that lets you change aux outputs between all 8 cameras, program, preview or the Multiview.

1. Select BusQuickly set inputs to processing such as keyers and DVE.

2. Audio ControlLCD and knobs allow control of audio levels and processing.

3. Audio MonitoringSelect audio monitoring for the speakers and headset.

4. System ControlAllows settings to be changed for all switcher features.

5. Numeric KeypadAllows entry of parameters such as transition durations.

6. 4 Upstream KeyersUpstream Keyers allow green screen keys and graphics.

top down breakdown of the atem television studio hd

7. Program ButtonsSources selected on this row will be immediately output.

8. Preview ButtonsAllows a source to be confirmed before it’s put on air.

9. Transition ControlSet the preview source to air using a cut or transition.

10. T-Bar FaderHigh quality T-bar allows manual control of transitions.

11. Downstream KeyersDownstream keyers for adding graphics after transitions.

12. Fade to BlackAllows all video to fade to black at the end of the show.

Connect Up To 8 Independent Cameras

8 3G-SDI Video InputsWith 8 3G-SDI video inputs, ATEM Television Studio HD lets you connect multiple cameras for different views of the performance. Video cameras with SDI outputs, such as Blackmagic Studio Camera or Blackmagic URSA Broadcast G2, are much better quality as they have better low light performance and use professional lenses. All video sources will re-sync to the switcher, even if they operate at different video standards. Everything just works so setup on location is easy and you don't have to worry about technical problems. Imagine taking advantage of the creative freedom of multi camera live production for interviews, advertorials, theatre productions, music performances, sports and more.

1. AC Power InputsStandard IEC 100‑240V AC power connection.

2. MADI Audio OutOutput all source audio to external audio mixers.

3. USB-CRecord to USB flash disks or stream via mobile phones.

4. Serial Remote ControlRS-422 supports GVG100 protocol and PTZ via VISCA.

5. Talkback ExpansionConnect to talkback systems such as ClearCom or RTS.

6. 3G-SDI Program OutputsProgram outputs for connecting to cameras for control.

7. Main SDI Program OutputMain program output for transmission and recorders.

8. Control Room AudioConnect powered speakers for control room monitoring.

9. Studio AudioConnect to speakers for talkback to the studio floor.

10. Balanced XLR Audio InputAllows connection to external analog audio mixers.

rear view breakdown of the atem television studio hd

11. DC Power InputBroadcast style 4 pin 12V power connection.

12. Reference In/OutReference input for syncing to broadcast systems.

13. Timecode In/OutTimecode connections from internal generator.

14. MADI Audio InInput an extra 32 audio channels such as microphones.

15. 4 Port Ethernet SwitchEthernet switch for connecting computers and internet.

16. 3G-SDI InputsStandards converted 3G‑SDI inputs with embedded audio.

17. 3G-SDI Aux Outputs2 aux outputs for projectors and presenter monitors.

18. SDI and HDMI Multiview OutputView up to 16 video sources on a single monitor or TV.

19. HiFi Audio InputAllows HiFi audio gear to be used for pre show music.

20. 5 Pin Talkback HeadsetConnects any broadcast standard 5 pin talkback headset.

Three Great ATEM Television Studio Models

all models of the atem television studio on a black background

ATEM Television Studio HD8

Get a fully featured broadcast quality live production studio with 8 standards converted 3G-SDI inputs, built in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4 way Ethernet switch and optional internal cloud media storage.

ATEM Television Studio HD8 ISO

The more advanced ISO model includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control.

ATEM Television Studio 4K8

Powerful Ultra HD live production switcher similar to the non ISO HD model, however includes 8 x 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch and more.

True Broadcast Style Mix Effects Switching

close up of the atem television studio hd buttons

professional program/preview style of operationATEM Television Studio uses a professional program/preview style of operation, which is exactly the way large broadcasters use live production switchers. However, ATEM Television Studio can be switched to A/B style switching, which is easier when it's used by volunteers or community groups. However, if you want to operate the switcher like a broadcast professional then the program/preview is perfect. This means a source won't be put on air until you press the cut or auto button. This 2-step process means you see what you are selecting before putting it to air, so you get fewer mistakes. Plus, program/preview operation is a fantastic way to train students for a career in broadcast television.

Easy To Add Exciting Video Effects

close up of the atem television studio hd effect controls

professional built in video effectsOne of the benefits of ATEM Television Studio is the range of professional built in video effects. The cut button ensures an instant cut when switching between sources. The T-bar fader can be used to transition video effects, or you can do the transition automatically by pressing the auto button. Auto uses the transition duration set in the system control. You can also select the type of effect you want including mix, which does a smooth transition between sources, or dip which transitions via a third video source, such as a colour generator. There is a wide range of SMPTE wipes included, plus fun DVE effects that slide or squeeze the image off screen when transitioning between video sources.

Includes Loads Of Extremely Creative Transitions

Customizable Effects And TransitionsATEM Television Studio includes the same kind of transitions found on expensive broadcast switchers. This means the effects and transitions can be customized in many different ways, so they are surprisingly powerful. You'll never stop finding new ways of using them. That’s because all transitions can be customized by adjusting parameters such as duration, border colour, border width, position and direction. You can even use the DVE with a wipe transition, where the DVE moves a graphic over the wipe edge. That's called a graphic wipe and it’s often used in sports broadcasting. The preview transition button can be used to set up effects offline, which is great for eliminating mistakes.

atem television studio hd fade effect example
atem television studio hd dip effect example
atem television studio hd wipe effect example
atem television studio hd push effect example
atem television studio hd squeeze effect example
atem television studio hd graphic wipe effect example

Built In DVE For Broadcast Video Effects

atem television studio hd indepent dve example during a news broadcast

Independent DVEATEM Television Studio HD features an independent DVE that lets you reposition graphics and create picture in picture compositions. You get amazing quality and the DVE supports position, resize and scale, all in real time. The DVE lets you create professional picture in picture effects with customizable 3D borders, shadows and lighting. DVEs can also be used to create amazing DVE transitions with squeeze, swoosh and push effects for adding excitement to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions. Plus, there is also a SuperSource multi-layer processing engine with 4 extra DVEs.

atem software contrl interface for motion graphics with atem television studio hd controls at the side

Supports Internal Media for Stills and Motion GraphicsThe built-in media pool stores broadcast quality graphics and animations that can be played back using the built-in media players. Media players appear as independent sources so you don't need to waste any of the SDI inputs for graphics. For highest quality, all media supports RGB colour space with alpha channel, allowing transparency and layering. The media pool can hold 20 HD resolution stills. Motion graphics clips for animations and stingers can be up to 400 frames in 720HD and 200 frames in 1080HD. The ATEM Software Control allows you to upload and manage media. You can even prepare graphics in Adobe Photoshop and then download to the media pool using the free ATEM Photoshop plug-in.

atem television studio hd chroma key example

Includes 4 ATEM Advanced Chroma KeyersATEM Television Studio is perfect for news and on-set presentation work because it features 4 ATEM Advanced Chroma Keyers for green screen keying effects. The chroma keyers are incredibly powerful and include features such as a colour picker to sample background colours for automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground colour corrector so you can match the foreground and background layers for seamless compositions. You can even use it for title overlays by creating graphics with a green or blue background. With 4 ATEM Advanced Chroma Keyers, ATEM Television Studio is perfect for creating fixed camera virtual sets.

Powerful SuperSource Processing

atem television studio hd supersource exxample for a esports competition

SuperSource multi-layer processorIn addition to the DVE in the ATEM Television Studio, there is also a powerful SuperSource multi-layer processor. SuperSource gives you 4 extra DVE layers plus a background layer, all layered together as an additional input source. Any video input can be used as sources for each DVE, then it’s all layered together over a media pool custom background or live video. SuperSource is perfect for doing multiple picture in picture displays with people being interviewed because you can set up the effect so the viewer can see each person being interviewed all within a stylish graphic. SuperSource is just like having a completely independent multi-layer VFX switcher built in.

Up To 8 Standards Converted 3G-SDI Inputs

atem television studio hd standards chart

8 independent 3G-SDI inputsThe ATEM Television Studio HD features 8 independent 3G-SDI inputs, with each input featuring its own dedicated standards converter. That means it’s possible to convert any 1080HD or 720HD input source to the video standard of the switcher. That means you could have each switcher SDI input running a different television standard and all the inputs would just work. SDI input audio channels 1, 2, 3 and 4 can also be manually routed to various embedded audio channels in the program and aux outputs. Plus, you can even router out audio channels 1 and 2 from the SDI inputs to the MADI digital audio output, so you can hand off the switcher input audio to an external audio engineer for mixing.

Professional 3G‑SDI Outputs With 16 Channel Embedded Audio

atem television studio hd example broadcast setup

9 3G‑SDI Program OutputsThe ATEM Television Studio includes nine 3G‑SDI program outputs so you get enough connections to send a separate program return feed to all of your cameras. That’s important because the SDI program return is used to send tally, talkback and control information back to the cameras. You also get 2 dedicated aux outputs for driving stage monitors and master recorders. These aux outputs can be live switched using dedicated buttons on the control panel. Aux 1 even includes an on-screen counter for presenter monitoring. Plus, you can manually route audio into all 16 embedded audio channels in the SDI outputs. For camera monitoring, there is a dedicated 3G-SDI and HDMI output for the multiview.

Built In Audio Mixer With 6 Band EQ, Compressor And Limiter

atem television studio hd audio mixer interface

built in Fairlight audio mixerWith a built in Fairlight audio mixer, ATEM Television Studio HD makes it possible to do complex live sound mixing. The internal mixer features enough channels for all SDI inputs, as well as extra channels for the XLR, RCA and MADI inputs! Each input channel features the highest quality 6 band parametric EQ, compressor, limiter, expander and noise gate as well as level and pan controls. You can mix all these input channels together at the same time, or you can set video sources to "audio follow video". The audio mixer is extremely powerful and it can be adjusted from the front panel using the dedicated audio mixer controls and LCD. Plus you can also mix audio using ATEM Software Control.

atem television studio hd audio level control interface
atem television studio hd audio eq control interface
atem television studio hd camera control interface

Built-in Multiview Supports 16 Sources On A Single Monitor

atem television studio hd multiview example

see all your video sources at the same time on a single monitorWhen doing larger live productions with multiple cameras, it’s vital to see all your video sources at the same time on a single monitor. ATEM Television Studio HD includes a professional multiview that lets you see all video inputs, preview and program on a single SDI or HDMI monitor. You can even send the multiview to the aux outputs. Each camera view includes tally indicators so you know when each source is on-air, plus each view has custom labels and audio meters. You can fully customize the multiview layout with up to 16 simultaneous views. You can also select one of the additional status views that lets you track recording, streaming and the audio mixer status, right from the multiview.

Live Stream To A Global Audience

atem television studio hd being used to live stream a concert
someone watching the live stream of the concert on an ipad using the atem television studio hd

built in hardware streaming engineATEM Television Studio HD has a built-in hardware streaming engine for live streaming to a global audience. That means you can live stream to services such as YouTube, Facebook and Twitch in better video quality and without dropped frames. Streaming works using the Ethernet connection to the internet, or you can connect a smartphone to use mobile data. Then you simply select the streaming service and enter the streaming key using ATEM Software Control. This makes streaming easy to setup, and the convenient data rate indicator shows the internet speed required. If you're technically minded, you can even update the streaming profiles in an XML settings file to add new services.

live streaming platform icons

Connect 5G Or 4G Phones For Mobile Data

atem television studio hd connected to a smartphone via usb

Mobile Data supportIf you’re doing live production on location then the ATEM Television Studio HD supports mobile data by connecting an Apple or Android phone to the USB port. It's also a great backup for the main Ethernet connection. Phone tethering works with the latest high speed 5G phones plus the more common 4G phones. The ATEM switcher will detect when a phone is connected and automatically switch its internet connection to use it if the Ethernet connection is lost. When connected, the phone will also power from the USB port so it always remains charged and ready to go. By using phone tethering and mobile data, you get the perfect mobile production solution that can be transported anywhere.

Record Direct To Internal Cloud Storage Or USB Disks

external drive connected to the atem television studio hd via usb

record to external USB flash disks or internal cloud storageATEM Television Studio HD supports recording to external USB flash disks. Or if an optional M.2 flash disk is installed, you can record direct to internal cloud storage. The internal storage plus any external USB disks will be available to share over the local Ethernet network so other people can work on post production tasks such as editing, colour correction and graphics preparation. All recordings are in H.264 format with AAC audio for broadcast quality video and small file sizes. You can also connect multiple USB disks, so recording will continue if a disk becomes full. You even get buttons on the control panel to start recording and you can see record status in the multiview.

Outputs To Any Software That Supports USB Webcams

atem television studio hd emulating a webcam on a laptop on a black background

USB Connection Can Emulate A WebcamYou can use any video software with ATEM Television Studio HD because the USB connection will emulate a webcam. That means you can plug into a computer and use any video software that works with a webcam. The software is tricked into thinking the ATEM Television Studio HD is a common webcam, but it's really a live production switcher. That guarantees full compatibility with any video software and in full resolution 1080HD quality. Imagine doing a presentation from a professional broadcast studio to software such as Zoom, Teams or Skype. For streaming, the webcam output also works with streaming software such as Open Broadcaster, XSplit Broadcaster and more.

Edit Live Production With Separate ISO Recordings

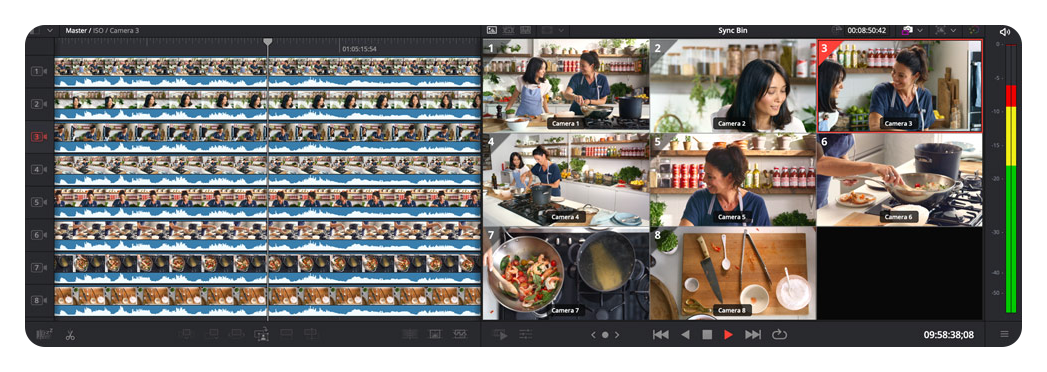

atem television studio hd iso recording example

edit your live eventThe ATEM Television Studio HD ISO model allows you to edit your live event as it can record all inputs to separate video files. You get 8 separate video input files with matching timecode and sync, plus the program video is also recorded into a separate master video file. This means you can edit using any NLE software that supports multi-cam editing. A DaVinci Resolve Project file is saved and linked to the input video files, so your live switching is converted into an edit timeline that you simply click to open. Now it's easy to re-edit your show with new colour grades and even updated graphics. Plus, all audio is recorded into separate WAV files so you can professionally remix your audio.

Edit Live Production In DaVinci Resolve

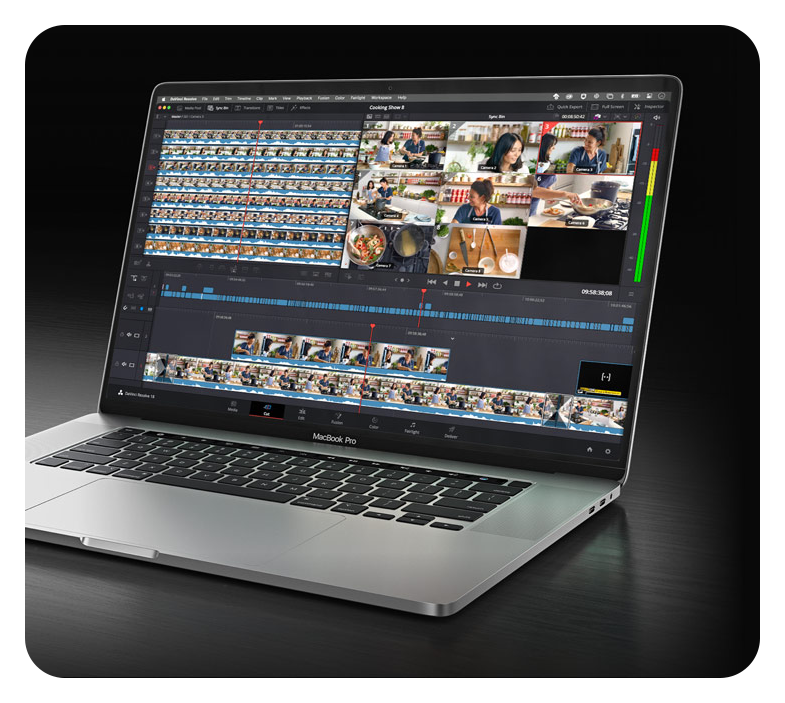

davinci resolve running on a laptop on black background

DaVinci Resolve support in the ISO modelWith support for DaVinci Resolve project files in the ISO model, you get a full post production workflow with editing, colour correction, visual effects and audio mixing. Plus, DaVinci Resolve is a free download for Mac, Windows and Linux, so there's no monthly license costs. Simply open the project and you'll see your live production as an edit timeline. You can trim edits and remove shots you don't want. In the cut page, the sync bin will show alternative shots in a multiview display. If you want to replace a shot, then simply click an alternative. Finally, you can add professional DaVinci colour correction. You can even relink to Blackmagic RAW camera files if you want to finish in Ultra HD.

Connect To Remote Internet Cameras

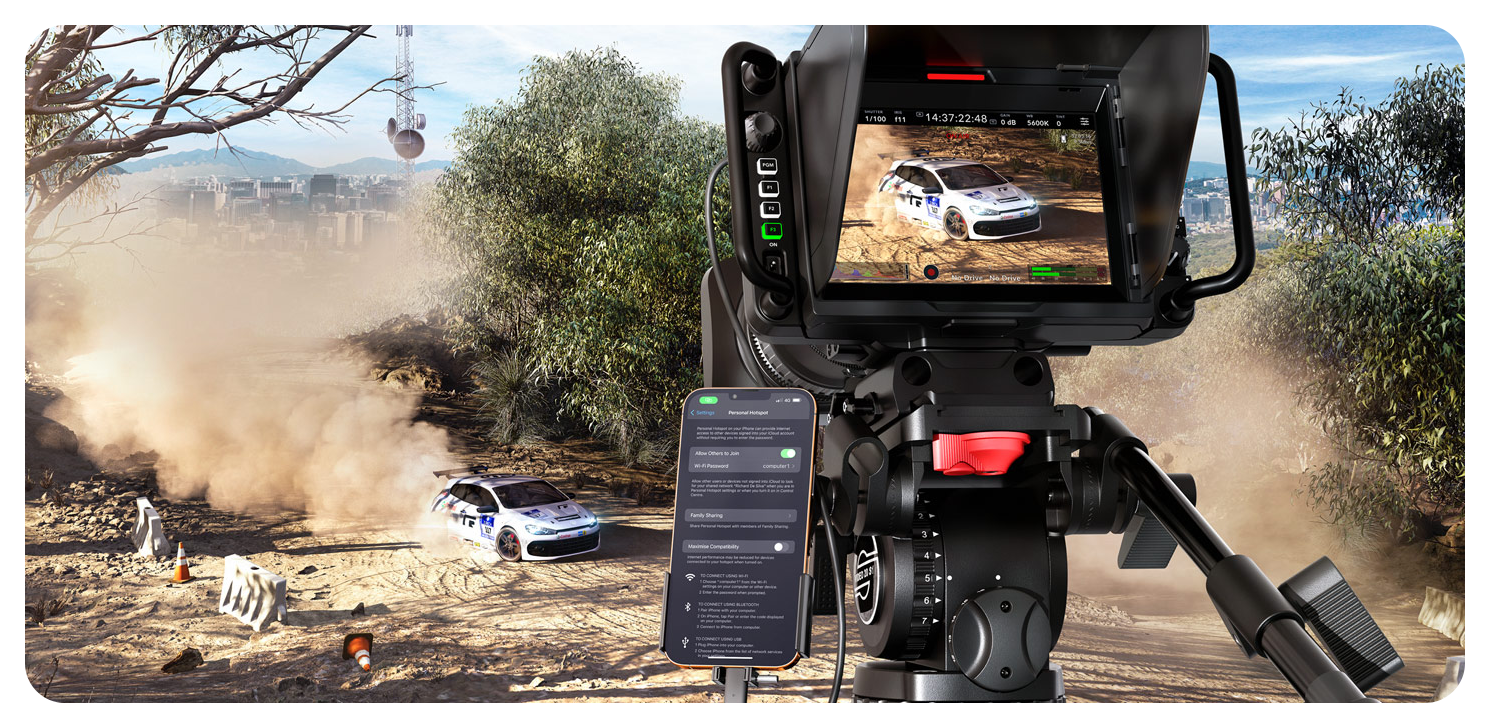

atem television studio hd remotely connected to a camera filming a rally race

connect to remote camerasAnother exciting feature on the ATEM Television Studio HD ISO model is that it can connect to remote cameras. The Blackmagic URSA Broadcast G2, Blackmagic Studio Camera 4K Pro G2 and Blackmagic Studio Camera 6K Pro cameras can live stream in H.264 direct to the switcher. If you're connected to the local network, then simply select the camera in the input menu. However, if the switcher is set to a fixed external IP address, then you can export an XML file with the camera settings to live stream from anywhere on the internet. Simply load the XML file into the camera. Plus, you even get camera control and tally. Program audio is also sent back to the camera which is great for live interviews.

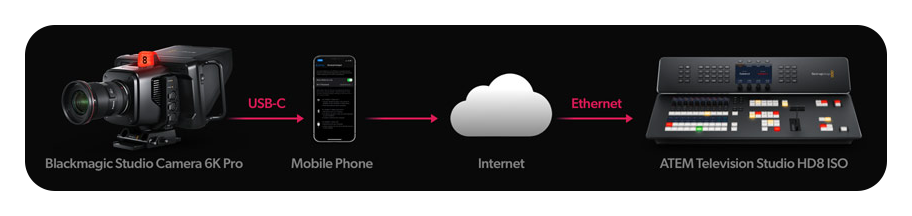

atem television studio hd remote connection workflow example

Includes Free ATEM Software Control Panel

atem software control app interface on a laptop
atem software control app interface on a laptop
atem software control app interface on a laptop
atem software control app interface on a laptop

ATEM Software Control appThe ATEM Software Control app unlocks the hidden power of ATEM Television Studio HD by allowing access to all the features in the switcher. ATEM Software Control features a visual switcher user interface with parameter palettes for making adjustments. Although you can connect via USB, if you connect using Ethernet you can run multiple copies of ATEM Software Control on different computers. The software lets you live switch, mix audio, colour correct in the cameras and manage media. You can also build and run complex macros from the software. Plus, you can save the switcher state as an XML file for recalling jobs later! You can even control trigger external HyperDeck recorders.

Localized For 13 Popular Languages

top of the atem television studio hd on a blue background with languages in boxes above it

support for multiple languagesATEM Television Studio HD supports multiple languages in the menus and in the ATEM Software Control, so you can customize it to the language you prefer. You get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish and Ukrainian languages. Simply go into the setup menu to change the language, or you can always switch to another language at any time in the future. Once a language is selected, the menus on all the LCDs will change to the selected language. Multiple language support means ATEM Television Studio HD is perfect for doing live production work anywhere in the world and with any crew.

Designed To Be Easy To Repair

atem television studio hd breakdown showing how it can be easily repaired

easily repairedWith so many features built in, it’s vital that ATEM Television Studio can be easily repaired! Plus, there is already a lot of built in redundancy, with 4 Ethernet connections, 9 program SDI outputs, 2 USB ports and 2 power connections. However, if someone trips on a cable and breaks a connector, then you need to be able to repair the connector at low cost. All the internal electronic PCBs are modular, so any qualified technician can buy a replacement and easily swap the board. This includes the connector PCBs, which can be purchased separately. All the technician needs to do is remove the bottom cover and replace the PCB. A large broadcaster could even buy the boards as a spare parts kit.

Flexible And Redundant Power

close up of the atem television studio hd built in power supply

Built-In Power SupplyThe all in one design of ATEM Television Studio includes a built-in power supply so you don’t have to carry around an external power brick. Simply plug it into any AC mains outlet and start live production. The international power supply automatically works from 100 to 240V AC, so you can use it anywhere in the world. Plus, ATEM Television Studio includes both AC and DC power connections. A broadcast standard XLR 12V DC power connection is included which is perfect for backup power or for running on batteries. That means you can use it in extremely remote locations. Plus, if the internal power supply should malfunction, then you can simply connect an external DC supply to keep running.

Add Audio Expansion For More Microphones

ATEM Microphone Converter being used to film a podcast

ATEM Microphone ConverterIf you're building a podcasting studio or you need more microphones, then the ATEM Microphone Converter allows audio input expansion. It connects to the ATEM Television Studio using the MADI port, so there's no complex setup and you can daisy chain units to add more inputs. Each converter has 4 analogue inputs that are mic/line selectable and have phantom power. The design features amazing quality with an extremely low noise floor of -129dBV, a dynamic range of 131dB(A), low distortion of 0.002% and uniform tolerances across all channels. It even uses 8 separate ADCs on each input to collectively extend the dynamic range. Plus, it has a fun HDMI monitoring output with scrolling audio waveforms.


Blackmagic Design ATEM Microphone Converter ATEM Microphone Converter workflow example

Add The Ultimate Compact Studio Camera

blackmagic studio camera being used to film an interview

New Blackmagic Studio CamerasWhen you need cameras that are perfectly designed for ATEM Television Studio HD then the new Blackmagic Studio Cameras are an ideal choice. Blackmagic Studio Cameras have the same features as large studio cameras, miniaturized into a single compact and portable design. Plus, with digital film camera dynamic range and colour science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. Advanced features include talkback, tally, camera control, built in colour corrector and Blackmagic RAW recording. You can even add focus and zoom controllers.

Match Cameras With An ATEM Camera Control Panel

ATEM Camera Control Panel with 4 cameras recoring a concert

built-in camera controlWhen working on live production, it’s critical all cameras are perfectly colour matched for a consistent look as you transition between different sources. ATEM Television Studio has camera control built in, however if you add a dedicated ATEM Camera Control Panel then you can adjust cameras using the same style of controls that are standard in the broadcast industry. Each camera controller includes an LCD screen with buttons and knobs for live camera adjustments, so you get a very clear indication of each camera’s parameters. The large joystick allows direct adjustment of iris and rotates to set black level. There are even red, green and blue knobs for fine control of camera colour tint.

Compatible With Blackmagic Cameras, Panels, Decks And More

can be expanded to grow with youATEM Television Studio HD is even more powerful as it can be expanded to grow with you. Blackmagic Studio Cameras are a great solution as they are a professional broadcast studio camera with tally, talkback and camera control, all miniaturized into a small and portable design. Of course, the full URSA Broadcast G2 is a broadcast style camera that uses B4 lenses, and has optional SMPTE fibre connections. If you want to control cameras using the same style of control broadcasters use, then you can add an ATEM Camera Control Panel for control and colour balancing of up to four cameras. For mastering, Blackmagic HyperDeck Studio recorders allow you to add recording in ProRes and DNx formats.

optional exapnsion products on a black background
optional exapnsion products on a black background

1. Blackmagic URSA Broadcast G2Designed for broadcast and live production, you get a 6K sensor with +36dB of gain, wide dynamic range and B4 lens mount. Records internally in Blackmagic RAW, ProRes, H.264 and H.265 file formats.

2. Blackmagic Studio Viewfinder G2Turn URSA Broadcast G2 into the ultimate live camera with a large professional 7 inch studio viewfinder.

3. Blackmagic Camera Fiber ConverterConnect cameras to live switchers up to 2 km away using SMPTE fiber, with all video, control and power, connected over a single cable.

4. Blackmagic Studio Fiber ConverterConnects to remote cameras up to 2 km away while converting the SMPTE fiber signals to regular 12G-SDI and multiple channels of return video, control and power all over the SMPTE fiber cable.

5. Blackmagic Studio Camera 4K Pro G2Compact studio camera with cinematic low light 4K sensor, MFT lens mount, HDMI, 12G-SDI, 10G Ethernet IP link, bright HDR LCD, talkback, colour corrector, recording to USB disks and HD live streaming.

6. HyperDeck Studio HD MiniMiniaturized deck records H.264, ProRes or DNxHD files onto SD/UHS-II cards or external USB disks in SD/HD formats to 1080p60. Includes timecode and reference generators, 3G-SDI in/out and HDMI out.

7. HyperDeck Studio HD ProIncludes all the features of HyperDeck Studio Mini, but adds 2 SSD slots and 2 SD card slots. Also includes machined metal search dial with clutch, SDI monitor out and XLR timecode connections.

8. ATEM Camera Control PanelControl up to 4 cameras at the same time using the same controls used on high end broadcast camera controllers. Controls iris, shutter speed, white balance, master gain, pedestal, RGB and more.

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details

Additional Notes:
12 months warranty- If the customer or business is UK based this warranty is extended to 24 months.

Loading Please Wait

Please wait . . .

BlackMagic Design ATEM Television Studio HD8 ISO
BlackMagic Design ATEM Television Studio HD8 ISO
