Blackmagic Design ATEM Television Studio HD

Blackmagic Design ATEM Television Studio HD - Live Production Switcher For Broadcast And Professional Users, SDI, HDMI

Blackmagic Design
Scan code: LN78856 Manufacturer code: BMD-SWATEMTVSTU/HD Request call
£942.49
In stock
Pay on Scan Finance with a 10% deposit from just £23.54 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD On 18th Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

Professional Broadcasting ATEM Tevelvision Studio HD from BlackMagic

Black Magic Product
live production switcher for broadcast, professional & AV users

Experience the first live production switcher that has been designed for both broadcasters and AV professionals, the ATEM Television Studio HD from Blackmagic. It is capable of supporting all formats up to 1080p60 and connecting up to 8 sources through 4 SDI and 4 HDMI inputs! Whether you’re using professional or consumer cameras you’ll always get clean switching with the ATEM TV Studio HD due to it featuring re-sync on all inputs. Packed with high end broadcast features such as multi-view output so you can see all of your sources, preview and program on a single screen, aux out, built in talkback, 2 still stores, an audio mixer, camera control unit and more! Great for web shows, live production, episodic television, AV or even covering live footage of video-game competitions! Simply plug-in and start switching live.

Live Production Switching

Black Magic Product
Turn any live event into a professional HD television program!

ATEM Television Studio HD is the fastest and most affordable way to create incredible HD programs immediately from live events! It’s perfect for broadcasters, professional sports, concerts, seminars, or even the new emerging generation of web broadcasters using platforms such as YouTube Live, Facebook Live and Twitch.tv. You can switch between multiple cameras, game consoles and computers in real time, all with broadcast quality transitions, graphics and effects! ATEM Television Studio HD features clean professional switching so there’s never a glitch when changing sources. That means you can even use it as a front end controller for your AV system and switch between multiple sources with the press of a button!

Studio HD Panel Controls

Black Magic Product
Broadcast quality connections

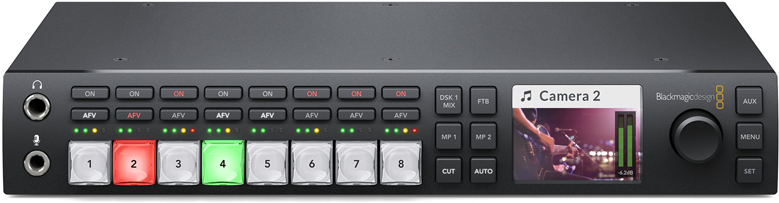

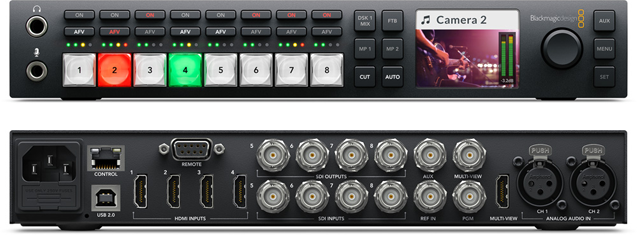

Front Panel Control - The front panel controls on ATEM Television Studio HD feature 8 large illuminated buttons for switching, along with audio controls, buttons for the down stream keyer, fade to black, media players, and cut-bus style or automatic switching with transitions. That means you can create a program right from the front panel! It also makes ATEM Television Studio HD perfect for things such as professional AV installations where all you need is to simply switch between sources. The built in LCD screen lets you adjust all switcher features via menus, plus it can be used for video and audio monitoring, aux control and to display the audio channel you’re adjusting.

Back Panel Input/Output - ATEM Television Studio HD is a professional broadcast SDI switcher that also includes loads of HDMI connections! With four 3G-SDI and four HDMI inputs, you can connect up to 8 cameras, game consoles, computers or other sources and work in all SD and HD formats up to 1080p60! You also get reference input, analog audio in, RS-422 PTZ control, and Ethernet for connecting hardware or software control panels! Unlike other switchers, all video inputs feature automatic frame re-synchronizers, so you don’t need expensive genlock cameras. This means you can plug in any video source and it just works!

ATEM Television Studio HD includes professional SDI program and aux outputs, along with SDI and HDMI outputs for multi view monitoring. The SDI program output lets you connect your ATEM Television Studio HD to professional decks and recorders, like HyperDeck Studio Mini, so you can record your program at the highest possible quality. The multi view SDI and HDMI outputs make it easy to monitor your program on virtually any display, including consumer HD televisions! The Aux output lets you send your switched program or a clean feed without graphics and overlays out to another display, deck, or even massive screens on stage behind a performer!

Multi-layer Broadcasting

Black Magic Product
High-Quality keyers for Graphics and Logos

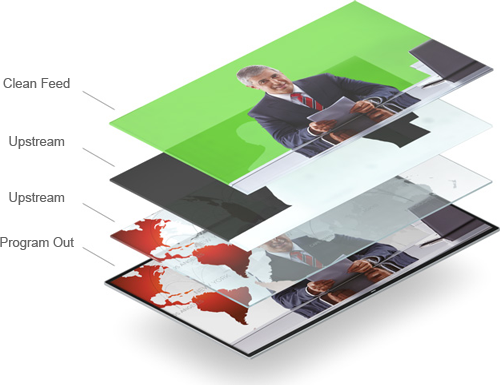

Upstream Keyers - Create amazing multi layer live action broadcast effects using the upstream keyer! Layer live video over other video sources or graphics with incredible quality. You can use luma key, linear key, pattern key, or shoot against a green screen and use the Chroma key to instantly composite the video over virtual sets for mind blowing effects!

Lumar Key / Linear Key / Chroma Key / Pattern Key

Downstream Keyers - ATEM Television Studio HD includes 2 downstream keyers so you can add high quality graphics like logos, bugs, and titles from the built in media players over the live ‘on air’ program output! Downstream keyers are the last layers of keying so they overlay all video switched to the main program output.

Bugs Key / Logos Key / Lower Thirds Key

Quick Switch Power Macros

Black Magic Product Black Magic Product
fast automatically trigger actions

To automate complex sequences of precisely timed actions on your ATEM switcher, you can now create powerful shortcuts called macros. Record a sequence of transitions between video sources, including key effects, audio mixer adjustments, camera control settings and more using the ATEM software or hardware control panel. Macros are saved as XML files that can even be edited with a standard text editor so you can combine them together to build sophisticated sequences that would be impossible to execute manually during a live production! That means you can create unique looks or your programs that can be recalled instantly, copied between switchers and used over and over again!

Software Control Panel

Black Magic Product
Advance Control over your media through ATEM Software

To automate complex sequences of precisely timed actions on your ATEM switcher, you can now create powerful shortcuts called macros. Record a sequence of transitions between video sources, including key effects, audio mixer adjustments, camera control settings and more using the ATEM software or hardware control panel. Macros are saved as XML files that can even be edited with a standard text editor so you can combine them together to build sophisticated sequences that would be impossible to execute manually during a live production! That means you can create unique looks or your programs that can be recalled instantly, copied between switchers and used over and over again!

Organize Media / Program Switch / Pro Audio Mixer / Media Players / Title and Graphics / Remote Camera Control

Customizable Studio Setup

Black Magic Product
Modular Teranex Mini based design

To automate complex sequences of precisely timed actions on your ATEM switcher, you can now create powerful shortcuts called macros. Record a sequence of transitions between video sources, including key effects, audio mixer adjustments, camera control settings and more using the ATEM software or hardware control panel. Macros are saved as XML files that can even be edited with a standard text editor so you can combine them together to build sophisticated sequences that would be impossible to execute manually during a live production! That means you can create unique looks or your programs that can be recalled instantly, copied between switchers and used over and over again!

Talkback Capabilities

Black Magic Product
Realtime two way communication with your cameras!

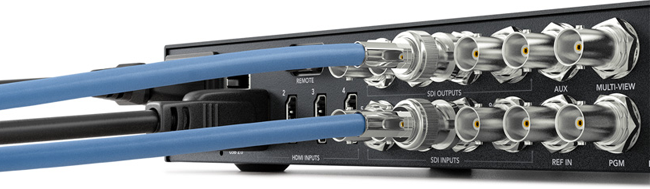

ATEM Television Studio HD features built in talkback that takes advantage of rarely used SDI channels 15 and 16 to send talkback audio to and from the camera. There's also headset connections on the front panel for talking to and listening from cameras that support SDI talkback. The talkback from the camera is embedded in the SDI video feed from the camera to the switcher. If you connect the talkback SDI outputs of the switcher back to the camera, then the director’s talkback audio is sent to the cameras along with tally and camera control. The 4 SDI outputs feature talkback to cameras with mix minus. This lets you send program audio back to an interviewee so they hear everything except themselves, and won’t be distracted by hearing a delayed audio echo.

Mix Minus - The 4 SDI talkback outputs on ATEM Television Studio HD support mix minus which is important when you are working with remote interviewees. For example, you could remove input 5 from the program audio on output 5 so the remote interviewee hears everything in the program except themselves talking, so they won’t be distracted by any audio delay.

HD ATEM Television Studio Gives More

Black Magic Product

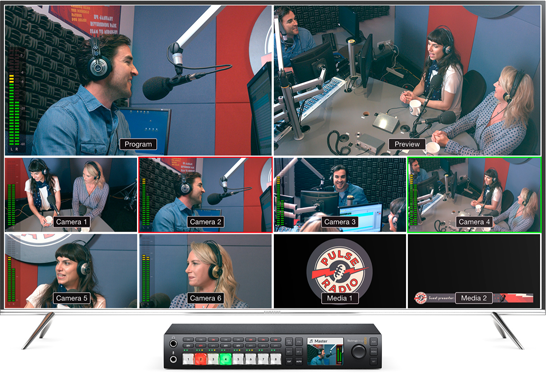

Multi-View See all of your sources simultaneously on a single display! Multiview makes it easy to see your sources, graphics, preview and program outputs on a single screen so you don’t need separate monitors for your individual cameras. You get HDMI and SDI Multi View outputs so you can connect professional broadcast SDI monitors, or even low cost consumer HDTV sets!

Black Magic Product

Resolutions ATEM Television Studio HD is designed to operate in all SD or HD television formats up to 1080p60. Depending on your production and local television standards, you might want to work in 720p, 1080i, 1080p, or even NTSC/PAL in 4:3 or 16:9 for standard definition. Simply select the standard in the control panel, and all inputs and outputs will be changed to the new standard!

Black Magic Product

Aux SDI Output ATEM Television Studio HD has an independent auxiliary output that’s perfect for feeding big video screens on stage, or can also be used to send "clean feeds" without on air graphics to recorders for program mastering. The front panel aux button makes it easy to select exactly what you want to send to the aux output. Auxiliary outputs can be selected to any video input, media players, the preview bus, test signals and more! Aux outputs are also fantastic for technical monitoring, such as when you are doing camera control, because it can be set to automatically switch to the camera you are adjusting.

Black Magic Product

Portable Design ATEM Television Studio HD is a true professional switcher that’s incredibly tiny, making it compact and portable enough to use anywhere! The all in one design includes a built in AC power supply, full front panel controls with input source buttons for switching, a built in LCD screen, spin knob and more. It’s small enough to use on the desktop, or it can be mounted in equipment racks using the optional Teranex Mini Rack Shelf. That means it fits alongside other Blackmagic Design products such as Teranex Mini converters, HyperDeck Studio Mini recorders, Blackmagic MultiView 4 or Blackmagic Web Presenter, all in a single rack unit.

Black Magic Product

Built in 2D DVE ATEM Television Studio HD features a powerful digital video effects “DVE” processor that can position, resize and scale live video, all in real time. That means you can create professional picture in picture effects with customizable borders and drop shadows with lighting. Imagine using a picture in picture effect to superimpose a commentator when covering events such as sports, training videos, interviews and even gaming competitions. You also get 17 DVE powered transitions that you can use to squeeze and swoosh between sources, or to create graphic wipe transitions with your own graphics!

Black Magic Product

Powerful Transitions Select and instantly use broadcast quality transitions like mixes, wipes, dips and more when switching between sources! ATEM Television Studio HD lets you adjust the duration of your transitions, along with an incredibly wide range of options including border, border color and width, position, direction and more! There are 18 completely customizable transitions that will give your HD program that high end broadcast look! You can also use the DVE for transitions, create graphic wipes, and even stingers when you use it with a HyperDeck Studio Mini playing back 4:4:4:4 graphics with fill and key back to the switcher!

Black Magic Product

Photoshop Plug-in Graphic designers know and use Photoshop every day. Now they can use the included Photoshop plug-in to create still broadcast graphics and instantly add them to the ATEM Television Studio HD’s media pool. Add professional looking logos, lower thirds, scorecards or other real time graphics and get them on air in seconds!

Black Magic Product

Hardware Control Panel If you prefer to use a dedicated hardware control panel, you can add the optional ATEM 1M/E professional broadcast panel. The super compact ATEM 1M/E panel features high quality buttons, knobs and controls for the most demanding 24/7 live production environments, giving you precise hands on control!

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
HOLDAN LIMITED
Telephone:
0845 130 4445
