BirdDog Studio - SDI and HDMI to NDI Encoder

BirdDog Studio - SDI and HDMI to NDI encoder with Tally and PoE

Thumbnail 1 : BirdDog Studio - SDI and HDMI to NDI Encoder Thumbnail 2 : BirdDog Studio - SDI and HDMI to NDI Encoder Thumbnail 3 : BirdDog Studio - SDI and HDMI to NDI Encoder Thumbnail 4 : BirdDog Studio - SDI and HDMI to NDI Encoder BirdDog Studio - SDI and HDMI to NDI Encoder : video thumbnail 1
Scan code: LN75871 Manufacturer code: BDSTUM01
£882.00Item currently awaiting an ETA
Pre order
Free Delivery
From £42.34 / month (APR 14.9%)
Monthly Payment: £153.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £882.00
Total inc. interest: £918.28
Monthly Payment: £79.18
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £882.00
Total inc. interest: £950.14
Monthly Payment: £54.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £882.00
Total inc. interest: £982.75
Monthly Payment: £42.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £882.00
Total inc. interest: £1,016.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £22.03 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview BirdDog Studio can accept industry-standard HD-SDI or consumer grade HDMI inputs making it universally compatible with video equipment presented to a production.

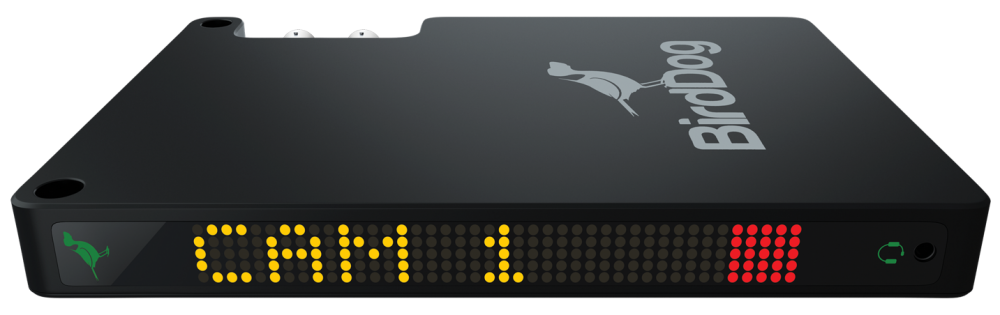

Configurable Displays allow either the director or cameraman to quickly and easily identify the camera or on-screen talent to be aware of which camera is currently live to air via the bright multi-colour LED display.

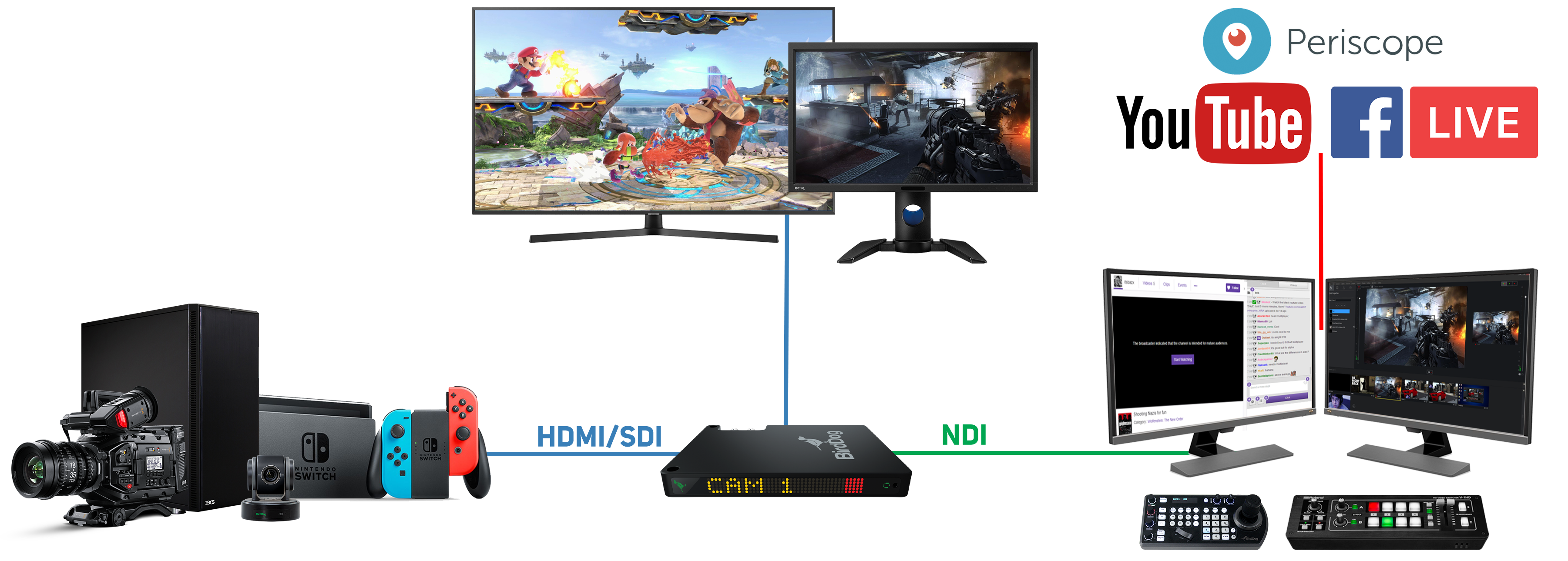

BirdDog Studio enables your existing cameras to be included into a new IP workflow for your live productions. Once you convert your HDMI or SDI signal to IP the possibilities of live productions are magnified. Any network connection becomes a live video input into your switcher.

• More flexible video inputs into your live production*
• Access video resources from anywhere in the facility
• Easily integrate Tally into productons, even outside the studio

NDI made simple
Convert your baseband SDI or HDMI to NDI and take full advantage of flexible IP networks. No need to run long SDI cables or purchase expensive video routers, simply access your live video in real time anywhere on your network.

Dual Color Tally
We do Tally the right way. BirdDog Studio can display Tally onbaord and externally via Tally out. Due to our superior NDI integration we can provide both Program and Preview tally indicators.

Simply set the display to be full screen Tally or split screen to show both program and preview.

Power from anywhere
We have your bases covered when it comes to power. BirdDog Studio can accept power input form the Ethernet cable via PoE technology. Don’t have a PoE network infrastructure? No worries, simply power via DC or V/Gold-mount battery plate optional accessories with power pass-through (coming soon).

Central fleet control
Control and configure multiple BirdDog Studio devices through our admin panel which is accessible via a web browser on both mobile devices and desktop.

Monitor loop-out/format converter

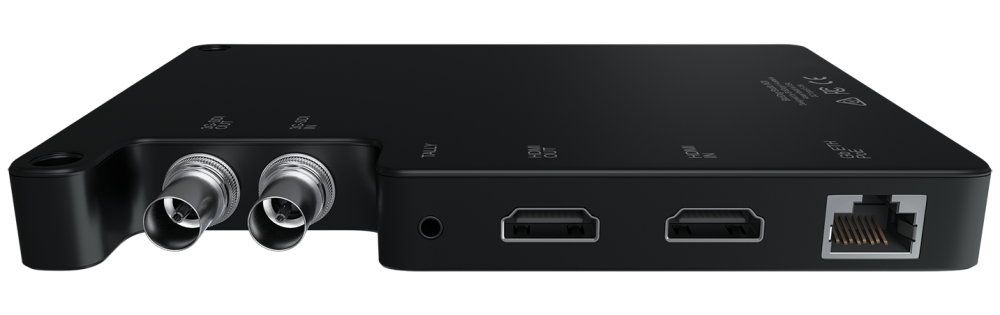

SDI and HDMI outputs are always live allowing you to convert from SDI to HDMI and vice versa. Connect a monitor to BirdDog Studio or simply use to loop out to other gear.

Software upgradeable
We’re working all the time and as additional features are made available we will release these at no cost. To make updates easy a simple site deployment wizard will ensure all BirdDog Studios in your facility are updated, and all running the same software version. Features • SDI to NDI with loop out.
• HDMI to NDI with loop out.
• Cross convert SDI & HDMI.
• Bi-colour tally. Program & preview.
• DC & Power over Ethernet (PoE).
• Web & Mobile based fleet managment.
• V-Mount & Anton Bauer mounting options.
• w/ power pass through.

Specifications

Video Inputs
• HDMI
• HD-SDI

Video Outputs
• HDMI
• HD-SDI

Suported Resolutions
• 1080p 29.97/25/59.94/50
• 1080i 59.94/50
• 720p 59.94/50
• SD PAL/NTSC

Video Protocol Support
• NDI Realtime Encoding.

Audio
• Embedded via SDI/HDMI.
• Headset connector.

Network
• 1000baseT

Power
• 802.3 PoE Compliant.
• 2-pin 8-24v DC with D-Tap adapter.

External Tally
• 3.5mm GPIO 2 position (Program/Preview)

Display
• 5x35 LED Display
• 3 Selectable modes (Info, Tally, Multi-Tally)

Configuration
• Web Based
• (Mobile and Desktop compatible)

Physical Dimensions
• 105mm (W) x 150mm (H) x 19.5mm (D)
