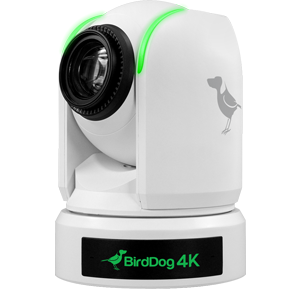

BirdDog - 'P4K Full NDI Camera'
(White)
Sony 1" SensorP4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.
Rebuilt Codec & Cam Control 2.0

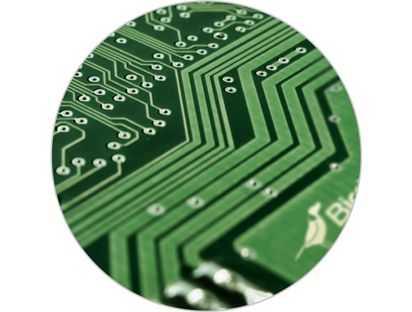

New Codec EngineA totally rebuilt codec engine brings even lower latency to the P400 and P4K and computationally higher picture quality. Better pictures, less bandwidth, faster.
Tighter Cam Control IntegrationCam Control 2.0 has been updated to include all the features found in the OSD of P400 and P4K so you can now remotely shade the cameras from the beautiful Cam Control interface.
Full NDI® Camera
Full NDI, No CompromisesIn the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P4K is a Full NDI® camera.
Sony Exmor R Sensor & Carl Zeiss Lens
Size Does MatterThe best images come from the best sensors and the P4K is built exclusively around the best sensor in its category. The massive 1” Sony Exmor R CMOS backlit sensor delivers truly stunning pictures in all shoot modes and frame rates whether in HD or 4K.
Carl Zeiss Vario-Sonnar T lensThe glass you use is super important in creating stunning pictures and P4K uses only the best. With precision optics and a T coating lens that reduces Ghost and Flare caused by reflections on the surface of the lens.
Shoot True Cinematic Styles
More than just a production PTZP4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.
Advanced Colour ControlsWith user selectable gamma settings and black gamma adjustment, fine tuning your shot has never been more flexible in a PTZ. Sony’s legendary sensor technology sets the tone for your next quality production.
Free Cam Control

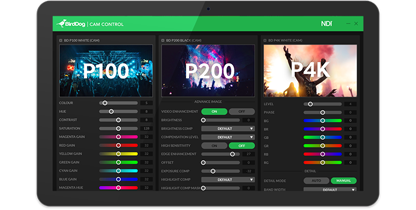

Colour Match in SecondsThe Cam Control app is the easiest and most user-friendly way to dial in BirdDog cameras. Simply load on a Windows 10 machine on the same network as your BirdDog cameras and access all functions of the camera through a beautiful interface. Quickly dial in the look you like and copy settings across multiple cameras in seconds. And it’s 100% FREE with all BirdDog PTZ cameras.
Superfine Robotics
Precise Control at you fingersP4K’s robotics are super precise and super sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements.

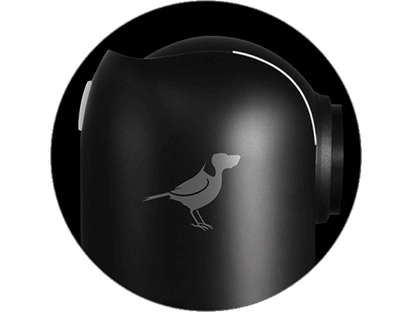

360 degree Tally lightsThe front, rear, and side Tally lights combine to create a 360 degree Tally light. Now everyone on the production set can see which camera is live to air.

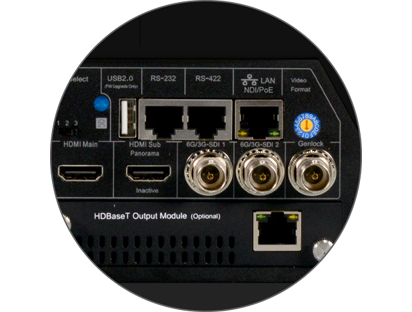

3 Independent Outputs
Full NDI, 6G SDI, HDMI 2.0Full NDI. Two independent 6G SDI outputs and one HDMI 2.0 output, all live all the time to create amazingly flexible workflows.
GenlockWith Genlock you can now synchronise multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.

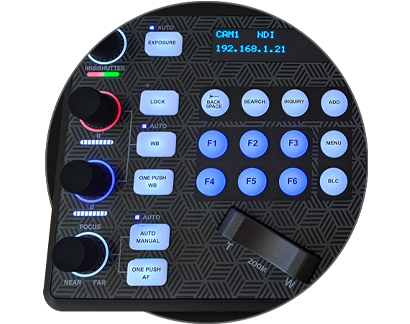

PTZ Keyboard Support
Take controlCombine P400 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P400 over NDI® or by RS422 / RS232 when using in SDI mode.
RESTful API, DIY automationDownload the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.
Non-Profit Customer Offers
BirdDog TogetherBirdDog are pleased to offer free Central Pro and Comms Pro worth $1490 to all our Educational, House of Worship, and Not for Profit customers.
Click Here for more information.
Free Software Tools
Central LiteTeam up Central Lite with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
Cam ControlCam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full screen output monitor and then copy across multiple cameras to colour match in seconds.
Comms LiteComms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.
The Tech Spec
Features | Specification | Image Sensor | 1.0-type back-illuminated Exmor R CMOS sensor |
---|---|
Number of Effective Pixels | 14.2 Megapixels |
Picture Elements | 3840 x 2160, 8.29 |
Lens | Optical, 12X |
Digital Zoom | Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD |
Horizontal Angle of View Focal Length | 64.6 ̊ (Wide) – 6.1 ̊ (Tele), f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele) |
Min. Objective Distance | 80mm (Wide), 1000mm (Tele) |
Aperture | F2.8 Constant (W)~(T), 16 Steps |
Min. Illumination | 0.5 lx (1/30 sec, 50%, High Sensitivity mode On) 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On) 0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off) |
Shutter Speed | 1/10000s to 1/8 (59.94/29.97) |
Focus | Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit |
White Balance | AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto) |
Exposure | Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE |
Features | High Sensitivity, Defog mode, Backlight Compensation, HLC, E-FLIP, Mirror, Flicker Control, day/Night, Defog |
WDR | Yes (130dB) |
ND Filter | Yes |
Image Stabiliser | Yes |
Colour Grain | Yes (15 step) |
Colour Hue | Yes (15 step) |
Gamma | Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern |
Gamma Level | Yes (15 step) |
Black Level | Yes (97 step) |
Flicker Cancel | Yes |
Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps), 2D/3D |
S/N Ratio | ≥50db |
Please Note: For full technical specifications please read more Here
