3 x Camera with Free Birddog PTZ Controller black
BirdDog Eyes P200 x3 With Free PTZ Controller BLACK
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free

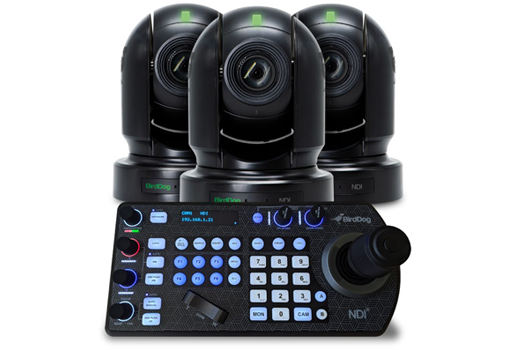

BirdDog Bundle!
BirdDog - 'P200' x3 & 'PTZ Keyboard'
SCAN PRO VIDEO PRESENTS...When purchasing 3 BirdDog P100 cameras you can now get a PTZ Keyboard completely free. Not only will you be able to cover every angle of your production, but you'll be able to quickly control each individual camera remotely.
Perfect for live productions, the BirdDog P100 PTZ camera, Built on BirdDog’s custom NDI® silicon chip, supports capturing incredible quality up to 1080p60 and features both SDI and NDI outputs. With a true broadcast camera sensor and 10x optical zoom, every detail in your scene can be captured with professional quality. As the P100 features both SDI and NDI outputs, you can connect it to an existing SDI workflow or integrate it into a complete NDI workflow.
The BirdDog PTZ Keyboard allows you to access and control any BirdDog camera on the network (up to 255 at a single time), with quick access buttons for all of your most commonly adjusted parameters, including focus, zoom and exposure. With the 3-way joystick you can pan, tilt and zoom effortlessly however there's also a zoom rocker on the keyboard for easier control. To top this off, the PTZ Keyboard also supports Visca over IP, RS422 and RS232, so you can control any camera that supports these protocols.
The 'Worlds Best Full NDI Camera'

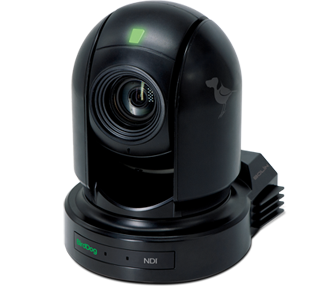

BirdDog - 'P200'
NDI® has never looked so good Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI and Full NDI®.
• Sensor Type: CMOS
• Sensor Size: 1/2.8 inch
• Video Resolution: 1080p
• Lens Zoom: 30x Optical Zoom
Full NDI®. No compromises.
12Mbits at 1080p60In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P200 is a Full NDI® camera.
NDI® has tally information built into the metadata so when P200 is connected to an NDI® enabled switcher the tally light on the front of the unit to ensure your on air talent will always know which camera is live. There is no configuration required; it just works.
Sony Sensor. You Deserve the Best.
a match made in silicon heavenThe best pictures come from the best silicon. P200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.
Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. P200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.
BirdDog and Bolin. BFF’s.
Batman and Robin. Mulder and Scully.Sometimes a partnership is so strong it creates more than the sum of the individual parts. BirdDog and Bolin have joined forces to bring the World’s Best range of NDI PTZ gear to market.
With Bolin’s commitment to using the highest quality Sony Sensors and their ability to build weatherproof cameras BirdDog knew there was only one PTZ partner that shared BirdDog’s vision of bringing to market the highest quality products at reasonable prices.
Through BirdDog’s NDI know-how and Bolin’s unrivalled PTZ engineering pedigree an unbreakable partnership has formed. Batman and Robin. Mulder and Scully. Joanie and Chachi. You get the idea.

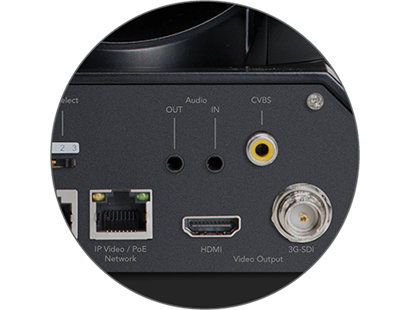

Triple Output. NDI®, SDI and HDMI.
p200 has your backWith NDI®, SDI, and HDMI simultaneous outputs the P200 is ready to go live with your full NDI® workflow today or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232.
No matter which way you like to work, you can rest easy in the knowledge that P200 has you covered for all workflow situations.
30x Optical Zoom.
Over there is now over hereNever miss a shot again. 30x optical zoom brings the whole world to you. Now you can zoom in to the other end of a football game and stay locked in on the action.
The incredible optical zoom function makes P200 perfect for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.
Free Software Tools
Central LiteTeam up Central Lite with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
Cam ControlCam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full screen output monitor and then copy across multiple cameras to colour match in seconds.
Comms LiteComms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.
Adaptive Bit Rate
Slide your way to gloryFull NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes.
With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.
The World’s First NDI PTZ Controller
BirdDog - 'PTZ Keyboard'
the ultimate ptz keyboardBirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.
Universal Control. Mix and Match Protocols.
full NDI® and NDI|HX supportNever before has a PTZ controller been so flexible. PTZ Keyboard is the world’s first PTZ controller with NDI® and NDI|HX support. Along with NDI® there is support for Visca over IP, RS422, and RS232.
You can mix and match cameras from any of the supported protocols and control them all from a single PTZ Keyboard.
Superior Ergonomics. Built for Humans.
Effortless, one handed controlUsing the PTZ Keyboard is a breeze with well thought out button layout. Quickly access all the cameras on the network, and set up quick access buttons for all your favourite settings such as Exposure, Focus, Zoom, and movement speeds.
Effortless, one handed control of Pan, Tilt, and Zoom is possible with the 3-Way Joystick. For those who prefer a zoom rocker there is also one of those exactly where your left hand wants it.
Soft Touch Buttons. Treat your Fingers.
assignable buttonsYour fingers will thank you for using the PTZ Keyboard. Soft-touch silicon buttons and easy turn dials give a premium sensation while achieving the responsiveness you expect and deserve.
Set up your quick access buttons to work the way you want. Exposure, Focus, PT Speed, Zoom, Shutter Speed, Iris, White Balance, Compensation, and more, can all be programmed into the assignable buttons.
By the Power of PoE. You have the Power.
control up to 255 PTZ cameras!Super flexible powering options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or even over the serial port. Never get stuck in a situation where you can’t power up.
Designed to control up to 255 PTZ cameras on a single network, PTZ Keyboard can scale to even the most complex installations.
'PTZ Keyboard' Tech Spec
| Features | Specification |
|---|---|
| I/O Connectors | LAN: 1 x RJ45 (with PoE) 100 Base-TX RS-232: 1 x RJ45 RS-422: 2 x RJ45 |
| Protocols Supported | NDI, NDI|HX VISCA over IP RS-232 / RS-422: Baud Rate 2400 / 4800 / 9600 / 19200 / 38400 |
| Display Type | LED |
| Serial Connection | RS-232: 7 RS-422: 7 |
| Buttons & Controls | 1 x Pan/Tilt Knob 1 x Zoom Knob 1 x Zoom Rocker 1 x Zoom Ring Joystick 6 x Programmable Function Buttons 1 x Exposure Selection 1 x White Balance 1 x White Balance Mode Selection 1 x Backlight Control 1 x WB, Iris, Gain, Shutter, Focus Status 1 x R, B, Gain Knob 1 x Iris Adjustment Knob 1 x Shutter Speed Knob 1 x Focus Model Selection 1 x One-Push Auto-Focus 1 x Manual Focus Knob |
| Power Input | 12 VDC, PoE, Power over Visca, Power over RS-232/RS-422 |
| Current | 3W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 10.9" x 5.2 x 3.9" / 27.8 x 13.2 x 10 cm |
'P200' Tech Spec
| Features | Specification |
|---|---|
| Image Sensor | 1 / 2.8 inch CMOS 2.13MP |
| Lens | 4.3-129mm/td> |
| Optical Zoom | 30x |
| Digital Zoom | 12x |
| Horizontal Angle of View | 63.7°(W) – 2.3°(T) |
| Aperture | F1.6(W) – F4.7 (T) |
| Min Illumination | Colour: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode) |
| Shutter Speed | 1/1 – 1/10000s |
| Focus | Auto, Push, Manual |
| White Balance | Auto, Indoor, Outdoor, Manual, OPW, ATW |
| Exposure | Auto, Manual, Shutter, Iris Priority |
| Pan Movement | Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S ) |
| Tilt Movement | Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜50°/S) |
| Preset Positions | 128 (Speed adjustable: Up to 150°/s) |
| Preset Speed | 0-5 Level Adjustable |
| Video Formats | 1080P 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50 720P 60, 59.94, 50, 29.97, 25 |
| Audio In/Out | 3.5mm Audio In (Stereo) 3.5mm Audio Out (Stereo) |
| Weight | 2.0kg |
| Dimensions | 160x178x220mm |
