Scan code: LN96552 Manufacturer code: BDP200B

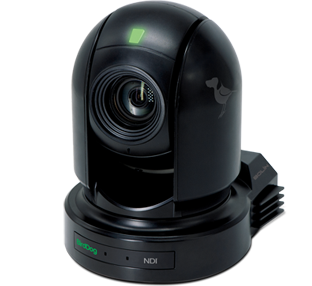

BirdDog Eyes P200 NDI PTZ Camera (Black)

BirdDog Eyes PTZ Camera P200 - NDI, 1080p60, 30x Optical Zoom, SDI, HDMI (Black)

Thumbnail 1 : BirdDog Eyes P200 NDI PTZ Camera (Black) Thumbnail 2 : BirdDog Eyes P200 NDI PTZ Camera (Black)
Scan code: LN96552 Manufacturer code: BDP200B
£2,484.49Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

The 'Worlds Best Full NDI Camera'
BirdDog - 'P200'

BirdDog - P200

NDI® has never looked so good Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI and Full NDI®.

Sensor Type: CMOS
Sensor Size: 1/2.8 inch
Video Resolution: 1080p
Lens Zoom: 30x Optical Zoom

Full NDI®. No compromises.

BirdDog - P200

12Mbits at 1080p60In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P200 is a Full NDI® camera.

NDI® has tally information built into the metadata so when P200 is connected to an NDI® enabled switcher the tally light on the front of the unit to ensure your on air talent will always know which camera is live. There is no configuration required; it just works.

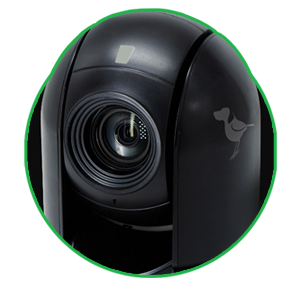

Sony Sensor. You Deserve the Best.

BirdDog - P200

a match made in silicon heavenThe best pictures come from the best silicon. P200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.

Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. P200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

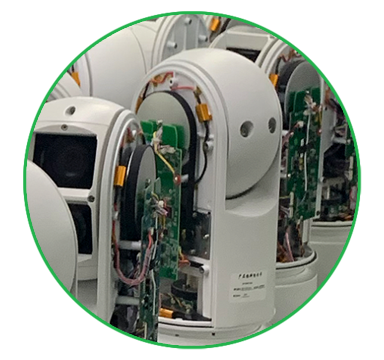

BirdDog and Bolin. BFF’s.

back

Batman and Robin. Mulder and Scully.Sometimes a partnership is so strong it creates more than the sum of the individual parts. BirdDog and Bolin have joined forces to bring the World’s Best range of NDI PTZ gear to market.

With Bolin’s commitment to using the highest quality Sony Sensors and their ability to build weatherproof cameras BirdDog knew there was only one PTZ partner that shared BirdDog’s vision of bringing to market the highest quality products at reasonable prices.

Through BirdDog’s NDI know-how and Bolin’s unrivalled PTZ engineering pedigree an unbreakable partnership has formed. Batman and Robin. Mulder and Scully. Joanie and Chachi. You get the idea.

Triple Output. NDI®, SDI and HDMI.

back

p200 has your backWith NDI®, SDI, and HDMI simultaneous outputs the P200 is ready to go live with your full NDI® workflow today or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232.

No matter which way you like to work, you can rest easy in the knowledge that P200 has you covered for all workflow situations.

30x Optical Zoom.

back

Over there is now over hereNever miss a shot again. 30x optical zoom brings the whole world to you. Now you can zoom in to the other end of a football game and stay locked in on the action.

The incredible optical zoom function makes P200 perfect for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.

Free Software Tools

4K Recording

Central LiteTeam up Central Lite with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.

Cam ControlCam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full screen output monitor and then copy across multiple cameras to colour match in seconds.

Comms LiteComms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.

Adaptive Bit Rate

back

Slide your way to gloryFull NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes.

With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.

PTZ Keyboard

back

Take controlCombine P200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations.

PTZ Keyboard can control P200 over NDI® or by RS422 / RS232 when using in SDI mode.

The Tech Spec

Features Specification
Image Sensor 1 / 2.8 inch CMOS 2.13MP
Lens 4.3-129mm/td>
Optical Zoom 30x
Digital Zoom 12x
Horizontal Angle of View 63.7°(W) – 2.3°(T)
Aperture F1.6(W) – F4.7 (T)
Min Illumination Colour: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)
Shutter Speed 1/1 – 1/10000s
Focus Auto, Push, Manual
White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW
Exposure Auto, Manual, Shutter, Iris Priority
Pan Movement Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
Tilt Movement Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜50°/S)
Preset Positions 128 (Speed adjustable: Up to 150°/s)
Preset Speed 0-5 Level Adjustable
Video Formats 1080P 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50 720P 60, 59.94, 50, 29.97, 25
Audio In/Out 3.5mm Audio In (Stereo) 3.5mm Audio Out (Stereo)
Weight 2.0kg
Dimensions 160x178x220mm
Specifications
Mega Pixel
Resolution (Still Image)
Resolution (Video)
Live Video Frame Rate
Zoom
LCD Display No
Sensor Type
Dynamic Range
Connectivity
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight
Dimensions
Colour
5.1 Sound No
Additional Information
Scan Code LN96552
Model Number BDP200B
