New
Scan code: LN107398 Manufacturer code: BDP100MAYPROMO-W

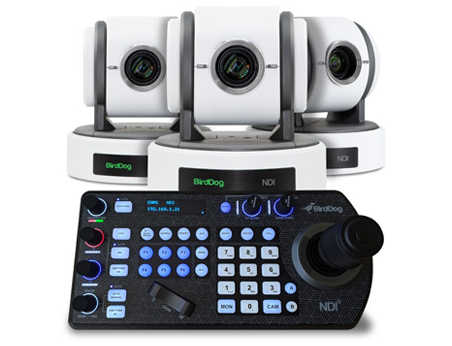

BirdDog Eyes P100 x3 & PTZ Keyboard controller WHITE

BirdDog Eyes P100 x3 with free BirdDog PTZ Keyboard controller WHITE

Thumbnail 1 : BirdDog Eyes P100 x3 & PTZ Keyboard controller WHITE Thumbnail 2 : BirdDog Eyes P100 x3 & PTZ Keyboard controller WHITE Thumbnail 3 : BirdDog Eyes P100 x3 & PTZ Keyboard controller WHITE
Scan code: LN107398 Manufacturer code: BDP100MAYPROMO-W
£6,012.49Item currently awaiting an ETA
Pre order
From £288.60 / month (APR 14.9%)
Monthly Payment: £1,043.31
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £6,012.49
Total inc. interest: £6,259.82
Monthly Payment: £539.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £6,012.49
Total inc. interest: £6,477.10
Monthly Payment: £372.18
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £6,012.49
Total inc. interest: £6,699.23
Monthly Payment: £288.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £6,012.49
Total inc. interest: £6,926.15
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £150.16 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

BirdDog Bundle!
BirdDog - 'P100' x3 & 'PTZ Keyboard'

4K Recording

scan pro video presents...When purchasing 3 BirdDog P100 cameras you can now get a PTZ Keyboard completely free. Not only will you be able to cover every angle of your production, but you'll be able to quickly control each individual camera remotely.

Perfect for live productions, the BirdDog P100 PTZ camera, Built on BirdDog’s custom NDI® silicon chip, supports capturing incredible quality up to 1080p60 and features both SDI and NDI outputs. With a true broadcast camera sensor and 10x optical zoom, every detail in your scene can be captured with professional quality. As the P100 features both SDI and NDI outputs, you can connect it to an existing SDI workflow or integrate it into a complete NDI workflow.

The BirdDog PTZ Keyboard allows you to access and control any BirdDog camera on the network (up to 255 at a single time), with quick access buttons for all of your most commonly adjusted parameters, including focus, zoom and exposure. With the 3-way joystick you can pan, tilt and zoom effortlessly however there's also a zoom rocker on the keyboard for easier control. To top this off, the PTZ Keyboard also supports Visca over IP, RS422 and RS232, so you can control any camera that supports these protocols.

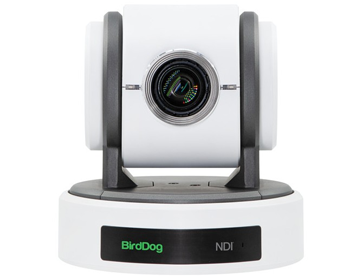

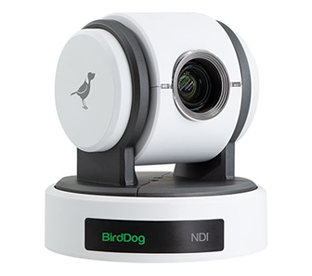

BirdDog - 'P100'
(White)

4K Recording

Your entry into the world of NDIBuilt on BirdDog’s custom NDI® silicon chip, the P100 PTZ camera is your entry into the world of full NDI®. Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI® outputs, P100 gives you professional level quality, performance, and total flexibility. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world’s first NDI® audio intercom platform.

Full NDI®. No Compromises.

back

'it just works'In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P100 is a Full NDI® camera.

NDI® has tally information built into the metadata so when P100 is connected to an NDI® enabled switcher the tally lights on the front of the unit to ensure your on air talent will always know which camera is live. There is no configuration required; it just works.

Broadcast Sensor. Incredible Pictures.

back

Lightning auto focusP100 is teams up a true broadcast camera sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Champagne images on a beer budget because your productions deserve the best.

Lightning auto focus. Insanely fast zoom. Precision optics. P100 has been engineered to meet the most demanding situations whether you are in a boardroom streaming your quarterly results, producing a live event for your church, or live streaming sports.

Dual Output. NDI® and SDI.

back

Future proofWith NDI® and SDI simultaneous outputs you can use the P100 is ready to go live with your full NDI® workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232.

Future proof your investment by using baseband video now and move to NDI® when you are ready.

Adaptive Bit Rate

back

upto 360mbps @ 4kSlide your way to gloryFull NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes.

With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.

The World’s First NDI PTZ Controller

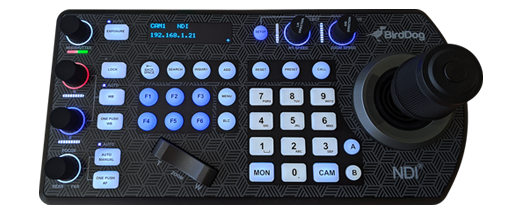

BirdDog - 'PTZ Keyboard'

BirdDog PTZ Keyboard

the ultimate ptz keyboardBirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.

Universal Control. Mix and Match Protocols.

back

full NDI® and NDI|HX supportNever before has a PTZ controller been so flexible. PTZ Keyboard is the world’s first PTZ controller with NDI® and NDI|HX support. Along with NDI® there is support for Visca over IP, RS422, and RS232.

You can mix and match cameras from any of the supported protocols and control them all from a single PTZ Keyboard.

Superior Ergonomics. Built for Humans.

back

Effortless, one handed controlUsing the PTZ Keyboard is a breeze with well thought out button layout. Quickly access all the cameras on the network, and set up quick access buttons for all your favourite settings such as Exposure, Focus, Zoom, and movement speeds.

Effortless, one handed control of Pan, Tilt, and Zoom is possible with the 3-Way Joystick. For those who prefer a zoom rocker there is also one of those exactly where your left hand wants it.

Soft Touch Buttons. Treat your Fingers.

back

assignable buttonsYour fingers will thank you for using the PTZ Keyboard. Soft-touch silicon buttons and easy turn dials give a premium sensation while achieving the responsiveness you expect and deserve.

Set up your quick access buttons to work the way you want. Exposure, Focus, PT Speed, Zoom, Shutter Speed, Iris, White Balance, Compensation, and more, can all be programmed into the assignable buttons.

By the Power of PoE. You have the Power.

back

control up to 255 PTZ cameras!Super flexible powering options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or even over the serial port. Never get stuck in a situation where you can’t power up.

Designed to control up to 255 PTZ cameras on a single network, PTZ Keyboard can scale to even the most complex installations.

'P100' Tech Spec

Features Specification
Image Sensor 1-Chip 1/2.86” CMOS Sensor
Sensor Resolution 2.2 MP
Minimum Illumination 0.5 Lux
Shutter Speed 1/1 to 1/30,000 sec
Max Digital Zoom 12x
Optical Zoom Ratio 10x
Focal Length 4.7 to 47mm
Field of View Horizontal: 6.43 to 60.9°
Maximum Aperture f/1.6 to 3
Focus Control Autofocus Manual Focus
Output Formats SDI, RJ45: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 50, 59.94, 60 fps
Presets 128
Move Speed 150°/sec
Movement Range Pan: 350° Tilt: -15 to 90°
Tally Light No
Supported Control Protocols Pelco-D VISCA
Dimensions 6.06 x 5.71 x 5.71" / 15.4 x 14.5 x 14.5 cm
Weight 2.2 lb / 1 kg

'PTZ Keyboard' Tech Spec

Features Specification
I/O Connectors LAN: 1 x RJ45 (with PoE) 100 Base-TX RS-232: 1 x RJ45 RS-422: 2 x RJ45
Protocols Supported NDI, NDI|HX VISCA over IP RS-232 / RS-422: Baud Rate 2400 / 4800 / 9600 / 19200 / 38400
Display Type LED
Serial Connection RS-232: 7 RS-422: 7
Buttons & Controls 1 x Pan/Tilt Knob 1 x Zoom Knob 1 x Zoom Rocker 1 x Zoom Ring Joystick 6 x Programmable Function Buttons 1 x Exposure Selection 1 x White Balance 1 x White Balance Mode Selection 1 x Backlight Control 1 x WB, Iris, Gain, Shutter, Focus Status 1 x R, B, Gain Knob 1 x Iris Adjustment Knob 1 x Shutter Speed Knob 1 x Focus Model Selection 1 x One-Push Auto-Focus 1 x Manual Focus Knob
Power Input 12 VDC, PoE, Power over Visca, Power over RS-232/RS-422
Current 3W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 10.9" x 5.2 x 3.9" / 27.8 x 13.2 x 10 cm
