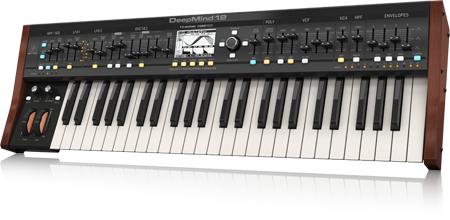

Behringer Deepmind 12 Analogue Synthesizer

Behringer Deepmind 12 - True Analog 12-Voice Polyphonic Synthesizer, 4 FX Engines, 8 Channel Modulation Matrix

Scan code: LN77356 Manufacturer code: ZB908 Request call
Pay on Scan Finance with a 10% deposit from just £21.28 / month (APR 15.9%)
From £40.90 / month (APR 14.9%)
Monthly Payment: £147.85
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £852.00
Total inc. interest: £887.05
Monthly Payment: £76.49
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £852.00
Total inc. interest: £917.83
Monthly Payment: £52.74
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £852.00
Total inc. interest: £949.33
Monthly Payment: £40.90
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £852.00
Total inc. interest: £981.44
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Free Delivery Delivery options Free By DPD On 26th Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview

12-Voice Polyphonic Analogue Synth

When Uli Behringer set out to clone the classic Juno 106, nobody imagined that it would turn into a project of this scale. Built from the ground up with the expertise of the highly respected MIDAS engineering team, the DeepMind 12 turned out to be one of the big surprises of 2016. Bringing super fat analogue sound with the perks of some seriously high-end physically modelled digital FX, the DeepMind 12 ticks all the boxes for any synth enthusiast.

DeepMind 12

Behringer DeepMind 12
With the creation of DEEPMIND 12, the ultimate true analog, 12-voice polyphonic synthesizer is finally a reality. DEEPMIND 12 allows you to conjure up virtually any sound you can imagine with unparalleled finesse and ease. Thanks to its 4 FX engines, dual analog OSCs and LFOs per voice, 3 ADSR Generators, 8-Channel Modulation Matrix and onboard 32-Step Control Sequencer, the DEEPMIND 12 gives you complete control over your soundscape. Plus, DEEPMIND 12 features comprehensive remote control via iPad*/PC/Mac and selected Android* Apps over USB, MIDI or built-in Wifi - for a custom-tailored workflow that lets your creative spirit soar to new heights.

Classic Polyphonic Synthesizer

Behringer DeepMind 12

The inspired synthesizer tracks laid down in the 1970s and '80s are etched in the annals of progressive rock and pop music forever, making them truly classic in every sense of the word. DEEPMIND 12's pure analog signal path with legendary IR3109-style VCFs, stereo VCAs, and 12-voice polyphony lets you recreate all that magic or design the powerful, original sounds that just might make you a legend in your own right.

The FX Racks
We also included 4 simultaneous FX engines with over 33 world-class TC ELECTRONIC, MIDAS and KLARK TEKNIK algorithms - including Reverb, Chorus, Flanger, Phaser, Delay, Multiband Distortion, and many more. Custom-designed and physically modeled after some of the most iconic and sought-after processors, DEEPMIND 12's FX were essentially "rebuilt" in the digital domain - and put right at your fingertips. All effects run inside the low-latency environment of the DEEPMIND 12, ensuring flawless performance and flexible routing.

TC Deep Reverb

Behringer DeepMind 12 TC Deep Reverb

TC ELECTRONIC is synonymous with some of the best sounding reverbs found anywhere. The TC DEEP REVERB provides 9 iconic reverb modes you know and love in tone effect that sounds insanely good. It's amazing that just 4 controls (Decay, Tone and PreDelay) provide such a wide range of tonal options - bright and springy, warm and bouncy, or gigantic dark reflections. All that - and then some!

Lexicon 480L

Behringer DeepMind 12 Lexicon 480L

The Lexicon 480L* has been recognized as the gold standard of digital reverb, and we have included five of the finest reverb models: HALL, AMBIENT, RICH PLATE, ROOM and RICH CHAMBER. These models precisely capture all nuances based on our "True Physical Modeling" and our algorithms even incorporate the unit's AD/DA gain stepping converters - nailing the entire analog and digital circuit paths, right down to the last detail. (Inspired by Lexicon 480L*)

Vintage Room Reverb

Behringer DeepMind 12 Vintage Room Reverb

Based on the legendary EMT250, the VINTAGE REVERB delivers a shimmering, bright reverb that won't drown out or overpower your live/recorded tracks. Use the VINTAGE REVERB to sweeten vocals and snare drums without sacrificing clarity. (Inspired by EMT250 Plate Reverb*)

Plate Reverb

Behringer DeepMind 12 Plate Reverb

PLATE REVERB emulates the characteristics of a plate reverb chamber with control over the damping pad, modulation depth and speed, and crossover. PLATE REVERB will give your tracks the sound heard on countless hit records since the late 1950s. (Inspired by Lexicon PCM70*)

Gated Reverb

Behringer DeepMind 12 Gated Reverb

Our GATED REVERB recreates the sound achieved by combining a reverb with a noise gate, and is especially effective for a 1980s-style snare sound or to boost the presence of a kick drum. (Inspired by Lexicon 300/480L*

Reverse Reverb

Behringer DeepMind 12 Reverse Reverb

REVERSE REVERB puts the reverb tail in front of the sound source, creating a swelling crescendo that adds an ethereal quality to vocal and snare tracks. (Inspired by Lexicon 300/480L*)

Chorus and Chamber

Behringer DeepMind 12 Chorus Reverb

Taking up only one FX slot, the CHORUS & CHAMBER effect combines the shimmer and doubling characteristics of a studio-grade chorus with the sweet sound of a traditional chamber reverb. (Inspired by Lexicon PCM70*

Delay and Chamber

Behringer DeepMind 12 Delay Reverb

Here we combine DELAY & CHAMBER, so that a single device can provide a variety of delay settings, plus add just the right type and amount of reverb to the selected signal. (Inspired by Lexicon PCM70*)

Flanger Chamber

Behringer DeepMind 12 Flanger Reverb

FLANGER CHAMBER combines the mind-bending, filter-sweeping effect of a state-of-the-art flanger with the elegant sweetening of a traditional chamber reverb - all in one FX slot. (Inspired by Lexicon PCM70*)

Midas EQ

Behringer DeepMind 12 Midas EQ

The 4 BAND EQ is a sweep parametric equalizer, and is taken directly from the MIDAS PRO X Live Digital Console. The bands are low, low mid, high mid and high, with the mid bands using a Q Factor adjustment to custom-tailor the sound. Any combination of the four bands may be used simultaneously

Stereo Enhancer

Behringer DeepMind 12 Stereo Enhancer

STEREO ENHANCER lets you emphasize the Bass, Midrange and Hi output at selectable frequencies, for maximum punch, clarity and detail - without turning up the overall volume. (Inspired by SPL Vitalizer*)

Fair Compressor

Behringer DeepMind 12 Fair Compressor

The Fairchild 670 tube compressor not only achieves record bids in high-end vintage gear auctions, it also delivers some of the finest colorations in compressor history. Two small trim VR's preset the control side chain action, a six-step switch determines the timing, and the two large Input and Threshold knobs adjust the levels. Our FAIR COMPRESSOR model is true to the original signal path, and conveniently provides models for dual, stereo-linked or mono and stereo operation. (Inspired by Fairchild 670*)

Multiband Distortion

Behringer DeepMind 12 Multiband Distortion

MIDAS MULTI-BAND DISTORTION is ideal for making the sound gritty, adding more warmth through saturation, or even enhancing a specific frequency region. With 6 distortion types to choose from, you can go from softly-saturated to ultra-aggressive distorted tones - and everything in-between.


Behringer DeepMind 12 Rackamp

The RACKAMP simulates the sound of plugging your instrument (or sound) into a real amplifier. From shimmering cleans to saturated crunch, the RACKAMP allows you to sound great - without using an amp on stage. (Inspired by Tech 21 SansAmp*)

Edison EX1+

Behringer DeepMind 12 Edison EX1

The EDISON EX1+ is the reincarnation of one of our own analog classics. This remarkably-effective tool allows manipulation of the stereo field. Selectable M/S input/output modes allow the processing or creation of mono or stereo sound sources. (Inspired by BEHRINGER EDISON)


Behringer DeepMind 12 Autopan

AUTO PAN creates an up and down volume change at a constant and even tempo, just like the guitar amps of yesteryear. Use the AUTO PAN to add a unique "surf-music" texture to your performance.

DN265 Noise Gate

Behringer DeepMind 12 Noise Gate

The NOISE GATE block sounds from passing that are below the applied threshold level, without reducing overall dynamics thanks to our proprietary Transient Accenting technology.

Stereo Delay

Behringer DeepMind 12 Stereo Delay

STEREO DELAY provides independent control of the left and right delay times and features high and low pass filters for enhanced tone shaping of the affected signals. Use the STEREO DELAY to give your mono signals a wide presence in the stereo field.

3-Tap Delay

Behringer DeepMind 12 3-Tap delay

The 3-TAP DELAY records the input signal and then echoes it back after a user-definable period of time and number of repeats. What makes the stereo and triple delay useful and outstanding is the linked tap-timing and musical choice of echo patterns. Use the 3-TAP DELAY to fatten up vocals and instruments, or to add an enhanced spatial element to any performance.

4-Tap Delay

Behringer DeepMind 12 4-Tap Delay

The 4-TAP DELAY records the input signal and then echoes it back after a user-definable period of time and number of repeats. What makes the stereo and quadruple delay useful and outstanding is the linked tap-timing and musical choice of echo patterns. Use the 4-TAP DELAY to fatten up vocals and instruments, or to add an enhanced spatial element to any performance.

Tel-Ray Variable Delay

Behringer DeepMind 12 Tel-Ray Delay

TEL-RAY ECHO DELAY features an incredibly simple set of knobs that allow you to create delay, echo, chorus, vibrato and reverb type effects - all in one handy device. (Inspired by original 1960's Tel-Ray gear)

Decimator Delay

Behringer DeepMind 12 Decimator Delay

DECIMATOR DELAY reduces the sampling frequency and the bit-depth of the signal. The Decimator Delay is a creative tool that can be used in many ways, from emulating the aliasing noise found in older samplers, to generating complex, low-fi and rough delay lines.

Modulation Delay

Behringer DeepMind 12 Modulation Delay

MODULATION DELAY combines three of the most used time modulation effects into one easy-to-operate unit. Enjoy true-stereo delay with a lush and spacious chorus, topped off with three reverb models to choose from.

Stereo Chorus

Behringer DeepMind 12 Stereo Chorus

STEREO CHORUS samples the input, slightly detunes it and mixes it with the original signal to produce a somewhat thicker, shimmering sound. Use it to fatten up background vocals, or to double the sound of brass and woodwind instruments.

Dimensional Chorus

Behringer DeepMind 12 Dimensional Chorus

The DIMENSIONAL CHORUS is the perfect emulation of what has been referred to as "the best analog chorus unit ever created". Four simple Mode preset buttons activate amazing effects, best described as "space" and "dimension". Absolutely faithful to the original, multiple preset buttons can be pressed simultaneously. (Inspired by Roland Dimension D Chorus*)

Stereo Flanger

Behringer DeepMind 12 Stereo Flanger

The STEREO FLANGER emulates the phase-shifting sound (comb-filtering) originally created by applying pressure against the flange of the reel on a tape recorder. This effect creates a unique "wobbly" sound that is quite dramatic when used on vocals and instruments.

Stereo Phaser

Behringer DeepMind 12 Stereo Phaser

A STEREO PHASER, or phase shifter, applies multiple stages of modulated filters to the input signal to create a "notch" in the frequency response, and then blends it with the original for a "swirling" effect. Use the STEREO PHASER to add a "spaced-out" sound to vocal or instrument tracks.

Mood Filter

Behringer DeepMind 12 Mood Filter

The MOOD FILTER uses an LFO generator and an auto-envelope generator to control a VCF (voltage-controlled filter), as well as a side chain function where the channel B signal controls the envelope of channel A.

Dual Pitch

Behringer DeepMind 12 Dual Pitch

The DUAL PITCH SHIFTER allows you to add up to two additional notes to the original signal to create harmony. It can also be used with only a minor pitch adjustment to create much thicker sounds, often referred to as "voice doubling"

Rotary Speaker

Behringer DeepMind 12 Rotary Speaker

ROTARY SPEAKER emulates the sound of a Leslie rotating speaker and is most commonly associated with an organ or guitar. This version provides much more flexibility than its electro-mechanical counterpart, and can be used with a variety of instruments (even vocals) to create a whirling, psychedelic effect.

Glorious 12-Note Polyphony

Behringer DeepMind 12 Voices

Playing chords and building textural soundscapes requires the ability to generate multiple notes or sounds simultaneously. While early analog synthesizers were either monophonic (only 1 note at a time), or somewhat limited in the number of sounds they could produce at the same time, the DEEPMIND 12 boosts your creativity with 12-note polyphony. Each voice has 2 oscillators, with OSC 1 generating sawtooth and square/pulse waveforms with pulse width modulation, and OSC 2 generates square/pulse waveforms with a unique tone modulation. With 24 oscillators at your disposal, a tremendous range of options becomes available including the following oscillator modes: Unison 12, 6, 4, 3, 2 Mono; Mono -2; Mono 4; Mono 6; Poly; Poly 6, and Poly 8. The addition of oscillator sync, oscillator drift and parameter drift allow the recreation of the much sought after warmth and movement found in vintage analog synthesizers, with greatly improved reliability and stability.

Making Waves

Behringer DeepMind 12 LFO

Individual voices also have 2 LFOs (Low-Frequency Oscillators) with a range that extends into the audio rate. Each LFO features adjustable slew-rate, modulation delay, key sync, assignable clock sync (internal or external MIDI), envelope auto-triggering, as well as Delay and Fade in. The 7 available waveform shapes are; Sine; Triangle; Square; Ramp Up; Ramp Down; Sample and Hold, and Sample and Glide for an amazing array of tonal options. The DEEPMIND 12 also offers a highly unusual Phase Link option for the polyphonic LFOs, allowing them to operate in Unison (Mono), or link with an adjustable phase shift between voices. Additionally, the LFOs can track key pitch via the modulation matrix, enabling cross mod type effects.

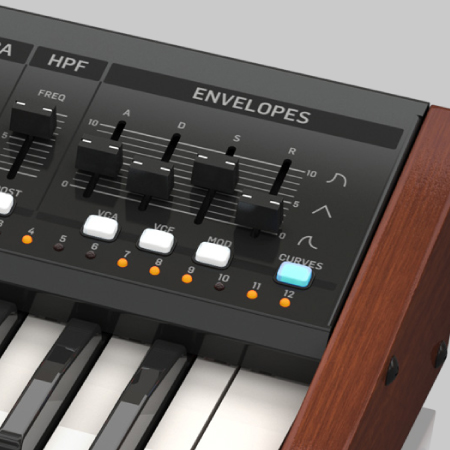

3 Envelope Generators

Behringer DeepMind 12 Envelopes

When it comes to envelope generation, DEEPMIND 12 has all bases covered, thanks to 3 four-stage ADSR (Attack, Decay, Sustain, Release) envelope generators per voice, each equipped with continuously-variable curves for truly unique flexibility. Envelope Trigger Modes include: Legato, Mono, and Retrigger. The envelopes can be triggered by key, individual LFOs, or the control sequencer and looped well into the audio rate. DEEPMIND 12 serves up all the versatility and tone-sculpting options a professional musician could ask for.

8-Channel Modulation Matrix

Behringer DeepMind 12 Modulation Matrix

Want to modulate the reverb tail or compressor with the mod wheel? How about driving the MIDAS Multiband Distortion effect with an LFO or aftertouch? With 19 modulation sources and more than 130 destinations, DEEPMIND 12 provides a multitude of modulation options. And the "press & hold" shortcuts make selection of those sources and destinations quick and easy.

32-Step Control Sequencer

Behringer DeepMind 12 Step Control Sequencer

The control sequencer features an adjustable slew rate, MIDI sync, and allows a 32-step pattern of values, which can vary from -127 to 127. Other parameters that can be controlled include: note value; tie and length; slew; and swing. These can all be mapped as modulation sources to any of the available destinations.

Remote Control

Behringer DeepMind 12 Remote Control

Comprehensive remote control is available for DEEPMIND 12 via iPad*/PC/Mac and selected Android* Apps over USB, MIDI or built-in WiFi for extended parameter control. The iPad App also features a robust preset manager, gig list, full editor and integral Patch Morpher*.

Ultra-Expressive Keyboard

Behringer DeepMind 12 Keyboard

The keyboard features 49 full-sized, velocity-sensitive keys with aftertouch that deliver an expressive and superior playing experience. You'll love the feel and playability of DEEPMIND 12's semi-weighted keys as they respond to even the slightest nuance of your playing. Aftertouch allows you to imbue your sound with variations of pitch, volume, modulation or color - whatever parameters you choose. Whether you have a heavy or soft playing style, DEEPMIND 12 always responds to your touch with 3 different selectable velocity and aftertouch curves.

Pure Analog Signal Path

Behringer DeepMind 12

A modern reincarnation of a beloved analog classic (with true bypass studio-grade FX), all of DEEPMIND 12's sounds are purely analog - all the way from OSC 1, which generates sawtooth and square/pulse waveforms with user-definable pulse width modulation (PWM), and OSC 2, which generates square/pulse waveforms with tone modulation. The combination of square/pulse waves on OSC 1 and tone modulation on OSC 2 gives the DEEPMIND 12 a boldly unique and fresh character not found in competing products.

Low Pass Filter & Envelope Faders

Behringer DeepMind 12 Faders

Everything about the DEEPMIND 12 has been designed to give you total control over the creative process. That goes for the selectable, dual slope 12/24 dB analog low pass filter with adjustable resonance and tracking (per voice), and the 4 Envelope faders that smoothly transform individual segments of the envelope between linear, exponential and reverse exponential curves.

Big, Fat Tones

Behringer DeepMind 12 Unison Poly

DEEPMIND 12 provides your choice of powerful unison or poly modes, with detune, pan spread and drift parameters, that can handle up to 12 voices per note for incredibly fat tones. And if you want even more, just engage the global noise generator to expand the waveform options. DEEPMIND 12's extreme versatility empowers you to be your creative best.

Polyphonic Portamento

Behringer DeepMind 12 Polyphonic Portamento

While most synthesizers only allow simple mono portamento glides, the DEEPMIND 12 lets you create stunningly smooth mono and polyphonic chord glissandos that will really get your juices flowing. Options include flexible fixed rate, fixed time and exponential pitch glide modes of operation.

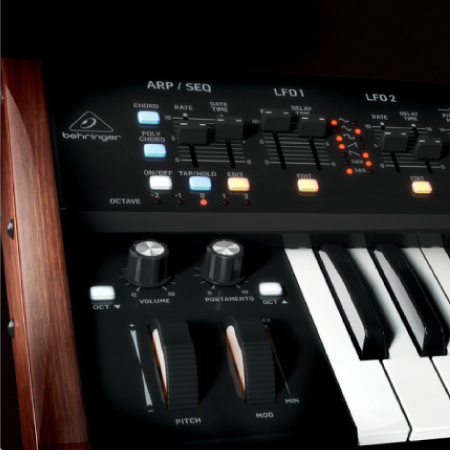

Behringer DeepMind 12 Arpeggiator

A very sophisticated Arpeggiator is also provided, complete with a tap tempo button and user-configurable pattern modes that exhibit a level of refinement previously only available from a sequencer. DEEPMIND 12's arpeggiator can operate across up to 6 octaves, and you can choose from 32 preset rhythmic patterns with up to 32 steps and rests - or create and save your own. Modes of operation include: UP; DOWN; UP-DOWN; UP-INV; DOWN-INV; UP-DN-INV; UP-ALT; DOWN-ALT; RAND; AS-PLAYED, and CHORD. A wide range of clock options are also available, as well as hold switch latching.

Chord Memory

Behringer DeepMind 12 Chord Memory

Want to build impossibly-huge chords that can be played with a single finger. DEEPMIND 12 allows you to write extremely complex chords and polychords (up to 12 notes each), save them into memory locations - and perform them with the press of a single key. There is enough storage space onboard for 36 six-note chords, all of which can be mapped to specific trigger keys

True Bypass Mode

Behringer DeepMind 12 True Bypass

The FX menu of the DEEPMIND 12 is accessed by pressing the FX button, which in turn brings up the FX page on the LCD display. This is where you assign, route and adjust all FX parameters, including Mode, Mix and Level. You can select the Bypass Mode to completely remove the digital FX from the signal path for a pure, high-integrity analog tone.

High Pass Filter

Behringer DeepMind 12 HPF Boost

The 6 dB High Pass Filter (HPF) in the DEEPMIND 12 lets you set the lower cutoff frequency of the output signal. The accompanying Boost switch applies a +12 dB bass boost to the signal path to fatten up the bottom end.

You Are Always in Control

Behringer DeepMind 12 Controls

We can't help ourselves - like you, we're gear-heads, too. For those who want the numbers, DEEPMIND 12 has: 26 sliders; 33 switches; 1 rotary encoder; 2 knobs; 1 spring-loaded pitch wheel and 1 assignable, spring-loaded modulation wheel. All are laid out in a highly-intuitive format designed to put the joy back into your music creation.

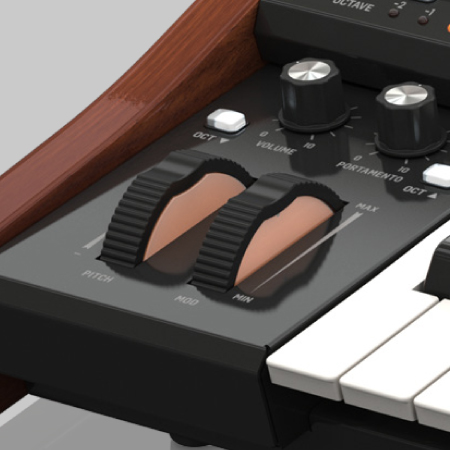

Pitch and Mod Wheels

Behringer DeepMind 12 Pitch Mod Wheels

Spring-loaded pitch and assignable modulation wheels are conveniently placed for easy left-hand access, making the DEEPMIND 12 the ultimate live performance and studio-ready synthesizer.

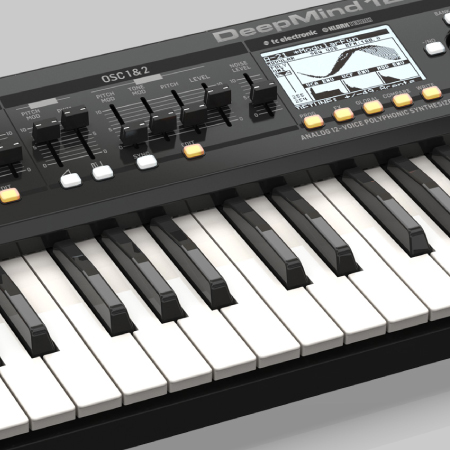

Large LCD Screen

Behringer DeepMind 12 LCD Screen

The large and easy-to-read LCD screen provides rapid parameter editing and program selection on-the-fly, for a total hands-on performance with real-time access to all important parameters. The screen shows the synthesizer status, parameters, and the five main menu pages: Connectivity; Keyboard; Pedal; Fader and System. The contrast and brightness levels are adjustable on the System settings page of the GLOBAL menu.
Features • Classic polyphonic synthesizer with 12 true analog voices for insanely fat and authentic sounds.
• 4 simultaneous world-class TC ELECTRONIC and KLARK TEKNIK FX with over 30 algorithms including Reverb, Chorus, Flanger, Phaser, Delay and multi-band Distortion.
• 12 voices with 2 OSCs per voice with oscillator sync mode.
• 2 LFOs per voice with 7 waveform shapes, key sync, MIDI sync and envelope auto-triggering.
• 3 ADSR generators per voice for control of VCF, VCA and MOD envelopes.
• Flexible 8-channel modulation matrix with 19 sources and over 130 destinations including effects parameters.
• 32-step control sequencer with adjustable slew rate and MIDI sync.
• Full remote control via iPad*/PC/Mac* and selected Android* App over USB, MIDI or built-in WiFi for extended parameter control.
• 49 semi-weighted full-size keys featuring velocity sensitivity and after-touch.
• Pure analog signal path based on legendary VCF and VCA designs.
• OSC 1 generates sawtooth and square/pulse waveforms with pulse width modulation.
• OSC 2 generates square/pulse waveforms with tone modulation.
• Selectable dual slope 12/24 dB analog low pass filter per voice with adjustable resonance.
• Envelope faders seamlessly transform individual envelope segments between linear, exponential and reverse exponential curves.
• Powerful unison and poly modes with detune, pan spread and drift parameters featuring up to 12 voices per note.
• Global noise generator dramatically expands waveform generation
• Incredible polyphonic portamento with flexible fixed rate, fixed time and exponential pitch glide modes
• Sophisticated arpeggiator with tap tempo button and user configurable pattern modes
• Chord and PolyChord memories enable polyphonic performances from monophonic playing styles
• True bypass mode for pure and high-integrity analog tone
• Global variable 6 dB high pass filter with powerful bass boost switch
• 26 sliders and one switch per function give direct and real-time access to all important parameters
• Spring-loaded pitch and assignable modulation wheels provide total hands-on performance
• LCD Display with encoder, navigation switches and data value slider for rapid menu parameter editing and program selection
• 1024 user program memories with “compare and match” feature to quickly match all analog controls to values stored in program
• Fully servo-balanced stereo outputs for highest signal integrity
• CV/pedal input for connection to modular systems
• Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)
• Integrated and configurable WiFi client / Access point allows easy and secure connection to home network
• 3-Year Warranty Program*
• Designed and engineered in the U.K.
Product Type Analog Synthesizer
PC Interface USB
Assignable Faders
Assignable Knobs
Assignable Pads
Keys 49
Wheels 2
Connectivity (Input)
  • 1 x Expression pedal
  • 1 x MIDI
  • 1 x Sustain Pedal
  • 1 x USB
Connectivity (Output)
  • 1 x 1/4" Balanced / Unbalanced (L/R)
  • 1 x 1/4" Stereo Phone Jack
  • 2 x MIDI
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type Retail
