be quiet Shadow Rock 3 Silent Intel/AMD CPU Air Cooler

be quiet! Shadow Rock 3 Single Tower CPU Cooler, 5 Heatpipes, 120mm Shadow Wings 2 PWM Fan, 190W TDP, Intel/AMD

Thumbnail 1 : be quiet Shadow Rock 3 Silent Intel/AMD CPU Air Cooler Thumbnail 2 : be quiet Shadow Rock 3 Silent Intel/AMD CPU Air Cooler Thumbnail 3 : be quiet Shadow Rock 3 Silent Intel/AMD CPU Air Cooler Thumbnail 4 : be quiet Shadow Rock 3 Silent Intel/AMD CPU Air Cooler
Scan code: LN105833 Manufacturer code: BK004
£44.99
Order now and get it tomorrow, Wed 30th Sep
Delivery Options
  • By DPD On 30th Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Shadow Rock 3 Single Tower Air CPU Cooler by be quiet!

be quiet! Shadow Rock 3 Single Tower CPU Cooler

EXCEPTIONAL COOLING, SIGNIFICANTLY QUIET. Perfect for delivering performance beyond the standard for a decent price, the be quiet! Shadow Rock 3 air cooler emits only 24.4dB(A) at maximum fan speed with Decoupled Shadow Wings 2 120mm PWM high-speed fan. Featuring five 6mm high-performance nickel-plated copper heat pipes with HDT technology, which absorbs heat from the CPU. The design is elegant and created with brushed aluminium top cover with bi-colour surface while the asymmetrical construction avoids blocking memory slots in front of the cooler.

120mmRadiator Size

Intel LGA1200 / 115X / 2011-3 (Square ILM) / 2066

AMD SocketsAM3+ / AM4

Impressive Cooling Power

cooling power

Achieving an incredible performance and elegant looks The Shadow Rock 3 offers users unbelievable cooling of 190W TDP and is engineered for those who require high performance air cooling and a low noise level. The brushed aluminium top cover with a bi-color surface adds a touch of class to this high-end cooler.

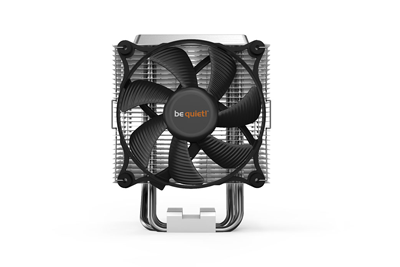

Perfect for Silent Air-Cooled Systems

QUIET, YET POWERFUL. Even at 100% PWM function you'll find that the noise is a mere pin-drop, the decoupled Shadow Wings 2 120mm PWM high-speed fan operates at only 24.4 dB(A) even at the maximum speed of 1,600 rpm.

silent cooler

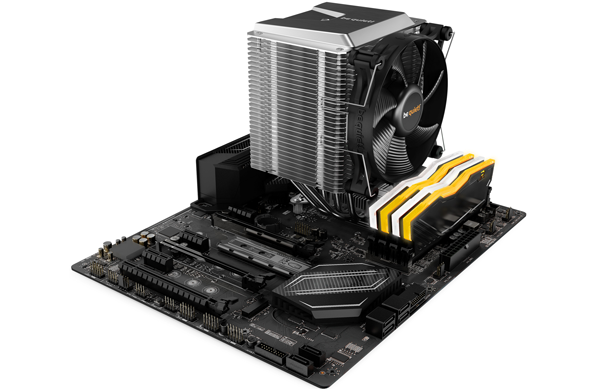

ASYMMETRICAL CONSTRUCTIONThe Shadow Rock 3 can be installed on all popular motherboards and its asymmetrical construction saves a lot of space. The memory slots in front of the cooler will not be blocked.

fan

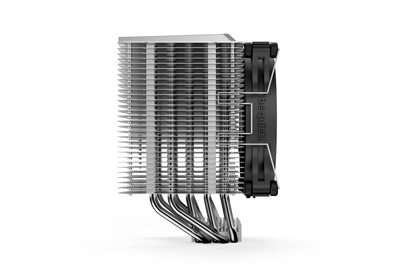

SILENT OPERATIONA high fin pitch and low air resistance ensure the best possible performance in combination with the chosen fan.

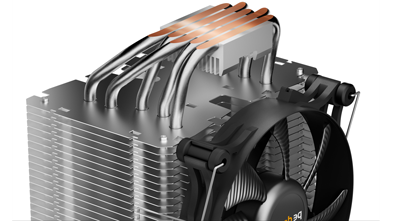

Heat Pipe Direct Touch

heat pipes

MAXIMIZES CONDUCTANCE OF HEAT Thanks to Heat pipe Direct Touch (HDT) technology the heat from the CPU is absorbed directly by the five 6mm high-performance nickel-plated copper heat pipes.

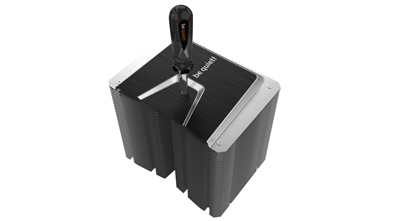

Convenient to Handle and Easy to Install

installation

USER-FRIENDLY TOOLS This be quiet! CPU cooler includes a handy mounting kit and reliable screwdriver which assists you in installing the cooler. Plus, you can install the cooler and mounting kit on the motherboard easily from above.

Specifications
Cooler Specifications
Edition SHADOW ROCK 3
Cooler Form Factor Single Tower
Heatpipes 5
Cooler Features
  • 2 Sets of Fan Clips
  • Aluminium Fins
  • Copper Base
  • Heat-pipe Direct Contact (HDC) Technology
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1200
  • 2011-3 (Square ILM)
  • 2066
  • AM3+
  • AM4
Max. TDP 190W
Fan Specifications
Included Fan Configuration 1 x 120mm
Fan Edition Shadow Wings 2 PWM
PWM Fan Yes
Fan Bearing Type Rifle Bearing
Fan Colour Black
LED Lighting N/A
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 1600 rpm
Max. Fan Airflow
Max. Air Pressure
Max. Sound Level 24.4 dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material) Included
Dimensions & Weight
Heatsink/Radiator Dimensions 130 x 163 x 96 mm (WxHxD)
Total Dimensions 145 x 200 x 161 mm (WxHxD)
Weight 1180 g
Additional Information
Scan Code LN105833
Model Number BK004
GTIN 4260052187852
