Scan code: LN89118 Manufacturer code: BK021

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler

be quiet! Dark Rock 4 Single Tower CPU Cooler, 6 Heatpipes, 135mm Silent Wings PWM Fan, Al/Cu, 200W TDP

Thumbnail 2 : be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler

Thumbnail 3 : be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler

Thumbnail 4 : be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler : video thumbnail 1

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler : video thumbnail 2

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler : video thumbnail 3

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler : image 1

zoom

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler : image 2

zoom

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler : image 3

zoom

be quiet Dark Rock 4 200W Intel/AMD Air CPU Cooler : image 4

zoom

Scan code: LN89118 Manufacturer code: BK021

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£66.49

Add To Basket

In stock

spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

Delivery Options

By DPD On 24th Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn

Product Overview Dark Rock 4: No Compromise Silence and Performance
Dark Rock 4 offers an extreme cooling performance and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.

Highlights
• Virtually inaudible Silent Wings PWM fan.
• Advanced high-performance copper heat pipes.
• Airflow-optimized, wave-contoured cooling fins.
• Perfect heat transfer due to ceramic black coating.

Ideal for:
• High-resolution gaming PCs.
• Extremely overclocked systems.
• Demanding workstations. Features • Silent Wings 135mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor.
• Optimal balance of cooling and quietness with only 21.4dB(A) at maximum fan speed.

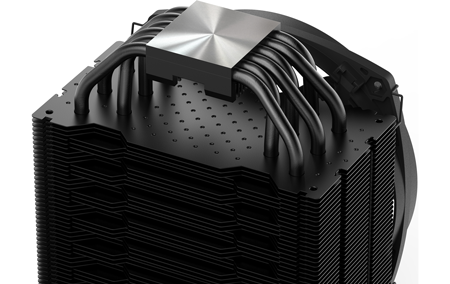

• Six high-performance copper heat pipes that provide maximal heat conductance.
• Wave-contoured cooling fins for increased air circulation.
• Special black coating with ceramic particles enables perfect heat transfer.
• Supports an additional 120mm fan; clips are included with the cooler.

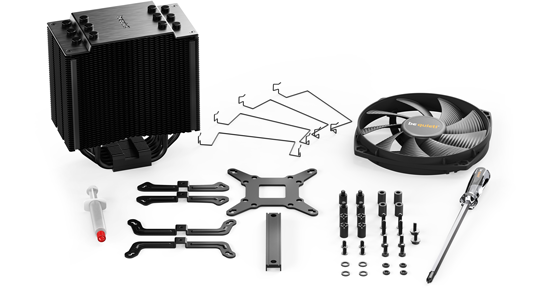

• Easily installable black installation kit can be mounted from above.
• Elegant, brushed aluminium top cover with diamond cut finish.
• 3-year manufacturer’s warranty.
• Product conception, design and quality control in Germany.

Specifications

Cooler Specifications
Edition	Dark Rock 4

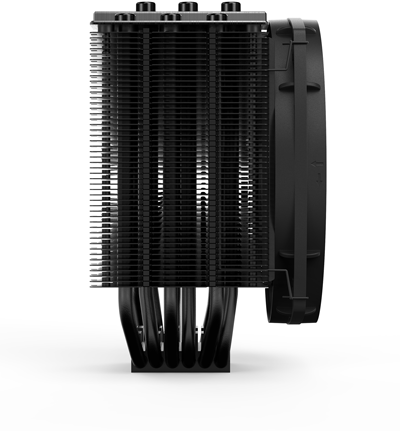

Cooler Form Factor	Single Tower
Heatpipes	6
Cooler Features	Aluminium Fins Aluminium Heatpipe Caps Aluminium Top Cover Copper Heatpipes Special Black Coating w/ Ceramic Particles
Socket Compatibility	1150 1151 1155 1156 1366 2011 (Square ILM) 2011-3 (Square ILM) 2066 AM2 AM2+ AM3 AM3+ AM4 FM1 FM2 FM2+
Max. Recommended TDP
Max. Cooling Capacity	200W
Fan Specifications
Included Fan Configuaration	1 x 135mm
Fan Edition	Silent Wings PWM
PWM Fan	Yes
Fan Bearing Type	Fluid Dynamic Bearing
Fan Colour	Black
LED Lighting	N/A
Fan/Pump Connectors	1 x 4-pin
Approx Fan Speed	1400 rpm
Manual Fan Speed Controller	No
Fan Airflow
Air Pressure
Sound Level (dB)	10.5 - 21.4 dB
Sound Level (Sone)
Materials
Fan Material	Plastic
Cooler Material	Aluminium / Copper
Included TIM (Thermal Interface Material)	Included
Dimensions & Weight
Fan Dimensions	135 x 135 x 22 mm
Heatsink/Radiator Dimensions
Total Dimensions	136 x 96 x 159 mm (WxHxD)
Weight	920 g
