(B-Stock) Roland - 'System-500 510' Modular Synth

(B-Stock) Roland - 'System-500 510' 20HP Eurorack Analog Synthesizer Voice Module, with 3 Oscillator Waveform Outs

Scan code: LN113303 Manufacturer code: SYS-510
£314.99
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £15.12 / month (APR 14.9%)
Monthly Payment: £28.28
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £314.99
Total inc. interest: £339.34
Monthly Payment: £15.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £314.99
Total inc. interest: £362.85
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 8th Mar to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

(B-Stock) Roland - 'System-500 510'
Modular Synth

roland system-500 510

Please note: This item is B-Grade. Packaging may be damaged or missing and there may be cosmetic imperfections and slight signs of use.

Classic System In A New FormatThe new additions to the SYSTEM-500 family of modular synths come influenced by those from the 1970s. They’re not only enhanced versions of the SYSTEM-100m-based modules, but also expand with new territory. Built in a Eurorack format, the SYSTEM-500 provides the vintage character and functionality of classic Roland Modular synths but with additional advantages to keep up with modern day synths. The design and production process of the SYSTEM-500 is a direct collaboration between Malekko in Portland, USA and Roland in Hamamatsu, Japan. Giving you the same incredible results, you would expect.

Amazing Features • Analogue synthesiser voice with VCO, VCF and VCA based around the Roland 100m system
• Classic Roland low-pass filter with resonance control, two audio inputs and two modulation inputs
• Two outputs with switching between linear and exponential response
• VCO with outputs for triangle, sawtooth and square wave
• Two-stage switchable high-pass filter

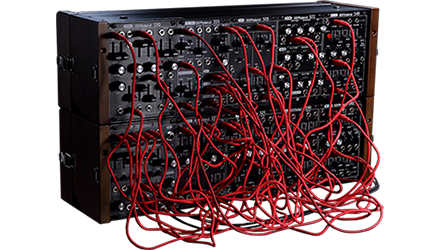

Compact & Powerful

roland system-500 510

Maximum CompatibilityThe SYSTEM-500 is made up of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer.

Each module is fully analog and has been created for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up multiple possibilities for sound design and musical experimentation.

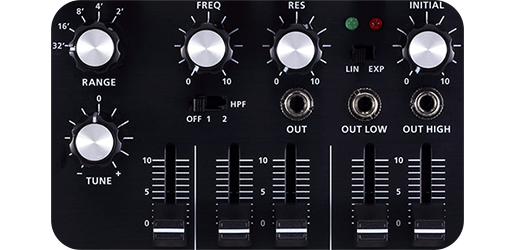

Pristine Oscillators

roland system-500 510

Vintage & Modern SoundsWith the SYS-510, designing your first modular setup or adding classic Roland sounds into your existing modular rig has never been easier. Based on the vintage SYSTEM-100m's 110 VCO, VCF, and VCA module, the SYS-510 combines the best aspects of the SYSTEM-500 into a single voice module.

It features three pristine oscillator waveforms, classic Roland low pass filter with hi-pass switches, and a VCA with multiple outputs. It comes with inputs for external signals and modulation, and output jacks for both Eurorack and line-level audio.

At 20hp and internally normalled for operation without cables, the SYS-510 is a crucial building block, if you’re an experienced user or just experimenting with modular synthesis.

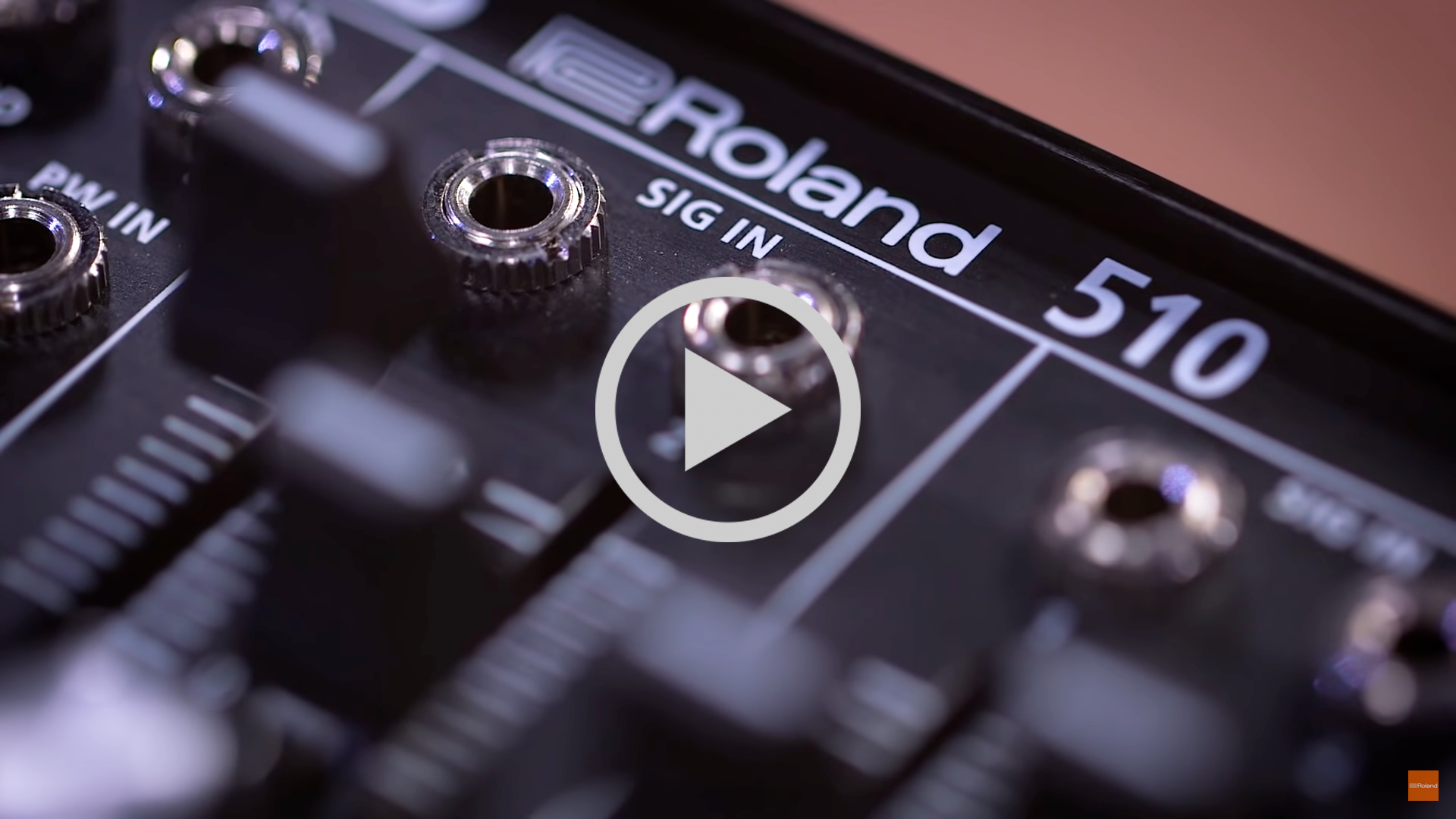

Roland SYSTEM-500 510:SYNTH Module Overview

The Tech Spec

Features Specification
Controllers [VCO]
PULSE WIDTH slider
PULSE WIDTH MODULATION slider
MODULATION IN 2 slider
RANGE knob
TUNE knob

[VCF]
SIGNAL IN 1 slider
SIGNAL IN 2 slider
KEY IN slider
MODULATION IN 2 slider
HPF switch
FREQUENCY knob
RESONANCE knob

[VCA]
SIGNAL IN 1 slider
SIGNAL IN 2 slider
MODULATION IN 1 slider
MODULATION IN 2 slider
LINER/EXPONENTIAL switch
INITIAL knob
Indicator LOAD Indicator
OVERLOAD Indicator
Connectors [VCO]
SQUARE WAVE jack: Miniature phone type
TRIANGLE WAVE jack: Miniature phone type
SAW WAVE jack: Miniature phone type
PULSE WIDTH IN jack: Miniature phone type
KEY IN jack: Miniature phone type
MODULATION IN 2 jack: Miniature phone type

[VCF]
SIGNAL IN 1 jack: Miniature phone type
SIGNAL IN 2 jack: Miniature phone type
OUT jack: Miniature phone type
KEY IN jack: Miniature phone type
MODULATION IN 2 jack: Miniature phone type

[VCA]
SIGNAL IN 1 jack: Miniature phone type
SIGNAL IN 2 jack: Miniature phone type
OUT LOW jack: Miniature phone type
OUT HIGH jack: Miniature phone type
MODULATION IN 1 jack: Miniature phone type
MODULATION IN 2 jack: Miniature phone type
Power Supply Eurorack power
Current draw 75 mA (+12 V)
60 mA (-12 V)
Accessories Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Eurorack installation screws (4 pcs)
Eurorack power cable
Dimensions Width: 101.3 mm
Depth: 128.5 mm
Height: 57.2 mm
Weight 264 g
10 oz
