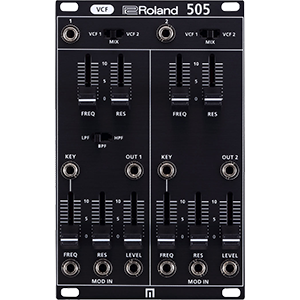

(B-Stock) Roland - 'SYSTEM-500 505'
VCF Eurorack Module
Please note: This item is B-Grade. Packaging may be damaged or missing and there may be cosmetic imperfections and slight signs of use.
Classic System In A New FormatThe new additions to the SYSTEM-500 family of modular synths come influenced by those from the 1970s. They’re not only enhanced versions of the SYSTEM-100m-based modules, but also expand with new territory. Built in a Eurorack format, the SYSTEM-500 provides the vintage character and functionality of classic Roland Modular synths but with additional advantages to keep up with modern day synths. The design and production process of the SYSTEM-500 is a direct collaboration between Malekko in Portland, USA and Roland in Hamamatsu, Japan. Giving you the same incredible results, you would expect.
Amazing Features
• Compact eurorack format for easy integration and portability
• Fully analog system for the most pristine and responsive sound possible
• Comes with six high-quality inputs with level sliders, pan knobs & mute button
• Boutique-quality stereo preamp for bringing in mic or line level signals
• LED level indicator for visual feedback
Compact & Powerful

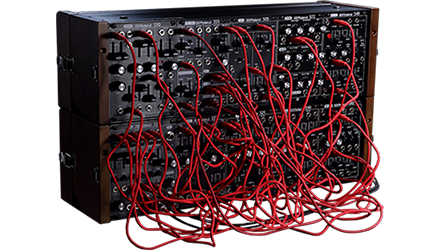

Maximum CompatibilityThe SYSTEM-500 is made up of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer.
Each module is fully analog and has been created for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up multiple possibilities for sound design and musical experimentation.
Explore New Dimensions
High-Fidelity Sound & Low NoiseAdd the sound of the Roland SH-5’s revered filter section into your modular rig. The Roland SH-5 is one of the most desired monosynths in ever made. With dual architecture that was deep and sounded huge. It also happened to feature one of historys most recognizable filters of any monosynth. Joining together a multi-mode filter with a band-pass filter, it created a sound that has earned its “favorite filter ever” status by many users.

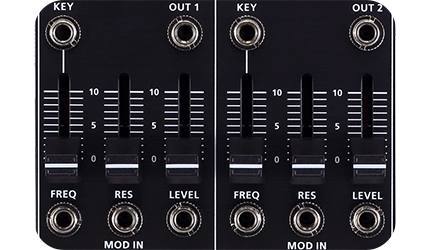

In contrast to the traditional Ladder filter design, the SH-5’s filter kept its bass response with a gritty resonance growl. With the SYS-505, Roland and Malekko have brought this highly-coveted filter, with all its sonic enjoyment, to the Eurorack format. With switchable outputs, built-in VCAs, and CV control of cutoff, resonance, this dual filter gives you two different vintage filter characters in a versatile and compact 16hp module.

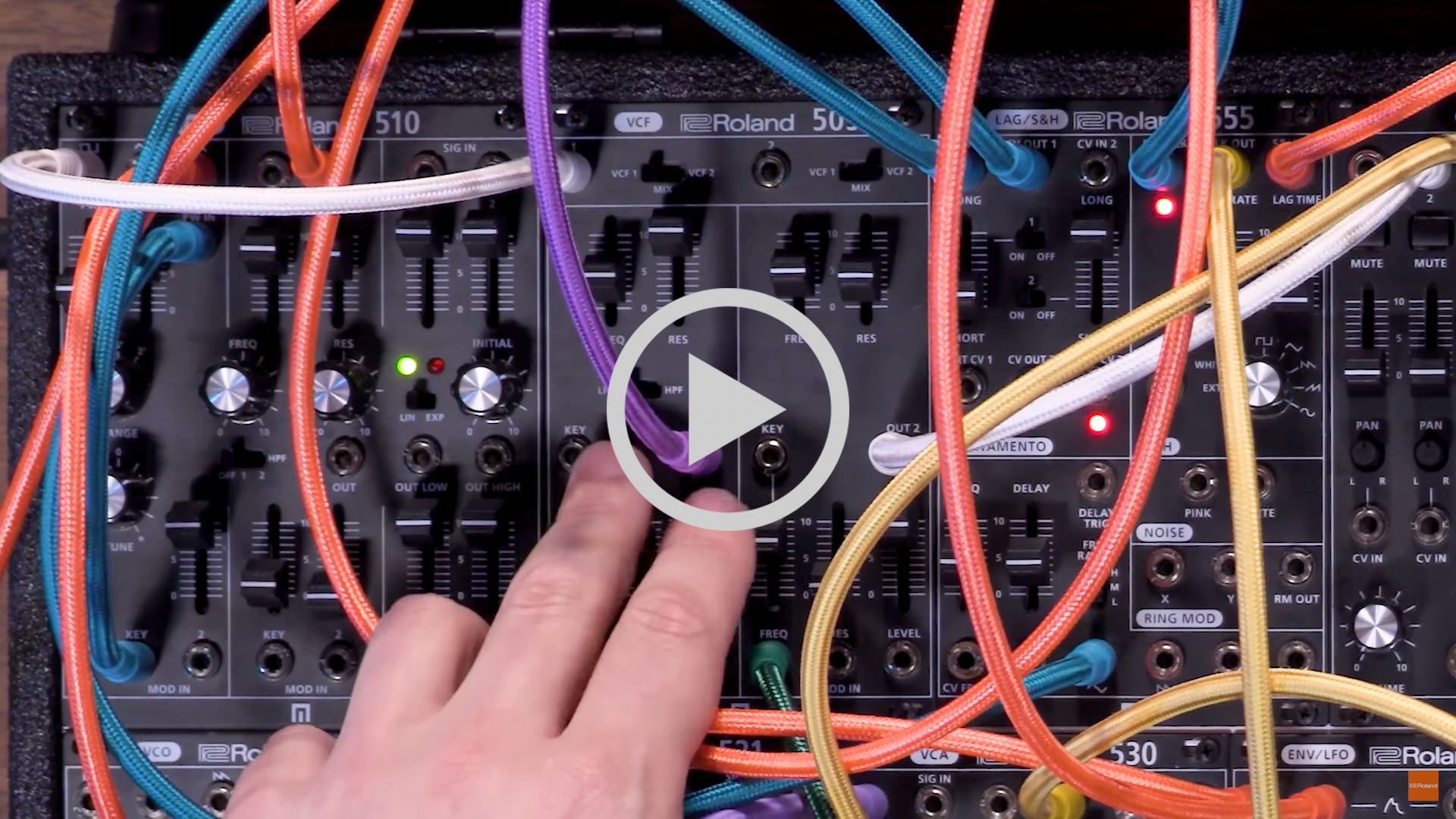

Roland SYSTEM-500 505:VCF Module Overview
The Tech Spec
| Features | Specification | Controllers | VCF SELECT switch (1, 2) FREQUENCY slider (1, 2) RESONANCE slider (1, 2) FILTER TYPE switch MODULATION IN FREQUENCY slider (1, 2) MODULATION IN RESONANCE slider (1, 2) MODULATION IN LEVEL slider (1, 2) |
|---|---|
| Connectors | SIGNAL IN jack (1, 2): Miniature phone type KEY IN jack (1, 2): Miniature phone type OUT jack (1, 2): Miniature phone type MODURATION IN FREQUENCY jack (1, 2): Miniature phone type MODURATION IN RESONANCE jack (1, 2): Miniature phone type MODURATION IN LEVEL jack (1, 2): Miniature phone type |
| Power Supply | Eurorack power |
| Current draw | 85 mA (+12 V) 90 mA (-12 V) |
| Accessories | Owner's Manual Leaflet "USING THE UNIT SAFELY" Eurorack installation screws (4 pcs) Eurorack power cable |
| Dimensions | Width: 80.8 mm Depth: 128.5 mm Height: 57.2 mm |
| Weight | 191 g 7 oz |
