(B-Stock) RCF HDL 6-A Active 2-Way Line Array Module
(B-Stock) RCF - HDL 6-A, 1400W Dual 6" Active Line Array Module (Black)
Email me when the availability or price changes
Finance this product
- From £31.44 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £29.63 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
(B-Stock)
Active Line Array Module
RCF - HDL 6-A
Please note: This item is B-Grade. Packaging may be damaged or missing and there may be cosmetic imperfections and slight signs of use.

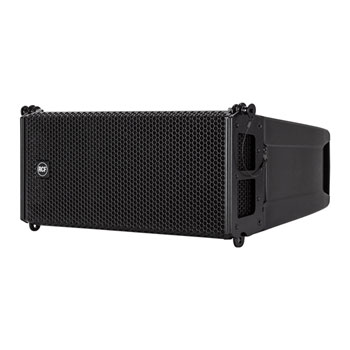

1400W Dual 6" Active Line Array ModuleThe HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection.
The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
1400WTotal Power
100° H x 10° VCoverage Angle
131 dB Maximum SPL
at a glance
• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing
Custom Designed Waveguide
'a superb, linear high frequency response'The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high frequency response. Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.
Symmetrical Design
'intelligibility, definition and signal strength'Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.
The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.
The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.
RCF HDL6-A - A Closer Look
The Tech Spec
| Features | Specification | Enclosure Type | Line Array |
|---|---|
| Total Power Capacity | 1400 W Peak |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1" / 2.5 cm Compression Driver |
| HF Voice Coil | 1.75" / 4.45 cm |
| LF Driver | 2x 6" / 152.4 mm Woofer |
| LF Voice Coil | 2" / 5.1 cm |
| Magnet | Neodymium |
| Frequency Response | 65 Hz to 20 kHz |
| Maximum SPL | 131 dB |
| Coverage Angle | 100° H x 10° V |
| Input Sensitivity | +4 dBu |
| Protections | RMS, Thermal |

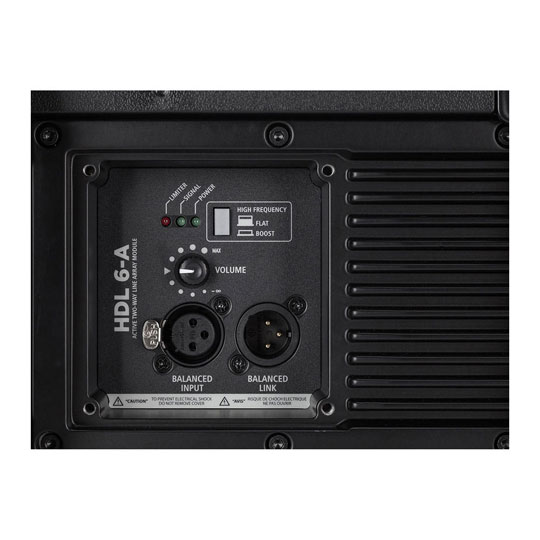

| Audio I/O | 1x XLR 3-Pin Female Balanced Input (Lockable) 1x XLR 3-Pin Male Balanced Output |
| Crossover | 900 Hz (Active) |
| Dynamic Processing | Multiband Limiter |
| Digital Signal Processing | 32-Bit Floating Point DSP: FIR Filter |
| AC Input Power | 220 to 240 VAC, 60 Hz 115 VAC, 50 Hz |

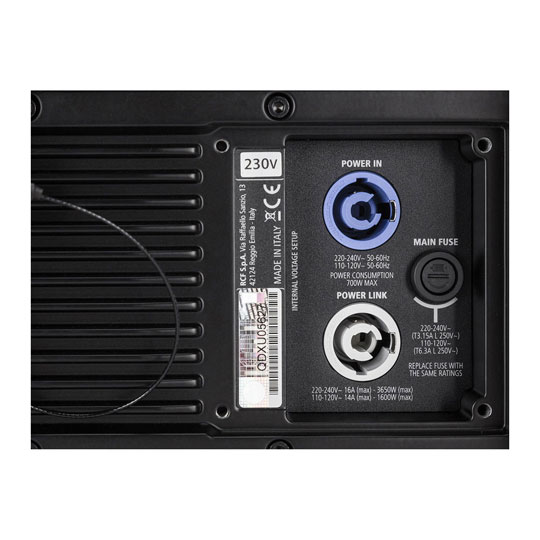

| AC Power I/O | 1x powerCON Input 1x powerCON Output |
| AC Input Power | 220 to 240 VAC, 60 Hz 115 VAC, 50 Hz |
| Handles | 2x Rear |
| Dimensions | 9.314.8 x 18.5" / to 37.7 x 47 cm |
| Weight | 11.6 kg |
