(B Grade) Blackmagic Design Mini Converter HDMI to SDI Open Box
(B Grade) Blackmagic Design Mini Converter HDMI to SDI 6G - Convert SD, HD and Ultra HD HDMI with HDMI/Analogue
- By DPD On 24th Jan to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info

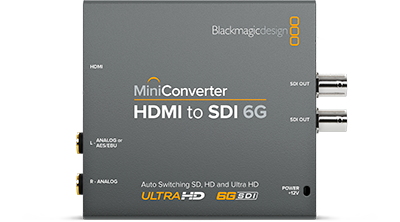

Blackmagic - 'Mini Converter HDMI to SDI 6G'
(B-Grade)
the world’s most advanced 6G‑SDI convertersBlackmagic Mini Converters are the world’s most advanced converters because they include the latest 6G-SDI technology, automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards up to 2160p30! You get advanced features such as redundant SDI inputs, re‑clocked loop outputs, HDMI instant lock, 33 point LUT support, and full analog and AES/EBU audio connections so you can convert video, as well as embed or de-embed audio! Choose from a wide range of 3G and 6G-SDI models, depending on the conversion you need.
Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI 6G is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI.
The Tech Spec
| Features | Specification | SDI Video Outputs | 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G‑SDI HDMI video input. |
|---|---|
| HDMI Video Inputs | HDMI type A in |
| Analog Audio Inputs | 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Digital Audio Inputs | 4 channels of AES/EBU digital audio. |
| Multi Rate Support | Auto detection of SD, HD or 6G‑SDI. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| SD Video Standards | 625i25 PAL, 525i29.97 NTSC |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Video Rates | SDI video inputs are automatically detected between standard definition, high definition, 3G‑SDI and 6G-SDI. HDMI to SDI 6G supports level B only on 3G-SDI output. |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Colour Precision | 4:2:2 |
| SDI Colour Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD or 6G‑SDI. |
| HDMI Video Standards | 625i25 PAL, 525i29.97 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Colour Space | YUV and RGB |
| HDMI Colour Precision | 4:2:2 and 4:4:4 |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Format Conversion | HD down conversion |
| Software Control | Mac OS and Windows software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
| Settings Control | Mini Switches or USB software |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 4.44 Watts |
| Operational Voltage Range | 12 ‑ 18V DC |
| Physical Specifications | 4.49 x 0.90 x 3.63 in |
| Operating Temperature | 0° to 40° C |
| Storage Temperature | -20° to 45° C |
| Relative Humidity | 0% to 90% non‑condensing |
