(B-Grade/No Original Box) Adam Hall - MultiCore 8/0 StageBox (K8C10) 10m
Scan code: LN121832
Manufacturer code: K8C10
End Of Life
(B-Grade/No Original Box) Adam Hall - MultiCore 8/0 StageBox (K8C10) 10m
(B-Grade/No Original Box) Adam Hall - MultiCore 8 Input StageBox K8C10, 10m
Scan code:
LN121832
Manufacturer code:
K8C10
This product is no longer available to purchase.
Email me when the availability or price changes

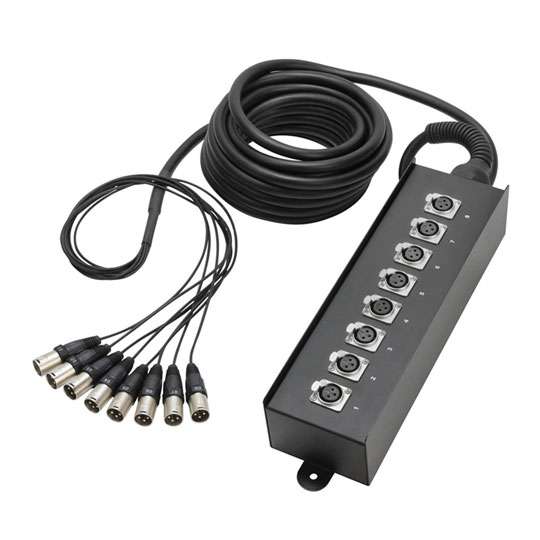

8 Way XLR Multicore Stage Box (10M)
Adam Hall - K8C10
(B-Stock)
Please note: This item is B-Grade. Packaging may be damaged or missing and there may be cosmetic imperfections and slight signs of use.
Eight-channel subcoreEight-channel subcore with permanently attached ten-metre cable terminating in eight Adam Hall XLR plugs. The metal stage box has a mounting lug on the side; solid strain relief protects the sensitive transtion zone between box and cable. The additionally reinforced transition to the terminations prevents fatigue and cable breakage.
at a glance
• Black powder coated
• Sturdy steel construction
• Fitted with metal XLR connectors
• Maximum audio integrity
• Highly flexible multicore
The Tech Spec
| Features | Specification | Type | Multicore cable |
|---|---|
| Channels | 8 |
| Cable Length | 10m |
| Cable diameter | 13 mm |
| Cross section | 0.314 mm² |
| Connector 1 (built into drum / stage box) | XLR |
| Number of connectors connector 1 | 8 |
| Gender of connector 1 | female |
| Poles of connector 1 | 3 |
| Connector 2 (splice) | XLR |
| Number of connectors connector 2 | 8 |
| Gender of connector 2 | male |
| Poles of connector 2 | 3 |
| Model number connector 2 | Custom-made |
| Splice length | 60 cm |
| Width | 100 mm |
| Height | 90 mm |
| Depth | 325 mm |
