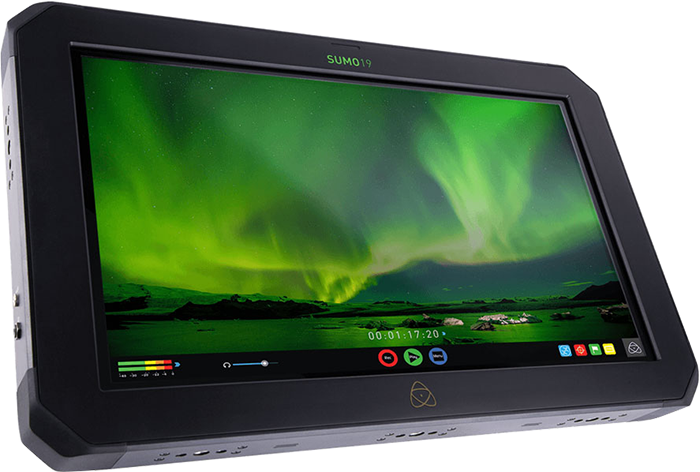

Sumo 19" 4K Production Monitor-Recorder & Switcher by Atomos

Atomos Sumo 19" On-set & In-studio 4Kp60 HDR Monitor & Recorder + Switcher

AtomOS
Scan code: LN81262 Manufacturer code: AO-ATOMSUMO19 Request call
£2,370.00
In stock
Pay on Scan Finance with a 10% deposit from just £59.19 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD On 24th Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview The first production monitor that also records 4K 12bit Raw, 10bit ProRes/DNxHR, plus 1080p60 live switching and recording.

On Set
For the first time your on-set production monitors can be HDR capable and have recording capacity. Now every monitor is not only for high quality shot preview, it can record dailies, proxies or 4Kp60 masters and has playback controls away from the camera team on a high quality, calibrated 19in 1200nit 10-bit HDR screen.

In The Studio
Take Sumo into the studio to use as a HDR grading monitor. Simply connect with your grading software to take Log, PQ or HLG signals from your Mac/PC and instantly see colour accurate HDR in 10-bit quality with 10 stops of dynamic range.

DIT Cart
Get HDR on set in realtime with on the fly Log to HDR and PQ/HLG playback complete with mission critical scopes such as waveform, focus peaking, false colour and vectorscope on the calibrated screen. Beyond monitoring, with up to 4Kp60 and 2Kp240 recording you can generate instant dailies and proxies direct to affordable and available SSD media.

Focus Puller
The combined monitor-recorder in the larger 19" size gives focus pullers instant on set access to footage with focus peaking, 2:1/1:1 zoom and the ability to tag footage as XML files. The high bright 1200nit monitor, sturdy built-in armor aluminium alloy design and variety of mounting options makes it a go-anywhere, do-it-all monitor-recorder for focus pullers.

Client/Director Monitor
Clients and directors can see the amazing true-to-life nature of HDR in realtime away from the camera crew with precision mapping of Log from every camera maker and playback of PQ/HLG signals.
Full playback controls and XML tagging means that they can also review footage and even create an instant client lightweight ProResLT copy with baked in LUTs and audio onto affordable SSD media. You can also choose to view both Log and standard gamma images with or without LUTs applied. Toggle between different looks with ease in seconds.

Studio Monitor
In the studio the 19" Sumo becomes an affordable yet incredibly powerful HDR monitor. With 10 stops dynamic range, 10-bit processing and X-Rite calibration it will accept Log, PQ or HLG signals from your grading software and display HDR in all its glory.

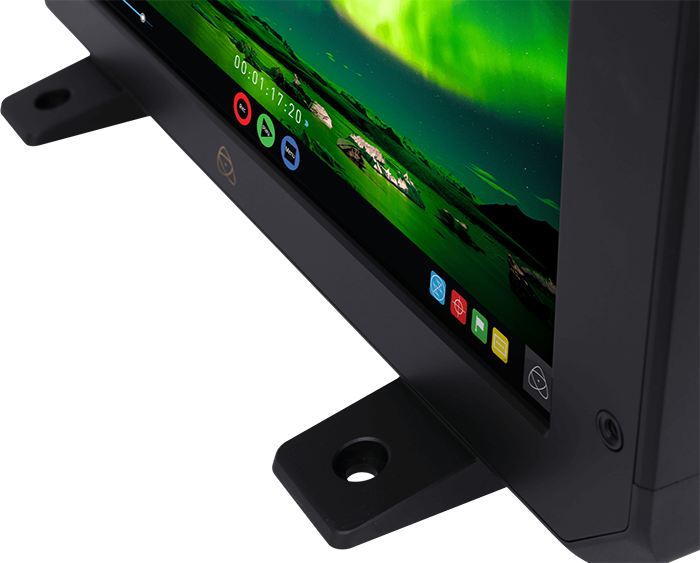

Features Built For Production - Rugged construction. Flexible mounting
The Aluminium alloy chassis with built-in armour houses ten mounting points around the top/bottom/side, a rear panel VESA mount and an included stand for a variety of mounting configurations. Alongside of the XLR connections for power and balanced audio, there is a 3.5mm stereo headphone jack and built-in speakers.
The optional mounting plates connect dual V-Lock or Anton Bauer batteries work in tandem with our patent pending continuous power system. This allows batteries to be hot swapped to ensure you are never without power in the field.

Quad SDI & HDMI 2.0 In/Out
Seamlessly connect any SDI or HDMI device and convert between HDMI 2.0 and SDI (3G QuadLink/6G/12G) in any combination. Quad SDI inputs connect cameras with multiple 1.5 or 3G SDI outputs without the need for converters. HDMI 2.0 supports up to 4Kp60 input/output along with the very latest Atomos open protocol that supports HDR automation including importing of camera settings. There is also support for Genlock and LTC timecode.

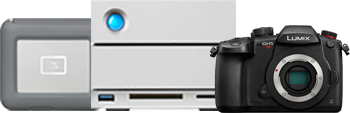

Professional Recording - 12-bit Raw, 10-bit ProRes/DNxHR up to 4Kp60
Capture the RAW output from Sony FS5/FS7/FS700, Canon C300MKII/ C500 or Panasonic Varicam LT over SDI up to 12-bit 4Kp30 as CDNG or 10-bit Apple ProRes / Avid DNxHR up to 4Kp60 / 2Kp240 depending on the camera’s capability. The processing power of Sumo preserves pristine quality direct from the sensor with data rates of up to 3.2 Gbps.

Monitor. Switch. Record - Live Switch and Record up to four 1080/60p channels, 4 x ISO record and playback
Make working with multi-cam a breeze. Switch and mix a live record and stream or record 4 x HD ISO recordings using the QuadLink SDI connections. Switch between feeds on screen with cueing, cross fade and hard cuts from the locked sources or tag and adjust final edits with advanced metadata tagging preserving ISO feeds, with the desired final result infinitely editable.

XLR Monitor & Record - Balanced XLR Monitor & Record with 48V Phantom
Eliminate the need for a separate audio recorder by using the full size XLR connections to connect and power external microphones for balanced analogue audio with dedicated meters and adjustments for frame delay and gain. 48V phantom mics or line level audio are all seamlessly synchronized for the most advanced audio feature set in a monitor today. There is also a 3.5mm stereo headphone jack and built-in speakers for on set instant immersive review or complete internal recording review anytime anywhere with clients or production team.

Go HDR Today - In the field & the studio
Sumo’s 19” 1920x1080 10-bit LCD panel is driven by the AtomHDR engine which precisely maps the Log/PQ/HLG from popular cameras, game consoles or TV makers to perfectly resolve 10+ stops of HDR in real time. The brightness range and vivid colours of HDR bring scenes to life either on the monitor itself, or when output to larger HDR/Rec709 displays for on set review. It can also be used with popular NLE or grading suites for affordable HDR or SDR editing or grading in the studio.

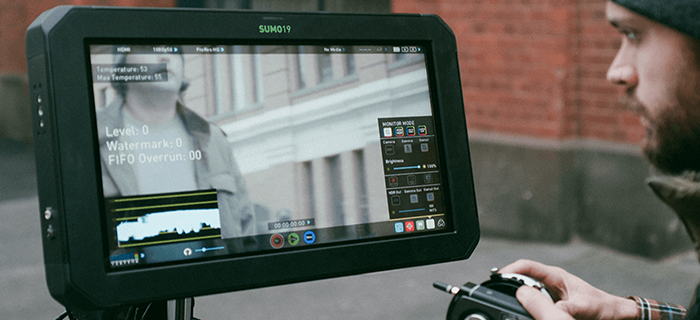

High Bright For Rec709 Outdoor Shooting - 1200nit 19” calibrated 1920x1080 monitor
The extremely bright 1200nit display means you can accurately monitor, even when outside in full daylight. Additionally, for the ultimate low light performance an optional hood is available. The simplicity of AtomOS means its only a single tap on screen to bring up focus peaking, 2:1/1:1 zoom, Zebra, False Colour, Frame guides, SMPTE Safe Area, Waveform, RGB parade, Vectorscope, Anamorphic desqueeze and a flexible 3D LUT implementation to upload your own LUTs as .cube files.

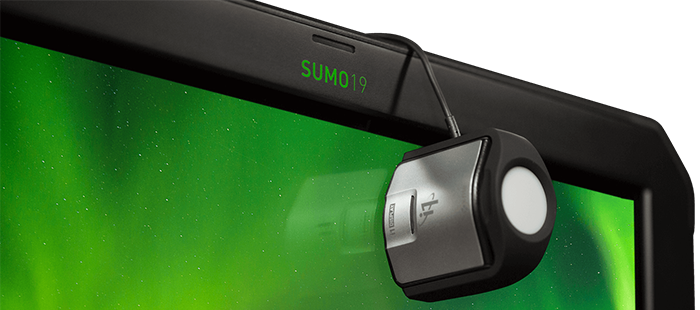

Trust What You See - Calibrate for accurate colour
Like all high-end monitor’s, Sumo also has optional calibration to compensate for the natural color and brightness drift that monitors exhibit over time. Sumo’s calibration input lets you use X-Rite’s i1DisplayPro to always ensure accurate HDR and Rec709 monitoring.

Continuous Power - Never go without power
The optional mounting plates connect dual V-Lock or Anton Bauer batteries that work in tandem with our patent pending continuous power system. Sumo automatically swaps to the second battery when power is low, allowing the drained battery to be hot swapped to ensure you are never without power in the field.

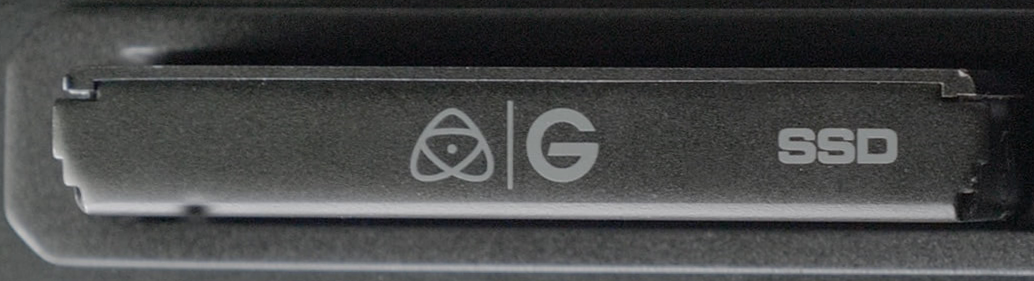

Choose The SSD To Suit Your Workflow - Media solutions that are affordable, time saving and convenient
Sumo records using our patented Master Caddy system. High capacity and widely available 2.5" SSD's provide an affordable solution for long recording times. We've tested and approved over 20 drives for Sumo (atomos.com/drives) that neatly slot into the provided Master Caddy or use the custom Atomos caddy from G-Technology to integrate directly into their EV series of Raid and desktop solutions for the ultimate in workflow efficiency.
