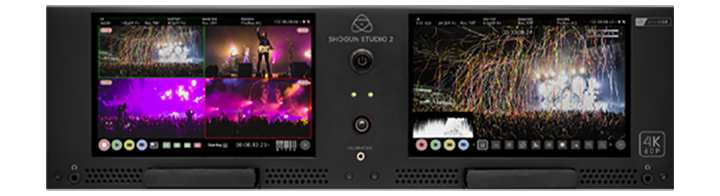

Atomos - 'Shogun Studio 2'
Rackmount Recording Redefined

HDR Dual Monitor and 8-Channel HDp60/2-Channel 4Kp60 Rackmount RecorderAtomos’ new Shogun Studio 2 utilises their state-of-the-art multi-channel recording technology and combines it with two premium 7” HDR 3000nit* touchscreen displays, housed in a single 3RU Unit. With a unique combination of features make the Shogun Studio 2 perfect for live events, mobile broadcast vehicles, post production facilities, video wall playout, on-set DITs and sports officiating. Connect to practically any SDI or HDMI source including camera channels, PTZ cameras and vision mixers.
*Peak Brightness
4Kp60Apple ProRes Avid DNx
12Gb/sHDMI 2.0 I/O
HDp240Slow Motion HD
6.9secPre-roll
150minsRecord on ITB
TimecodeCamera TC
TriggerFrom Camera
Up to 4Kp60 Playback and Play Out

Record Multiple FormatsThe Shogun Studio 2 records either two channels of 4Kp60, or up to eight HDp60 sources in industry standard Apple ProRes, ProRes RAW and AVID DNx codecs. Free your workflow from the constraints of highly compressed GOP based codecs and their associated artifacts. Replace them with clean images captured direct from the sensors of your camera channels using modern Intra-frame codecs.

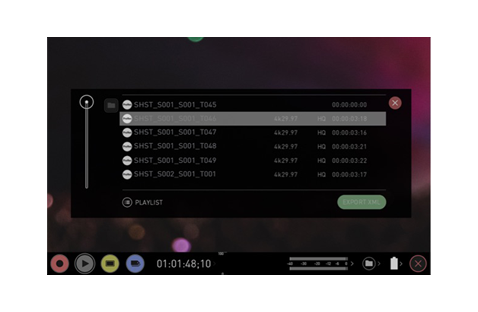

Playback and EditReview or play out your footage directly on the Shogun Studio 2 using the innovative touchscreen controls. Playback and play out up to 4Kp60 video, or 2K/HD high frame rate footage slowed down in the unit itself. Playlists can be created from clips either recorded on an Atomos recorder, or from your edit system in a supported codec, resolution and framerate.

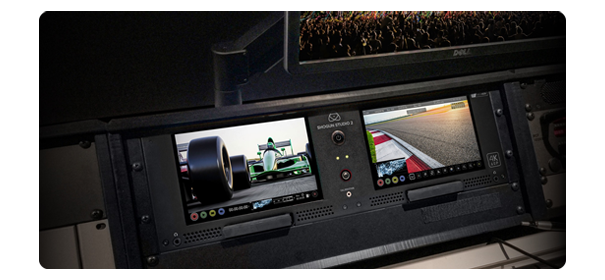

Advanced Record ModesThe Shogun Studio 2 offers Pre Roll recording with a 8 second cache in HD, or 2-3 seconds in 4K, to make sure you never miss the action. It also offers Multi Camera ISO recording and Switching of up to 8 SDI inputs from cameras at up to 1080 p60. Each bank of 4 inputs also benefits from a switched output allowing you to have two video switched.

Perfect for Mobile Broadcast Vehicles

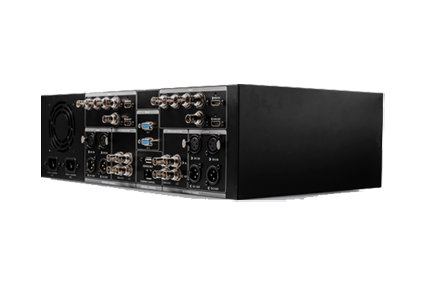

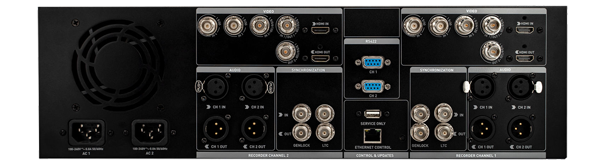

Master Your RackThe Shogun Studio 2 only takes 3RU of space and has a short rack depth making it perfect for use in monitor bridges or in small mobile broadcast vehicles. Redundant dual power supplies balance the power load. The rear of the Shogun Studio 2 provides grouped connectivity for each of the recorder channels with 12G, 6G, 3G (single, Dual, Quad) and 1.5B SDI I/O, HDMI with support for both the inputs and outputs, plus XLR audio I/O, Genlock and LTC input and loop through.

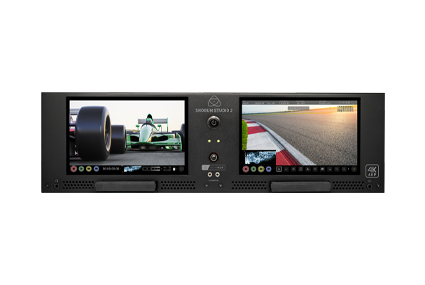

Class Leading Screen TechnologyThe dual 7” screens of the Shogun Studio 2 have advanced dynamic zoned backlighting for deeper blacks and brighter whites, while retaining every detail in the highlights. See what the camera channel is capturing with unparalleled precision and use the advanced HDR tools for Log or RAW to ensure perfect exposure, colour and white balance.
A Host of Image Analysis Tools

Wave Form Monitors with Luma, RGB parade and Vectorscope with zoom.

Focus peaking, zbrea and fals colour that allow for further image QC checks to be remotely monitored from a distance.

1:1 and 2:1 magnification allows for operators to punch in to check shots for focus, exposre and which is perfect when used in combination with a remote camera control unit.

VU meters for audio monitoring of up to 12 channels fo embedded audio and the ability to monitor individual tracks and select which to record.
Groundbreaking Flexibility and Performance

The ProRes RAW AdvantageCreators are granted complete creative control of their video images in post-production as ProRes RAW combines the flexibility of RAW video with the real-time performance of ProRes. The format gives filmmakers incredible latitude when adjusting the look of their images and extending brightness and shadow detail – making ProRes RAW ideal for HDR workflows.
In addition to their groundbreaking combination of flexibility and performance, Apple ProRes RAW files are smaller than other RAW files – simplifying and accelerating file transfer, media management, and archiving. ProRes RAW files can easily be edited on most modern Apple Mac systems. ProRes RAW is fully supported in Final Cut Pro X along with a collection of other apps including ASSIMILATE SCRATCH, Colorfront, FilmLight Baselight, and Grass Valley Edius. Adobe Premiere Pro and Avid Media Composer are also set to support ProRes RAW in 2020.
Log Input and 3D LUT Support

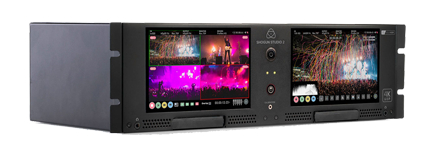

10RU Worth or Functionality in a 3RU BoxIn addition to the core recording and monitoring functions the Shogun Studio 2 packs a raft of additional features that make it incredibly versatile toolbox.

Managed Colour PipelineShogun Studio 2 manages your colour in every way. It supports Log inputs from major camera vendors, converting it to Rec.709 and providing users the option to load their own 3D LUTs for immediate preview and transform.

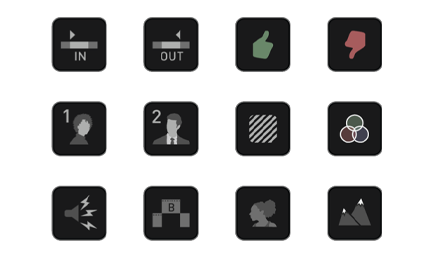

Metadata tagging, cut edits & EDL XMLAtomos improve the speed of your end-to-end workflow, allowing for fast turn around and ingest into Media Asset Management systems. Make edit decisions on the fly by touching the screen and selecting from one of 10 tags. You can start to favorite or reject clips while you record, then review, cut and tag in playback mode.
The Tech Spec
Features | Specification | Touch Screen | 7.2", 1920x1200, SuperAtom IPS panel |
---|---|
HDR Conversion | Log/RAW to HLG or PQ, Dolby Vision Loop Out |
Video Input/Loop Out | HDMI, SDI, Signal, LTC and Genlock |
Video Output | HDMI, SDI, Signal |
Video Signal Conversion | HDMI to SDI, SDI to HDMI, Signal |
Audio In/Out (48kHz PCM Audio) (Per Channel) | HDMI, SDI, 2ch balanced XLR |
Supported Codecs | ProRes RAW, ProRes, CinemaDNG (CDNG up to 30p only), Avid DNxHD, Sony 4K, Sony 4K UHD, Sony 2K, Canon 4K DCI, Canon 4K UHD, Canon 2K, Panasonic VaricamLT, EVA1 5.7K DCI and more |
Pre-Roll Record | Yes (HD 8s, 4K 2s) |
ISO Record | Up to 8 streams in 60pHD in parallel |
Custom Timelapse | Yes* |
Supported Media | 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/ drives for list of tested and approved drives |
Master Caddy Case | Master Caddy II (included) 75mm x 105mm x 12mm |
Supported Applications | Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke |
Accessories Included | Shogun Studio 2, 2 x rack ears with screws, 4 x rubber feet with screws, 2 x IEC power cable, 2 x HDMI cable, 1 x USB-C Dock, 5 x Master caddy II |
Please Note: For the full and detailed manufacturers specifications please read more HERE
