Atomos Shogun 7 Field Monitor-Recorder-Switcher
Atomos Shogun 7 Seven-Inch HDR Monitor-Recorder-Switcher with SDI and HDMI, Real-Time Dolby Vision Monitoring
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
Shogun 7 Field Monitor Recorder Switcher from Atomos
Unbelievable HDR, real-time Dolby Vision monitoring From Ninja to Shogun, Atomos field recorders keep on improving. With full HDR, the Shogun 7 is embracing the now and allowing professionals an accurate preview. The small size makes it great to take with you to different locations and once you're ready to work, Dolby Vision can be output for another accurate preview into how your finished work will look at home.

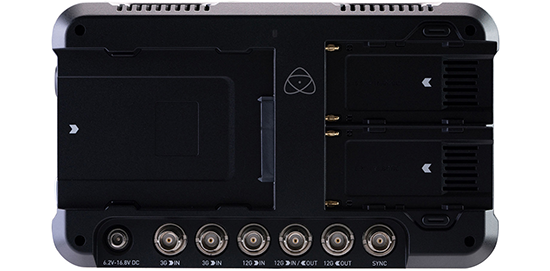

High Speed Connections
Live Multi-Cam has Never been more PortableSeamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quad Link SDI in almost any combination and eliminate the need for specialist converters.
12Gb/sHDMI/SDI
500MB/sRecord write - SATA III SSD
120minsRecord on 2TB SSD
2TBPlayback read - SATA III SSD
The Best HDR just got Better
Dynamic AtomHDR technologyThose that work in HDR the Atomos Shogun 7 works with Atomos' own Dynamic AtomHDR tech. The 1, 000, 000:1 contrast ratio works with the blacks and colours to produce a rich, deep look to give you an accurate view of what the final result could be.

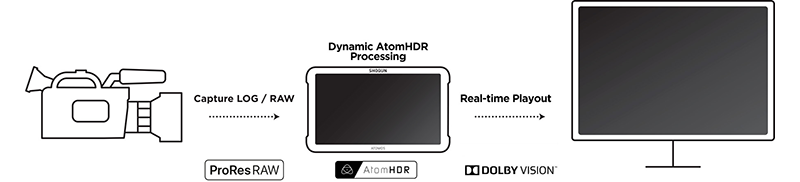

Live Atomos to Dolby Vision TV Workflow
Record RAW, deliver accurate Dolby Vision HDRHDR is becoming more and more important as the technology progresses into people's homes. With this in mind, Atomos have ensured that the Shogun 7 is the ultimate tool for those wanting to work within this frame. Connect your Shogun to a Dolby Vision TV and you'll get help from AtomOS as it analyses the image to produce an HDR image as you intended when shooting.

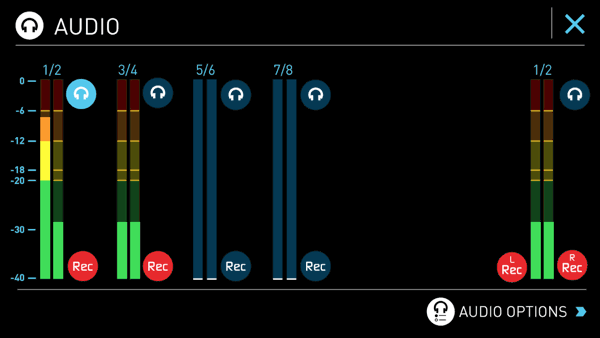

Eliminate the need for a Separate Audio Recorder
Balanced audioAdd 48V stereo mics via the balanced XLR breakout cable. Select Mic or Line input levels, record up to 12 channels of digital audio from HDMI or SDI. Monitor selected stereo via the 3.5mm headphone jack. There are dedicated meters, gain controls and adjustments for frame delay.
Quality That’s in the Details
• 4 x 3G-SDI, 2 x 12G-SDI
• 1,000,000:1 contrast ratio
• S7" 1920 x 1200 Touchscreen Display
• Dynamic AtomHDR, 360-Zone Backlight
• 4-Input HD Switching & ISO Recording
• Real-time recording to 4K formats including ProRes RAW, CinemaDNG, ProRes and DNx
The Tech Spec
| Features | Specification | Dimensions | 214 x 127 45mm |
|---|---|
| Screen Size | 7.2" |
| Resolution | 1920 x 1280 |
| Aspect ratio | 16:9 native |
| Colour Gamut | Up to Wide colour gamut (105% DCI-P3) |
| Technology | Dynamic AtomHDR zoned backlight IPS LCD | Backlight | Direct LED |
| LEDs | Wide Colour Calibrated D65 or D95 |
| Bit depth | 10-bit (8+2 FRC) |
| Brightness | 1500nit (+/- 10%) |
| HDMI Input | 1 x HDMI (2.0), Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI |
| HDMI Output | 1 x HDMI (2.0), 2x 4K-SDI 12G or HD-SDI 3G/6G |
| Audio In/Out (48kHz PCM Audio) | HDMI: 2 or 8ch 24-bit, camera dependent SDI: 12ch 48kHz 24-bit |
| What's In The Box | Shogun 7 unit, Master Caddy II x 1, 12V-3A AC power supply, Carry Case, Quick Start guide |
