Scan code: LN112457 Manufacturer code: ATOMNEO171

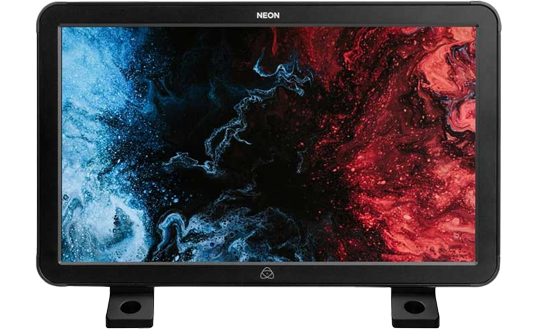

Atomos Neon 17 Cinema Monitor-Recorder inc. AtomX SDI

Atomos Neon 17, 16.5" 1000nit Field Monitor & 4k60p Recorder, AtomHDR, HDMI, 12G SDI, 10-bit, DCI P3

Thumbnail 1 : Atomos Neon 17 Cinema Monitor-Recorder inc. AtomX SDI Thumbnail 2 : Atomos Neon 17 Cinema Monitor-Recorder inc. AtomX SDI
Scan code: LN112457 Manufacturer code: ATOMNEO171
£2,518.99Item currently awaiting an ETA
Pre order
From £58.87 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £216.51
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £2,518.99
Total inc. interest: £2,598.08
Monthly Payment: £111.36
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £2,518.99
Total inc. interest: £2,672.51
Monthly Payment: £76.35
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £2,518.99
Total inc. interest: £2,748.33
Monthly Payment: £58.87
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £2,518.99
Total inc. interest: £2,825.55
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £62.92 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Atomos Neon BBRCU promotion

Atomos - 'Neon 17'
Cinema Monitor-Recorder

Atomos Neon 17 Cinema Monitor-Recorder

Providing certainty of imageThe Atomos NEON 17 is a precision on-set and in-studio 4K HDR production monitors that also record and play back. With the ability to achieve1000nit/cdm2 full screen brightness with Full Array Local Dimming (FALD), and a 0nit/cdm2 Black point and a 1500nit HDR peak brightness. With wide gamut DCI P3 coverage, built in LOG transforms for HDR monitoring and custom 3D LUTs for SDR the NEON series provide accurate monitoring for either production or post.

16.5"Monitor

1920x1080Resolution

142PPI

16:9Aspect Ratio

Deep Blacks and Wide Colour Gamut

Atomos Neon 17 Cinema Monitor-Recorder

Full screen brightness with deep blacks and wide colour gamutAtomos' flagship NEON 17 utilizes a combination of high quality 16:9 FHD DCI resolution, true 10-bit panel fidelity with full array local dimming back light that delivers 0nit deep blacks, 1000nits full screen brightness and with a HDR peak brightness of 1500nits.


Atomos Neon 17 Cinema Monitor-Recorder

Colour Managed Display PipelineThe AtomHDR engine provides the ability to accurately manage your input and display Gamma/Gamut. Selectable monitor modes allow you to work in either SDR or HDR project settings, that match both camera acquisition settings, or defined delivery standards including Rec.709, Rec.2100 HLG or ST.2084 PQ. NEON provides native accurate colour with DCI-P3 coverage. Wide color gamuts, such as BT.2020, are accurately processed by the AtomHDR engine to deliver consistent representations. Built in transforms, allow for the conversion of LOG to HDR standards or utilise 3D LUTs for SDR, to monitor with a specified look or exposure compensation. Downstream output options also provides for conversion between standards to best suit the target display with options for SDR, LUTs or HDR.

Flexible I/O

Atomos Neon 17 Cinema Monitor-Recorder

Flexible and Upgradeable I/OThe foundation of the NEON platform is a modular approach that ensures the I/O of the monitor is both easy to maintain, replace and ultimately upgrade without having to take the panel out of commission. The Master Control Unit (MCU) is the brain of the NEON with support for HDMI 2.0 for both in and loop out, which provides support for video input at 4096 x 2160 4k DCI at up to 60p.

The MCU firmware is easily upgradable and allows the upload and storage of up to 8 x 3D LUTs in its internal memory or can use a 2.5” HDD or SSD to store an unlimited library that can easily be uploaded to the NEON via the AtomRemote App on iOS. The MCU offers a second level of expansion via the Xpansion port and NEON includes the AtomX SDI module which provides 2 x 12G SDI. The configurable ports allow for input of up to 4k60p video.

As standards and interfaces develop, both the MCU and Xpansion port modules can be changed and upgraded to meet your needs without needing to change the entire monitor.

4K DCI 60p Support

Atomos Neon 17 Cinema Monitor-Recorder

Record and Playback modesConnect cameras or any video source via SDI, supporting up to 4K DCI 60p via 12G or Dual 6G or lower resolutions and frame rates via 1.5/3G SDI up to 2Kp60 with up to 12 channels of embedded audio. Recordings can easily be played back and reviewed without needing to off load media or take the camera out of record mode. HDMI signals without HDCP are supported up to 4k60p or HD 120fps with up to 8 channels of audio and detection of HDR info frame to automatically match the input signal type. 10bit 422 recordings are captured to industry standard Apple ProRes of Avid DNx Codec using Scene Shot Take file naming with rich metadata in the file header that can be utilized by your NLE or MAM system to asset orchestration.

To play back files recorded to SSD on the NEON, or SSDs from other Atomos devices, simply place the SSD in to the MCU drive slot. Clips can also be exported directly from your NLE or transcoded toProRes/DNx to be played back on the NEON.


Atomos Neon 17 Cinema Monitor-Recorder

Frame Guides and Anamorphic De-squeezeA variety of broadcast frame guides with the option to EBU R5 Graphic and Action safe areas can be enabled. Cinematic guides are also available and can all be used alongside the anamorphic de-squeeze mode with support for 2x, 1.5x and 1.33x to allow you to match a wide variety of lenses.

App Control for all Essential Monitoring Tools

Atomos Neon 17 Cinema Monitor-Recorder

Waveform MonitorsOffer Luma Parade, RGB parade, Vector Scope with Vector zoom to monitor levels with specific graticule scales across input EOTFs.

Atomos Neon 17 Cinema Monitor-Recorder

Pixel ZoomAllows operators to punch in to check shots for focus or aspects of the detail with pan and scan around the image.

Atomos Neon 17 Cinema Monitor-Recorder

Focus PeakingColour, Mono and edges only enable easy focus pulls or shot selection. Traditionally used on set but also ideal when reviewing shot selects.

Atomos Neon 17 Cinema Monitor-Recorder

Adjustable ZebrasExposure check and analysis.

Atomos Neon 17 Cinema Monitor-Recorder

False colourExposure check and analysis. can be used in both production and post to set exposure or identify areas that may need to be painted down with power windows.

Atomos Neon 17 Cinema Monitor-Recorder

Audio at a glanceAudio PPMs for all embedded channels with headphone monitoring of selected stereo pair. Additional input can be via 3.5mm jack located on the MCU.

Atomos Neon 17 Cinema Monitor-Recorder
Atomos Neon 17 Cinema Monitor-Recorder
Atomos Neon 17 Cinema Monitor-Recorder
Atomos Neon 17 Cinema Monitor-Recorder
Atomos Neon 17 Cinema Monitor-Recorder
Atomos Neon 17 Cinema Monitor-Recorder

The Tech Spec

Features Specification
Touchscreen Yes, Dynamic
Weight 4.5kg
Dimensions 413 x 253 x 71.4mm
Mount Points Full ARRI compatible, 3 Left, 3 Right, 7 Top, 7 Bottom. Rear 100 x 100 VESA Mount
Feet 2 x Feet with 1/4” 20 with anti rotation pins
Security leash point Kensington lock on rear and lock down point on feet
Rack mount Via 3rd party shelld with Vesa mount
Body Aluminium alloy chassis with ABS Polycarbonate back plate
Cooling Active
Tally light Rear
Function Button Power button to lock screen and pair remote control devices
Operating Power 19v 180Watts
DC in Multi pin input on rear
Size 16.5”
Resolution FHD 1920x1080 - 16:9
Viewing Angle 180 degrees Horizontal & Vertical (+/- 10%)
PPI 142
Bit Depth 10-bit (8+2 FRC)
Backlight Dynamic Full Array Local Dimming (FALD) 128 Zones
Brightness 1000nits Full Screen brightness * (+/- 10%)
Black Level 0nits
LED Wide Colour Calibrated D65
Contrast Ratio Dynamic 1,000,000 : 1
Aspect Ratio 16:9
Colour Gamut DCI
AtomHDR Technology Yes
Supported resolution & FPS 4k DCI: 23.98/24/25/29.9/30/50/59.94/60p
4k UHD: 23.98/24/25/29.9/30/50/59.94/60p
2k DCI: 23.98/24/25/29.9/30/50/59.94/60p via SDI only
1080i: - 50/59.94i
720p: 50/59.94/60p

Please Note: For full manufacturers technical specifications please visit HERE

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
