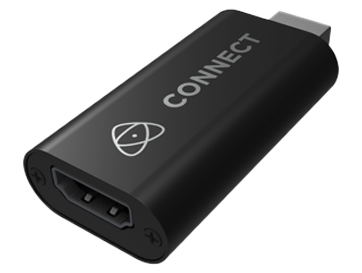

Atomos - 'Connect 4K'
HDMI to USB Adapter

Convert, Connect, StreamThe Atomos Connect bridges together the realms of professional recording and monitoring with modern live streaming platforms such as Twitch, OBS and YouTube. Use your Atomos Connect for setting up and recording professional shoots, and then simply plug-in the Connect to convert the HDMI output to USB for on the go streaming on your Mac or PC. Accepting up to 4K30 video input and capable of 1080p60 output over USB the Connect has incredible streaming quality for the price point.

4K30HDMI Input

1080p60USB Output
4K Plug and Play

Plug and Go Like a ProWith a slim 12mm profile, the Atomos Connect is compact enough to sit directly off your laptop or PC. No drivers or power supply are required, streamlining and simplifying the process of connecting your Atomos or HDMI device to your Mac or PC and start production like a pro.

Shogun 7 + ConnectThe Atomos Shogun7 allows you to monitor and record up to four 1080p60 streams simultaneously and then cue and switch in real-time with a simple touch of the screen. Additionally, the Shogun7 is able to accept asynchronous feeds (sources don’t need to be locked), allowing the user to use more affordable cameras for multi camera production. Adding in Connect, lets you output the switched feed for live streaming on your Mac or PC. This makes the Shogun7 Connect package one of the easiest and most affordable options for professional switching.

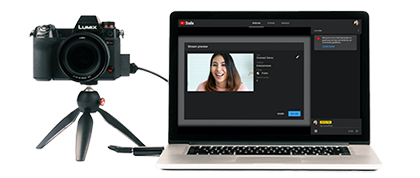

Transforms your Camera to a Pro WebcamEven without an Atomos monitor-recorder, Connect transforms your HDMI camera to a powerful professional webcam. No drivers required, plug in Connect and go live instantly.

Simplify your shoots with no-fuss live streamingConnect works with any HDMI device including the entire Atomos range, is simple to use, has universal support from popular streaming platforms and an affordable price for gamers, vloggers and education facilities to up their streaming game using the profession Atomos monitor-recorder ecosystem.
The Tech Spec
Features | Specification | HDMI Input | up to 4Kp30 |
---|---|
USB Ouput | 1080p60 (YUV.JPEG) |
Colour Depth | Supports 8/10/12-bit deep colour |
HDMI Support | Certified AWG26 HDMI cables up
to 15 meters |
Software Support | Popular acquisition software on
Windows, Android & Mac OS |
USB Support | Conforms to USB Video and UVC
standard Conforms to USB Audio UAC standard (L-PCM format) |
Power | No external power required |
Maximum Working Current | 0.4A / 5V DC |
Operating Temperature Range | -10 to +55 °C |
Dimensions (WxLxH) | 28 x 64 x 13mm |
Weight | 21.4g |
System Requirements
Features | Specification | PC Processor | i5-3400 or above |
---|---|
Laptop Processor | i7-3537U 2.0GHZ or above |
PC Graphics Card | NVIDIA GT630 or above |
Laptop Graphics Card | NVIDIA GT735M or above |
RAM | 4GB |
