Atomos - 'AtomX SDI Module'

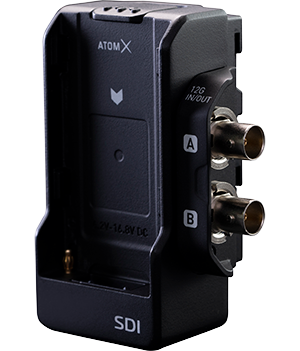

Add SDI Video I/O to the ninja V/V+The AtomX SDI Expansioin Module extends teh cpability of the Ninja V/V+ and compatible Atomos products by adding 12G SDI I/O. With 2x industry standard full size BNC connectors, the SDI module provides the flexibilityo be configured to meet the required video standards.
12G/6G/3G/HD SDI Connectivity
Single and Dual Link ConnectionsSingle link SDI connections will automatically be configured based on the signal input between 12G/6G/3G/HD with the ability to toggle between input channel sources on SDI 1 and 2, both supporting up to 4Kp60. Dual-link connection are supported for 1.5G/3G and 6G standards supporting an additional range of cameras. Across all these input functions the module supports embedded time code, Record Trigger commands for leading camera vendors, up to 12 channels of embedded audio and file naming for RED/Arrri cameras. The AtomX SDI Expansion Module also allows you to cross convert signals between HDMI and SDI and vice versa.
Built-In SDI Loop Out
Flexible playback optionsWith a single camera connected the 2nd SDI provides an SDI loop out with option to apply 3DLUTs, 4K to HD down converts and DCI crop. In playback, review clips, mark sub clips and assemble playlists for simultaneous output over both SDI connections at up to 12G 4Kp60.
Configure the module directly through the touch screen interface of AtomOS. With a pass through on the expansion port, the SDI module allows for a second module such as the AtomX SYNC to be stacked to provide further functionality to your Ninja V or compatible Atomos device.
Ninja V
RAW Recording Upgrade Available

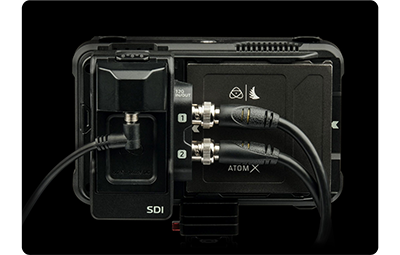

RAW over SDI Activation for Ninja V and AtomX SDI ModuleNinja V owners can now benefit from the ability to record RAW over SDI with compatible cameras using the AtomX SDI Module and paid upgrade of $99. The Activation Key for SDI RAW and HDMI RAW to SDI Video can be purchased via your my.atomos.com account.
These new features bring even more versatility to the Ninja V, providing professional I/O options for a multitude of cameras – from entry level mirrorless cameras through to the latest compact cinema and high-end professional cameras. Read more about how the RAW over SDI Activation can expand your RAW eco-system and provide new and reliable solutions for all on-set and mutli-cam productions.
