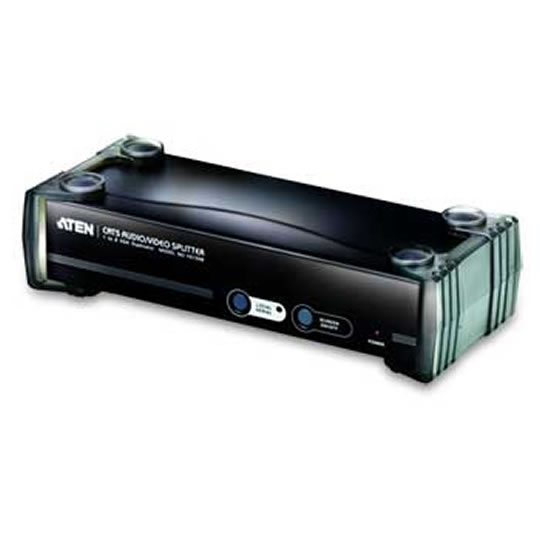

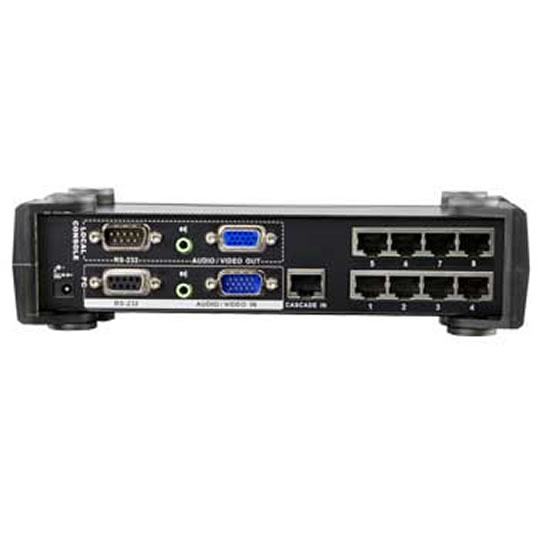

ATEN VS1508 8 Port Cat5 Video Splitter

Scan code: LN28634 Manufacturer code: VS1508 Request call
Pay on Scan Finance with a 10% deposit from just £10.38 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 19th Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The ATEN VS1508 Cat 5 Audio/Video Splitter is a cost-effective and efficient way to send high quality audio and video content to multiple displays up to 150 m (500 ft) away from a single input source.
Cascadable to three levels, the VS1508 can support thousands of displays when combined in an installation with ATEN repeaters. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation, the VS1508 is ideal for any installation that requires multimedia content to be delivered to multiple destinations.

Ideal for:
• In-store or tradeshow digital signage
• Broadcasting information to public locations
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities Features One video input to 8 video outputs
Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN repeaters/extenders*
Audio and serial enabled
Uses Cat 5e (or higher) cable to extend displays up to 150 m
High quality video - supports 1920 x 1200 @ 60Hz
Two gain control modes for sharpest picture quality -adjustable by OSD*
Group screens off/on function
Provides two RS-232 channels for selection
Follows VESA FDMI mount standard

*When combined in an installation with ATEN VB552 (VGA Over Cat5 Repeater + Audio) can extend displays up to 450 m.
*VE200R can also be combined in an installation with the ATEN's Media Distribution
