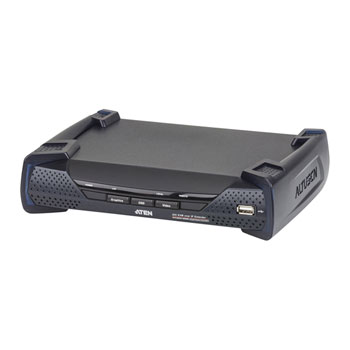

Product Overview The KE6900 DVI KVM Over IP Extender from ATEN is an IP based extender that allows access to a computer system from a remote USB console over an intranet. This extender consists of a transmitter unit which connects to the computer and a receiver unit which provides console access from a separate location over a standard TCP/IP network via a Cat 5e cable. The receiver allows for point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. As a matrix extender the system can connect single or multiple computers to consoles in several ways including one-to-one (extender mode), one-to-many (splitter mode), many-to-one (switch mode), or many-to-many (matrix mode). The Matrix Manager software allows you to password protect your devices and administer them over a network using the web-based GUI.

Remotely access computers on your KVM installation via intranet
Dual console operation allows for controlling your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
RS-232 serial ports allow you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
Video quality up to 1920 x 1200 @ 60 Hz with 24-bit color depth
Supports standard VGA resolutions from 640 x 480 to 1920 x 1200 at 60 Hz
On Screen Display on the receiver can configure receiver and transmitter
Supports AP GUI operation
Remote log-in security
DVI digital and analog monitor support
Built-in 8KV/15KV ESD protection and 2KV surge protection
Supports stereo speakers and microphone
Auto-MDIX detects cable type automatically
Supports widescreen formats and high-quality video streaming
Hot pluggable
Rack mountable
Upgradeable firmware
Features KE6900R DVI KVM Over IP Extender Transmitter
Console Ports Keyboard: 1 x USB Type A female (white)
Video: 1 x DVI-I
Mouse: 1 x USB Type A female (white)
Speaker: 1 x Mini stereo jack (green)
Microphone: 1 x Mini stereo jack (pink)
RS-232: 1 x DB-9 male (black)
KVM Ports Keyboard/Mouse: 1 x USB Type B female (white)
Speaker: 1 x Mini stereo jack (green)
Microphone: 1 x Mini stereo jack (pink)
RS-232: 1 x DB-9 female (black)
Video: 1 x DVI-I
Power Connector 1 x DC jack (black)
LAN Port 1 x RJ-45 (black)
Switches Console Selection / FW Upgrade: 1 x Slide switch
Reset: 1 x Semi-recessed pushbutton
LEDs LAN (green/orange)
Power (blue)
Local (green)
Remote (green)
Emulation Keyboard/Mouse: USB
Power Consumption 5 VDC
Video Resolution Up to 1920 x 1200 @ 60 Hz
Temperature & Humidity Operating Temp: 32 to 122°F / 0 to 50°C
Storage Temp: -4 to 140°F / -20 to 60°C
Humidity: 0 to 95% RH, non-condensing
Housing Metal
Dimensions (LxWxH) 8.5 x 6.4 x 1.8" / 21.5 x 16.3 x 4.6 cm
Weight 2.51 lb / 1.14 kg
KE6900R DVI KVM Over IP Extender Receiver
USB Ports 2 x USB Type A female (white)
Console Ports Keyboard: 1 x USB Type A female (white)
Video: 1 x DVI-I
Mouse: 1 x USB Type A female (white)
Speaker: 1 x Mini stereo jack (green)
Microphone: 1 x Mini stereo jack (pink)
RS-232: 1 x DB-9 male (black)
Power Connector 1 x DC jack (black)
LAN Port 1 x RJ-45 (black)
Switches OSD: 1 x Pushbutton
Video: 1 x Pushbutton
Graphics: 1 x Pushbutton
Console Selection/FW Upgrade: 1 x Slide switch
Reset: 1 x Semi-recessed pushbutton
LEDs LAN (green/orange)
Power (blue)
Local (green)
Remote (green)
Emulation Keyboard/Mouse: USB
Power Consumption 5 VDC
Video Resolution Up to 1920 x 1200 @ 60 Hz
Temperature & Humidity Operating Temp: 32 to 122°F / 0 to 50°C
Storage Temp: -4 to 140°F / -20 to 60°C
Humidity: 0 to 95% RH, non-condensing
Housing Metal
Dimensions (LxWxH) 8.96 x 6.76 x 2.16" / 22.75 x 17.16 x 5.48 cm
Weight 2.76 lb / 1.25 kg
