Asus Z170-P Intel Crossfire ATX Motherboard

Asus Z170-P, Intel Z170, S 1151, DDR4, SATA3 6Gb/s, M.2, PCIe 3.0, 2-Way CrossFire, DVI/HDMI, USB C, ATX Motherboard

ASUS
Scan code: LN66319 Manufacturer code: 90MB0NR0-M0EAY0 Request call
£95.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 30th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Asus Mainstream ATX Z170-P Motherboard

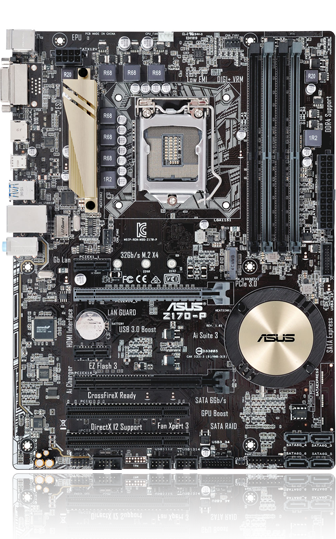

ASUS Z170-P Motherboard

The Z170-P is a fantastic motherboard that features some of the best current technologies. Taking a focus on motherboard component durability the ATX Z170-P boasts DDR4 performance, reversible USB Type-C connectivity, lightning fast M.2 slot and even more. This motherboard will boost your gaming audio through smart embedded tech and illuminates it with LED shielding. Plus, ASUS’ media acclaimed UEFI BIOS with EZ Flash 3, makes editing and keeping an eye on your system easy and enjoyable.

Intel Z170
Chipset

1151
CPU Socket

ATX
Form Factor

Dependable Motherboard Stability

Advanced Hardware Safeguard

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard Board Protection

Pumped-Up Throughput, Higher Surge Tolerance

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

* ESD result is undertaken by individual LANGaurd

Best Overvoltage Protection

World-Class Circuit-Protecting Power Design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ASUS ESD Guarded Motherboard

Electrostatic Discharge (ESD) - Protective Circuit Design

Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

LAN Port - ESD TVS diode protection on the LAN circuit.
USB Connectors - TVS diodes for surface-mount and dual-inline packages.
VGA Connectors - Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
Keyboard and Mouse Connectors - Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.

ASUS UEFI BIOS

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

M.2 Motherboard Slot

Ultrafast Transfer Speed

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Plug-and-Play Connectivity

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it — four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

TYPE-C ease and speed

Motherboard Convenient Connectivity

USB Type-C (USB-C) delivers future device compatibility and high-speed USB connectivity of 5Gbit/s from a slim, reversible port.

1/3 smaller than traditional USB Type-A / Any-way-up design means USB connection / Compatible with the latest devices today and the exciting new trends of tomorrow

Gaming Audio

Immersive Motherboard Audio Tech

Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!

LED-Illuminated Design - Brighten up your build with the gorgeous illuminated audio trace path.
Noise Isolation - Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Audio Enjoyment - Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

Safe Motherboard Mounting

Component-Free Areas to Minimize Damage Risk

Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!

Q-Slot/Q-Dimm Motherboard Fitting

Effortless PCI Express Component Removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Optimized Cooling

Fan Xpert 3 - Advanced Fan Controls

With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 3 makes sure every fan achieves the best balance of cooling performance and low noise!

Auto-Tuning Mode - Scans and detects all fan characteristics for single-click customization.
Extreme Quite Mode - Reduces CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
RPM Fixed Mode - Lowers noise levels to near-0dB silence, allowing to you fix the fan speed.

One-Stop Control - AI Suite 3

One-Stop Access to Innovative ASUS Features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Z170-K Connections

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z170
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400(OC)
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 2 x PCI
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 2 x System Fan header
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Type C (5Gb/s)
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
Asus Z170-P, Intel Z170, S 1151, DDR4, SATA3 6Gb/s, M.2, PCIe 3.0, 2-Way CrossFire, DVI/HDMI, USB C, ATX Motherboard is rated 4.0 out of 5 by 2.
Rated 4 out of 5 by from Good motherboard, but few accessories included I purchased this to upgrade and aging computer used for general admin work. I don't need fast graphics, but I chose this board in the expectation that I could use the HDMI and DVI ports to drive two monitors, in the way that most graphics cards can, It turns out that you can only use one or the other. So I had to continue using a graphics card as well. The other disappointment was that although the motherboard has connectors for adding additional USB ports, ASUS no longer includes the back plates you need to use them. Fortunately I had kept the back plates from some old scrapped motherboards, and they turned out to be compatible.
Date published: 2017-01-05
Rated 4 out of 5 by from DOes the Job Built a good system from this board. it's all aimed at overclockers but its stable and works well. I fitted an m.2 NVMe PCIe 3 x 4 storage chip on it and it just flies. Does not support SLI if your into your Nvidia GPU cards. But I'm not so it's good for me.
Date published: 2016-05-20
