Scan code: LN103703 Manufacturer code: 90MB1190-M0EAY0

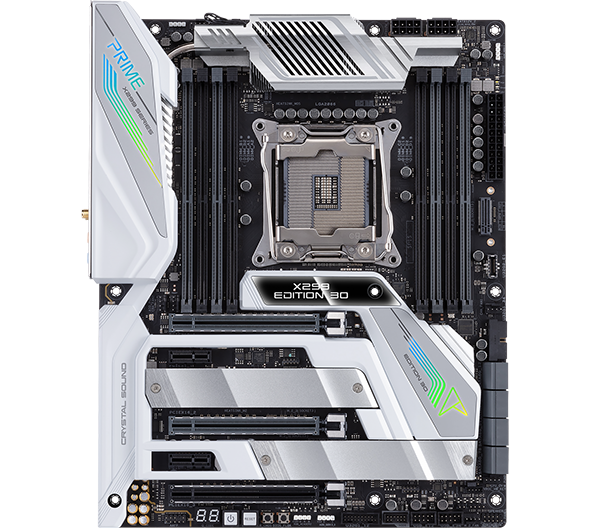

ASUS Prime X299 Edition 30 x299 Intel X-Series Motherboard

ASUS Prime X299 Edition 30, Intel X299, S2066, DDR4, SATA3, x3 M.2, 4-Way SLi/CrossFire, USB 3.2 A+C, Thunderbolt3

Thumbnail 1 : ASUS Prime X299 Edition 30 x299 Intel X-Series Motherboard Thumbnail 2 : ASUS Prime X299 Edition 30 x299 Intel X-Series Motherboard Thumbnail 3 : ASUS Prime X299 Edition 30 x299 Intel X-Series Motherboard Thumbnail 4 : ASUS Prime X299 Edition 30 x299 Intel X-Series Motherboard
Scan code: LN103703 Manufacturer code: 90MB1190-M0EAY0
£555.98
From £23.17 / month (APR 0%)
Monthly Payment: £92.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £555.98
Total inc. interest: £555.98
Monthly Payment: £46.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £555.98
Total inc. interest: £555.98
Monthly Payment: £30.89
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £555.98
Total inc. interest: £555.98
Monthly Payment: £23.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £555.98
Total inc. interest: £555.98
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.89 / month (APR 15.9%)
Delivery Options
  • By DPD On 17th Dec To 19th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS Prime X299 Edition 30 Motherboard

ASUS Prime X299 Edition 30 Motherboard

Built For Extreme CPU and GPU Power with AI OverclockingThe ASUS Prime X299 Edition 30 celebrates three decades of ASUS motherboard development. This high-end desktop combines cutting-edge performance for X series CPU’s with signature features from ASUS, including a powerful VRM tailored for overclocking, intuitive cooling control, next-gen connectivity, and extensive customisation. It also has a brand-new Smart Control Console with an external OLED and built-in webcam which has gesture tracking and voice input.

Please Note: The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.2 Gen 2 ports, 8 SATA 6 Gbps ports and 32 Gbps M.2 support for faster data retrieval.

Intel X299Chipset

LGA 2066CPU Socket

Intel X-SeriesCompatible CPUs

ATXForm Factor

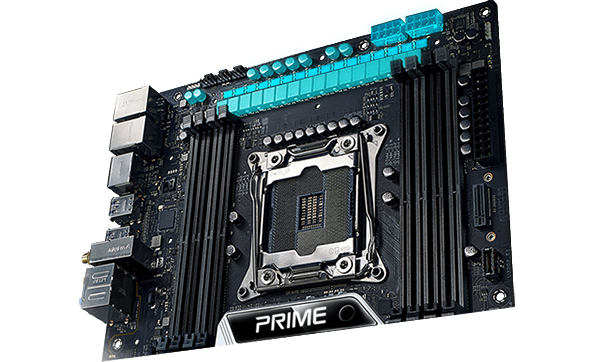

Prime X299 Robust Power System

power design

Gain the edge from a more efficient Encore Power DesignThe LGA 2066 socket is compatible with the latest Intel Core X-Series Processors with up to 18 cores, over 44 PCI Express® lanes, and 165-watt thermal design power (TDP). Those specs require serious power, especially if you're overclocking, so the Prime X299 Edition 30 is equipped with a premium power solution that includes 16 power stages that line up neatly along the top edge of the PCB. The power stages are cooled well enough to sustain a staggering up to 544 W output, which is more than enough to overclock 18-core CPUs into truly extreme territory.

Tune it your Way with AI Overclocking

AI overclocking

onboard intelligence lets you perform automated overclocking in a single clickASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system. A proprietary algorithm evaluates the capabilities of your CPU whilst watching system vitals such as temperature, fan speed, and power draw to gauge cooling performance.

Go Further than Before with DDR4 4266MHZ+

asus ram memory

load up on GPUs to accelerate an increasingly diverse array of workThe X299 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With optimised trace layout, the Prime X299 Edition 30 can hit memory speeds up to DDR4 4266 MHz or beyond. Fully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x16/x16/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of work.

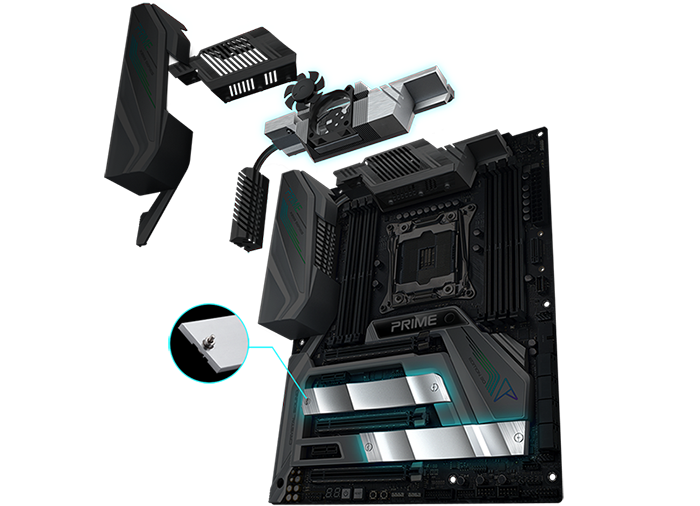

Actively Cooled M.2 and VRM Heatsink

Asus rog rampage extreme heatsink

Effective cooling is extremely importantSince mass and airflow are critically important, our VRM heatsink is manufactured with skived, high aspect ratio thin fins. The hidden 40 mm fan turns on after 60°C. This combination offers optimal cooling for CPU-intensive tasks. Professional applications require fast solid-state storage, which is why the Prime X299 Edition 30 is equipped with three M.2 slots that are compatible with the latest NVMe SSDs. Two M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads. A reinforced backplate improves the stability of the board, and the included thermal pad efficiently directs heat away from the VRM and other components.

Featuring the Most Comprehensive Cooling Options Ever

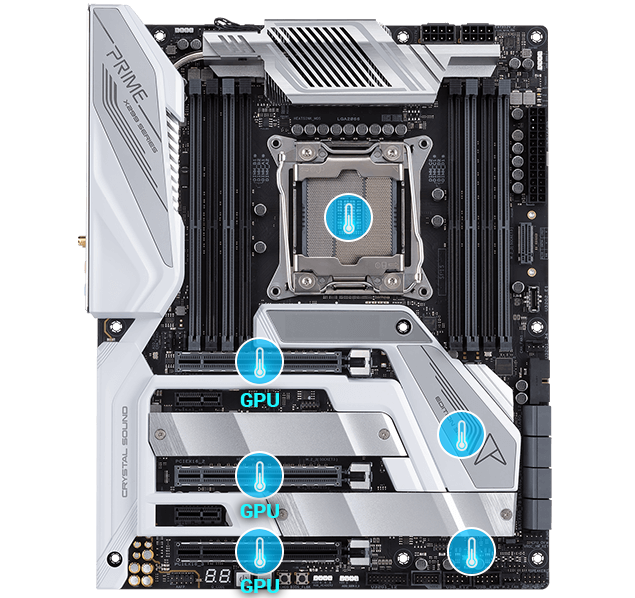

Multiple Temperature Sources

Multiple Temperature SourcesEach header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.

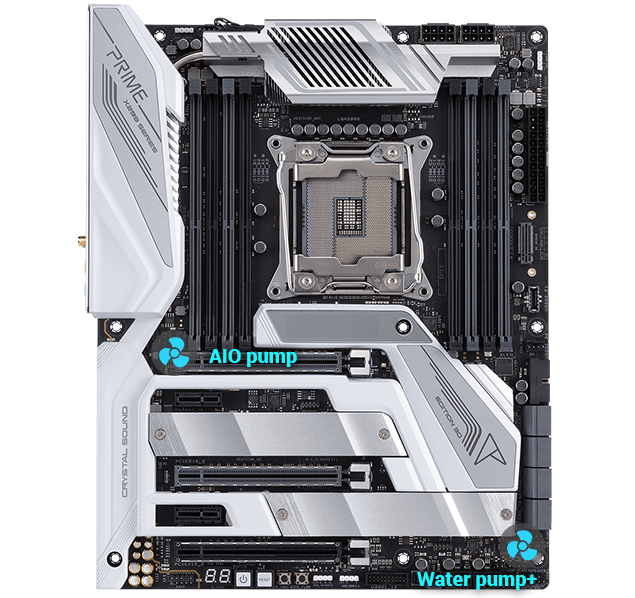

Dual pump headers

Dual pump headers A dedicated header that supplies over 3A for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.

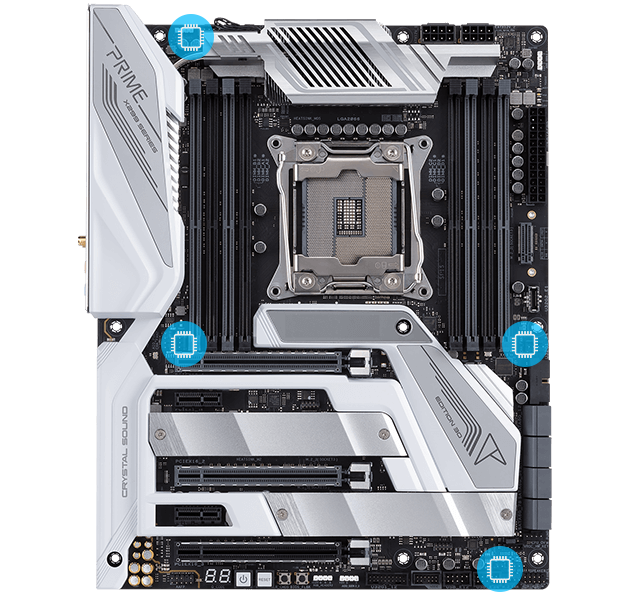

Smart protection

Smart protection A dedicated integrated circuit that protects each fan header from overheating and overcurrent.

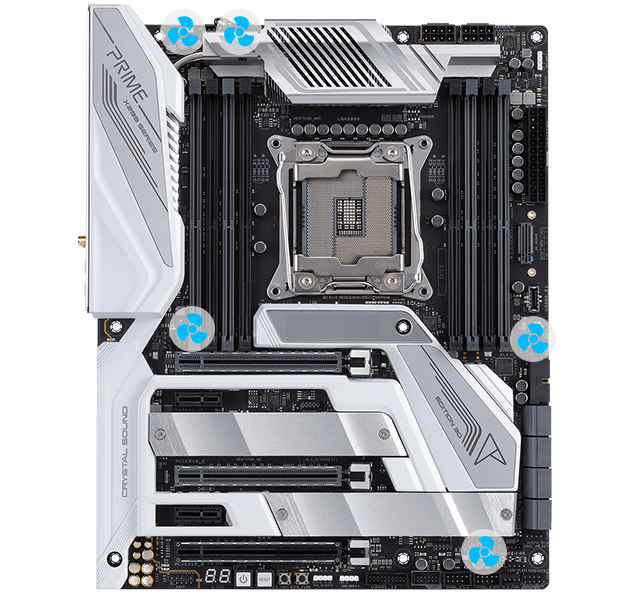

4-pin PWM/DC fan

4-pin PWM/DC fan Each onboard header supports auto-detection of PWM or DC fans.

Control Your Rig With Detailed Tuning Software

level up your performanceOne click takes care of all that complex tuning. ASUS 5-Way Optimisation makes your PC smart. It dynamically optimises essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

Fan Xpert 4

Flexible Cooling Controls for Air or Liquid With Prime X299 Edition 30, you have comprehensive control over fans via FanXpert 4 or UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum – keeping your system quiet as a whisper when performing light tasks.

TPU Insight

CPU Performance Boost The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with the Away mode.

Turbo App

Optimization for gamers and professionals The latest X-series processors from Intel feature per-core tuning, and the ASUS Turbo Core app makes use of this feature by enabling you to assign applications to specific processor cores, allowing you to prioritise compute power where it's needed the most.

DIGI+POWER CONTROL

Precise Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers a real-time control over voltages, switching frequency and power-efficiency settings, allowing you to fine-tune your CPU for ultimate stability and performance.

Intel Integrated Ultra Wi-Fi Support

ultra wifi support

Aquantia 5G Ethernet for Accelerated built-in networkingThe Prime X299 Edition 30 comes with the latest Intel Wi-Fi 6 AX200, which is compatible with 802.11ax. Otherwise known as Wi-Fi 6, the new networking protocol pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimised for more efficient operation on crowded networks with a lot of competing traffic. Prime X299 Edition 30 has 5Gbps Ethernet onboard to deliver up to 5X the bandwidth of standard gigabit Ethernet. You'll enjoy streaming uncompressed 4K UHD videos without stutter, and backups and file transfers that are faster than ever before. The rear I/O panel has dual Thunderbolt 3 Type-C ports that support data in addition to DisplayPort 1.4 output.

Upgrade to Unrivalled Audio

Crystal Sound 3

Surround Sound with DTS:X ULTRA Prime X299 Edition 30 utilises a unique audio codec designed in close collaboration with Realtek — the Realtek S1220. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts the gain to ensure optimal volume range for your headphones. DTS:X® Ultra adds a spatial audio feature to boost headphones and speakers for enhanced gaming, VR, and extended-reality experiences and supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content.

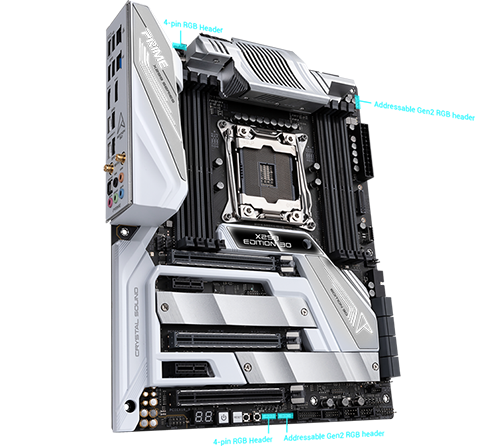

Link your RGB styles and effects across all ASUS devices

aura sync

ASUS' RGB Software with Addressable Gen 2 RGB headerA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs and they can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. The board has dual headers for standard 4-pin RGB strips*, plus two more for the new Addressable Gen 2 RGB strips** and devices.

Your AI Companion

Smart Control ConsoleThe Smart Control Console is an external module that connects via USB. It comes with a stand that allows it to sit neatly on top of the monitor, and its integrated OLED can be controlled separately from the onboard LiveDash. A 720p IR webcam allows the module to support face login via Windows Hello, a biometric authentication feature. It can also track movement, enabling gesture-based controls to command basic functions such as scrolling and dragging. An integrated array mic enhances Cortana and Alexa voice recognition support. You can command your PC to trigger CPU voltages and fan RPMs, using three specific voice commands.

Specifications
Core Specifications
Edition Prime X299 Edition 30
Form Factor ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
Max. Memory Capacity 256GB (8x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 2 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
  • 8 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x AIO Pump Connector
  • 2 x Aura Addressable Strip Headers
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Button
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 1 x M.2_FAN Connector
  • 1 x NODE connector
  • 1 x Power button
  • 1 x Q_Code
  • 8 x SATA III - 6Gb/s
  • 2 x System Fan header
  • 1 x System panel(s) (Q-Connector)
  • 1 x Temperature Sensor Header
  • 1 x USB 2.0 Port
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x USB BIOS Flashback button
  • 1 x VROC_HW_Key
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
  • Wired 5 Gigabit LAN (100/1000/2500/5000)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x AQUANTIA AQC-111C (5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Intel® I219V (Gigabit LAN)

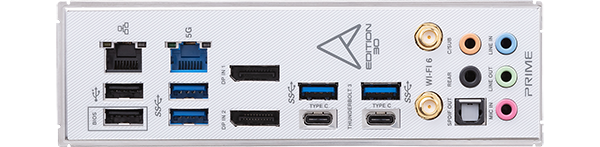

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 3
  • 2 x Thunderbolt 3 with DisplayPort Support
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN103703
Model Number 90MB1190-M0EAY0
GTIN 4718017488570
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
