ASUS TUF Intel Z390M-PRO GAMING 9th Gen Micro ATX Motherboard
ASUS TUF Z390M-PRO GAMING, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/CrossFire, GbE, USB3.1 Gen2 A, MicroATX
By DPD On 23rd Sep 2019
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

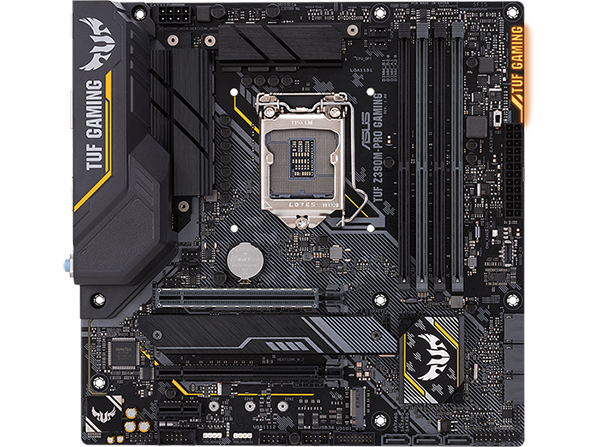

TUF Z390M-PRO GAMING - Intel 9th Gen mATX Motherboard
Arm Your Battlestation with TUF GAMING
TUF Gaming motherboards are individually designed and tested to survive and succeed in conditions where other boards would struggle. Engineered with highly robust components, the TUF Z390M-PRO Gaming, delivers unwavering stability for gaming sessions that last as long as you demand. Featuring TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. AURA Sync allows you to fully personalise your setup and synchronize your LEDs with RGB lighting effects.
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
TUF Gaming Alliance
Reliable Collaborations TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

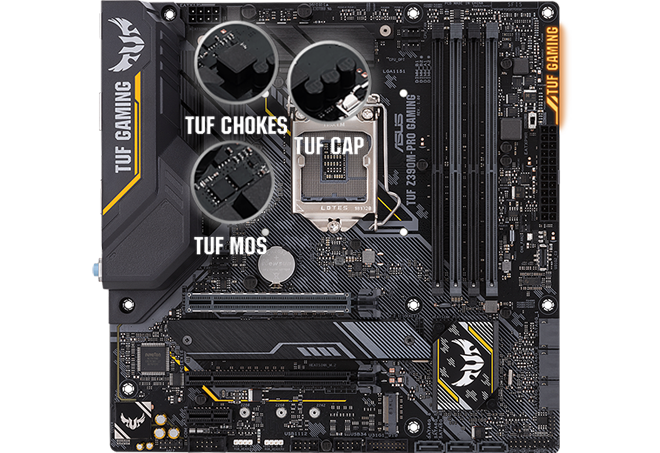

Trusted TUF Components
Military-grade features TUF Z390M-PRO GAMING features TUF components such as certified military-grade TUF chokes, which deliver rock-steady power to the CPU, helping to improve system stability. TUF Capacitors feature +20% temperature tolerance and 5X-longer lifespan. With TUF MOSFETS experience the benefits of lower RDS(on) results in better power efficiency and reduced heat generation.
Protect Your Motherboard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Optimized Thermal Design
Built for Hard Duty The TUF Z390M-PRO GAMING VRM and inductor array is coupled to a large heatsink that has ample surface area to deal with the thermals of Intel's latest processors.
Solid and Durable ProCool Socket
Enhanced EATX 8-pin Socket Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.
TUF Protection Built to Last
Easy PC DIY with ASUS TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
Superior Shearing Resistance SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

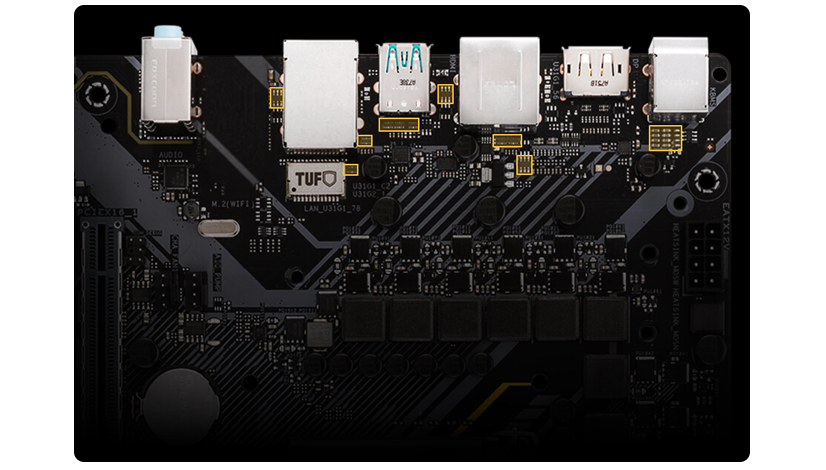

Damage Prevention ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV.
DIGI+ VRMThe Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
DRAM Overvoltage ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/OTUF's corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's 3X longer than traditional panels. TUF Gaming motherboard passed 72 hours salt fog test while other brands only passed 24 hours test.
ASUS OptiMem II Technology
Easy Troubleshooting with MemOK! II To provide Intel's latest processors' unfettered access to memory bandwidth, we've reimagined motherboard trace routing from the ground up. Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customized T-Topology layout that delivers time-aligned signaling.
MemOK! II automatically fixes boot failures that arise due to memory overclocking and instability. When a DRAM-related POST error occurs, the motherboard adjusts memory parameters until the system is able to start.
Easy Setup and Configuration TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. With simplified CPU and memory overclocking to optimize and boost performance, intelligent cooling controls for better system stability, and helpful troubleshooting tools to get you up and running quickly if you encounter problems, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Quick Installation. No Driver Disc Required. ASUS Q-Installer software provides automatic download and installation of drivers and utilities for your TUF Gaming motherboard. Choose just the options you want from a user-friendly interface and Q-Installer will do the rest.
GPU Temperature Sensing
Keep Your System Stable System temperatures are key to a stable gaming rig ― especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play. * ASUS GeForce 700 and later cards supported.
Comprehensive Cooling Controls

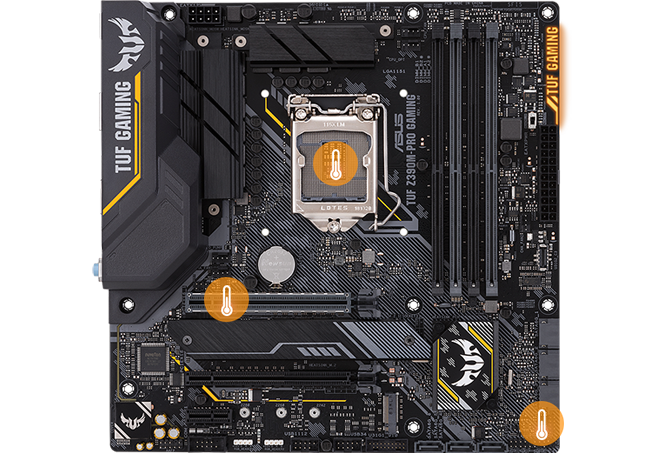

Multiple Temperature Sources With Fan Xpert 4 you're able to control system fans based on inputs from up to three temperature sources. For example, Fan Xpert 4 can be set to spin up the chassis fans in response to the GPU temperature. So, when the gaming action heats up, additional cooling kicks in — just when you most need it. Choose your temperature sources and thresholds, from motherboard and CPU to GPU, and leave Fan Xpert 4 to do the rest.

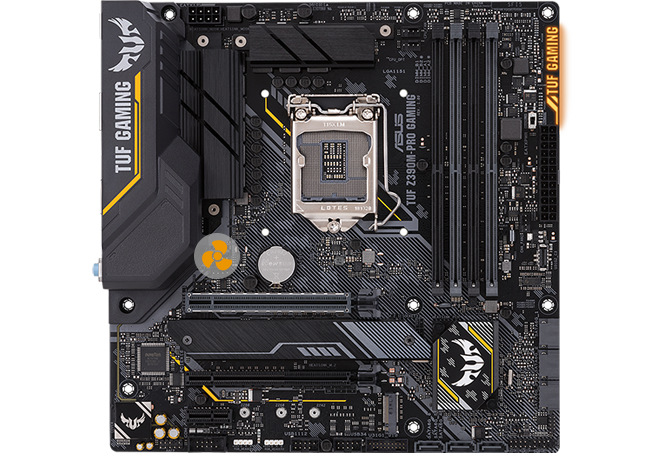

Dedicated PWM/DC Header Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.

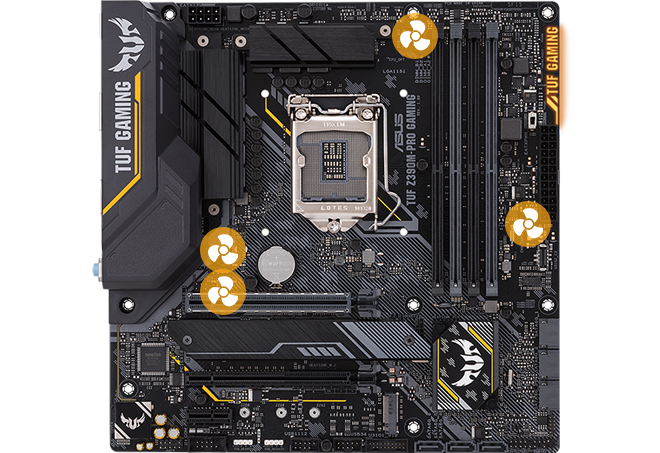

4-Pin PWM/DC fan Every on-board header supports auto-detection of PWM or DC fans.

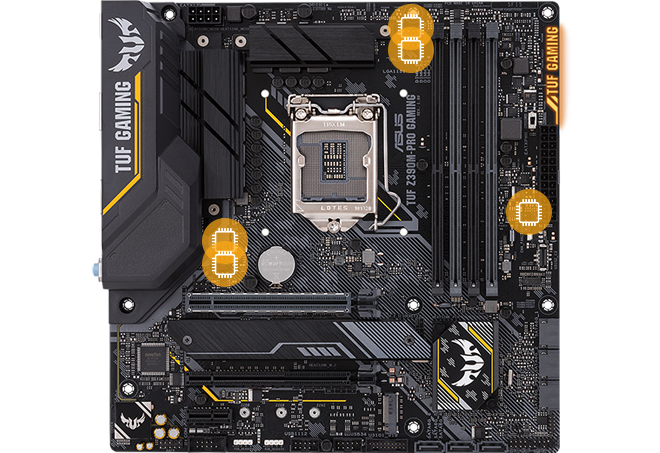

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and over-current.
NETWORK-OPTIMIZATION SOFTWARE Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritise game-related data transmissions,smoothing network operations every time you play.
Optane Memory Ready Intel® Optane™ is a revolutionary non-volatile memory technology supported by TUF Gaming motherboards. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
MORE THROUGHPUT, LESS CPU USAGE TUF Z390M-PRO GAMING features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.

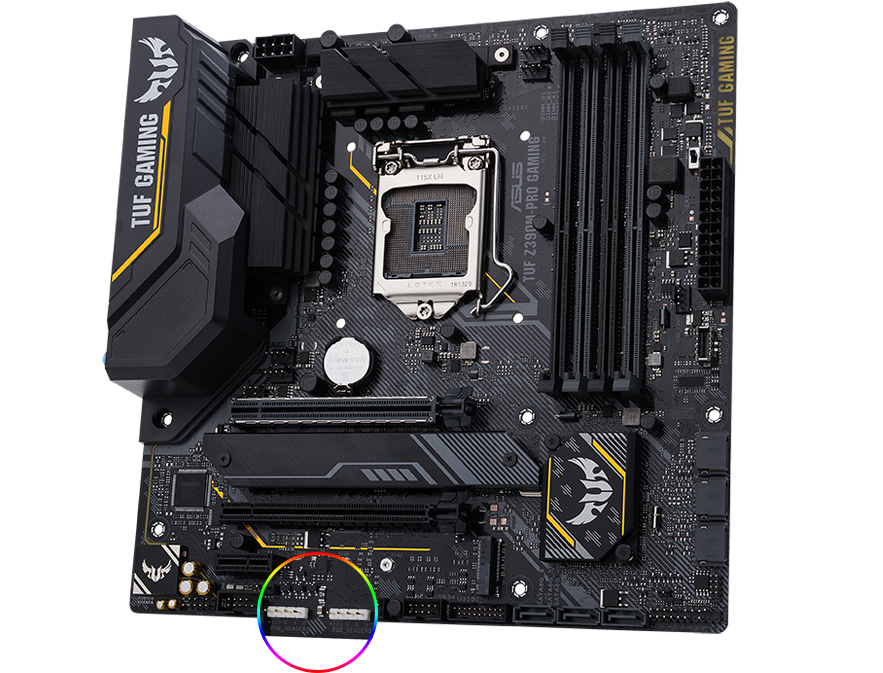

ASUS Aura Sync RGB Lighting
outshine the competition A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
On-board Gaming Audio
Incredible sound with RealTec ASUS TUF GAMING Z390 motherboards utilize a unique audio codec designed in close collaboration with Realtek — the Realtek S1200A. It also features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.
Exclusive Audio Technology for Gaming Headsets
Game Your Way with DTS Custom Refine your battle skills with exclusive audio technology developed by ASUS and DTS to provide multi-channel surround virtualization for stereo headphones. DTS Custom takes on-board audio to a new limit, including three incredible presets. Tactical mode accentuates detail for stealthy FPS play. With Aerial mode, you can experience audio from ahead seamless for MOBA, RTS, Grand Strategy and Sport gaming titles. Put your ears at the centre of the action with Soundscape mode, which is best for MMO, RPG, Action/Adventure and Horror gaming genres.
|Edition||TUF Z390M-PRO GAMING|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||64GB (4x16GB)|
|Audio||Realtek ALC S1200A 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||2-Way SLi|
|AMD CrossFire Support||2-Way CrossFire|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA3 / M.2 (PCIe)|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel® I219V (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||TUF Z390M-PRO GAMING|
