TUF Z370-PLUS GAMING II - Intel 9th Gen ATX Motherboard

ASUS TUF Z370-PLUS GAMING II

Premium TUF Components Built to Last TUF Gaming motherboards are individually designed and tested to survive and succeed in conditions where other boards would struggle. Engineered with highly robust components, the TUF Z370-PLUS GAMING II, delivers unwavering stability for gaming sessions that last as long as you demand. Featuring TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. AURA Sync allows you to fully personalise your setup and synchronize your LEDs with RGB lighting effects. Including dual M.2 & M.2 Heatsink for maximum airflow and cooling ensuring peak performance.

Please note: This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support on-board graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel Z370Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

TUF Gaming Alliance

TUF GAMING Alliance

Reliable Collaborations TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

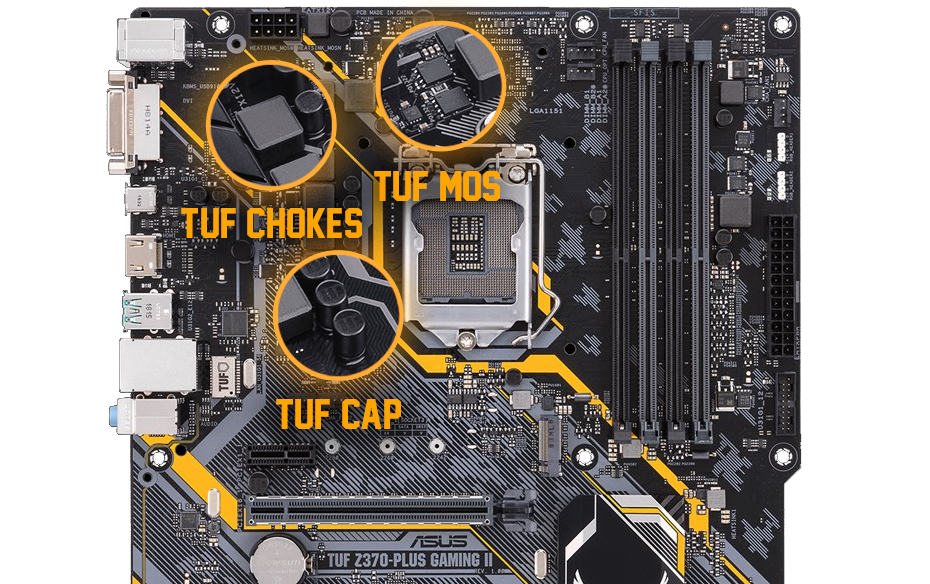

Trusted TUF Components

TUF Components

Military-grade features TUF Z370-PLUS GAMING II features TUF components such as certified military-grade TUF chokes, which deliver rock-steady power to the CPU, helping to improve system stability. TUF Capacitors feature +20% temperature tolerance and 5X-longer lifespan. With TUF MOSFETS experience the benefits of lower RDS(on) results in better power efficiency and reduced heat generation.

TUF LANGuard

TUF LANGuard

Protect Your Motherboard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Optimized Thermal Design

Optimized Thermal Design

Built for Hard Duty The TUF Z370-PLUS GAMING II VRM and inductor array is coupled to a large heatsink that has ample surface area to deal with the thermals of Intel's latest processors.

Solid and Durable ProCool Socket

EATX 8-pin Socket

Enhanced EATX 8-pin Socket Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

TUF Protection Built to Last

Easy PC DIY with ASUS TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.

SafeSlot PCIe Slot

Superior Shearing Resistance SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

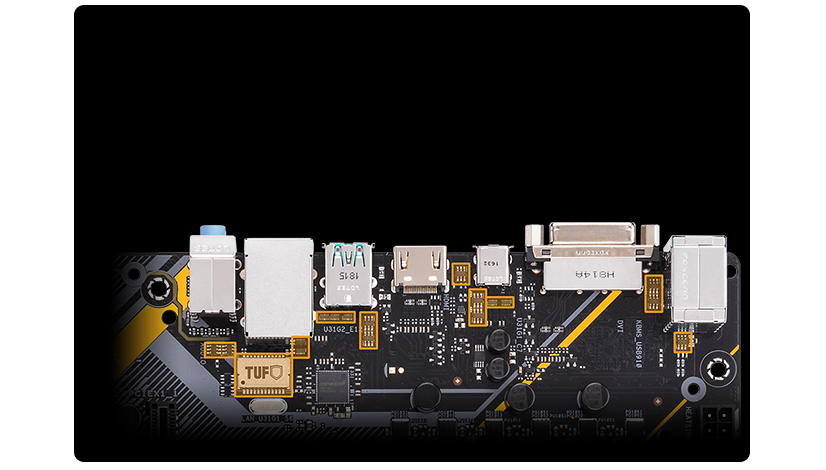

ESD Guards

Damage Prevention ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV.


DIGI+ VRM

DIGI+ VRMThe Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

DRAM Overvoltage Protection

DRAM Overvoltage ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OTUF's corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's 3X longer than traditional panels. TUF Gaming motherboard passed 72 hours salt fog test while other brands only passed 24 hours test.

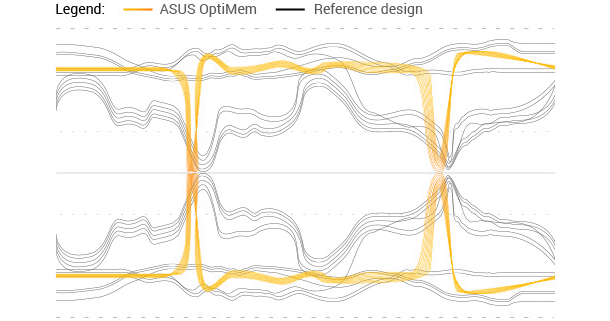

ASUS OptiMem Technology

ASUS OptiMem Technology

preserve signal integrity for improved memory overclocking ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing DDR4 memory speeds of 4000MHz with all slots populated.

One Click Overclocking

one click overclocking

Easy Control & monitoring of your systemYou don't need to be a technical expert to experience exhilarating overclocking performance. TUF Z370-PLUS GAMING II incorporates the OC Tuner feature for efficient operation with precise voltage control and monitoring. OC Tuner takes all the hassle out of complex tuning by overclocking your system with a single click

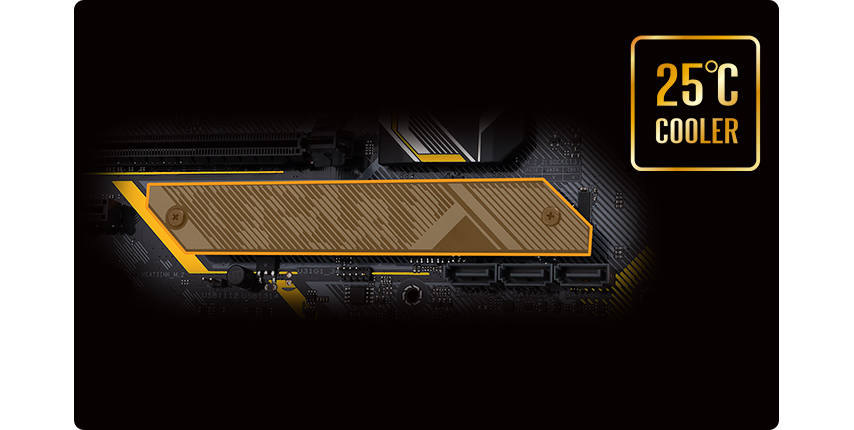

Dual On-board M.2 & M.2 Heatsink

dual M.2 and M.2 Heatsink

PERFECTED COOLING FOR UNLEASHING PERFORMANCETUF Z370-PLUS GAMING II features dual onboard M.2 slots, both operating at X4 PCI Express 3.0 to provide a scintillating 32Gbps of bandwidth. The primary slot is placed below the CPU socket, making use of chassis airflow to keep drive temperatures under control. The second sits below the Z370 chipset and is covered by a heatsink that reduces drive temps by as much as 25℃, ensuring peak performance under all scenarios.

Comprehensive Cooling Controls

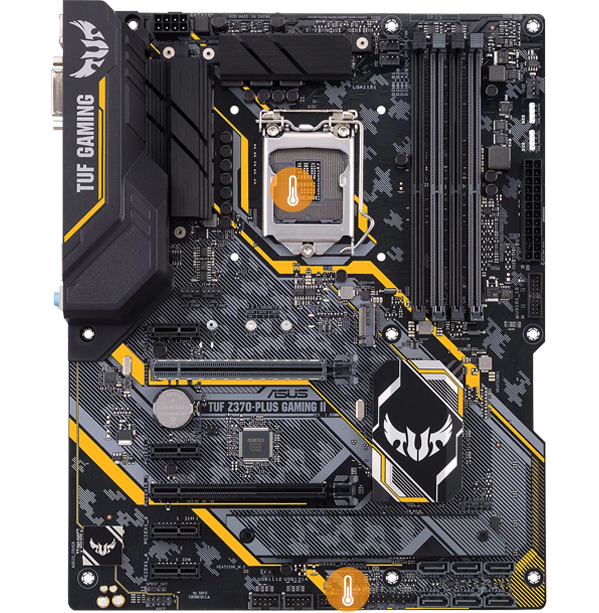

Multiple Temperature Sources

Multiple Temperature Sources With Fan Xpert 4 you're able to control system fans based on inputs from up to three temperature sources. For example, Fan Xpert 4 can be set to spin up the chassis fans in response to the GPU temperature. So, when the gaming action heats up, additional cooling kicks in — just when you most need it. Choose your temperature sources and thresholds, from motherboard and CPU to GPU, and leave Fan Xpert 4 to do the rest.

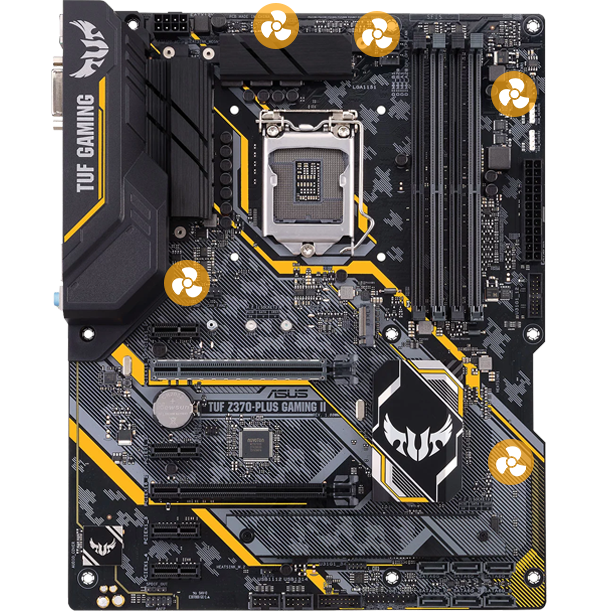

4-Pin PWM/DC fan

4-Pin PWM/DC fan Every on-board header supports auto-detection of PWM or DC fans.

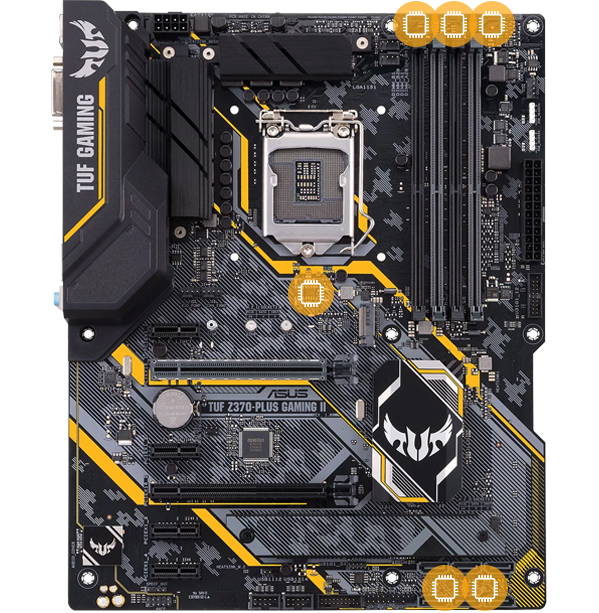

Smart Protection

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and over-current.

Ultra-fast Connectivity

Intel Optane Memory Ready

Optane Memory Ready Intel® Optane™ is a revolutionary non-volatile memory technology supported by TUF Z370-PLUS GAMING II. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

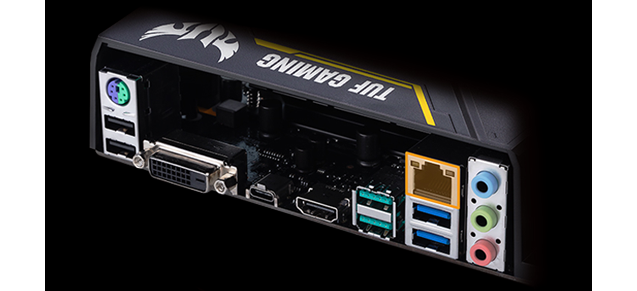

Intel Ethernet

MORE THROUGHPUT, LESS CPU USAGE TUF Z370-PLUS GAMING II features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Turbo LAN

NETWORK-OPTIMIZATION SOFTWARE Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritise game-related data transmissions,smoothing network operations every time you play.

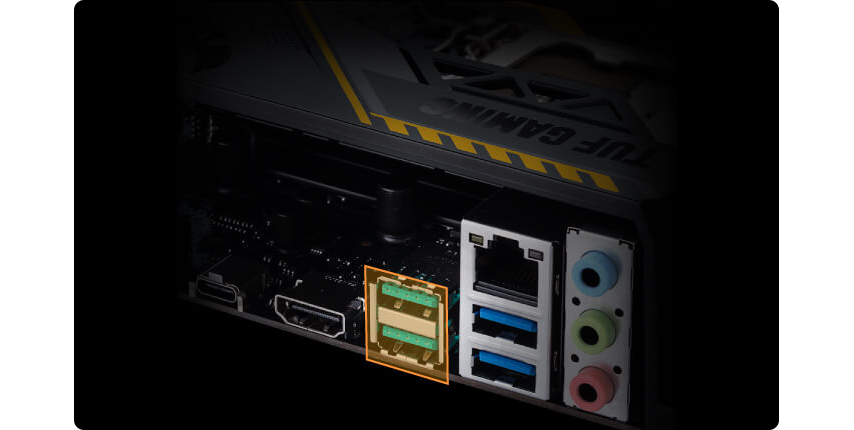

Super Fast Transfer Speed

10Gbps USB 3.1 Gen 2 Onboard

10Gbps USB 3.1 Gen 2 On-board The TUF Z370-PLUS GAMING II motherboard features backward-compatible USB 3.1 Gen 2 Type-A, with this you'll experience the ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps — or twice as fast as USB 3.1 Gen 1.

ASUS Aura Sync RGB Lighting

RGB

outshine the competition A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the on-board RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

ASUS Aura Sync

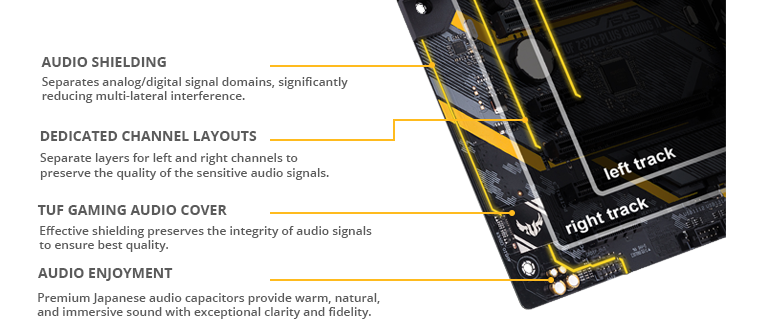

On-board Gaming Audio

Audio

SHIELDED AUDIO, SUPERIOR SOUND ASUS TUF Z370-PLUS GAMING II motherboards feature an intelligent design and premium hardware to create audio quality unlike anything you've ever experienced before.

Exclusive Audio Technology for Gaming Headsets

DTS Custom Audio

Game Your Way with DTS Custom Refine your battle skills with exclusive audio technology developed by ASUS and DTS to provide multi-channel surround virtualization for stereo headphones. DTS Custom takes on-board audio to a new limit, including three incredible presets. Tactical mode accentuates detail for stealthy FPS play. With Aerial mode, you can experience audio from ahead seamless for MOBA, RTS, Grand Strategy and Sport gaming titles. Put your ears at the centre of the action with Soundscape mode, which is best for MMO, RPG, Action/Adventure and Horror gaming genres.

Specifications
Core Specifications
Edition TUF Z370-PLUS GAMING II
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x DVI-D
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
  • 2 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
