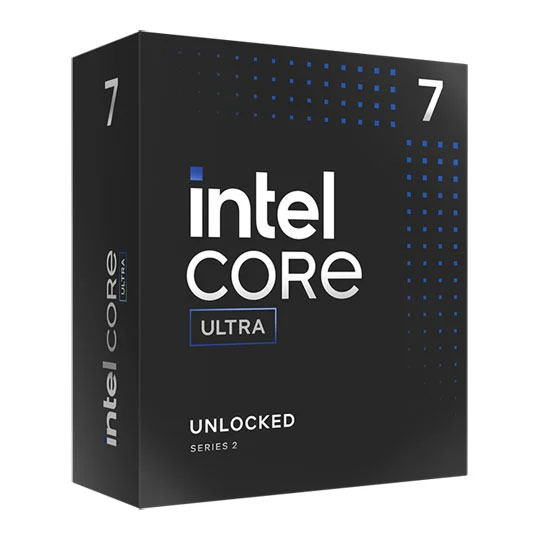

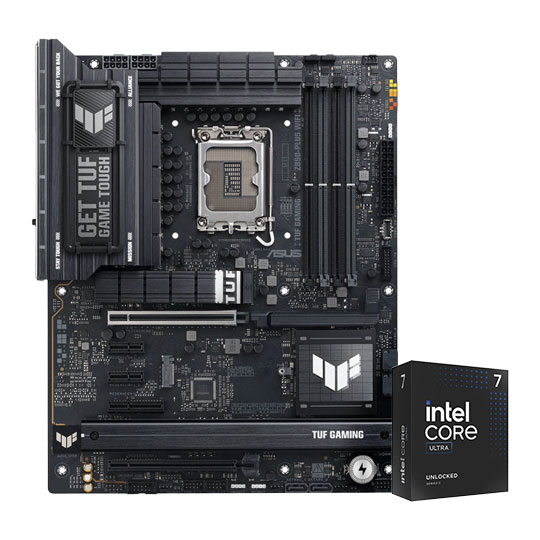

ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
NewBUNDLEOffer
ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
Scan code: LN157017 Manufacturer code: BX80768265K / 90MB1IQ0-M0EAY0
Was: £639.98
£589.99
Add To Basket
Get it Tomorrow, 23 MarIn stock
  • Thumbnail 1 : ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
  • Thumbnail 2 : ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
  • Thumbnail 3 : ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
  • Thumbnail 4 : ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
NewBUNDLEOffer

ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle

ASUS TUF GAMING Z890-PLUS WIFI Motherboard with Intel Ultra 7 265K Processor Hardware Bundle
MORE INFO
MORE INFO

Scan code: LN157017 Manufacturer code: BX80768265K / 90MB1IQ0-M0EAY0
Was: £639.98£589.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Add To Basket
Get it Tomorrow, 23 MarIn stock

Email me when the availability or price changes

  • By DPD On 24th Mar Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £20.66 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £49.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £589.99
    Total inc. interest: £589.99
    Monthly Payment: £24.59
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £589.99
    Total inc. interest: £589.99
    Monthly Payment: £20.66
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £589.99
    Total inc. interest: £743.76
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £15.68 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

ASUS TUF GAMING Z890-PLUS WIFI + Intel Core Ultra 7 265K CPU/Motherboard Bundle

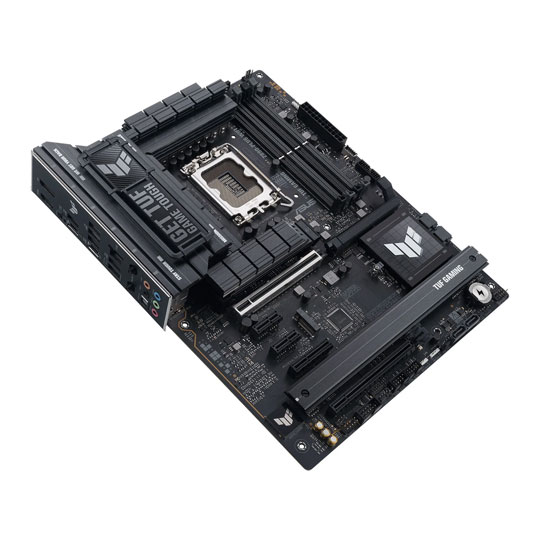

ASUS Z890 Motherboard

Overclocking Fury, Next-Gen AI Crank up the power with the TUF GAMING Z890-PLUS & Intel Core Ultra 7 265K Bundle—a hardened machine built for relentless speed and AI-driven dominance. Locked into the LGA 1851 socket, the Ultra 7 265K tears through the Z890 chipset, driven by Arrow Lake architecture and a dedicated NPU unleashing 36 TOPS of AI performance. The Z890 series is built to push limits, delivering rock-solid overclocking support for raw processing muscle. PCIe 5.0, Thunderbolt 4, and WiFi 7 fuel high-speed expansion, while Aura Sync lighting cuts through the steel with a customisable glow. No frills, no compromises—just AI power, unyielding connectivity, and the firepower to dominate any battlefield.

        20        Cores

        20        Threads


Z890Intel Chipset

LGA 1851CPU Socket

3.9GHzBase Frequency

5.5GHzTurbo Frequency

DDR5 DIMMMax. 192GB (4 x 48GB)

ATXForm Factor

30MBIntel Smart Cache®

Unlock Ultra Gaming Performance

Unlock ultra series performance

New Standard of SpeedGet legendary gaming performance with newly developed cores that deliver ultra-smooth and responsive gameplay. Improved game performance on classic titles is just a click away with ongoing updates to Intel® Application Optimisation.


8 Performance Coresunleashes the capability to optimise the latest games and gaming software.

12 Efficient CoresProvides multi-tasking power to work, create and play together.

Prepare For The Future of AI

Maximise Your Power EfficiencyGet ultra-efficient with Intel® Core™ Ultra desktop processors that improve both performance and efficiency so your PC can run cooler, quieter, and quicker. Do more with less – get a better game experience while using less power.

4K Recording

Be Future Ready for AIPrepare for the next era of PC gaming with an Intel® Core™ Ultra processor-based AI PC. Unlock better streaming and gaming performance. Offload AI tasks like background removal, audio optimisation, and auto-framing to the NPU so you can stream and game smoothly.

ASUS AI Intelligence

ASUS AI Intelligence

ASUS AI ADVISOR ASUS AI Advisor leverages AI technology to understand natural-language questions and scenario descriptions, enabling users to explore the functionality and advanced features of ASUS motherboards in a clear and accessible manner.

AI COOLING II

AI COOLING II Effortlessly achieve the perfect balance of thermals and acoustics in any build with just a single click.

AI NETWORKING II

AI NETWORKING II AI Networking II boosts performance, ensures reliable connectivity, and enhances WiFi 7 speeds.

Premium Power Solution

Premium Power Design Stable power delivery is essential for optimising Intel processor performance, and this motherboard is specifically designed for high-core-count CPUs. It features a robust power design with 16 + 1 + 2 + 1 power stages, each capable of handling up to 80A. This configuration ensures optimal efficiency, stability, and performance for both current and future Intel processors.

16 VCCCORE Power (80A, DrMOS)

1 VCCGT Power (80A, DrMOS)

2 VCCSA Power (80A, DrMOS)

1 VNNAON Power (80A, DrMOS)

Premium Power
Eight Layered PCB design

Eight Layered PCB design This PCB design efficiently dissipates heat from voltage regulators, enhancing system stability and overclocking potential.

ProCool Power Connectors

ProCool Power Connectors ASUS ProCool connectors ensure full PSU contact, reducing impedance to prevent hotspots and failures.

TUF Components

TUF Components TUF chokes and capacitors enhance CPU power delivery, stability, temperature tolerance, and longevity.

Digi+VRM Contro

Digi+VRM Control The Digi+ VRM delivers exceptional, ultra-smooth power to the CPU, setting industry standards for quality.

Push It To The Limit

DDR5 DOMINATION

Overclocking Performance Comprehensive memory tuning capabilities are fundamental to TUF GAMING motherboards. These boards allow you to fully utilise your DDR5 modules, whether they come from high-performance kits or basic sets that would typically be limited in their potential.

DIMM FIT

DIMM FIT DIMM Fit is an ASUS BIOS feature that analyses memory modules to enhance performance and identify potential issues efficiently.

AEMP III

AEMP III ASUS Enhanced Memory Profile III (AEMP III) optimises memory performance, enhancing speed and stability through advanced firmware tuning.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Cooler By Design

Enlarged VRM Heatsink

Enlarged VRM Heatsink The large surface area of this heatsink effectively encompasses the MOSFETs and chokes, enhancing thermal performance.

AIO Pump Header

AIO Pump Header An integrated AIO management system provides complete control over PWM or DC water pumps, making it ideal for both custom and all-in-one cooling configurations.

Smart Fan Protection

Smart Fan Protection A dedicated integrated circuit safeguards each fan header from overheating and overcurrent.

Multiple Temperature Sources

Multiple Temperature Sources Fan Xpert 4 enables each fan header to dynamically reference up to five thermal sensors, allowing users to map temperatures from supported ASUS graphics cards to optimise cooling for both GPU and CPU-intensive workloads. This advanced functionality allows for more precise and responsive fan control.

Superb PCH Heatsink

Superb PCH Heatsink An enlarged surface area for the chipset cooler maximises system performance and enhances heat dissipation.

4-Pin PWM/DC Fan

4-Pin PWM/DC Fan All onboard fan headers are capable of automatically detecting PWM or DC fans.

Embrace Impeccable Transfer Speeds

4K Recording

Streamline Your ConnectivitySimplify your setup with support the newest generations of Thunderbolt ™ technology, a single port capable of connecting all your peripherals including a mouse, keyboard, monitor and storage drives.

PCIe 5.0 Support

PCIE 5.0 PCIe 5.0 doubles the data transfer speed of PCIe 4.0, effectively managing data-intensive tasks while enhancing signal integrity and maintaining backward compatibility with CEM connectors and earlier PCIe versions.

PCIe 5.0 Support

Thunderbolt™ 4 Support Each port provides up to 40Gbps of bi-directional bandwidth, supporting the latest high-speed devices and drives, and can be used simultaneously for two external 4K displays.

M.2 Support

M.2 PCIe 5.0 Support This motherboard includes a PCIe 5.0 M.2 slot that allows for lightning-fast data transfers of up to 128 Gbps, with all M.2 slots supporting NVMe RAID configurations to maximise the latest speed capabilities.

Embrace Ultra-Fast Connectivity

WIFI 7 WiFi 7 features 160 MHz bandwidth in the 6 GHz band and 4096 QAM, while Multi-Link Operation (MLO) enhances stability and reduces latency across 2.4, 5, and 6 GHz bands, improving coverage and throughput.

Ultra-Fast Connectivity

2.5Gb ETHERNETIntel® 2.5Gb Ethernet boosts wired connections, offering speeds 2.5 times faster than standard Ethernet for quick file transfers and gaming.

ASUS WiFi Q-AntennaDual transceivers enhance throughput on 2.4, 5, and 6 GHz bands, improving signal quality and extending coverage with directional sensitivity.

Multi-Threading for Your Mega-Tasking

back

Ready for your day?Reach new levels of productivity with upgraded cores specialised to take gaming, streaming and creating to new heights.
More Multi-threading performance enables you to multi or even mega-task with miniumum interruptions.

Outshine the Competition

Aura

ASUS Aura Sync A well-optimised system deserves a complementary aesthetic, and the TUF GAMING motherboard delivers edge lighting that enhances its rugged look, while ASUS Aura provides complete RGB control, including presets for built-in LEDs and third-party strips, all of which can synchronise with a growing range of Aura-compatible hardware.

Aura

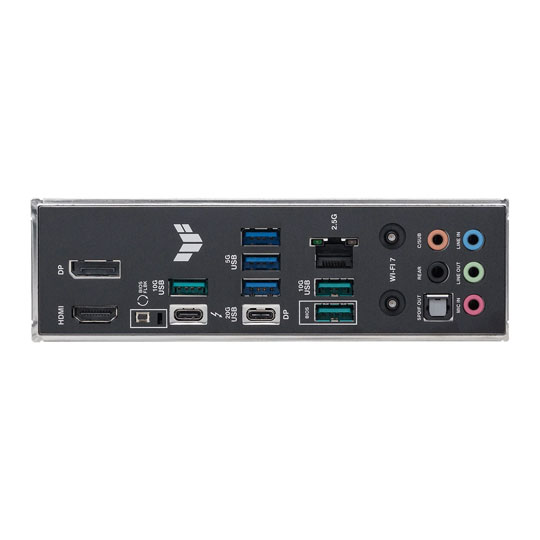

A Fully Comprehensive I/O

REAR I/O
DisplayPort & HDMI™
BIOS FlashBack™ Button
1x USB 10Gbps & 1x Thunderbolt™ 4
3x USB 5Gbps & 1x USB 20Gbps (with DP Alt mode)
Intel 2.5Gb Ethernet & 2x USB 10Gbps
WiFi 7
1x Optical S/PDIF Out & 5x Audio Jacks
1x USB 20Gbps Connector
1x USB 5Gbps Header
2x Front USB 2.0 Headers

Intel Processor Specifications

Series
Model
Generation

Architecture
Socket
P-cores / Threads
E-cores / Threads
Base Frequency
Turbo Frequency
Level 3 Cache
Memory Controller
Maximum Memory
DDR5 Memory Frequency
DDR4 Memory Frequency
PCIe 5.0 / 4.0 / 3.0 Lanes
Integrated GPU
Integrated NPU
TDP
CORE ULTRA 9 & I9 CORE ULTRA 7 & I7 CORE ULTRA 5 & I5 Core i3 Pentium Celeron
285K 14900KS 14900K 14900KF 14900 14900F 13900KS 13900K 13900KF 13900 13900F 12900KS 12900K 12900KF 12900 12900F 265K 265KF 14700K 14700KF 14700 14700F 13700K 13700KF 13700 13700F 12700K 12700KF 12700 12700F 245K 245KF 14600K 14600KF 14500 14400 14400F 13600K 13600KF 13600 13500 13400 13400F 12600K 12600KF 12600 12500 12400 12400F 14100 14100F 13100 13100F 12300 12100 12100F G7400 G6900
2nd series 14th 14th 14th 14th 14th 13th 13th 13th 13th 13th 12th 12th 12th 12th 12th 2nd series 2nd series 14th 14th 14th 14th 13th 13th 13th 13th 12th 12th 12th 12th 2nd series 2nd series 14th 14th 14th 14th 14th 13th 13th 13th 13th 13th 13th 12th 12th 12th 12th 12th 12th 14th 14th 13th 13th 12th 12th 12th 12th 12th
Arrow Lake Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Raptor Lake Raptor Lake Raptor Lake Raptor Lake Alder Lake Alder Lake Alder Lake Alder Lake Alder Lake Arrow Lake Arrow Lake Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Raptor Lake Raptor Lake Raptor Lake Alder Lake Alder Lake Alder Lake Alder Lake Arrow Lake Arrow Lake Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Raptor Lake Raptor Lake Raptor Lake Raptor Lake Raptor Lake Alder Lake Alder Lake Alder Lake Alder Lake Alder Lake Alder Lake Raptor Lake Refresh Raptor Lake Refresh Raptor Lake Raptor Lake Alder Lake Alder Lake Alder Lake Alder Lake Alder Lake
LGA1851 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 LGA1851 LGA1851 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 LGA1851 LGA1851 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700 S1700
8 / 8 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 8 8 / 8 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 6 / 6 6 / 6 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 4 / 8 4 / 8 4 / 8 4 / 8 4 / 8 4 / 8 4 / 8 2 / 4 2 / 2
16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 16 / 16 8 / 8 8 / 8 8 / 8 8 / 8 12 / 12 12 / 12 12 / 12 12 / 12 12 / 12 12 / 12 12 / 12 8 / 8 8 / 8 8 / 8 8 / 8 4 / 4 4 / 4 4 / 4 8 / 8 8 / 8 8 / 8 8 / 8 8 / 8 8 / 8 4 / 4 4 / 4 8 / 8 8 / 8 8 / 8 8 / 8 4 / 4 4 / 4 4 / 4 4 / 4 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0 0 / 0
3.7GHz TBC 3.2GHz 3.2GHz TBC TBC 3.2GHz 3.0GHz 3.0GHz 2.0GHz 2.0GHz 3.4GHz 3.2GHz 3.2GHz 2.4GHz 2.4GHz 3.9GHz 3.9GHz 3.4GHz 3.4GHz TBC TBC 3.6GHz 3.6GHz 2.1GHz 2.1GHz 3.6GHz 3.6GHz 2.1GHz 2.1GHz 4.2GHz 4.2GHz 3.5GHz 3.5GHz TBC TBC TBC 3.7GHz 3.7GHz 2.7GHz 2.5GHz 2.5GHz 2.5GHz 3.7GHz 3.7GHz 3.3GHz 3.0GHz 2.5GHz 2.5GHz TBC TBC 3.4GHz 3.4GHz 3.5GHz 3.3GHz 3.3GHz 3.7GHz 3.4GHz
5.7GHz 6.2GHz 6.0GHz 6.0GHz 5.8GHz 5.8GHz 6.0GHz 5.8GHz 5.8GHz 5.6GHz 5.6GHz 5.5GHz 5.1GHz 5.1GHz 5.1GHz 5.1GHz 5.5GHz 5.5GHz 5.6GHz 5.6GHz 5.4GHz 5.4GHz 5.7GHz 5.7GHz 5.2GHz 5.2GHz 4.9GHz 4.9GHz 4.9GHz 4.9GHz 5.2GHz 5.2GHz 5.3GHz 5.3GHz 5.0GHz 4.7GHz 4.7GHz 5.1GHz 5.1GHz 5.0GHz 4.8GHz 4.6GHz 4.6GHz 4.9GHz 4.9GHz 4.8GHz 4.6GHz 4.4GHz 4.4GHz 4.7GHz 4.7GHz 4.5GHz 4.5GHz 4.4GHz 4.3GHz 4.3GHz ✖ ✖
36MB 36MB 36MB 36MB 36MB 36MB 36MB 36MB 36MB 36MB 36MB 30MB 30MB 30MB 30MB 30MB 30MB 30MB 33MB 33MB 33MB 33MB 30MB 30MB 30MB 30MB 25MB 25MB 25MB 25MB 24MB 24MB 24MB 24MB 24MB 20MB 20MB 24MB 24MB 24MB 24MB 20MB 20MB 20MB 20MB 18MB 18MB 18MB 18MB 12MB 12MB 12MB 12MB 12MB 12MB 12MB 6MB 4MB
Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel		 Dual-
channel
258GB 192GB 192GB 192GB 192GB 192GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 256GB 256GB 192GB 192GB 192GB 192GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 256GB 256GB 192GB 192GB 192GB 192GB 192GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 192GB 192GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB
6,400MHz 5,600MHz 5,600MHz 5,600MHz 5,200MHz 5,200MHz 5,600MHz 5,600MHz 5,600MHz 5,600MHz 5,600MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 6,400MHz 6,400MHz 5,600MHz 5,600MHz 5,200MHz 5,200MHz 5,600MHz 5,600MHz 5,600MHz 5,600MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 6,400MHz 6,400MHz 5,600MHz 5,600MHz 5,200MHz 5,200MHz 5,200MHz 5,600MHz 5,600MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz 4,800MHz
✖ 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz ✖ ✖ 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz ✖ ✖ 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz ✖ ✖ ✖ ✖
20 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 20 / 4 / 0 20 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 20 / 4 / 0 20 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0 16 / 4 / 0
✓ ✓ ✓ ✖ ✓ ✖ ✓ ✓ ✖ ✓ ✖ ✓ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✓ ✖ ✓ ✖ ✓ ✓ ✓ ✖ ✓ ✓ ✓ ✓ ✓ ✖ ✓ ✖ ✓ ✖ ✓ ✓ ✖ ✓ ✓
✓ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✓ ✓ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✓ ✓ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖
125W 150W 125W 125W 65W 65W 150W 125W 125W 65W 65W 150W 125W 125W 65W 65W 125W 125W 125W 125W 65W 65W 65W 65W 125W 125W 65W 65W 125W 125W 125W 125W 65W 65W 65W 65W 65W 65W 65W 65W 65W 125W 125W 65W 65W 65W 65W 60W 60W 65W 65W 65W 65W 65W 46W 46W 46W 46W
Specifications
Core Specifications
Edition TUF GAMING Z890-PLUS WIFI
Form Factor ATX
CPU Socket 1851
Chipset Intel Z890
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8600(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Support Software RAID 0, 1, 5, 10
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 4 x 4-pin System Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt 4 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen 2 Type-A
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x 802.11be WiFi 7 + BT5.4
Rear I/O Connectors
  • 1 x BIOS FLASHBACK+ Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Line In/Mic In
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Thunderbolt 4
  • 3 x USB 3.1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN157017
Model Number BX80768265K / 90MB1IQ0-M0EAY0
GTIN 5032037282062
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
intel
Telephone:
0870 607 2439
Loading Please Wait

Please wait . . .

Buying Guide
Need help choosing the right board? Read our Intel Motherboard Buying Guide
ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
ASUS TUF GAMING Z890-PLUS WIFI + Intel Ultra 7 265K Bundle
