Scan code: LN141515 Manufacturer code: TUF GAMING Z790-PRO WIFI

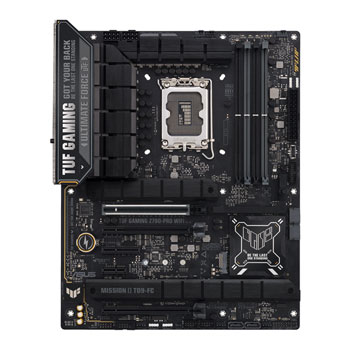

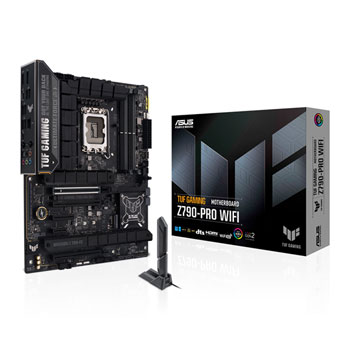

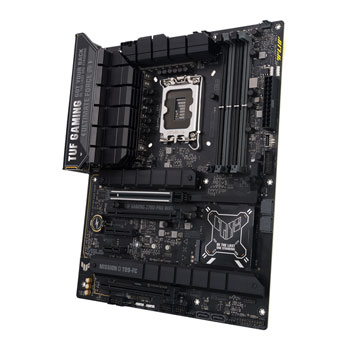

ASUS Intel Z790 TUF GAMING PRO WIFI PCIe 5.0 DDR5 ATX Motherboard

ASUS TUF GAMING Z790 PRO WIFI, Intel Z790, S 1700, DDR5, SATA3, PCIe 5.0, 4x M.2, 2.5GbE, ax WiFi/BT, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS Intel Z790 TUF GAMING PRO WIFI PCIe 5.0 DDR5 ATX Motherboard Thumbnail 2 : ASUS Intel Z790 TUF GAMING PRO WIFI PCIe 5.0 DDR5 ATX Motherboard Thumbnail 3 : ASUS Intel Z790 TUF GAMING PRO WIFI PCIe 5.0 DDR5 ATX Motherboard Thumbnail 4 : ASUS Intel Z790 TUF GAMING PRO WIFI PCIe 5.0 DDR5 ATX Motherboard
Scan code: LN141515 Manufacturer code: TUF GAMING Z790-PRO WIFI
Order by 8:30 PM today and get it tomorrow
£379.99
Get it Tomorrow, 13 JunIn stock
From £18.56 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £34.43
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £379.99
Total inc. interest: £413.11
Monthly Payment: £18.56
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £379.99
Total inc. interest: £445.27
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.10 / month (APR 19.9%)
Delivery Options
  • By DPD On 13th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS TUF GAMING Z790-PRO WIFI Intel ATX Motherboard

ASUS ROG Maximus Z790 Dark Hero ATX Motherboard

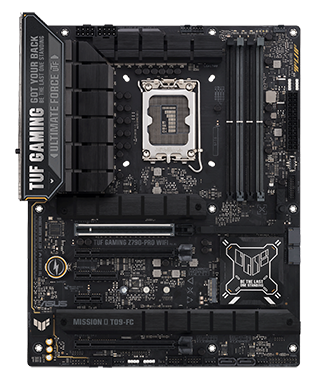

GET READY FOR THE NEWEST GENERATIONTUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberised emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.

Intel Z790Chipset

LGA 1700CPU Socket

Supports 13th & 14th GenIntel® Core™ Processors

ATXForm Factor

Teamed Power Architecture

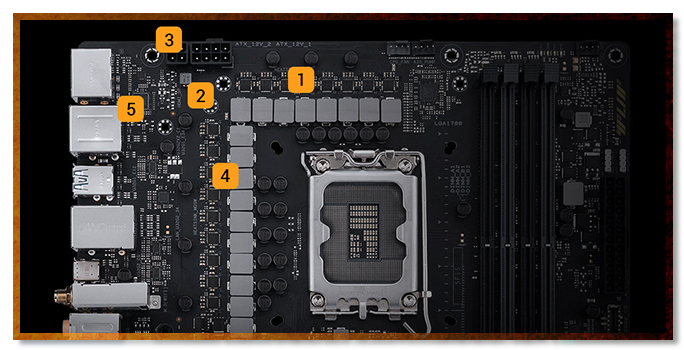

Breakdown

1 - Premium Power Delivery16+1+1 power stages are each rated to handle up to 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

2 - Six-Layer PCB DesignThe multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

3 - 8+8 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

4 - TUF ComponentsCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

5 - Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Push Frequency and Timings to the Max

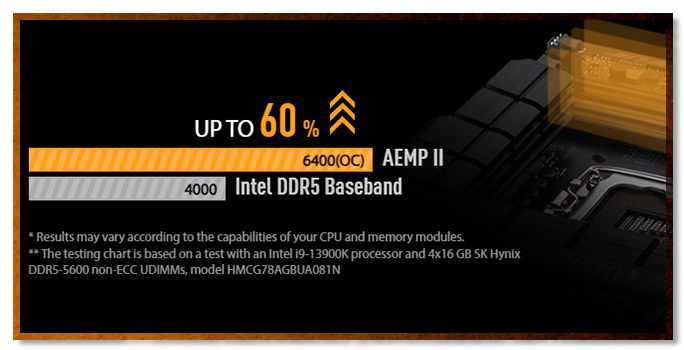

Unleash DDR5 with AEMP IIASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature that allows users to achieve supreme memory performance and compatibility with optimised clock speeds, even when they're using PMIC-restricted memory modules that do not provide an XMP or EXPO profile. Developed through a flexible training method, AEMP II simplifies the process of fine-tuning memory settings beyond the baseline configuration, all while ensuring system stability. This applies whether you are maximizing the potential of an entry-level module or preparing a high-speed kit for ultimate performance. Now, AEMP II offers even more flexibility. With the latest firmware update, AEMP II allows users to optimise the performance of a four-DIMM DDR5 RAM configuration, even with a mixture of different brands and dies. Increasing the memory capacity of your build by adding additional DIMMs has never been easier — with AEMP II, you can get optimised memory performance even when all four memory modules are not an exact match, provided that all four DIMMs have the same capacity.

Breakdown

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

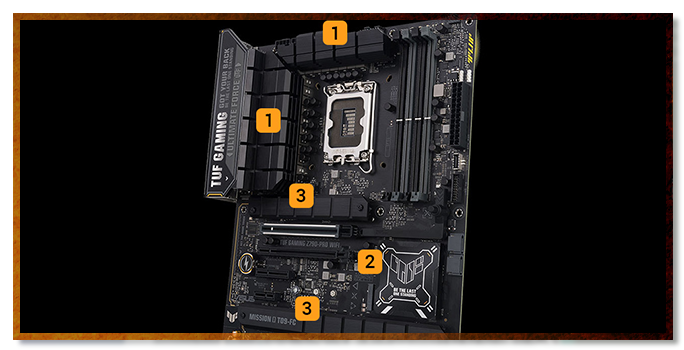

Expert Thermal Management

Breakdown

1 - Enlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve thermal performance.

2 - Superb PCH HeatsinkAn expanded surface area for the chipset cooler maximises system performance and heat dissipation.​

3 - Optimised M.2 Heatsink DesignThree of the four M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

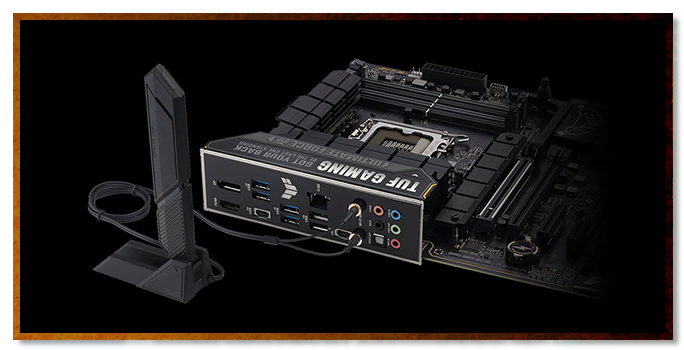

Supreme Networking Capability

Networking

WiFi 6EOnboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.

ASUS WiFi Q-AntennaDual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

Two-Way AI Noise Cancellation

Two-Way AI Noise Cancellation

Powerful AudioThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.

500MDeep-Learning Database

AUDIOInput/Output

HIGHFidelity

MinimalPerformance Impact

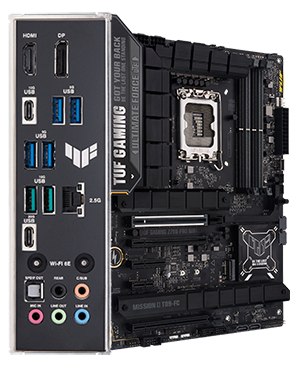

Ultra Fast Connectivity

Two-Way AI Noise Cancellation

USB 20Gbps (Type-C®)Extensive USB support ensures connections to a wide array of external devices. This TUF GAMING motherboard includes a USB Type-C port on the rear I/O panel that delivers transfer speeds of up to 20 Gbps.

PCIe 5.0The latest Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks.

Front USB 20Gbps (Type-C®)The TUF GAMING Z790-PRO WIFI features a USB 20Gbps Type-C® front panel connector for speedy data transfers up to 20 Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30 watts of quick charging.

Thunderbolt™(USB4®) SupportThe TUF GAMING Z790 series features Thunderbolt 4 support via an on-board header. This motherboard can also enable bi-directional speeds of up to 40 Gbps on a single cable with the use of an Intel-certified ASUS ThunderboltEX 4 add-on card.

Take Control of Your Rig

Armoury Crate

Armoury Crate Armoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.


*Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

AI OVERCLOCKING​

AI OVERCLOCKING​Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

Specifications
Core Specifications
Edition TUF GAMING Z790-PRO WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via RAID 0/1/10/5 (Intel RSTe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 4 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Intel (2.5GbE LAN)

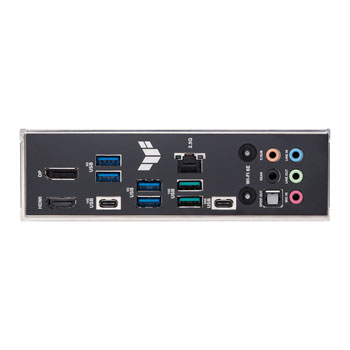

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi / Bluetooth Module
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 x 49 mm
Note
Additional Information
Scan Code LN141515
Model Number TUF GAMING Z790-PRO WIFI
GTIN 4711387340844
