Scan code: LN114066 Manufacturer code: TUF GAMING Z590-PLUS

ASUS Intel Z590 TUF GAMING Z590-PLUS PCIe 4.0 ATX Motherboard

ASUS TUF GAMING Z590-PLUS, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, 2.5GbE, USB 3.2 Gen 2 A+C, ATX

Thumbnail 1 : ASUS Intel Z590 TUF GAMING Z590-PLUS PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS Intel Z590 TUF GAMING Z590-PLUS PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS Intel Z590 TUF GAMING Z590-PLUS PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS Intel Z590 TUF GAMING Z590-PLUS PCIe 4.0 ATX Motherboard
Scan code: LN114066 Manufacturer code: TUF GAMING Z590-PLUS
£234.98
Order now and receive it by Tuesday, 15th June
From £11.28 / month (APR 14.9%)
Monthly Payment: £21.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £234.98
Total inc. interest: £253.15
Monthly Payment: £11.28
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £234.98
Total inc. interest: £270.71
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

TUF GAMING Z590-PLUS Intel ATX Motherboard from ASUS

topimage

Durable, Stable and Reliable ASUS TUF GAMING Z590-PLUS takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING Z590-PLUS sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Intel Z590Chipset

LGA 1200CPU Socket

ATXForm Factor

TUF Gaming Power Design

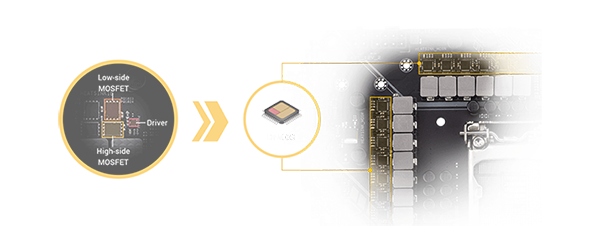

DrMOSThe onboard VRM of TUF GAMING Z590 series motherboards utilize 14+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.

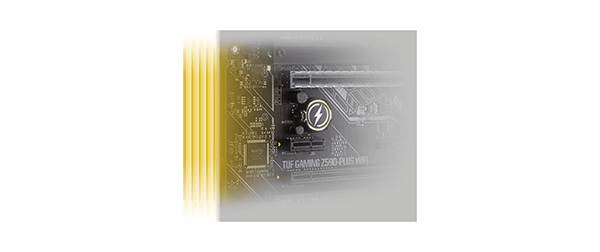

6-layer PCB DesignMultiple PCB layers shift heat away from critical components, providing more headroom to push CPUs beyond stock speeds.

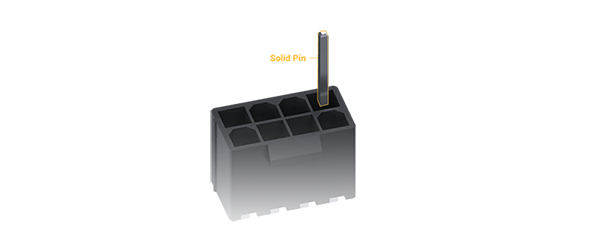

Enhanced EATX 4-Pin and 8-Pin ConnectorsCompared with traditional power inputs, ProCool connectors are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

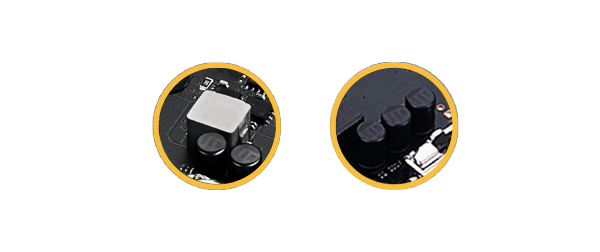

TUF Chokes and CapacitorsCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.

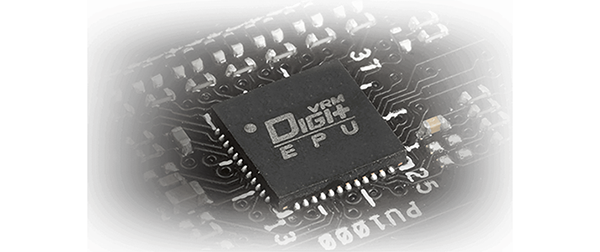

Digi+ VRM The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Built to Take the Strain

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING Z590 series motherboards are the perfect foundation for your next high-core-count battle rig.

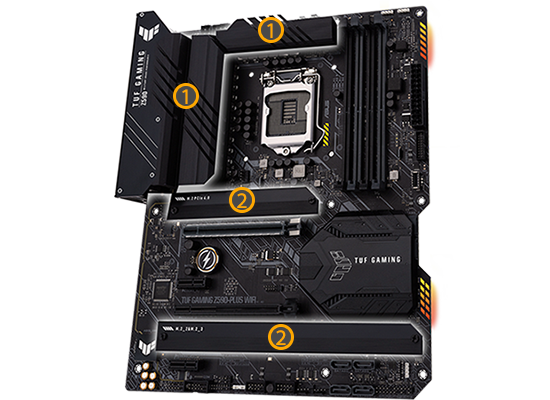

1.6X larger VRM heatsink The extensive surface area of the large, high-mass heatsink covers the VRM and choke to improve heat dissipation. The total surface area of the VRM heatsink is 1.6X that of the previous generation.

2. Three M.2 slots with heatsinks Each M.2 slot has a dedicated heatsink keep the M.2 SSDs at optimum operating temperature to ensure consistent performance and reliability.

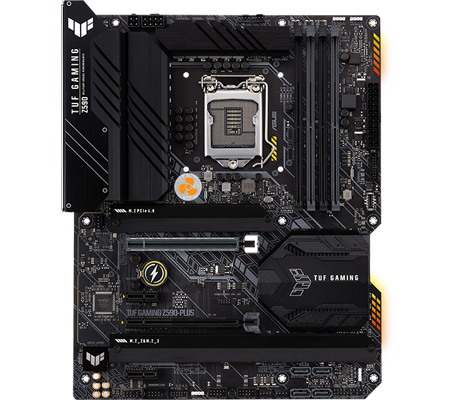

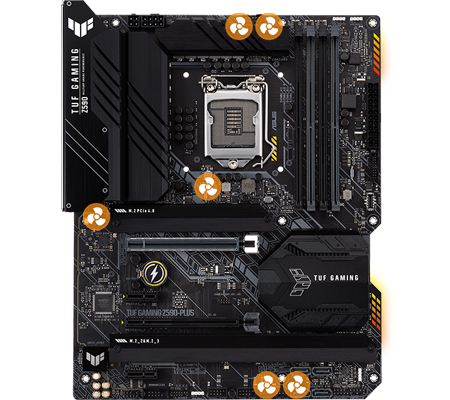

Comprehensive Fan Controls

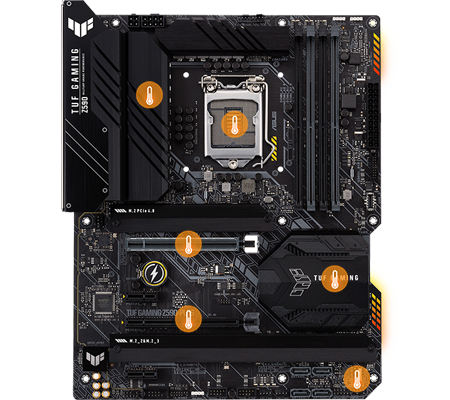

Multiple temperature sourcesEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI. ​

AiO water-cooling setAn integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.

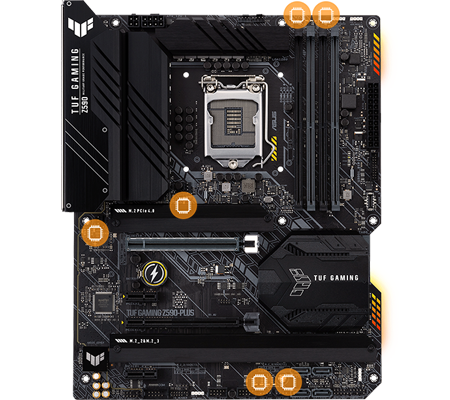

4-pin PWM/DC fanAll onboard chassis fan headers support auto-detection of PWM or DC fans.

protection

Smart protection A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

Excellent Memory and Storage Capabilities

back

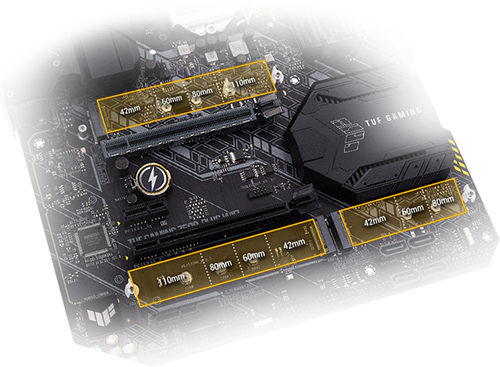

PCIe 4.0 M.2 (up to 64 Gbps)TUF GAMING Z590 series motherboards feature PCIe 4.0 M.2 and NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage to enjoy the fastest data-transfer speeds on the 11th Gen Intel Core processors.

back

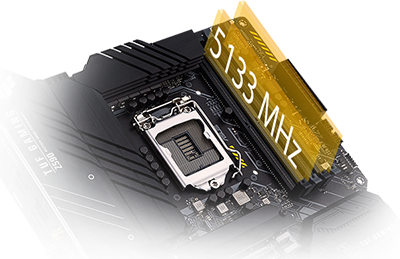

DRAM Overclocking Performance Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

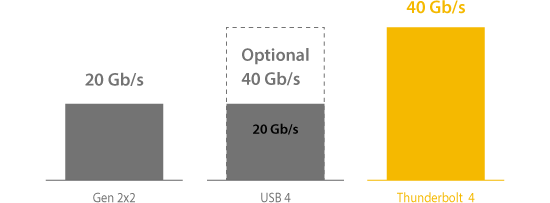

Make the most with Thunderbolt™ 4

M.2 Support

USB 3.2 Gen 2x2 Type-C TUF GAMING Z590 series feature Thunderbolt™ 4 support via an on-board header. With latest Intel-certified ASUS ThunderboltEX 4 add-on card, TUF GAMING Z590-PLUS WIFI can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Extensive USB support ensures connections to a wide array of peripherals. TUF GAMING Z590-PLUS WIFI includes USB 3.2 Gen 2x2 Type-C® that deliver increased bandwidth and transmission speeds of up to 20 Gbps.

TUF Protection for your Motherboard

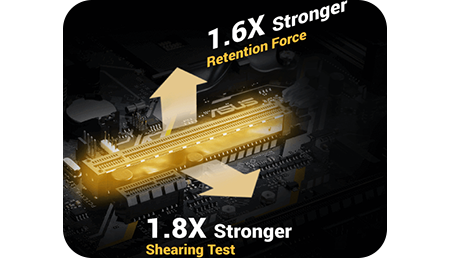

SafeSlot Protection SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

esd guards

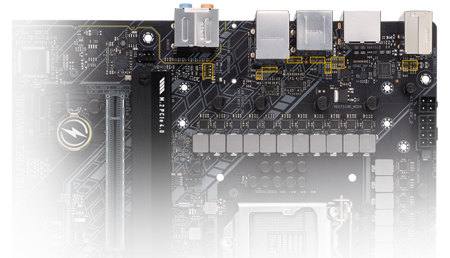

ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.

TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

protection

DRAM Overvoltage Protection Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

protection

Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

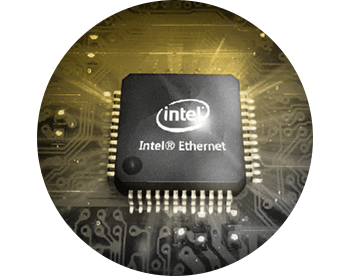

Intel® 2.5 Gb Ethernet

back

MyASUS offers a variety of support featuresOnboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.

Two-Way AI Noise Cancelation

4K Recording

500M Deep-learning database

Audio Input/output

High Fidelity

Minimal Performance impact

Excellent Gaming Audio This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls. The unique audio codec designed in close collaboration with Realtek for TUF Gaming Z590 series motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.

Outshine the Competition with ASUS Aura Sync

2 X Addressable Gen 2 RGB Headers

2 X RGB Headers

Your Motherboard, Your Way A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware. The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

Breathe

Breathe

Colour cycle

Colour Cycle

Smart Cycle

Smart Cycle

EQ Effect

Equaliser

Rainbow Effect

Rainbow

Stars Effect

Starry Night

Static Effect

Static

Strobing Effect

Strobing

Specifications
Core Specifications
Edition TUF GAMING Z590-PLUS
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400
  • DDR4 - 4500
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x System panel connector
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN114066
Model Number TUF GAMING Z590-PLUS
GTIN 4711081111252
