Scan code: LN107134 Manufacturer code: TUF GAMING Z490-PLUS (WI-FI)

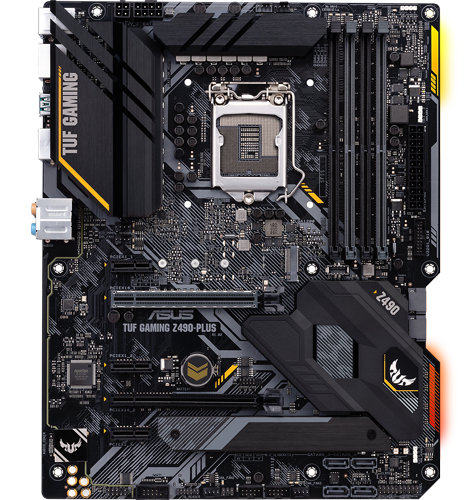

ASUS Intel Z490 TUF GAMING (Wi-Fi) Z490-PLUS ATX Motherboard

ASUS TUF GAMING Z490-PLUS (Wi-Fi), Intel Z490, S 1200, DDR4, SATA3, Dual M.2, CrossFire, ax WiFi/GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS Intel Z490 TUF GAMING (Wi-Fi) Z490-PLUS ATX Motherboard Thumbnail 2 : ASUS Intel Z490 TUF GAMING (Wi-Fi) Z490-PLUS ATX Motherboard Thumbnail 3 : ASUS Intel Z490 TUF GAMING (Wi-Fi) Z490-PLUS ATX Motherboard Thumbnail 4 : ASUS Intel Z490 TUF GAMING (Wi-Fi) Z490-PLUS ATX Motherboard
Scan code: LN107134 Manufacturer code: TUF GAMING Z490-PLUS (WI-FI)
£219.98
Order now and get it tomorrow, Thu 16th Jul
From £10.56 / month (APR 14.9%)
Monthly Payment: £38.18
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £229.03
Monthly Payment: £19.75
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £236.97
Monthly Payment: £13.62
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £245.11
Monthly Payment: £10.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £253.38
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

TUF Z490 PLUS (Wi-Fi) 10th Generation Intel ATX Motherboard from ASUS

Durable, Stable and Reliable Introducing the TUF Gaming Z490 PLUS (Wi-Fi) Motherboard from ASUS. TUF Gaming Z490-Plus (Wi-Fi) distills essential elements of the latest Intel® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Intel Z490Chipset

LGA 1200CPU Socket

ATXForm Factor

Built to Take the Strain

Power Delivery Enhancements

POWER DELIVERY ENHANCEMENTS From digital power control and an array of power stages to military-grade TUF components, TUF Gaming Z490-Plus is armed to tame the latest 10th Gen Intel® CPUs.

1. DrMOS The onboard VRM of TUF Gaming Z490-Plus utilises 12+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 10th Gen Intel® Core™ processors demand.

2. 6-Layer PCB Design Multiple PCB layers shift heat away from critical components, providing more headroom to push CPUs beyond stock speeds.

3. ProCool SocketsSuperior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

4. TUF ComponentsSuperior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

4. Digi+ VRMThe integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Unprecedented Thermal Dominance

Heatsinks

1. VRM heatsink A custom-made low-noise fan efficiently cools the area around the VRM by up to 12°C to give you more overclocking headroom, and it can also now be turned on or off via the UEFI BIOS. To ensure longevity, the fan utilises durable bearings with an impressive 60,000-hour L10* lifespan.

2. M.2 Heatsink The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.​

Comprehensive Fan Controls

Heatsinks

Tune and Tweak your way TUF Gaming Z490-Plus features comprehensive fan controls that can be configured via Fan Xpert 4 utility or via the award-winning ASUS UEFI BIOS.​

Heatsinks

Multiple temperature sourcesEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

Heatsinks

AiO water-cooling setAn integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.

Heatsinks

4-pin PWM/DC fanAll onboard headers support auto-detection of PWM or DC fans.

Get the Most from your Memory with Optimem II

Optimem

DDR4 OC 4600 MHz+ Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Support for Two M.2 Drives

M.2 Support

Maximum compatibilityDual M.2 slots support data-transfer speeds of up to 32 Gbps on the x4 PCI Express® 3.0 bandwidth, making it perfect for OS or application drives for quicker boot-up and app load times.

Next-Generation Connectivity

4K Recording

ThunderBolt 3 Support Footage is captured at a wonderful 4K and new to the GH5S, Cinema 4K, an alternative that records at a pure 24 frames-per-second, 19:10 aspect ratio, giving you the ultimate look and feel of video that is destined for the cinema. The difference between the GH5S and other DSLR or DLSM cameras, is that at any resolution, you can record indefinitely, as long as the battery and storage are.

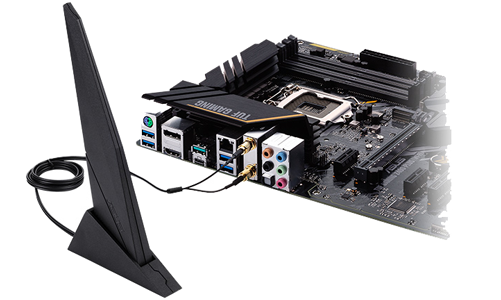

Now featuring Wi-Fi 6

4K Recording

Intel® WiFi 6 AX201The Intel® WiFi 6 AX201 module is compatible with the 802.11ax standard and pushes peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Outshine the Competition with ASUS Aura Sync

Your Motherboard, Your Way A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Breathe

Breathe

Colour cycle

Colour Cycle

Smart Cycle

Smart Cycle

EQ Effect

Equaliser

Rainbow Effect

Rainbow

Stars Effect

Starry Night

Static Effect

Static

Strobing Effect

Strobing

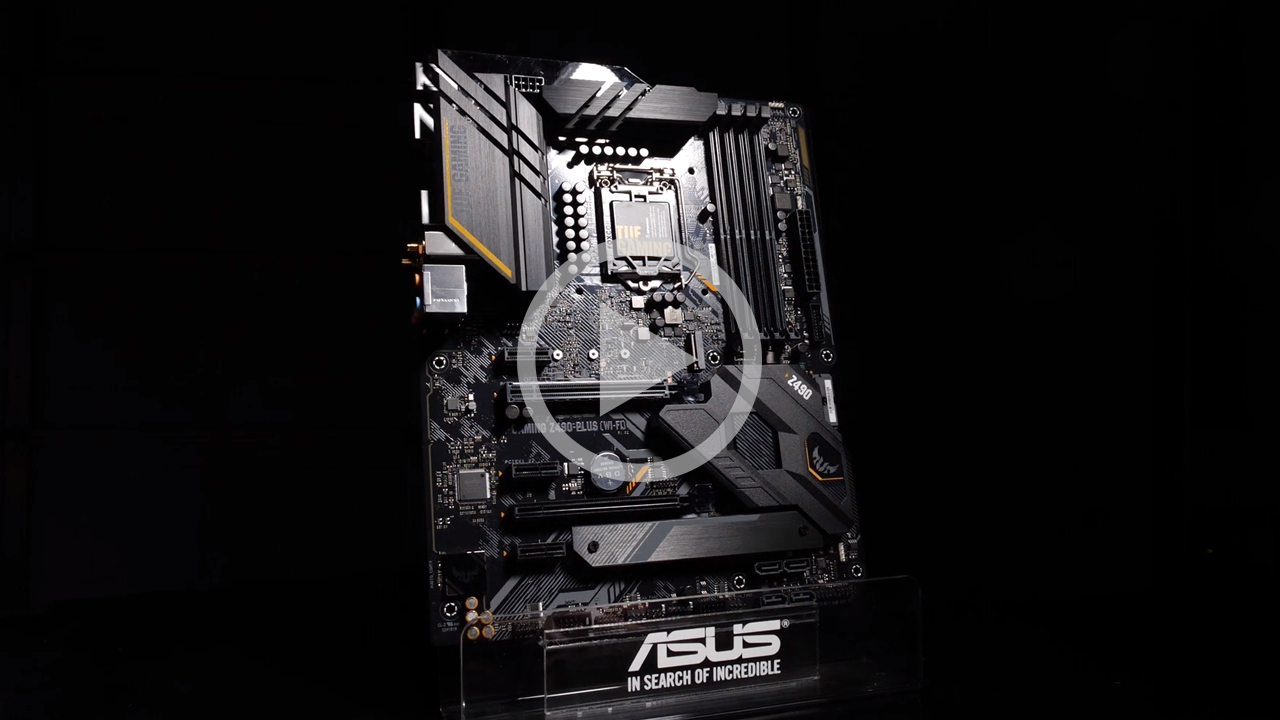

Discover the Features of the TUF GAMING Z490 Plus

ROG Z490-E Gaming Video
Specifications
Core Specifications
Edition TUF GAMING Z490-PLUS (Wi-Fi)
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 5.1 Audio I/O
  • 1 x DisplayPort 1.4
  • 1 x HDMI 1.4b
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN107134
Model Number TUF GAMING Z490-PLUS (WI-FI)
GTIN 4718017678179
