Scan code: LN111875 Manufacturer code: TUF GAMING X570-PRO (WI-FI)

ASUS AMD Ryzen TUF GAMING X570 PRO WIFI AM4 PCIe 4.0 ATX Motherboard

ASUS TUF GAMING X570-PRO (Wi-Fi), AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, 2.5GbE/WiFi 6, USB 3.2, ATX

Thumbnail 1 : ASUS AMD Ryzen TUF GAMING X570 PRO WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen TUF GAMING X570 PRO WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen TUF GAMING X570 PRO WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen TUF GAMING X570 PRO WIFI AM4 PCIe 4.0 ATX Motherboard
Scan code: LN111875 Manufacturer code: TUF GAMING X570-PRO (WI-FI)
£239.99
Order by 8:30 PM today and get it tomorrow
From £11.52 / month (APR 14.9%)
Monthly Payment: £21.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £258.53
Monthly Payment: £11.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £276.46
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS TUF GAMING X570-PRO (Wi-Fi) AM4 ATX Motherboard

Pro Wifi

Durable. Stable. Reliable. The TUF Gaming X570-PRO (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability. The X570-PRO boasts next generation connectivity with PCIe 4.0 support for the GPU and dual M.2 slots as well as support for Type-C connectivity combined with the exclusive onboard 2.5G intel LAN, Wi-Fi 6 and Bluetooth 5.1 technology you have everything you need to ensure your connections and performance are stable enough to handle the latest AAA games. This motherboard isn't just functional it has also been designed to be aesthetically pleasing it's sleek black form with bright yellow accents is reinforced with subtle RGB lighting which can be combined with Aura Sync to allow you to synchronise your lighting across a vast portfolio of compatible PC gear, This is your motherboard now it's time to make your mark.

AMD X570Chipset

AM4Socket

3rd/2nd/1st GEN AMD RYZENCPU Compatibility

ATXForm Factor

ASUS Power Design Motherboard

powerconnector

Driver and Mosfet The TUF Gaming X570-PRO (Wi-Fi)'s CPU VRM utilises 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

controller

6-Layer PCB Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds

Procool Sockets Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

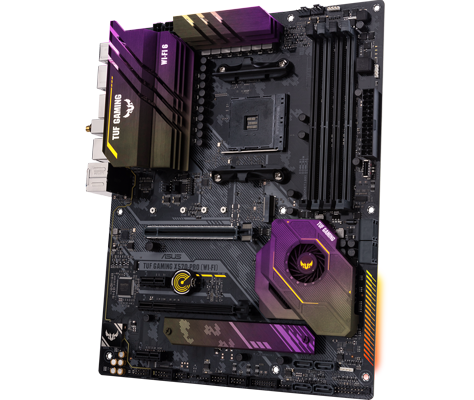

Cooler by Design

VRM HeatsinkLarge, high-mass heatsink with extensive surface that covers the VRM and choke areas.

Active Chipset HeatsinkA chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

M.2 HeatsinkThe M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

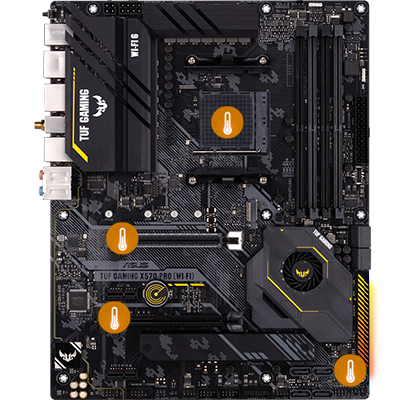

Thermometer sensors

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.​

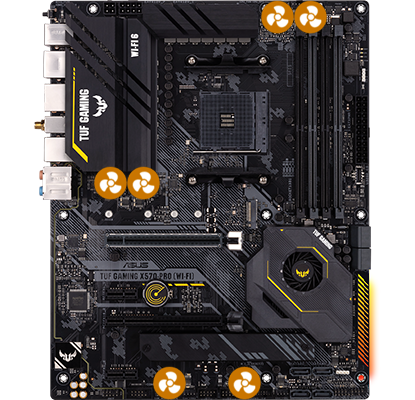

Fan detectors and headers

4-pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.

 bundled extension card

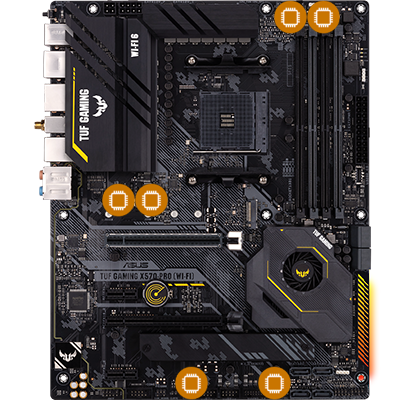

Smart Protection A dedicated integrated circuit protects each fan header from overheating and overcurrent.

The Software that gives you Complete Control

ASUS Armory CrateArmoury Crate is a new software utility designed to give you centralised control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for unified system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

Get the Transfer Speeds you Deserve

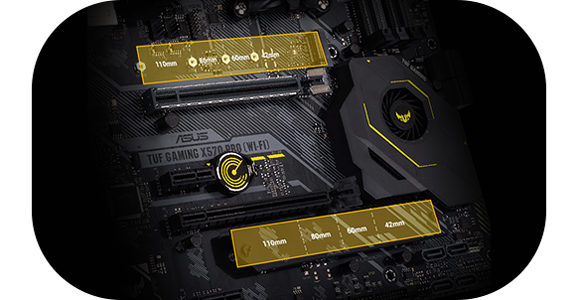

Dual M.2

Dual PCIe 4.0 M.2Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

Protection for Your PCIe Slots

ASUS Safeslot

ASUS SafeSlotSafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Next Generation Wireless Connectivity

Wi-FI 6 Support

Intel® WiFi 6 AX200The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimised for more efficient operation on crowded networks with a lot of competing traffic.

Connections at your Fingertips

RearI/O

Little Things Make a Big Difference

Trustworthy Stability and Compatibility TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

OVervoltage Protection

Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Stainless-Steel Back I/O

LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Specifications
Core Specifications
Edition TUF GAMING X570-PRO (WI-FI)
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5100(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-30/42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN111875
Model Number TUF GAMING X570-PRO (WI-FI)
GTIN 4718017900324
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
