ASUS TUF GAMING Intel H570-PRO WIFI PCIe 4.0 ATX Motherboard

ASUS TUF GAMING H570-PRO WIFI, Intel H570, S 1200, DDR4, PCIe 4.0, SATA3,3x M.2, 2.5GbE, Wi-Fi 6, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS TUF GAMING  Intel H570-PRO WIFI PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS TUF GAMING  Intel H570-PRO WIFI PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS TUF GAMING  Intel H570-PRO WIFI PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS TUF GAMING  Intel H570-PRO WIFI PCIe 4.0 ATX Motherboard
Scan code: LN114073 Manufacturer code: TUF GAMING H570-PRO WIFI
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

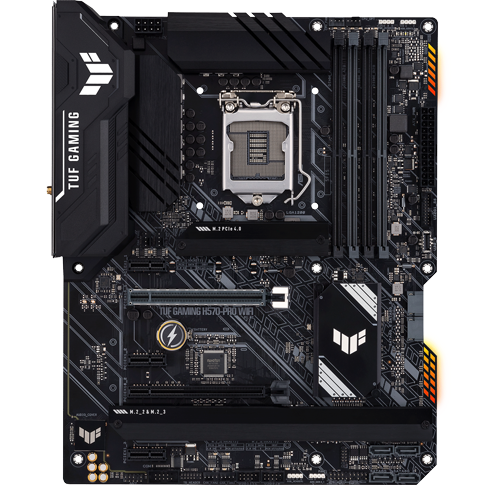

TUF GAMING H570-PRO WiFi Intel ATX Motherboard from ASUS


Durable. Stable. Reliable. Introducing the all-new TUF Gaming H570-PRO WIFI ATX motherboard from ASUS. The TUF Gaming H570-PRO WIFI distills essential elements of the latest Intel® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance – an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Intel H570Chipset

LGA 1200CPU Socket

10th & 11th GenerationIntel Compatible Processors

ATXForm Factor

Built to Take the Strain

POWER DELIVERY ENHANCEMENTS With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING H570-PRO series motherboards are the perfect foundation for your next high-core-count battle rig.

Power Design

DRIVER AND MOSFET The onboard VRM of TUF GAMING H570-PRO series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.

Power Design

Enhanced EATX 8-Pin Connector Compared with traditional power inputs, ProCool connectors are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Power Design

TUF COMPONENTSCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.

Power Design

DIGI+ VRMThe integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Power Design

6-LAYER PCB DESIGN Multiple PCB layers shift heat away from critical components, providing more headroom to push CPUs beyond stock speeds.

Cooler by Design

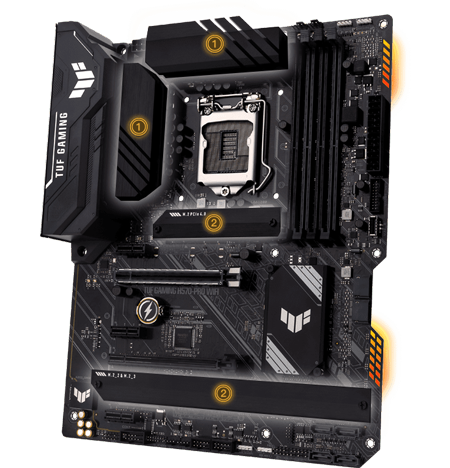

Cooling Design

1. Larger VRM heatsinkThe extensive surface area of the large, high-mass heatsink covers the VRM and choke to improve heat dissipation.

Thermal PadHigh-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

2. 3x M.2 slots with heatsinksEach M.2 slot has a dedicated heatsink keep the M.2 SSDs at optimum operating temperature to ensure consistent performance and reliability.

Comprehensive Fan Controls

Fan Controls

MULTIPLE TEMPERATURE SOURCESEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

Fan Controls

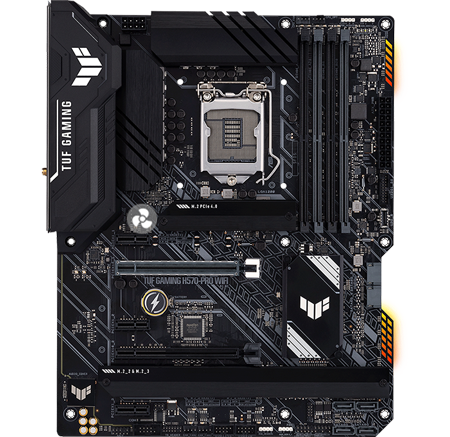

AIO WATER-COOLING SETAn integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.

Fan Controls

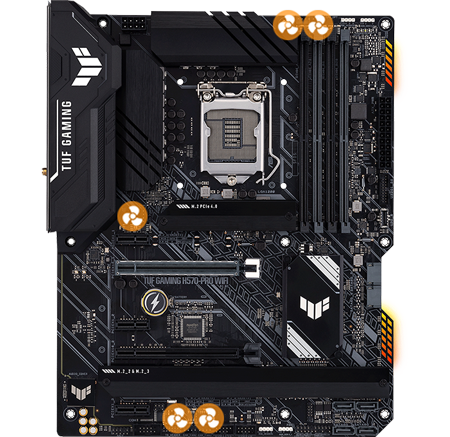

4-PIN PWM/DCAll onboard chassis fan headers support auto-detection of PWM or DC fans.

Fan Controls

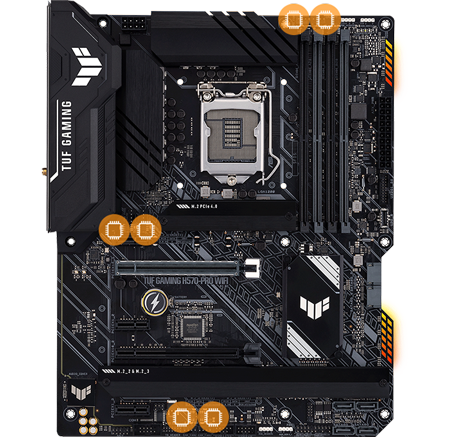

SMART PROTECTIONA dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

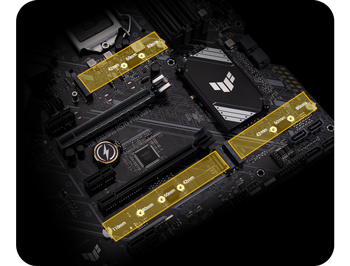

Lightning-Fast Storage with M.2 Slots

M.2 Support

PCIe 4.0 M.2 (up to 64 Gbps)TUF H570-PRO series motherboards feature PCIe 4.0 M.2 and NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage to enjoy the fastest data-transfer speeds on the 11th Gen Intel Core processors.

*Actual transmission speed will be lower than theoretical maximum speed.
**The M.2_1 supports PCIe 4.0, and the M.2_2 and M.2_3 support PCIe 3.0.

Get the Most from your Memory

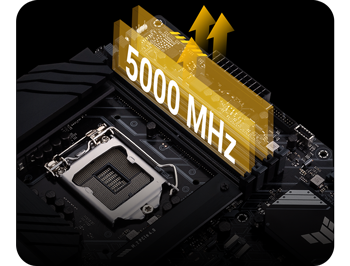

DRAM Overclocking PerformanceRevisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Outshine the Competition

Aura Sync

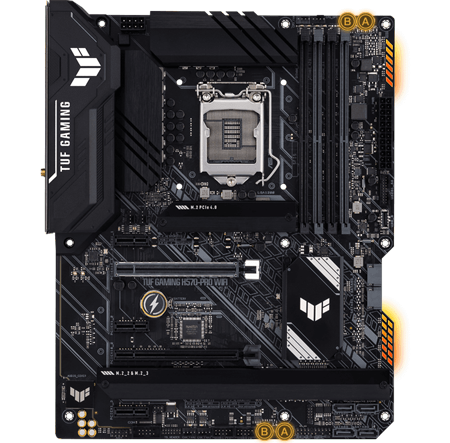

A) Addressable Gen 2 RGB Header B) RGB HeaderA well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

Get the Most from your Connectivity with Thunderbolt™ 4


INCLUDES USB 3.2 Gen 2x2 Type-CExtensive USB support ensures connections to a wide array of peripherals. TUF H570-PRO WIFI includes USB 3.2 Gen 2x2 Type-C® that deliver increased bandwidth and transmission speeds of up to 20 Gbps. TUF GAMING H570 series feature Thunderbolt™ 4 support via an on-board header. With latest Intel-certified ASUS ThunderboltEX 4 add-on card, TUF GAMING H570-PRO WIFI can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

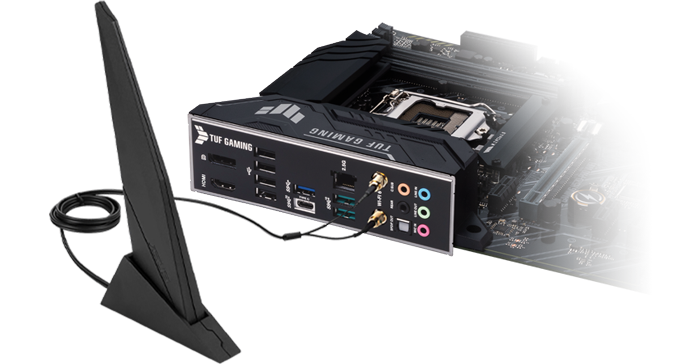

Networking with Intel Wi-Fi 6


TURBO LAN & 2.5 Gigabit EthernetThe Intel® WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag. Exclusive 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement.
